Photovoltaic Circuit Breakers are key components in modern solar power systems, providing dependable DC protection for installations of all sizes. Designed to safely interrupt fault currents and prevent overload or short circuit conditions, these breakers ensure stable and efficient solar energy operation. Naile Electric Co., Ltd., a professional China-based manufacturer of low-voltage electrical equipment, offers a comprehensive range of photovoltaic circuit breakers engineered for durability and consistent performance across diverse solar applications.
With decades of experience in circuit protection and power distribution, we deliver products that meet the demanding requirements of industrial, commercial, and renewable energy sectors. Our focus on innovation and quality management ensures every breaker provides dependable protection for solar installations worldwide.
Naile Electric’s photovoltaic circuit breakers are designed for superior performance and reliability in DC protection. Their compact design fits tight installation spaces, while high breaking capacity handles the strong currents typical of solar systems. Long service life and resistance to harsh environmental conditions make them ideal for both indoor and outdoor use.
High breaking capacity for effective fault interruption in solar DC circuits.
Compact and modular structure for easy installation and maintenance.
Excellent mechanical endurance ensuring long-term reliability.
Stable operation under high temperatures and UV exposure.
Compliant with international safety standards for photovoltaic DC protection.
Our strict quality management and continuous product innovation reinforce Naile Electric’s reputation as a trusted supplier of photovoltaic DC protection solutions. Ongoing R&D ensures customers benefit from advanced and efficient solar power protection devices.
We offer a diverse selection of photovoltaic circuit breakers designed to meet varying system requirements. Each model is optimized for PV circuit protection and supports different voltage and current ratings, ensuring compatibility with a wide range of solar configurations.
| Model Type | Rated Voltage (V DC) | Current Range (A) | Breaking Capacity (kA) | Application |
|---|---|---|---|---|
| Standard PV Breaker | 250–1000 | 10–125 | 6–10 | Solar panel strings and combiner boxes |

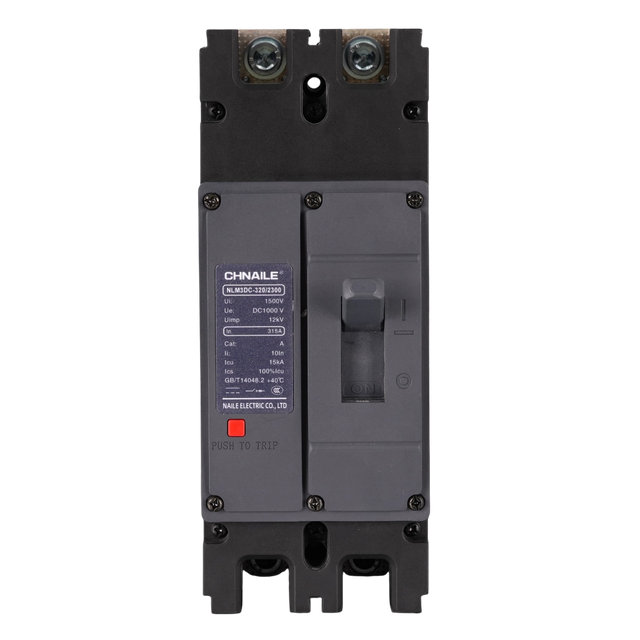

| High-Capacity PV Breaker | 1000–1500 | 63–250 | 15–25 | Central inverters and large PV installations |

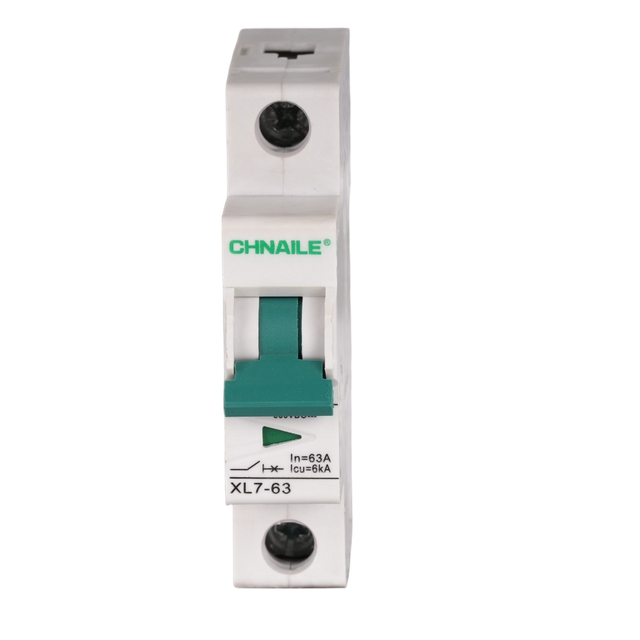

| Miniature DC Breaker | ≤500 | 1–63 | 6 | Residential solar systems and small DC circuits |
Each product ensures reliable PV circuit protection and can be integrated into both new and existing solar systems. The modular design allows flexible installation and simplified maintenance, supporting efficient energy management.
Naile Electric’s photovoltaic circuit breakers are widely used in solar power systems for safe and efficient DC protection. These breakers are indispensable in solar array combiner boxes, inverter input circuits, and energy storage systems. They safeguard components and wiring from electrical faults, ensuring consistent energy generation and operational safety.
Typical applications include:
Industrial and commercial photovoltaic installations.
Residential rooftop solar systems.
Battery storage and hybrid solar systems.
Solar farms and centralized inverter stations.
By preventing system failures and minimizing downtime, our breakers enhance the reliability and efficiency of renewable energy projects. For updates on solar product innovations, visit Naile Electric’s latest news.
Choosing the correct photovoltaic circuit breaker is essential for maintaining safe and efficient solar system performance. The selection process should consider system voltage, current rating, and installation environment. Proper sizing ensures optimal DC protection and compliance with safety standards.
| Selection Factor | Recommendation |
|---|---|
| System Voltage | Select a breaker rated slightly above the maximum DC voltage of the PV system. |
| Rated Current | Match the breaker’s rated current to the expected circuit load. |
| Breaking Capacity | Ensure sufficient capacity to safely interrupt potential fault currents. |
| Installation Environment | Choose models with high endurance for outdoor or high-temperature use. |
Naile Electric’s technical team provides expert advice to help clients choose the most suitable DC circuit breaker for solar applications. Customers can contact Naile Electric for personalized selection guidance and professional support.
As a professional manufacturer of low-voltage electrical equipment, Naile Electric combines advanced production technology, strict quality control, and continuous innovation to deliver dependable photovoltaic circuit breakers. Our extensive product portfolio covers air, molded case, and miniature circuit breakers, making us a one-stop supplier for complete power protection solutions.
We serve a broad range of industries, including power distribution, renewable energy, petrochemical, and infrastructure sectors. Our commitment to integrity, quality, and customer service has earned long-term trust across domestic and international markets.
For partnership inquiries or detailed product information, reach out to Naile Electric – a reliable manufacturer of photovoltaic circuit breakers and comprehensive solar DC protection solutions.
A photovoltaic circuit breaker is a DC protection device that interrupts overcurrent or short circuit faults in solar systems. It ensures safe operation by isolating faulty circuits and preventing damage to panels, inverters, or battery systems.
Yes. Naile Electric’s photovoltaic circuit breakers are suitable for residential, commercial, and industrial solar power systems. They can be integrated into rooftop installations, ground-mounted arrays, and large-scale solar farms.
Important factors include rated voltage, current capacity, breaking capacity, and environmental endurance. Compatibility with the system’s DC voltage and installation layout is also essential.
We maintain a comprehensive and scientific quality management system that governs every stage of production, from component selection to final testing. This ensures each breaker meets the highest reliability standards for solar DC protection.
Yes. We provide customization options for specific voltage levels, current ratings, and installation requirements to suit different photovoltaic system designs. For project-specific consultations, customers can contact Naile Electric’s technical team.
