ACB Short-Circuit Ratings: Effects on Switchgear Design

Views: 0     Author: Site Editor     Publish Time: 2026-09-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Specifying low-voltage switchgear represents a high-stakes engineering reality. A single miscalculation in primary breaker ratings risks either catastrophic facility failure or severe capital overspend. Facility managers and engineers cannot afford compromises here. You must accurately match the ACB short circuit rating to your facility's prospective fault conditions. Getting this alignment right ensures critical safety, strict regulatory compliance, and long-term equipment longevity.

We will explore the crucial transition from theoretical electrical parameters to practical, physical layout constraints. You will learn how precise fault analysis directly influences breaker selection. We also examine how these specific ratings dictate panel footprint and overall system resilience. Read on to master the foundational metrics driving modern switchgear architectures.

Key Takeaways

  • Precision dictates cost: Specifying an ACB short circuit rating safely above prospective fault limits prevents enclosure rupture, while avoiding arbitrary over-specification controls panel footprint and CAPEX.

  • Ics over Icu for uptime: For mission-critical facilities, prioritizing the Service Short-Circuit Breaking Capacity (Ics) ensures the breaker remains operable after clearing a fault.

  • Structural impacts: High fault currents generate severe electro-dynamic forces; ACB ratings directly dictate the required busbar bracing and enclosure rigidity in switchboard design.

  • Selectivity is non-negotiable: Proper ACB evaluation must include integration with downstream electrical protection to isolate faults and maximize power availability.

The Business & Safety Case for Accurate Fault Current Analysis

Unchecked fault current causes immense thermal and mechanical stress. These extreme forces can quickly destroy unprotected panels. Left unmanaged, such incidents lead to devastating arc flash events, severe non-compliance penalties, and extended facility downtime. Engineers must accurately evaluate prospective fault levels at the main incomer. This baseline calculation forms the bedrock of safe power distribution.

Under-sizing your main breakers introduces immediate physical danger. Breakers failing to interrupt peak fault currents risk catastrophic outcomes. Contacts often weld shut under extreme heat. Explosive physical failures can rupture the switchboard enclosure entirely. Furthermore, if a main breaker fails to clear a localized fault, upstream systemic blackouts occur. You lose entire operational grids because a single, under-sized component failed its primary duty.

Conversely, arbitrarily over-sizing components creates massive financial inefficiency. Inflating required ratings results in unnecessarily large physical breaker frames. These massive breakers demand thicker copper busbars and wider enclosures. The resulting budget bloat drains capital expenditures unnecessarily. You end up paying for interrupt capacities your transformer physics could never actually generate.

We define success through precision. You achieve a verifiable, compliant match when the utility or transformer prospective short-circuit current strictly aligns with tested interruption limits. Engineers calculate the exact short-circuit current (Isc) and select a breaker safely exceeding this value. This balanced approach protects human life, safeguards physical assets, and optimizes capital budgets.

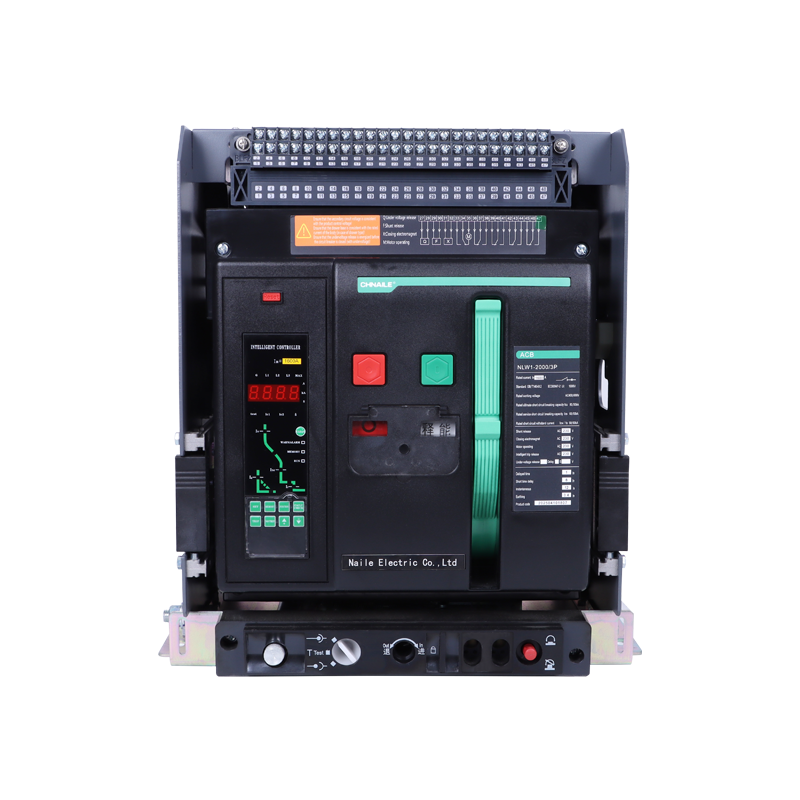

ACB Switchgear Design

Decoding Core ACB Ratings: Icu, Ics, and Icw

Understanding fundamental air circuit breaker parameters prevents specification errors. These three metrics define how equipment responds under extreme electrical stress. We rely on IEC 60947-2 standards to categorize these interruption capabilities clearly.

Ultimate Short-Circuit Breaking Capacity (Icu)

The Ultimate Short-Circuit Breaking Capacity defines the maximum fault current the ACB can safely interrupt exactly once. Think of Icu as the absolute survival limit of the device. We use this evaluation lens to validate safe clearing operations during worst-case scenarios. The breaker will clear the fault without causing a catastrophic explosion. However, it may sustain severe internal damage requiring complete replacement afterward.

Service Short-Circuit Breaking Capacity (Ics)

The Service Short-Circuit Breaking Capacity represents the maximum fault current the breaker can interrupt multiple times while returning to normal service. Manufacturers express Ics as a percentage of the ultimate capacity, typically 50%, 75%, or 100%. We prioritize this rating for continuous process facilities like hospitals and data centers. High service ratings ensure operators can safely reclose the breaker and restore power immediately, minimizing replacement downtime.

Short-Time Withstand Current (Icw)

The Short-Time Withstand Current denotes the maximum current the breaker can carry for a specific short duration. This duration usually lasts between one and three seconds while the contacts remain fully closed. This parameter proves crucial for time-based selectivity. It allows downstream devices sufficient time to clear the localized fault first. The main breaker absorbs the massive thermal and mechanical stress without nuisance tripping.

Table: Standard Rating Evaluation Matrix

Rating Parameter

Primary Definition

Operational Implication

Target Application Priority

Icu

Maximum current interrupted once safely.

Prevents catastrophic equipment explosion.

Absolute baseline safety for all installations.

Ics

Current interrupted multiple times reliably.

Allows immediate power restoration.

Mission-critical facilities requiring zero downtime.

Icw

Current withstood for 1 to 3 seconds.

Enables downstream devices to clear faults.

Complex networks requiring full selectivity.

How ACB Ratings Dictate Switchboard Design and Footprint

Theoretical breaker metrics translate directly into physical dimensions and material requirements. Proper switchboard design heavily depends on these parameters.

  • Electro-Dynamic Stress on Busbars: A higher short circuit limit implies a much higher peak let-through current. When massive currents flow, they generate intense electromagnetic repulsion between parallel busbars. This reality requires heavier busbar bracing, tighter support spacing, and specialized high-strength insulators. These physical reinforcements prevent copper deformation during a severe fault event.

  • Thermal Dissipation Requirements: Components handling extreme fault currents generate massive heat almost instantaneously. Panels must feature adequate ventilation routing. We must engineer sufficient phase-to-phase spacing and expand arc-chute clearances. Proper cooling channels ensure plasma safely vents outside the primary insulation zones.

  • Enclosure Integrity and Arc Flash Containment: Clearing a massive fault creates an explosive expansion of hot gases. Switchboard structures must physically withstand this rapid internal pressure spike. Designers utilize thicker gauge steel, reinforced hinges, and pressure-relief flaps. These elements contain the arc flash safely, protecting nearby personnel.

  • Form Factor Constraints: Breakers built to handle massive currents naturally feature larger mechanical footprints. Huge arc chutes and robust operating mechanisms take up space. These dimensions directly impact the final modularity of the lineup. A 6300A breaker requires a significantly deeper and wider panel section than a 2000A equivalent.

Common mistakes in layout planning usually stem from ignoring these physical realities early in the design phase. You cannot simply drop a higher-rated breaker into a standard cabinet without recalculating thermal and structural limits.

Selectivity and Coordination: Ensuring Power Availability

Effective system architecture relies on intelligent coordination. Operating as the main incomer, the primary breaker sits at the top of the hierarchy. It must coordinate seamlessly with downstream Molded Case Circuit Breakers (MCCBs) and Miniature Circuit Breakers (MCBs). We design this hierarchy to isolate faults precisely where they occur.

Engineers achieve this through careful Time-Current Curve (TCC) alignment. We utilize the main breaker's withstand rating alongside advanced trip unit settings. Modern units offer Long, Short, Instantaneous, and Ground (LSIG) adjustable parameters. You set the main incomer to delay its trip response just long enough for the smaller downstream breaker to react. This ensures the device closest to the fault trips first.

Chart: Basic LSIG Protection Coordination Summary

Protection Type

Function

Coordination Goal

Long Time (L)

Overload protection (thermal).

Protect cables from gradual overheating.

Short Time (S)

Delayed short circuit protection.

Provide time for downstream breakers to trip.

Instantaneous (I)

Immediate short circuit protection.

Clear massive, catastrophic faults instantly.

Ground Fault (G)

Earth leakage protection.

Prevent equipment damage and fire risks.

Outcome-focused evaluation remains the primary goal. Achieving total selectivity guarantees localized short circuits do not trigger the main incomer. A shorted motor in a remote sub-panel should never plunge the entire facility into darkness. Strong electrical protection strategies isolate the damage, prevent full-facility blackouts, and protect your revenue-generating operations seamlessly.

Evaluation Criteria: Shortlisting ACBs for Your Facility

Selecting the right equipment requires a systematic approach. You must bridge the gap between theoretical calculations and commercially available hardware. Follow these steps to ensure accurate and reliable procurement.

  1. Step 1: Baseline the Network: You must first obtain certified short-circuit studies and transformer impedance data. This empirical data establishes the absolute minimum ultimate capacity requirement for your main incomer. Never guess these values.

  2. Step 2: Define Availability Requirements: Mandate high service ratings for zero-downtime environments. Data centers require 100% service capacity to ensure immediate resets. However, you should assess if lower ratios work for non-critical commercial applications. This flexibility often saves substantial upfront capital.

  3. Step 3: Assess Smart Capabilities: Evaluate the internal trip units for native communication protocols. Modern facilities require Modbus or IEC 61850 integration. Advanced power quality metering supports predictive maintenance, alerting operators to degrading insulation before catastrophic failures occur.

  4. Step 4: Verify Compliance: Ensure your specified hardware holds valid third-party certifications. Look for IEC 60947-2 or UL 1066 marks applicable to your installation region. Compliance protects you from legal liability and guarantees tested performance.

Next-Step Action: Engage with a qualified panel builder or OEM engineering team early in your project. Request they simulate TCC coordination curves. Finalize dimensional drawings based on your shortlisted frame sizes to prevent layout clashes later.

Conclusion

Primary breaker ratings transcend simple component specifications. They represent the foundational metrics governing the safety, physical architecture, and overall budget of the entire switchgear assembly. Misunderstanding these parameters jeopardizes both human life and facility uptime.

We recommend basing all hardware specifications on empirical, certified facility data. Always prioritize high service and withstand parameters to ensure long-term operational resilience. Robust hardware prevents minor electrical faults from cascading into catastrophic systemic failures.

You should proactively consult your engineering partner today. Request a comprehensive technical sizing review before finalizing your procurement documents. Precision at the specification stage guarantees safety, compliance, and lasting reliability across your electrical infrastructure.

FAQ

Q: What is the difference between Icu and Ics in an air circuit breaker?

A: Icu represents the maximum fault current the breaker can safely clear once, though it may sustain permanent damage. Ics represents the fault current it can clear multiple times while remaining fully operational. Critical facilities demand high Ics ratings to ensure rapid power restoration without replacing hardware.

Q: How does a high fault current affect switchboard design?

A: High fault currents create immense mechanical and thermal stresses. These massive electromagnetic forces require the switchboard to feature heavily reinforced busbar bracing. Designers must also incorporate increased physical clearances, enhanced ventilation routing, and stronger enclosure materials to safely contain potential arc flash pressure.

Q: Why is the Icw rating important for electrical protection?

A: Icw stands for Short-Time Withstand Current. It allows the main breaker to safely hold a massive fault for a fraction of a second without tripping. This intentional delay gives downstream, smaller breakers sufficient time to clear the specific localized fault, thereby preventing a total system blackout.

Q: Can I specify an ACB with a rating lower than the prospective fault current?

A: No. Installing a breaker with a rating lower than the calculated maximum prospective fault current violates fundamental electrical codes. Doing so poses severe fire, explosion, and life-safety risks, as the breaker will catastrophically fail to interrupt the energy flow during a major short circuit.
