A Strategic Manufacturing Alliance for Global DC Switchgear Panel Builders
The rapid global pivot towards renewable energy has fundamentally transformed the requirements of low-voltage electrical manufacturing. Constructing a Main DC Distribution Board or a utility-scale Solar Combiner Box capable of safely managing 250 Amperes at a staggering DC 1000 Volts requires components that defy standard alternating current (AC) limitations. Switchgear manufacturers and panel builders do not merely need a circuit breaker; they require a deeply integrated supply chain solution that mitigates catastrophic DC arc risks, optimizes internal cabinet geometry, and guarantees strict regulatory compliance.
At CHNAILE, our operational philosophy is strictly B2B-focused: your success in the competitive renewable switchboard market is our primary objective. We do not compete with our partners for end-user installation contracts; we serve as your dedicated manufacturing engine. The CHNAILE 2-Pole 250A DC Molded Case Circuit Breaker (MCCB) is explicitly engineered for the workshop assembly floor. It addresses the exact electro-dynamic and spatial pain points that assembly technicians and structural enclosure designers face daily when working with high-voltage direct current. By integrating our 1000V DC MCCBs into your proprietary electrical panels, you elevate your brand's capability to secure the most lucrative, heavy-industrial, and government-level solar and BESS (Battery Energy Storage System) infrastructure bids worldwide.
Mastering DC Arc Suppression and Optimizing Enclosure Architecture
For a professional panel builder, direct current presents a terrifying physical challenge. Unlike AC, which crosses a zero-voltage threshold naturally, DC flows relentlessly. A fault at DC 1000V creates a sustained, violently explosive plasma arc that can easily vaporize standard switchgear and melt through steel enclosures. We engineered the NLM3DC-250 Series specifically to neutralize this threat while streamlining your factory assembly process.
1500V Dielectric Firewall for Spatial Optimization:
A defining, revolutionary feature of this 250A DC titan is its extraordinary Rated Insulation Voltage (Ui) of 1500V, coupled with an 8kV impulse withstand rating (Uimp). For panel structural engineers, this is a game-changer. This extreme dielectric strength prevents internal flashovers and carbon tracking within the breaker block. Consequently, it allows your mechanical designers to safely reduce the required "creepage and clearance" distances inside the panel. You can design significantly narrower, shallower, and more tightly packed Solar Combiner Boxes or DC microgrid cabinets, slashing your sheet metal fabrication costs and giving you a highly competitive, compact product to offer your clients.
100% Ics=Icu Reliability (15kA Arc Vaporization):
In the realm of DC protection, an Ics (Service Breaking Capacity) rating that equals 100% of the Icu (Ultimate Breaking Capacity) is the hallmark of elite engineering. Rated at 15kA for both, this MCCB utilizes specialized permanent magnetic blow-out arrays and oversized arc chutes to violently stretch and extinguish 15,000-Ampere DC plasmas in milliseconds. For a panel builder, this means you can guarantee to your clients that even after clearing a devastating short circuit, the breaker’s internal contacts remain structurally intact and fully capable of resuming 250A continuous service without requiring immediate, costly replacement.
Category A Instantaneous Magnetic Trip (Ii = 10In):
DC battery banks and solar arrays can discharge massive, instantaneous fault currents. This breaker is classified as Category A, meaning it is designed for instantaneous tripping without intentional delay. Calibrated with a magnetic trip threshold of 10 times the nominal current (2500A), it ensures that your custom-built distribution panels react with lightning speed to catastrophic DC dead-shorts, isolating the danger before thermal damage occurs to your expensive internal copper busbars.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your profit margins.
Private Labeling and Faceplate Branding:
Elevate your corporate identity in the renewable energy sector. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the MCCB faceplates. Instructional safety labeling and packaging can be tailored to match your specific corporate design guidelines. Your clients will receive a world-class DC distribution panel carrying your trusted brand name.
Certified Quality to Fast-Track Your Panel Certifications:

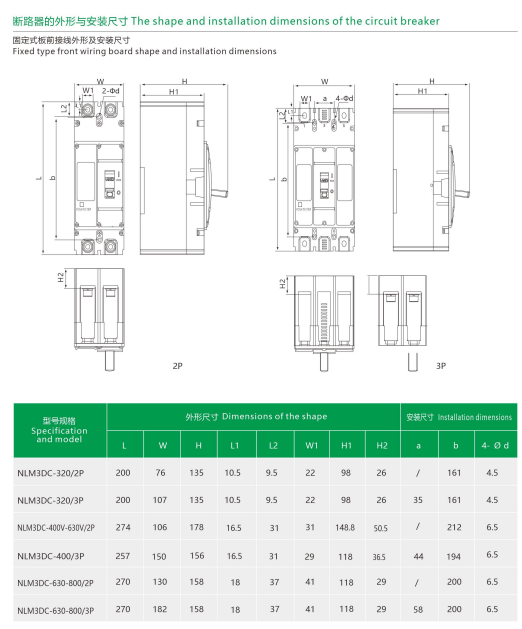

Winning major commercial renewable energy bids requires your completed switchgear to pass strict regional certifications. Our DC MCCBs are rigorously tested in state-of-the-art high-voltage laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your compliance departments with all necessary technical documentation, dimensional CAD drawings, and test reports, significantly accelerating the certification process for your custom DC switchgear assemblies.
Maximizing Your Bill of Materials (BOM) Profitability:
Relying on intermediary trading companies for high-voltage DC components leads to supply chain delays and inflated costs. By sourcing these specialized 250A DC MCCBs directly from our highly automated manufacturing lines in China, you secure aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on mega-scale solar bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production.
Target Enclosure Applications for Panel Builders
This 250A DC MCCB is the ultimate spec-in component for manufacturers constructing:
Utility-Scale Solar Combiner Panels: Main DC disconnects routing power from multiple solar strings to central inverters.
BESS DC Distribution Cabinets: Critical isolation switchboards within containerized lithium-ion battery storage farms.
EV Supercharging Hub Power Centers: Centralized DC power routing panels supplying multiple Level-3 DC fast-charging dispensers.
Industrial DC Microgrid Switchboards: Heavy-duty DC distribution panels for advanced automated manufacturing plants utilizing direct current busbars.
