How Do ACB Trip Units Improve Selective Coordination?

Selective coordination is not just a technical ideal. It is a critical requirement for facility uptime and strict code compliance. Imagine a single downstream fault happening in a sub-panel. You naturally expect a local breaker to clear it safely. Instead, upstream main breakers trip prematurely. A minor isolated issue suddenly triggers a devastating, cascading blackout across the entire facility. This exact scenario highlights why outdated protection systems fail under pressure. You need a reliable mechanism to isolate electrical faults strictly to the affected zone. Enter the modern ACB trip unit. It serves as the primary tool for shaping Time-Current Curves (TCC). This advanced technology intelligently delays or accelerates tripping based on real-time data. By upgrading your infrastructure, you effectively quarantine faults. You also protect upstream systems from catastrophic nuisance tripping. Throughout this guide, we will explore how these electronic units maximize system reliability and safeguard operations.

Key Takeaways

• Localized Fault Clearing: Properly configured ACB trip units ensure downstream breakers clear faults before upstream breakers react, preventing total facility power loss.

• Precision via LSI: Transitioning from thermal-magnetic to electronic LSI trip units provides granular control over long-time, short-time, and instantaneous trip bands.

• Compliance and Safety: Advanced protection coordination is mandatory for critical power systems (e.g., NEC requirements for emergency systems) to maintain life safety and operational continuity.

• Engineering Pre-requisite: Reliable configuration relies on a formal power system coordination study to map exact TCC parameters before deployment.

The Operational Risk of Poor Protection Coordination

The cascading failure problem remains one of the most severe threats to large electrical networks. When a short circuit occurs at a downstream motor control center, the local breaker should open immediately. However, overlapping trip curves complicate this process. If the main incoming breaker senses the same fault current, it might react faster than the local device. The upstream breaker trips, severing power to the entire distribution board. Engineers call this phenomenon nuisance tripping. A localized issue unnecessarily plunges unrelated departments into darkness.

This lack of coordination carries immense business impact. Uncoordinated tripping translates directly into unscheduled downtime. Assembly lines halt unexpectedly. Data centers lose server availability. Healthcare facilities face dangerous interruptions to critical care equipment. Furthermore, sudden large-scale power losses subject transformers and motors to severe electrical and mechanical stress. Restoring power after a cascading failure also introduces serious safety hazards. Maintenance personnel must manually inspect multiple zones to locate the original fault before re-energizing the system safely.

Older equipment simply cannot handle modern coordination requirements. Legacy limitations explain why these cascading failures happen frequently in older facilities. Electro-mechanical breakers and basic thermal-magnetic devices rely on physical bi-metal strips and magnetic coils. Their response curves remain fixed or offer very limited adjustability. You cannot reshape a physical bi-metal strip to avoid overlapping a downstream breaker's curve. As facilities expand and add complex loads, these rigid legacy devices fail to adapt. They create dangerous blind spots in your network. Implementing robust protection coordination requires abandoning these outdated mechanical constraints in favor of digital precision.

How the ACB Trip Unit Drives Precise Selectivity

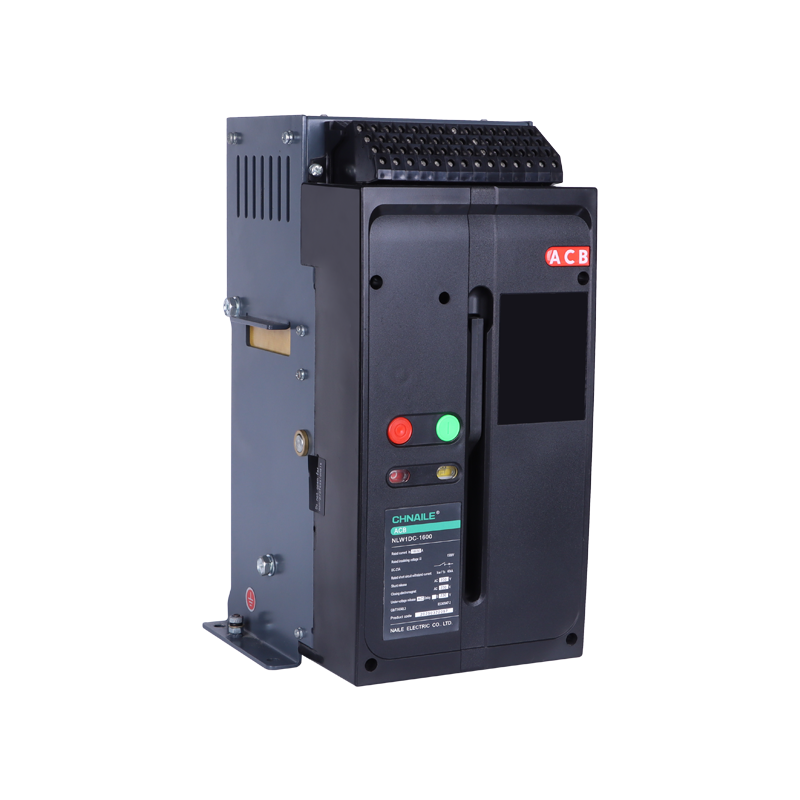

An electronic trip unit functions as the intelligent brain of an air circuit breaker. It actively monitors electrical current flowing through the phases. The mechanism relies on internal Current Transformers (CTs) or Rogowski coils. These sensors step down the massive primary current into manageable analog signals. Microprocessors inside the unit digitize and analyze these signals continuously. When the system detects an abnormality, the microprocessor compares the current against programmed thresholds. It then uses complex algorithms to decide whether to delay the response or execute a trip immediately. This digital processing removes the unpredictable variances found in mechanical relays.

Time-Current Curves (TCC) shaping is the primary method engineers use to achieve selectivity. A TCC plots current on the X-axis and time on the Y-axis using a log-log graph format. To coordinate a system, you must ensure "daylight" or visible clearance between the curves of downstream and upstream devices. If the curves cross or touch, you risk nuisance tripping. Modern electronic units allow you to independently adjust multiple points along the curve. You can bend the upper, middle, and lower sections of the response curve to perfectly nest over the downstream breaker's profile. This shaping guarantees the downstream device always trips first.

Zone Selective Interlocking (ZSI) takes this precision a step further. ZSI introduces an advanced capability where trip units actively communicate. Hardwired connections link downstream breakers to the main switchgear breaker. If a downstream device detects a high-level fault, it instantly sends a blocking signal upstream. This signal forces the main breaker to wait, granting the local device time to clear the fault. Conversely, if a fault occurs directly on the main busbar, no downstream device sees it. No blocking signal is sent. The upstream breaker recognizes this silence and trips instantly. ZSI drastically reduces arc flash incident energy while maintaining perfect coordination.

Evaluating LSI Trip Unit Parameters for Your Switchgear

Transitioning to a microprocessor-based LSI trip unit unlocks absolute control over your electrical network. The acronym LSI stands for Long-Time, Short-Time, and Instantaneous. Understanding these three parameters is essential for protecting equipment while maintaining selectivity.

L – Long-Time Delay

The Long-Time Delay setting provides critical overload protection. Its primary purpose is protecting insulated cables and busbars from sustained, low-level excess current. Such currents generate heat over time, degrading insulation and causing eventual thermal failure. The coordination factor here requires adjusting both the current pickup (Ir) and the time delay (tr). You must set these values high enough to ride through normal temporary surges. For example, large industrial motors draw massive inrush currents upon startup. The Long-Time Delay allows the breaker to ignore this brief inrush while still protecting the wire from genuine, prolonged overloads.

S – Short-Time Delay

The Short-Time Delay parameter delivers tailored short-circuit protection. It clears high-current faults while allowing a brief, intentional delay (tsd). This specific parameter forms the absolute core of selective coordination. By introducing a deliberate delay of a few milliseconds, you give the downstream breaker a crucial window of opportunity. The local breaker uses this fraction of a second to unlatch and clear the fault. The upstream device remains closed during this window. If the downstream breaker fails to operate, the Short-Time delay expires, and the upstream breaker acts as a backup.

I – Instantaneous

The Instantaneous setting handles high-level short-circuit protection. Its purpose is immediate, unconditional tripping. When a catastrophic fault occurs—such as a bolted fault generating tens of thousands of amps—the system cannot afford to wait. The Instantaneous setting (Ii) overrides all timers to prevent catastrophic equipment destruction and dangerous arc blasts. The main coordination factor involves managing these instantaneous override thresholds carefully. If you set the Instantaneous pickup too low on the main breaker, it will conflict with the short-time delay settings of downstream devices. Engineers must push the Instantaneous threshold high enough to allow downstream coordination, without exceeding the physical withstand rating of the switchboard.

LSI Parameter Overview

Implementation Realities and System Constraints

A digital trip unit possesses incredible capability, but it requires intelligent programming. The necessity of formal coordination studies cannot be overstated. An adjustable unit is only as good as the engineering study behind it. Settings must never be guessed or left at factory defaults. Engineers derive these settings from a rigorous power system analysis. They use specialized software to model the entire facility network. The study calculates fault currents at every node. It generates precise TCC graphs showing how every breaker interacts. You must deploy the exact settings dictated by this study to guarantee reliability.

Software settings offer tremendous flexibility, but physical breaker limits still dictate final outcomes. Coordination remains bound by the mechanical realities of the circuit breaker. Electronic units send trip signals in milliseconds. However, the physical mechanism still requires time to unlatch, separate the contacts, and extinguish the arc in the chute. Engineers refer to this as total clearing time. Furthermore, you cannot delay a trip indefinitely. Equipment has short-circuit withstand ratings (often measured in cycles). If you delay tripping longer than the equipment can physically endure the magnetic forces of a fault, the gear will literally tear itself apart. Coordination studies must respect these mechanical boundaries.

Code and compliance considerations heavily influence implementation. Standard commercial buildings benefit from selectivity, but certain environments mandate it by law. Healthcare facilities, critical data centers, and emergency response centers require strict adherence to regulatory standards. In the United States, NEC Article 700 (Emergency Systems) and Article 701 (Legally Required Standby Systems) explicitly mandate selective coordination. Inspectors require certified studies proving that a fault on a secondary branch will not compromise the main backup generator feed. Failing to coordinate these systems results in failed inspections and unacceptable risks to life safety.

Common Implementation Mistakes

• Ignoring Ground Faults: Coordinating phase currents but neglecting ground fault settings, leading to unexpected main breaker trips.

• Overlooking Motor Contributions: Failing to account for fault current pushed back into the system by large spinning motors during a short circuit.

• Factory Default Reliance: Leaving new trip units at their lowest default settings, causing immediate nuisance trips upon facility energization.

• Mismatching clearing times: Comparing the electronic sensing time of an upstream breaker directly against the mechanical clearing time of a downstream breaker.

Specifying the Right ACB Trip Unit: A Decision Framework

Selecting the optimal protection device requires evaluating your existing infrastructure against future needs. Facility managers often face the initial choice of Retrofit versus Replacement. You must establish criteria for deciding whether to upgrade the trip unit on an existing air circuit breaker or specify entirely new gear.

A retrofit makes sense if the mechanical chassis remains sound. If the contact wear indicators show plenty of life, and the operating mechanism tests cleanly, simply swapping the legacy trip unit for a modern electronic model provides massive benefits. It minimizes downtime during installation. However, if the breaker frame is decades old, parts are scarce, or the insulation shows signs of degradation, you should replace the entire assembly. Forcing a smart trip unit onto a failing mechanical frame creates a false sense of security.

Decision Steps for Specification

1. Assess Mechanical Integrity: Perform primary injection testing and inspect contact wear on the existing breaker chassis.

2. Define Protection Needs: Determine if you need standard LSI or if local codes mandate LSIG (which adds Ground fault coordination).

3. Determine Communication Requirements: Decide if you need native communication protocols for remote monitoring.

4. Verify Software Integration: Ensure the manufacturer provides verified TCC curves for standard modeling software.

Feature-to-Outcome mapping guides the specific model selection. Does the facility require basic LSI, or do you need LSIG? Adding ground fault protection (G) is critical for systems solidly grounded at 480V or higher, where low-level arcing faults can cause catastrophic fires before phase-protection reacts. Next, consider communication features. Is native communication via Modbus or Ethernet required? Modern facilities rely heavily on SCADA integration. Communicating trip units allow operators to monitor real-time power consumption, view alarm histories, and even adjust settings remotely without opening the panel doors.

Finally, evaluate vendor and ecosystem compatibility. Assess how well a specific unit integrates into your existing electrical infrastructure. Does the manufacturer supply verified equipment libraries for modeling software like SKM or ETAP? If the software cannot model the unit accurately, your engineers cannot coordinate it effectively. Ensure the physical dimensions, interface modules, and CT connections align with your existing panels.

Upgrading Strategy Comparison

Conclusion

An adjustable electronic trip unit serves as the undisputed linchpin for achieving localized fault clearing. By abandoning rigid mechanical relays and adopting digital precision, facilities can shape their protection profiles perfectly. This granular control maximizes facility uptime, ensures code compliance, and protects personnel from sudden cascading blackouts.

Before purchasing or configuring new protection devices, take immediate action to map your electrical reality. We strongly advise technical buyers and facility managers to commission a comprehensive, updated protection coordination study. Gather accurate data on fault currents and load profiles first. By pairing a rigorous engineering study with advanced LSI technology, you ensure every electrical fault remains isolated, protecting your broader operations from unnecessary disruption.

FAQ

Q: What is the difference between an LSI trip unit and a standard thermal-magnetic breaker?

A: A standard thermal-magnetic breaker relies on fixed, physically limited responses using bimetal strips and electromagnets. An LSI trip unit uses microprocessor-based adjustability. It actively analyzes digital current data, allowing engineers to program precise TCC mapping for long-time, short-time, and instantaneous parameters.

Q: Can selective coordination be achieved without Zone Selective Interlocking (ZSI)?

A: Yes, through time-based delays programmed into the short-time bands. However, ZSI allows for much faster clearing times at the main breaker while still maintaining tight coordination. This communication significantly reduces arc flash incident energy by eliminating intentional delays when faults occur near the main bus.

Q: How often should ACB trip unit settings be reviewed?

A: You should review settings during initial commissioning and whenever significant changes occur. If you add major motor loads, integrate backup generators, or modify downstream panels, the original fault current calculations change. An updated study guarantees your settings remain fully coordinated.
