Facility managers constantly face a difficult balancing act. You must minimize electrical downtime while ensuring strict safety compliance. You also need to maintain spatial efficiency within tight utility rooms. Relying on legacy components often puts these goals at risk. Traditional, single-use fuses simply fall short in modern applications. They suffer from delayed response times, demand frustrating replacement downtime, and generate continuous electronic waste. By contrast, a modern circuit breaker provides robust, dual-mechanism reliability. Miniature Circuit Breakers utilize both thermal and magnetic properties to catch electrical faults instantly. Upgrading to these modern devices is not merely a basic safety precaution. Evaluating these breakers requires looking far beyond simple circuit protection. You need to understand their profound impact on facility uptime, maintenance budgets, and long-term system scalability. We will explore the critical advantages these devices offer and how to select the precise specifications required for your facility.
Precision Protection: MCBs utilize independent thermal and magnetic mechanisms to isolate overloads and short circuits in as little as 0.04 seconds.
Application-Specific Tuning: Availability of distinct trip curves (B, C, D, K, Z) allows engineers to match breaker sensitivity to specific load types, from standard lighting to vulnerable semiconductors.
Operational ROI: Reusability, rapid reset capabilities, and 35mm DIN-rail modularity significantly reduce Mean Time To Recovery (MTTR) and panel space requirements.
Compliance Ready: Standardized adherence to IEC 60898-1 (residential/light commercial) and IEC 60947-2 (industrial) ensures reliable fault mitigation up to 10-16kA breaking capacities.
Legacy fuse systems introduce hidden operational penalties into your facility. When a traditional fuse blows, it creates immediate diagnostic delays. Maintenance personnel must physically locate the blown component inside a dark, crowded panel. Then, they must identify the correct amperage rating, source a replacement, and manually swap the part. This cumbersome process causes inconsistent responses to variable load surges. Furthermore, relying on single-use components drives up ongoing replacement budgets. Every blown fuse means extended machine downtime.

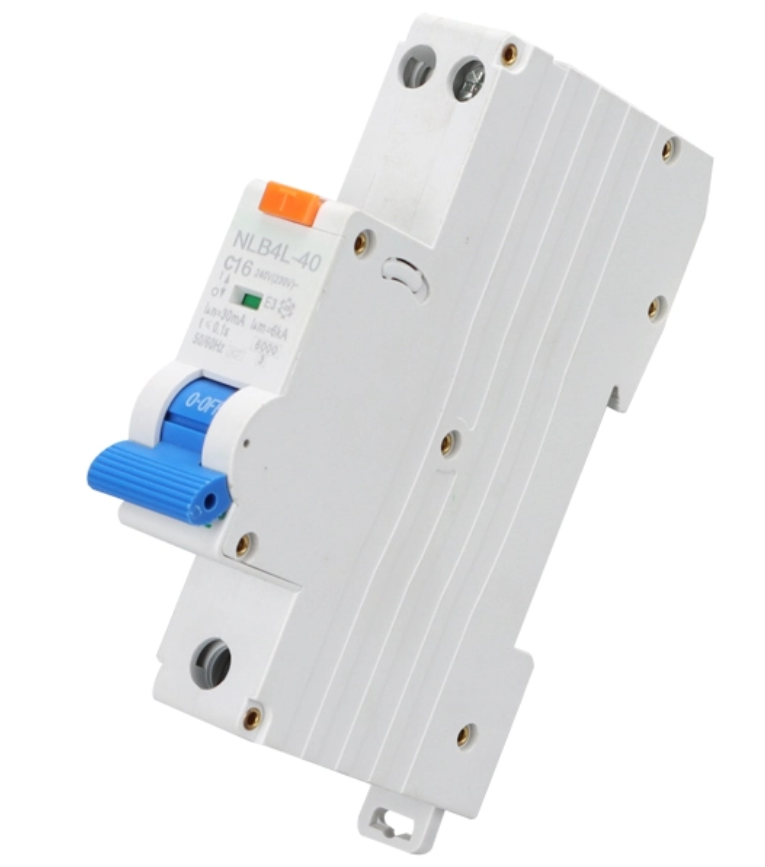

Modern breaker technology fundamentally changes this dynamic. These devices provide localized, highly precise fault isolation. They do not require any physical replacement after an event occurs. They address thermal overloads using internal bimetallic strips. These strips slowly heat up and bend during sustained overloads, eventually tripping the mechanism. For instantaneous short circuits, they utilize highly responsive electromagnetic coils. These coils trigger immediately when massive current spikes hit the system.
This dual-action approach translates directly into tangible business benefits. Facilities experience reduced operational paralysis because resetting a breaker takes seconds. You simply flip a toggle switch. This completely eliminates the tedious search for replacement parts. Furthermore, maintenance overhead drops significantly over the life of the building. Most importantly, enhanced life safety protects both your personnel and your costly commercial equipment. The transition away from traditional fuses marks a critical step toward modernized facility management.
Electrical surges destroy sensitive equipment in a fraction of a second. Breakers excel at rapid fault intervention. They can interrupt dangerous fault currents in 0.04 to 0.1 seconds. This lightning-fast response limits equipment exposure to damaging voltage spikes. Traditional fuses often take longer to melt and break the connection. Millisecond intervention saves expensive control boards, server racks, and automated machinery from catastrophic failure.
Superior safety requires addressing two distinct electrical threats: slow overloads and sudden short circuits. Breakers combine a bimetallic strip for prolonged thermal overloads and an electromagnetic coil for instantaneous short circuits. The bimetallic strip bends as it heats up during mild over-current situations. The electromagnetic coil activates violently during a massive short circuit. This dual-action design ensures comprehensive protection across all potential failure modes.
You cannot treat every electrical load identically. Engineers benefit immensely from selecting specific tolerance thresholds. Breakers feature highly calibrated trip curves. For example, you might use a Z-curve breaker for highly sensitive electronics. This curve triggers at just 2 to 3 times the normal load. Conversely, you would deploy a D-curve breaker for heavy industrial motors. The D-curve tolerates high inrush currents without causing frustrating nuisance trips.
When an electrical circuit breaks under heavy load, it generates a dangerous spark. This spark is known as an electrical arc. Modern breakers contain internal components called arc chutes. These metallic grid structures safely divide, cool, and extinguish electrical arcs generated during circuit interruption. Effective arc quenching prevents panel fires and significantly extends the mechanical lifespan of the breaker contacts.
Operational efficiency hinges on how fast you recover from a fault. You can clearly contrast the simple toggling mechanism of a breaker with the painful process of testing blown fuses. When a breaker trips, the lever visually drops. Maintenance crews immediately see the problem area. They can reset the system instantly once they clear the fault. This drastically lowers your Mean Time To Repair (MTTR).
Modern electrical enclosures rely on standardized mounting systems. Compact breakers emphasize ease of integration into these modern panels. They clip directly onto a standard 35mm DIN rail. This universal mounting method allows for rapid system expansion. Electricians can snap new units into place effortlessly. It enables clean, organized architectural layouts within complex distribution boards.
Complex industrial systems often utilize three-phase power. You need a unified disconnect method to ensure worker safety. Breakers offer incredible versatility through single, double, and multi-pole configurations. A multi-pole unit mechanically links the toggles together. If a fault occurs on a single phase, the breaker disconnects all phases simultaneously. This prevents the dangerous condition known as single-phasing in heavy industrial motors.
Real estate inside a distribution board comes at a premium. Older systems require massive enclosures to house bulky fuse blocks. Compact breakers quantify a space-saving nature. They often achieve a 50% reduction in panel footprint compared to legacy equipment. This frees up premium space inside your enclosures. It allows engineers to design higher circuit density into smaller, more cost-effective panel layouts.
Investing in durable infrastructure pays long-term dividends. Breakers highlight incredible mechanical durability. Manufacturers often rate them for thousands of switching cycles. Under normal operating conditions, a high-quality unit delivers an asset lifespan of up to 30 years. This endurance delivers a significantly higher return on investment than purchasing recurring fuse replacements month after month.
Environmental compliance matters in modern facility operations. Replacing single-use, potentially lead-bearing traditional fuses provides a massive ecological benefit. Blown fuses head straight to landfills, contributing to global e-waste. By utilizing reusable, eco-friendly breakers, facilities drastically reduce their toxic waste output. This alignment with green building practices helps companies meet strict corporate sustainability targets.
Specifying the wrong equipment leads directly to operational headaches. You must carefully guide your engineering choices to avoid nuisance tripping or delayed protection. Evaluation criteria always begin with selecting the correct trip curve. You also need to verify the breaking capacity. Most commercial environments require a capacity between 10kA and 16kA to handle localized fault potentials.
Understanding the distinction between curve types ensures reliable daily operation. If you match the breaker sensitivity to your specific load profile, your facility will run flawlessly.
Type B (3-5x full load): This curve acts quickly. It is best suited for resistive loads, general lighting, and standard commercial environments. These environments feature very low surge profiles.
Type C (5-10x full load): We consider this the industry standard for commercial and industrial applications. It handles moderate inrush currents effortlessly. Use this curve for standard motors and fluorescent lighting banks.
Type D (10-20x full load): Heavy industrial equipment demands higher tolerance. This curve is absolutely necessary for heavy industrial loads, large transformers, and X-ray machines. These devices pull high, sustained starting currents.
Type K & Z: These curves address highly niche engineering requirements. Engineers specify the K-curve for highly specific motor protection scenarios. They utilize the Z-curve for highly vulnerable semiconductor circuits. The Z-curve triggers at a highly sensitive 2-3x load threshold.
Below is a quick reference chart to aid your technical evaluation:
Curve Type | Trip Threshold (x Rated Current) | Typical Application Focus | Common Examples |
|---|---|---|---|
Type B | 3 to 5 times | Resistive loads, low surge | Office lighting, standard heaters |
Type C | 5 to 10 times | Inductive loads, moderate surge | Small motors, commercial fans |
Type D | 10 to 20 times | High inrush loads | Transformers, welding machines |
Type K | 8 to 12 times | Niche motor protection | Specialized heavy machinery |
Type Z | 2 to 3 times | High sensitivity electronics | Semiconductors, IT servers |
Purchasing top-tier components means little without flawless field execution. Installation best practices dictate the ultimate reliability of your electrical panel. Electricians must ensure correct wire gauge stripping. Generally, stripping exactly 3/8 inch of insulation prevents exposed live wires while ensuring a solid connection. You must also verify the torque specifications on all terminal screws. Under-tightening causes high electrical resistance, leading to thermal creep and potential panel fires. Finally, installers must carefully validate DIN-rail seating to ensure the unit cannot vibrate loose over time.
Regulatory standards govern every professional installation. You must reiterate the necessity of specifying components that meet geographic and application standards. For standard residential and light commercial installations, equipment should meet UL 489 and IEC 60898 guidelines. However, harsh environments demand stricter tolerances. Industrial-grade fault tolerance requires strict adherence to the IEC 60947-2 standard. Ensuring these certifications protects your facility from compliance violations and insurance liabilities.
Forward-thinking facilities actively look toward future-proofing their infrastructure. The electrical industry is experiencing a rapid transition toward IoT-enabled Smart technology. These advanced devices offer real-time energy metering directly at the panel level. They monitor power consumption and send predictive maintenance alerts to facility managers before a hard failure occurs. Integrating smart monitoring capabilities elevates your basic circuit protection into a comprehensive facility management tool.
Transitioning to modern electrical protection represents a massive operational upgrade. It is not just a safety enhancement. It acts as a calculable investment in facility uptime, space optimization, and daily operational efficiency. By eliminating single-use components, you streamline maintenance and reduce hazardous waste.
Your next steps require a proactive approach. We encourage commercial buyers to audit their current electrical distribution panels immediately. Identify any legacy fuse bottlenecks slowing down your production lines. Finally, consult with a certified electrical engineer. They will help you specify the exact trip curves and breaking capacities required for your next infrastructure upgrade.
A: The primary difference lies in their sizing and current limits. Miniature models generally max out around 63A to 125A. They fit perfectly in modular DIN-rail setups. Conversely, Molded Case Circuit Breakers (MCCBs) handle much heavier loads, supporting up to 2500A. Facilities use MCCBs for main distribution feeds, while smaller breakers handle localized branch circuits.
A: No, you should not mix them. Using an AC breaker in a DC system creates a severe risk of arc suppression failure. Alternating current naturally crosses zero voltage, helping extinguish arcs. Direct current does not. You must specify dedicated DC or hybrid units for solar arrays and battery applications to ensure safety.
A: You must calculate the Prospective Short-Circuit Current (PSCC) at your specific installation point. This calculation reveals the maximum potential fault current the local grid can deliver during a massive short. Your chosen breaker's kA rating must strictly exceed this calculated maximum fault potential to prevent component explosion.
