Scalable 3P MCCB (250A) for Industrial Switchboard OEMs

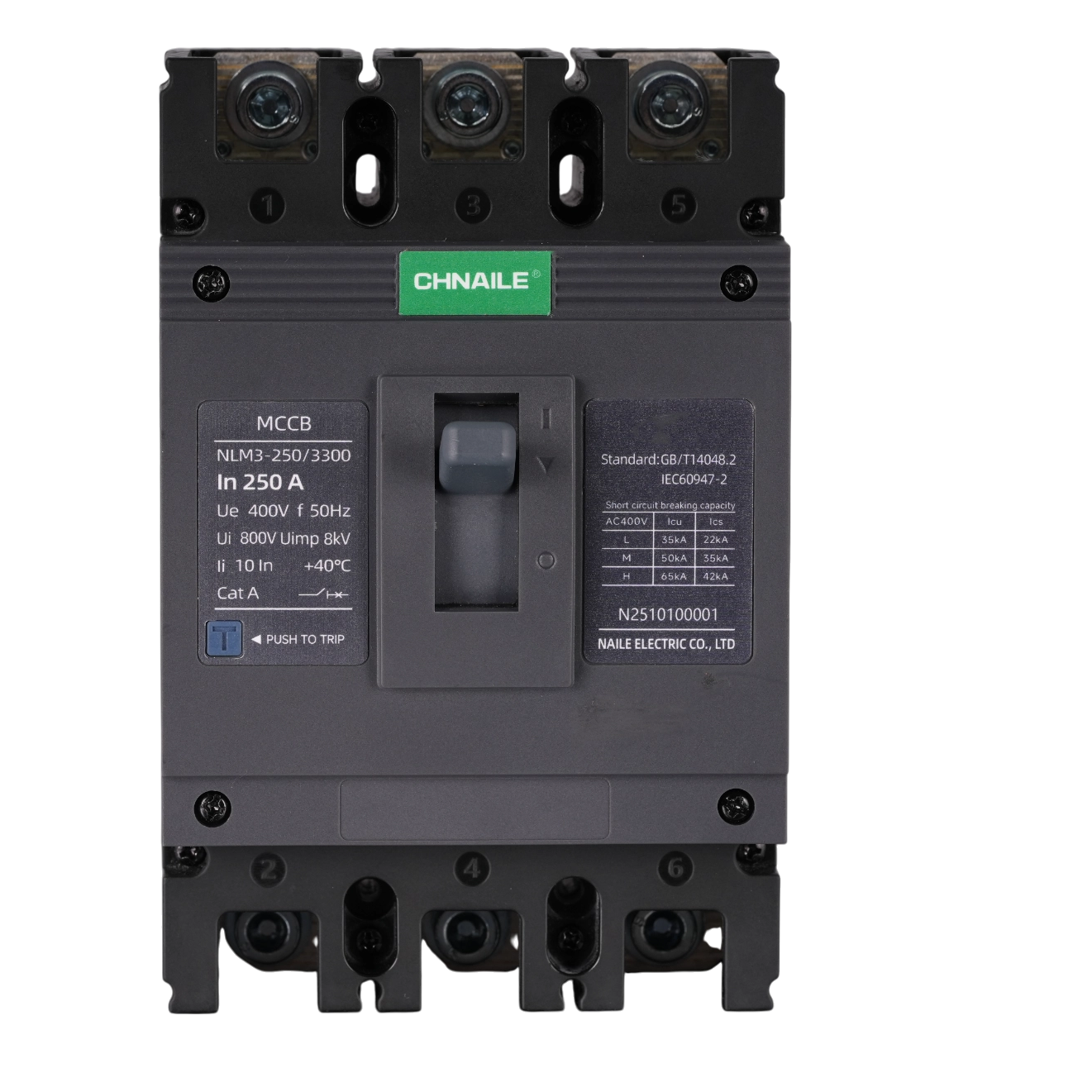

[ Phase I : Electro-Mechanical Resilience and Sub-Distribution Thermodynamics ] The structural engineering of primary and secondary electrical panels intended for continuous-operation commercial environments necessitates a severe evaluation of physical component resilience. Procurement directors and lead structural designers at global switchgear fabrication plants routinely grapple with the thermal dynamics generated by routing massive continuous currents. Deploying the CHNAILE NLM3-250 Molded Case Circuit Breaker (MCCB) acts as a foundational structural intervention within these heavy-duty distribution boards. A meticulous visual analysis of the showcased 3-Pole unit immediately identifies its robust external architecture, specifically designed to dissipate the immense localized heat generated by a sustained 250-Ampere commercial payload. For panel builders outfitting municipal pumping stations or centralized HVAC control centers, the unyielding reliability of a pure thermal-magnetic trip unit is paramount. As indicated on the specification plate, the magnetic instantaneous trip is hardcoded to ten times the nominal current (Ii = 10In). This translates to a massive 2500-Ampere tolerance ceiling before autonomous actuation occurs, ensuring the breaker comfortably absorbs the brutal, temporary inrush currents of heavy induction motors without triggering paralyzing nuisance trips. Furthermore, the inclusion of a distinct blue 'PUSH TO TRIP' mechanical diagnostic button on the lower fascia serves a mandatory function during factory assembly protocols. This mechanical inclusion permits Quality Assurance (QA) technicians to manually simulate a fault condition, physically verifying the kinetic responsiveness of the internal spring-latch carriage during rigorous Factory Acceptance Testing (FAT) before the completed distribution panel is authorized for site deployment.

[ Phase II : Executing Bill of Materials (BOM) Rationalization via Tiered Capacities ] Beyond basic electro-mechanical durability, the financial viability of a switchgear manufacturing enterprise is relentlessly tested during the procurement phase of competitive government utility tenders. A pervasive industry error involves the blanket specification of overly expensive, maximum-capacity circuit breakers across an entire electrical network, regardless of the actual prospective fault current at specific nodes. The CHNAILE engineering division specifically designed the NLM3-250 platform to eradicate this economic inefficiency. An experienced electrical designer reviewing the detailed technical matrix printed on the right side of the device will recognize a highly sophisticated tiered approach to short-circuit breaking capacity, denoted as L (Standard), M (Medium), and H (High). This explicit categorization grants procurement officers unprecedented financial leverage. If your engineering schematics dictate that a specific sub-distribution board located at the terminal end of a commercial facility only requires a 35kA fault suppression capability due to inherent cable resistance, your purchasing department can specifically order the 'L' variant. Conversely, panels positioned directly adjacent to a massive step-down transformer can be outfitted with the 'H' variant, capable of violently extinguishing catastrophic 65,000-Ampere (65kA) plasma arcs. This strategic "Value Engineering" methodology ensures that panel builders only pay for the exact level of protective physics their blueprints demand, drastically curtailing aggregate raw material expenditures and providing the pricing agility necessary to dominate high-volume infrastructure bids.

Technical Parameters

[ Phase III : Enforcing Brand Sovereignty Through Automated Customization ] Ultimately, securing long-term dominance in the highly competitive B2B switchgear sector requires an aggressive strategy regarding corporate brand differentiation. Relying on fragmented networks of international wholesale distributors inevitably forces panel builders to populate their proprietary enclosures with generic, visually disparate components that dilute their manufacturing prestige. The CHNAILE manufacturing mandate is explicitly structured to dismantle this supply chain friction by operating as your highly elastic, direct-to-factory production engine. We understand that elite panel builders do not merely assemble metal boxes; they cultivate proprietary engineering brands. Therefore, we push parametric scalability into the realm of absolute aesthetic and functional sovereignty. Should your corporate design guidelines or a specific national grid tender require the polymer housing to be injection-molded in a proprietary brand color—such as a specific industrial grey to mask construction dust, or a vibrant hue to denote critical isolated feeds—our automated facilities will precisely execute those chromatic directives. We seamlessly handle private-label branding, laser-engraving your corporate insignia directly onto the chassis, and designing bespoke bulk and retail packaging boxes to integrate flawlessly into your localized assembly line logistics.

Ruggedized Industrial Architecture

• Anti-Carbonization Dark Polymer Armor: Molded from a specialized, high-density dark thermosetting composite. This V0-rated casing hides industrial grime while fundamentally resisting internal carbon tracking caused by recurring fault clearing, maintaining long-term insulation integrity in sweltering factory conditions.

• Massive Silver-Alloy Contacts: To route 250 Amps safely and continuously, the internal moving contacts feature premium silver-tungsten alloy plating. This minimizes contact resistance, drastically reduces temperature rise, and prevents the contacts from micro-welding under severe heavy loads.

• High-Torque Bolt-On Lugs: Accommodates ultra-thick industrial 3-phase cabling. The reinforced bolt-on terminals allow for extreme tightening torque, guaranteeing a permanent, zero-gap connection that withstands the constant mechanical vibrations of a busy factory floor.

Guaranteeing this immense level of personalized customization whilst ensuring absolute electrical fidelity requires the complete abandonment of outdated, variable manual labor. The complex bimetallic tensioning, the alignment of the massive internal arc-quenching chambers, and the calibration of the tiered breaking capacities within these devices are executed exclusively by our state-of-the-art smart automated assembly lines, ensuring sub-millimeter robotic precision across massive procurement batches. Subsequently, prior to receiving international export clearance, every custom-ordered unit must navigate a rigorous gauntlet of computerized smart inspection equipment. These digital testing matrices subject the breakers to simulated high-voltage short circuits and precise thermal overload tests, capturing real-time telemetry to verify exact tripping latency against strict IEC 60947-2 international baselines. We actively encourage procurement executives, chief electrical designers, and switchboard fabricators seeking to eradicate generic component sourcing to initiate a direct, high-level technical dialogue with our manufacturing team via WhatsApp at +86 15985210820. Partner directly with our smart factory to engineer absolute power resilience, aggressive cost optimization, and unparalleled proprietary branding into your global commercial distribution boards.

Global B2B Partnership with CHNAILE Factory

• Factory-Direct Industrial Procurement: By bypassing international distributors, we provide you with factory-floor pricing on heavy-duty switchgear, significantly optimizing the Bill of Materials (BOM) for your large-scale manufacturing infrastructure bids.

• Exhaustive IEC 60947-2 Verification: At 250 Amps and 65kA, failure is not an option. Every single H-Type MCCB undergoes extreme thermal imaging, simulated 65,000A short-circuit blasts, and rigorous mechanical endurance testing prior to international shipment.

• Scalable Panel Builder Solutions: We proudly partner with global industrial panel builders and OEMs, offering custom laser-engraved faceplates, specialized phase barriers, and tailored packaging for your proprietary switchboard designs.
