The question of whether a sub-incomer MCCB at the 400 A current tier must be specified as a two-pole device switching both line and neutral simultaneously, or whether a single-pole device protecting only the line conductor is adequate, is resolved — in the framework of IEC 60364, its national derivative standards, and the GB/T 16895 series applicable to Chinese-standard projects — by a sequence of three engineering determinations that must be made before a protective device is selected for any given circuit position: the earthing system classification of the installation, the circuit's position relative to the point of supply earthing, and the nature of the loads connected downstream. In IT earthing systems — where neither conductor of the supply is deliberately connected to earth potential, and where the first ground fault in the installation produces a fault current limited only by the system's distributed capacitance to earth rather than a low-impedance return path — the neutral conductor cannot be assumed to be at or near earth potential during a fault event, and IEC 60364-4-46 clause 462.1.3.1 explicitly mandates that all live conductors, including the neutral, be disconnected simultaneously during isolation switching. A single-pole MCCB at the 400 A incomer position of an IT-earthed system fails this requirement categorically: when it opens, it disconnects only the line conductor, leaving the neutral at whatever potential the system's capacitive coupling to earth imposes — a condition that, downstream of the open line contact, presents a voltage hazard to any maintenance personnel who assume that an open MCCB constitutes full isolation. In TN-C-S systems — where a combined PEN conductor upstream transitions to separate PE and N conductors at the system's first distribution point — the point of earthed neutral separation is, by definition, the boundary at which the neutral conductor changes character from a protective earth function (upstream, where it must never be switched) to a load neutral function (downstream, where it may be switched provided that the switch opens the neutral no earlier than the line and closes it no later). The 2P MCCB at a TN-C-S boundary incomer position satisfies this temporal requirement through its mechanically coupled two-pole contact mechanism, which ensures that the line and neutral contacts open and close simultaneously rather than sequentially — a simultaneity requirement that a separately wired double single-pole configuration, where two 1P MCCBs are operated by independent actuators, cannot guarantee without a positive mechanical coupling verified by type testing.
Parameter | Specification |
|---|---|
Product Model | NLM1-400L 2P |
Device Type | Molded Case Circuit Breaker (MCCB) |
Number of Poles | 2 |
Rated Current (In) | 400A |
Rated Operational Voltage (Ue) | AC 400V |
Rated Insulation Voltage (Ui) | 800V |
Rated Impulse Withstand Voltage (Uimp) | 8kV |
Ultimate Short-Circuit Breaking Capacity (Icu) | 50kA |
Enclosure Material | Thermosetting plastic, V0 flame retardant |
Enclosure Color | White |
Terminal Type | Hex-bolt connection |
Trip Unit Type | Thermal-magnetic |
Applicable Standard | IEC 60947-2 / GB/T 14048.2 |
Brand | CHNAILE |
 | |
| |  |

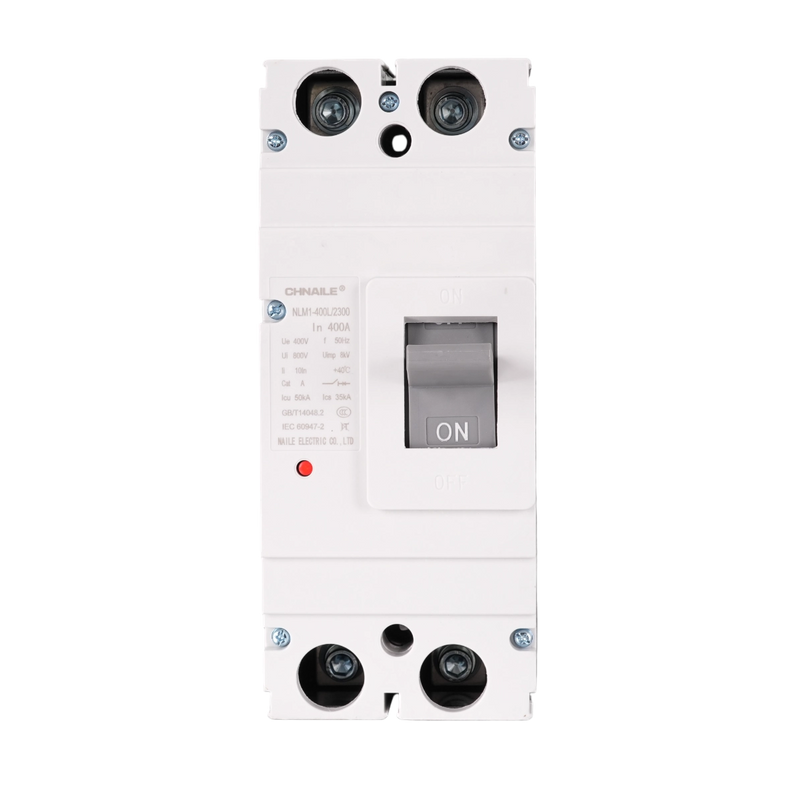

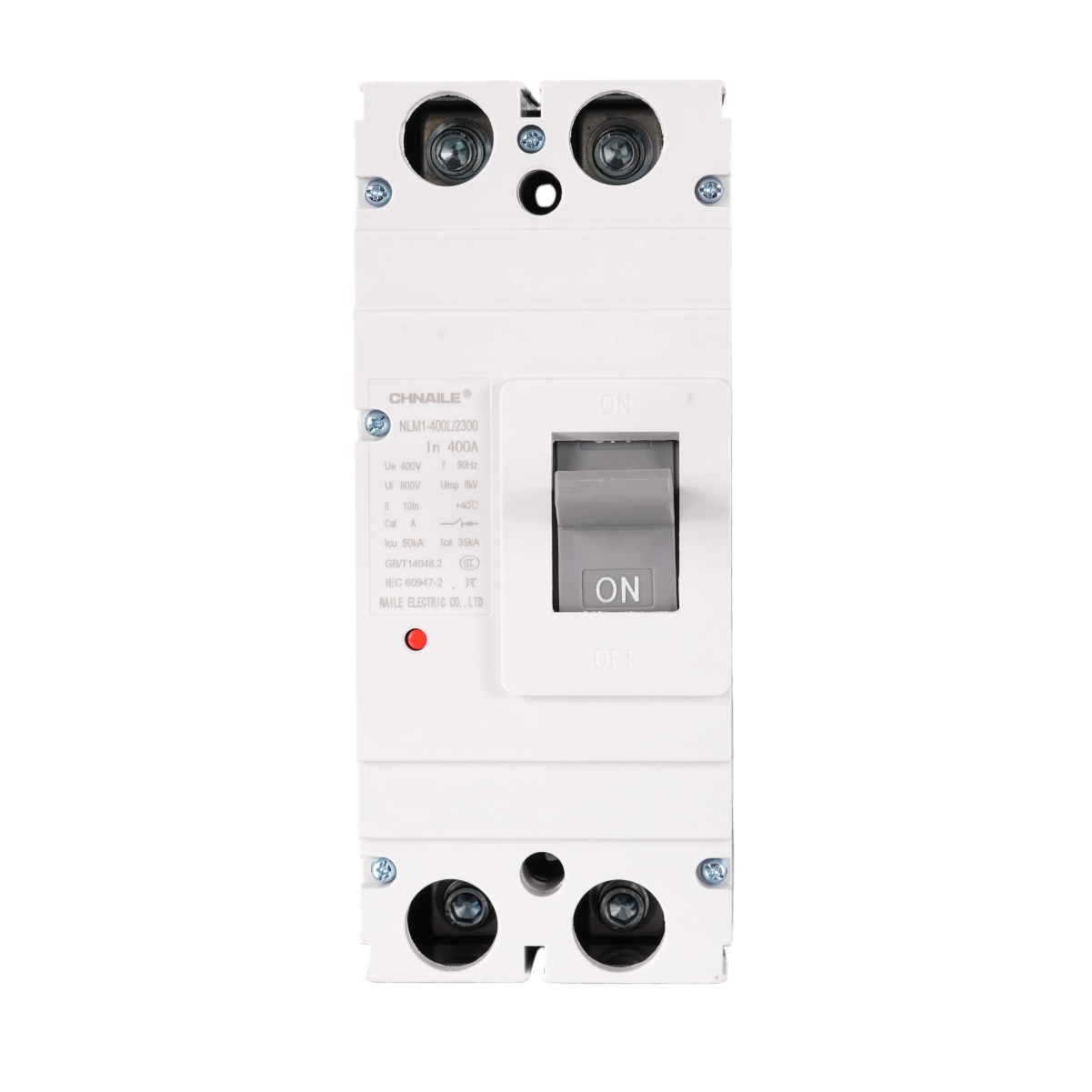

The dual oversized circular cable lug entry openings observable at both the line face (top) and load face (bottom) of the NLM1-400L/2300 2P in the product image — two openings per face, flanked by the panel-mount corner screws and the small round reset aperture between the two line-side entries — define the conductor accommodation geometry required by the two-pole architecture at 400 A. Each opening is sized to accept the cable lug termination of a conductor in the 240 mm² to 300 mm² range — the cross-section appropriate for a 400 A circuit in the installation methods and ambient temperature conditions of a commercial building sub-board or a BESS container AC bus panel — with the conductor routing from the left opening serving one pole's contact mechanism and the routing from the right opening serving the other pole, physically separated within the device's internal structure to maintain the inter-pole clearance that the 400 V pole-to-pole voltage stress requires under the device's rated insulation voltage condition. This dual-opening geometry at both faces is the physical signature that immediately distinguishes the 2P variant from the 1P NLM1-400L/1300 reviewed separately in this series, and it is the feature that a panel assembly inspector uses during the incoming goods acceptance check to confirm that the two-pole variant specified on the purchase order has been shipped rather than the single-pole variant at the same current rating — a confusion that is possible if the visual distinction between the two variants is not documented in the panel builder's receiving inspection procedure.
The Category A classification of the NLM1-400L/2300 2P — visible in the specification block on the device face label alongside the Icu = 50 kA and Ics = 35 kA breaking capacities — designates a device that achieves its rated breaking capacity without the requirement for a specific sequence of test operations, as distinguished from Category B devices that require a specific recovery test sequence to verify their post-fault service capability. At the 400 A frame and 50 kA breaking capacity tier, the physical arc interruption sequence in a two-pole MCCB during a fault clearance event involves the simultaneous operation of two independent arc chutes — one per pole — within the same device housing, with both arc chutes required to interrupt their respective phase and neutral fault current arcs within the same time window that the device's mechanical opening time and the arc's time-to-current-zero characteristic define. The engineering challenge specific to the two-pole configuration is that the neutral conductor's fault arc — in an asymmetric ground fault where the fault current in the line conductor is high while the neutral conductor carries the return path of that current — may have a different instantaneous current value and a different arc energy level than the line conductor's arc at the moment of contact separation. The NLM1-400L/2300 2P's arc chute geometry is designed, as part of the GB/T 14048.2 type-test validation programme, to interrupt both poles' arcs cleanly within the rated breaking capacity envelope at the worst-case asymmetric current distribution that the standard's test circuit generates — a validation requirement that does not apply to a single-pole device and that is the specific justification for the two-pole device's type-test category designation. The Ui = 800 V rated insulation voltage — providing a 2:1 safety factor over the 400 V operational voltage — addresses both the phase-to-neutral voltage (230 V in a 400/230 V TN-S system) and the pole-to-pole voltage that appears across the open contact gap of the line pole when the neutral pole is simultaneously open, a voltage condition specific to the two-pole configuration whose dielectric withstand requirement exceeds that of a single-pole device operating in the same system.
The application domain of the NLM1-400L/2300 2P extends beyond the AC circuit protection scenarios that its 400 V~ AC rating primarily addresses, into the DC bipolar protection architecture of battery energy storage systems (BESS) whose string voltage and current levels are within the device's contact and insulation ratings when operated in the DC switching mode that IEC 60947-2 Annex B governs. In a BESS container whose battery strings operate at nominal voltages in the 400–600 V DC range — as is common in lithium iron phosphate (LFP) battery rack configurations deployed in commercial building backup power systems, grid-connected energy storage installations, and solar-plus-storage microgrid applications — the individual string's positive and negative conductors each carry the full string current, and the protection philosophy requires that both conductors be interrupted simultaneously when the string protective device operates, to prevent the sustained DC arc that arises when only one polarity conductor is interrupted while the other remains connected and continues to provide a current path through the fault. The NLM1-400L/2300 2P's two-pole simultaneous contact operation satisfies this bipolar interruption requirement mechanically — both contacts open on the same mechanical impulse from the trip mechanism — while the device's 800 V rated insulation voltage provides the dielectric headroom appropriate for DC bus voltages in the 400–600 V range (where the DC voltage stress on the contact gap is higher than the equivalent AC peak voltage because DC arc extinction requires the contact gap voltage to exceed the supply voltage without the natural current-zero crossings that AC waveforms provide every half-cycle). The GB/T 14048.2 and IEC 60947-2 dual certification, combined with the CCC and CE dual marking visible on the device label, provides the documentation architecture that BESS system integrators operating across both Chinese-standard and IEC-standard project markets require when specifying string protection devices: Chinese-standard BESS installation specifications governed by GB standards are satisfied by the CCC-marked GB/T 14048.2 compliance, while IEC-standard commercial building BESS installations and grid-scale storage projects are addressed by the IEC 60947-2 / CE compliance pathway — both within a single device qualification record rather than two separate device specifications. For the switchgear integrator (成套厂) whose BESS panel assembly production serves both domestic Chinese-standard projects and overseas IEC-standard export projects within the same annual production calendar, this dual-certification architecture eliminates the component differentiation overhead that maintaining separate domestic and export device specifications at the 400 A two-pole tier would impose. The white housing — whose market positioning significance was analysed in the 1P NLM1-400L/1300 product page in terms of premium aesthetic differentiation within the panel builder's product range — carries an additional functional significance in the BESS container application environment: white surfaces reflect the thermal radiation from adjacent high-current components and reduce the device's surface temperature rise in the confined enclosure environment of a shipping-container-format BESS, where ambient temperature management is a system design challenge and the thermal budget of each electrical component's surface temperature contributes to the enclosure's overall heat load. The colour is configurable to custom specification — dark grey for conventional industrial MCC aesthetics, black for high-contrast premium enclosure designs, or RAL colour references for specific OEM product identity programmes — through our injection moulding compound specification process, which applies the colour throughout the housing material thickness rather than as a surface coating whose abrasion resistance would degrade in the cable entry and maintenance handling zones of a regularly serviced BESS container panel. Panel builders, BESS system electrical engineers, commercial building EPC electrical contractors, and utility infrastructure procurement managers whose project specifications require two-pole simultaneous L+N or bipolar DC switching and protection at the 400 A frame current tier, with 50 kA breaking capacity and dual IEC/GB certification, are encouraged to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820, where pole count, frame current, trip unit type, housing colour, certification documentation package, and project volume parameters will be addressed by a dedicated export applications engineer returning a complete technical and commercial proposal within one working business day.
