OEM 2500A High Voltage Drawout ACB (1140V) | TUV & CB Certified Switchboard Main Incomer

Formulating the primary distribution architecture for specialized macro-infrastructure projects, particularly those encompassing onshore wind power aggregations, decentralized hyper-scale solar grids, and robust national utility substations, forces global switchgear procurement directors into an extremely restrictive engineering paradigm. In these colossal energy environments, transmitting massive volumes of power at standard commercial voltages like 400V generates unacceptable levels of thermal energy loss and necessitates the procurement of incredibly thick, cost-prohibitive copper cabling infrastructure. The ubiquitous engineering countermeasure is to drastically elevate the transmission voltage to 800V or 1140V alternating current, thereby allowing the safe utilization of thinner, more economical cable networks across vast geographical distances. However, this strategic elevation of voltage places an apocalyptic level of dielectric stress upon the Main Distribution Boards (MDBs) tasked with governing these circuits. Attempting to deploy standard commercial Air Circuit Breakers (ACBs) into an AC 1140V environment represents a fatal miscalculation; the moment a standard breaker attempts to interrupt a fault, the massive voltage potential effortlessly sustains a highly conductive plasma arc across the insufficient internal physical gaps, instantly vaporizing the silver-alloy contacts and inevitably triggering a violent, uncontainable enclosure fire. The CHNAILE NLW3HU-2500 platform, documented thoroughly within this strategic memorandum, is structurally engineered to exclusively manage this extreme high-voltage vulnerability. A meticulous examination of the device's technical nomenclature reveals the "HU" designation, signifying a vastly expanded internal topography housing specialized, heavy-duty de-ion arc chutes. This extraordinary dielectric fortitude ensures that when the massive 2500-Ampere continuous current experiences a severe short circuit at 1140 Volts, the resulting violent plasma is aggressively stretched, magnetically fragmented, and rapidly cooled, guaranteeing absolute physical phase separation and ensuring your assembled panels seamlessly survive the most destructive grid anomalies.

Technical Parameters

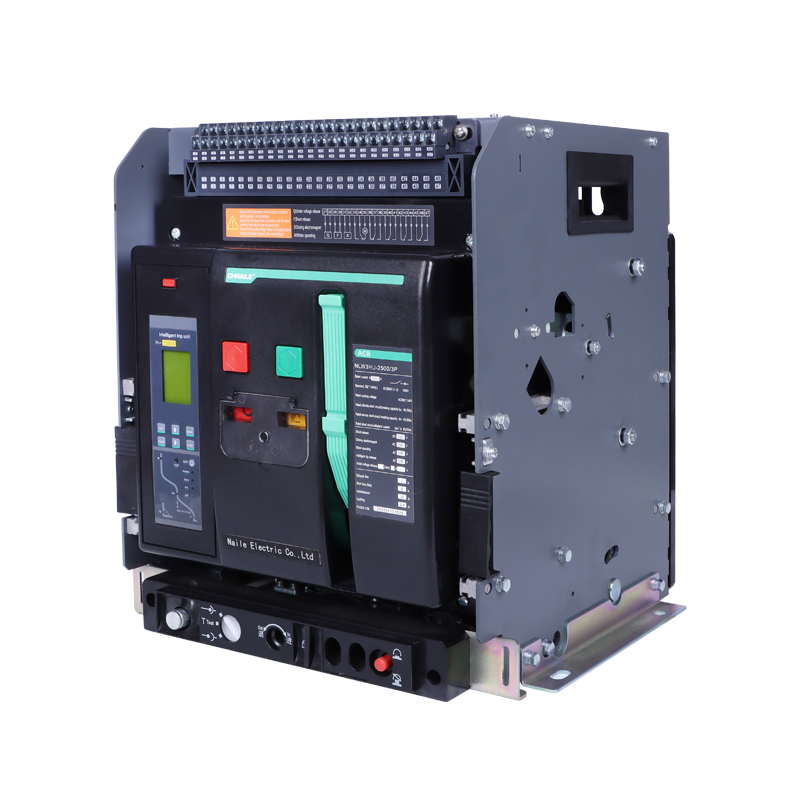

Beyond mastering the terrifying physics of high-voltage arc quenching, the operational longevity and immediate maintainability of a municipal power node rely heavily upon the mechanical accessibility and the digital intelligence integrated into the primary switching mechanism. For the ultimate end-user facility manager, the physical integration of this 2500A breaker into the switchboard via its heavy-duty mechanical drawout cradle is an operational necessity. Clearly denoted by the sophisticated locking mechanics and the precise "Test/Out/In" position indicators flanking the bottom racking port, this capability allows facility maintenance technicians to physically wind the massive breaker block entirely out of the live copper busbars. This achieves a fully disconnected, safe testing position without requiring the terrifying, politically sensitive, and economically disastrous process of shutting down an entire municipal incoming grid feed, thereby drastically compressing the facility's Mean Time To Repair (MTTR) metrics. This mechanical brilliance is flawlessly synchronized with an advanced, microprocessor-driven intelligent trip unit prominently integrated into the faceplate, featuring a high-contrast green LCD screen. This digital brain elevates the breaker from a mere protective firewall into an active, communicative node within a broader smart-grid ecosystem, allowing commissioning engineers to surgically calibrate the exact long-time, short-time, instantaneous, and ground-fault tripping parameters mandated by complex selective coordination studies. Furthermore, the expansive secondary terminal block positioned at the absolute top of the chassis, featuring 47 distinct, heavily insulated connection points, provides the essential neural pathways for seamless integration into sophisticated supervisory control and data acquisition (SCADA) networks, empowering remote operators to monitor the health of the 1140V feed in real-time.

Deploying an intellectually and mechanically superior high-voltage circuit breaker remains a purely theoretical advantage if the supplying manufacturer lacks the stringent bureaucratic documentation and the uncompromising industrial infrastructure to guarantee absolute international compliance. When global switchgear Original Equipment Manufacturers (OEMs) attempt to secure multi-million-dollar government utility projects or critical data center deployments, purchasing officers immediately demand irrefutable, third-party verified proof of safety. As a dedicated, primary manufacturing powerhouse focusing specifically on top-tier ACBs and MCCBs, CHNAILE fundamentally eliminates regulatory friction by ensuring this 2500A high-voltage platform proudly carries both TUV and CB international certifications. These highly prestigious global accreditations, supported by comprehensive, verifiable IEC Type Test Reports, serve as the ultimate foundational documentary evidence for your successful tender submissions, proving unequivocally that the equipment meets the highest global safety standards. Achieving and maintaining this level of certified reliability necessitates the complete eradication of variable, outdated manual assembly techniques. The intricate internal arcing contacts, the massive copper conductive pathways, and the delicate electronic logic boards within these flagship devices are populated and secured utilizing state-of-the-art smart automated production lines, ensuring sub-millimeter robotic precision. Subsequently, every single heavy-duty ACB must navigate an exhaustive gauntlet of computerized smart inspection equipment. These digital testing matrices subject the breakers to simulated high-voltage atmospheric impulses and precise multi-kiloampere secondary injection tests prior to export clearance. This profound combination of certified resilience and highly automated manufacturing grants global panel builders unprecedented supply chain sovereignty. We push parametric and aesthetic scalability to the absolute limit, possessing the profound industrial agility to custom-fabricate this exact architectural profile across an exhaustive array of permutations. Whether your specific blueprints demand a standard 3-Pole layout, necessitate a comprehensive 4-Pole configuration for total neutral isolation, or require customized operational voltages for the internal electromagnets, our facilities adapt instantaneously. We extend this elasticity into the realm of absolute aesthetic control; should your marketing division require the exterior components to be injection-molded in a proprietary brand color, or if you require completely bespoke, heavy-duty retail and bulk packaging crates to integrate flawlessly into your localized assembly line logistics, we will flawlessly execute those precise directives. We actively encourage procurement executives, chief electrical designers, and switchboard fabricators seeking to eradicate generic component sourcing to initiate a direct, high-level technical dialogue with our senior manufacturing liaisons via WhatsApp at +86 15985210820. Partner directly with our smart automated facility to engineer absolute high-voltage resilience, aggressive cost optimization, and unparalleled proprietary branding into your global main distribution boards.

Global B2B Partnership with CHNAILE Factory

• Factory-Direct Infrastructure Procurement: Sourcing ultra-high-voltage motorized ACB switchgear directly from our manufacturing floor eliminates massive international trader margins, providing your engineering firm with a devastating financial advantage in government municipal bids.

• Exhaustive 1140V FAT Verification: We do not gamble with extreme voltage. Every 2500A unit undergoes brutal thermal imaging, simulated ultra-high voltage short-circuit blasts, and rigorous mechanical racking tests to guarantee absolute IEC 60947-2 compliance before dispatch.

• OEM Integration for MDB Builders: We actively partner with elite marine panel builders worldwide, providing comprehensive technical cradle installation support, customized intelligent controller programming, and bespoke branding for your premium 1140V switchboards.
