1P+N Slim 16A Type C RCBO 30mA 6kA | 240V/230V 50/60Hz Single-Module Width IEC61009 Blue Handle — OEM Source Factory, Custom 6A–63A for Panel Builders, EU/UK Consumer Unit Export

The DIN rail space economy argument for the NLB4-40's single-module 1P+N architecture is best entered through the arithmetic of the consumer unit or small commercial distribution board — the product category that constitutes the highest-volume production context for 1P+N RCBOs globally, and where DIN rail space per circuit position directly determines whether a board design can be packaged within a standard enclosure width or requires a more expensive wider enclosure with increased installation cost. A standard residential consumer unit in the UK, Irish, Gulf, and sub-Saharan African markets typically allocates 18 circuits in a twin 18-module rail configuration — nine circuits per rail, with each circuit position defined by 18mm of DIN rail width. When a 1P+N RCBO at a circuit position is specified in the conventional two-module format — where the device occupies 36mm, consuming two of the nine available slots on a single DIN rail — the maximum circuit count per rail drops to four full two-module RCBOs with one 18mm module remaining, or to a maximum of nine circuits if the board designer reserves six positions for single-pole MCBs and three positions for two-module RCBOs. The NLB4-40's single-module format removes this design constraint entirely: at 18mm per circuit position, the full nine-circuit DIN rail allocation accommodates nine NLB4-40 RCBOs, providing 30mA residual current protection on every individual circuit without requiring the board designer to select between residual current protection coverage and circuit count. For the residential housing developer whose standard apartment specification requires individual RCBO protection for bathroom circuits, kitchen circuits, outdoor socket circuits, and EV charging points — a protected circuit count that routinely exceeds the capacity of a two-module RCBO board within the standard enclosure dimensions — the NLB4-40's single-module format is not a premium option but the enabling technology that makes the specified protection coverage achievable within the budgeted enclosure size. The N+1 (line side) and N+2 (load side) terminal arrangement visible in the product image — where the Neutral terminal (N) and Phase terminal (1 or 2) share the same terminal block face within the 18mm housing width — achieves this compaction by routing both the phase and neutral conductors through a single combined terminal block whose internal partitioning maintains the required creepage and clearance distances between live parts, while presenting two independently wired connection points to the installer within a space that a conventional dual-terminal arrangement at this density would not accommodate without specialised tooling.

Technical Parameters

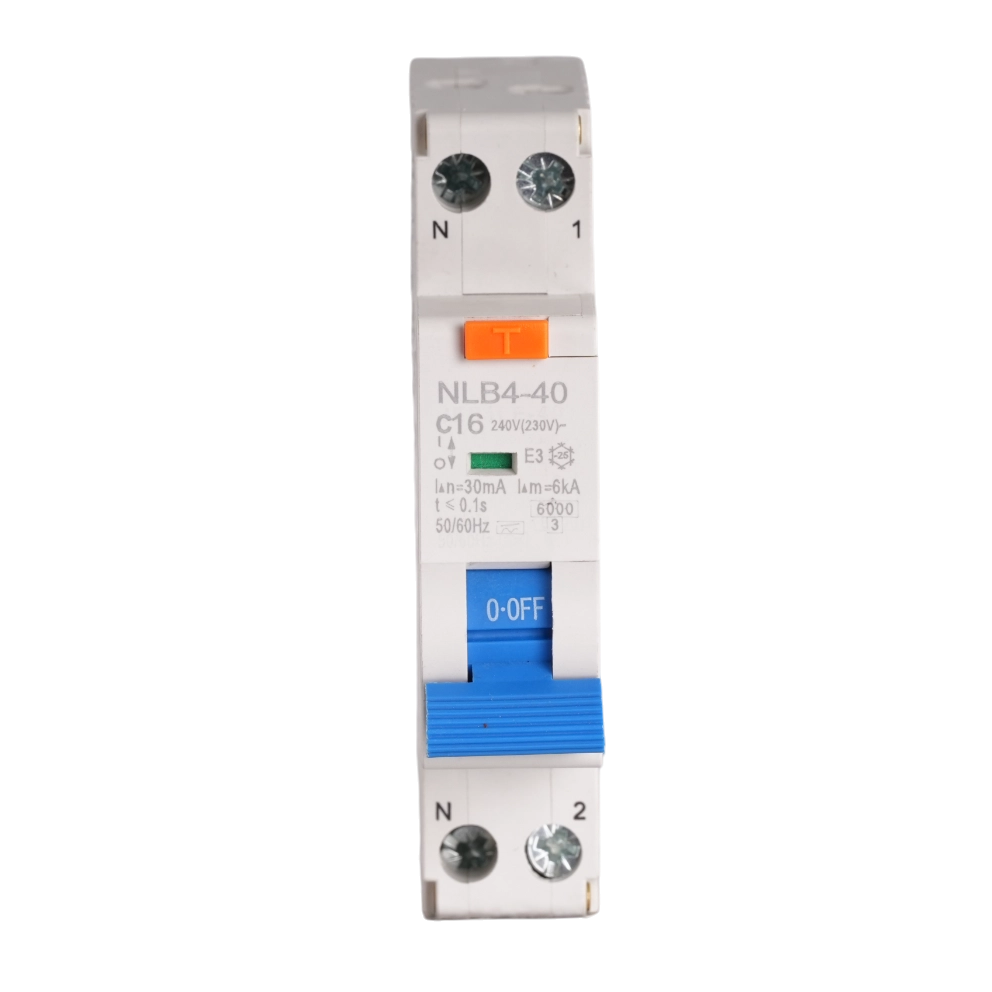

The 240V/230V dual voltage marking — observable on the device label in the product image as "240V(230V)~" — encodes a market positioning decision whose commercial value for the panel builder targeting UK and EU export contracts is the simultaneous satisfaction of two inspection authority requirements with a single device label. The UK single-phase residential and commercial supply standard nominally transitioned from 240V to 230V under the BS EN 60038 voltage harmonisation programme, but the actual delivered voltage at UK residential and commercial premises continues to measure at or above 235V at the point of connection to the consumer unit in a significant proportion of cases, reflecting the transformer tap settings of the UK distribution network that have not been revised downward since harmonisation. An RCBO whose label marks only 230V presents a marginal compliance documentation question for UK panel builders who are required to specify components rated at or above the measured supply voltage — a question that the NLB4-40's "240V(230V)~" dual marking eliminates by explicitly covering both the nominal harmonised voltage and the delivered voltage that UK network conditions produce. The 50/60Hz dual frequency marking extends this market coverage to the 60Hz residential markets of North America (where the 1P+N RCBO format is used in load-centre panelboards) and parts of Latin America, where 220–240V / 60Hz supply standards are prevalent in the residential and commercial sectors and where the NLB4-40's response time calibration — confirmed at t ≤ 0.1s by the IEC61009 testing regime conducted at both supply frequencies — satisfies the trip time requirement without frequency-specific device variants.

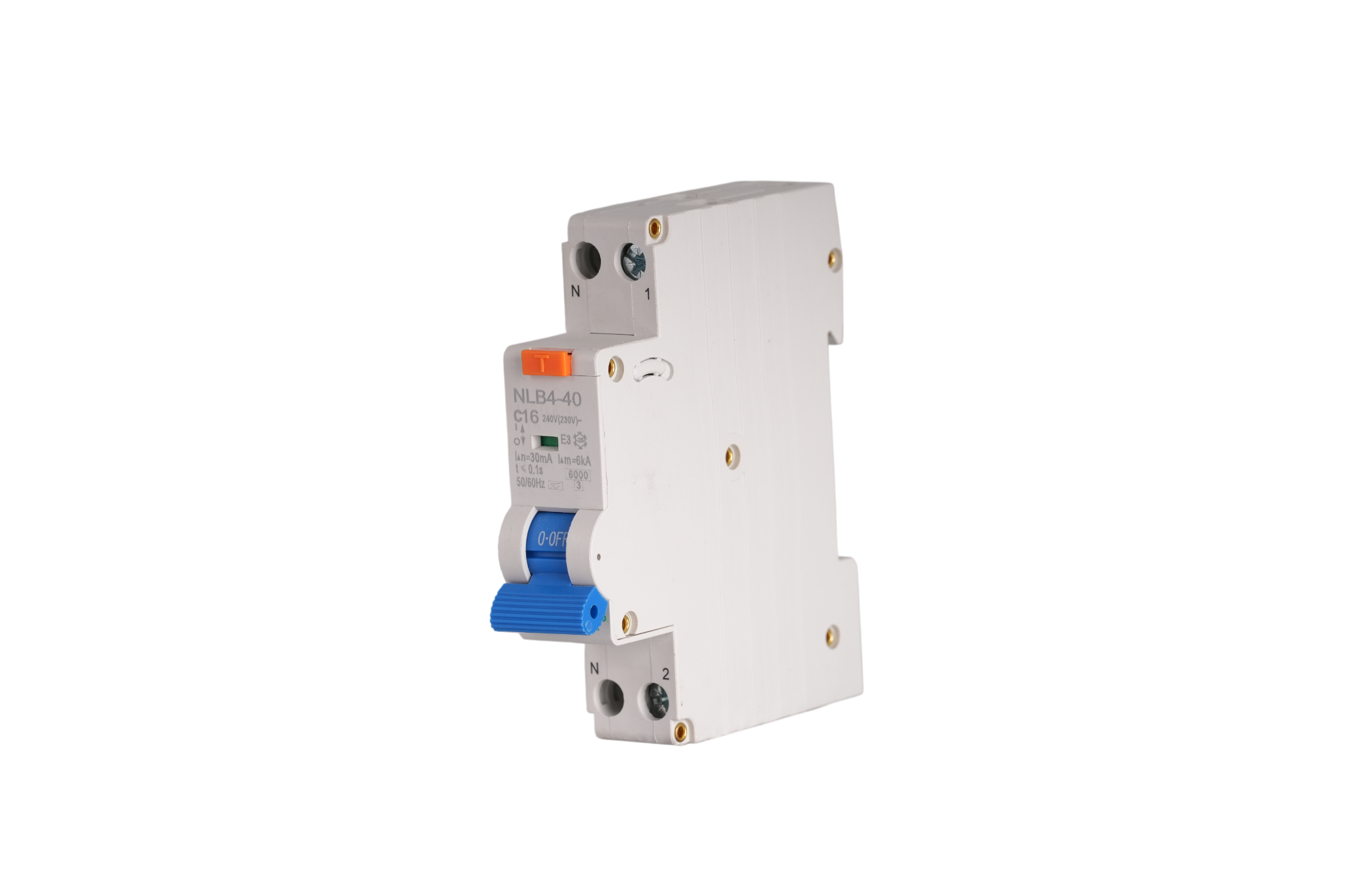

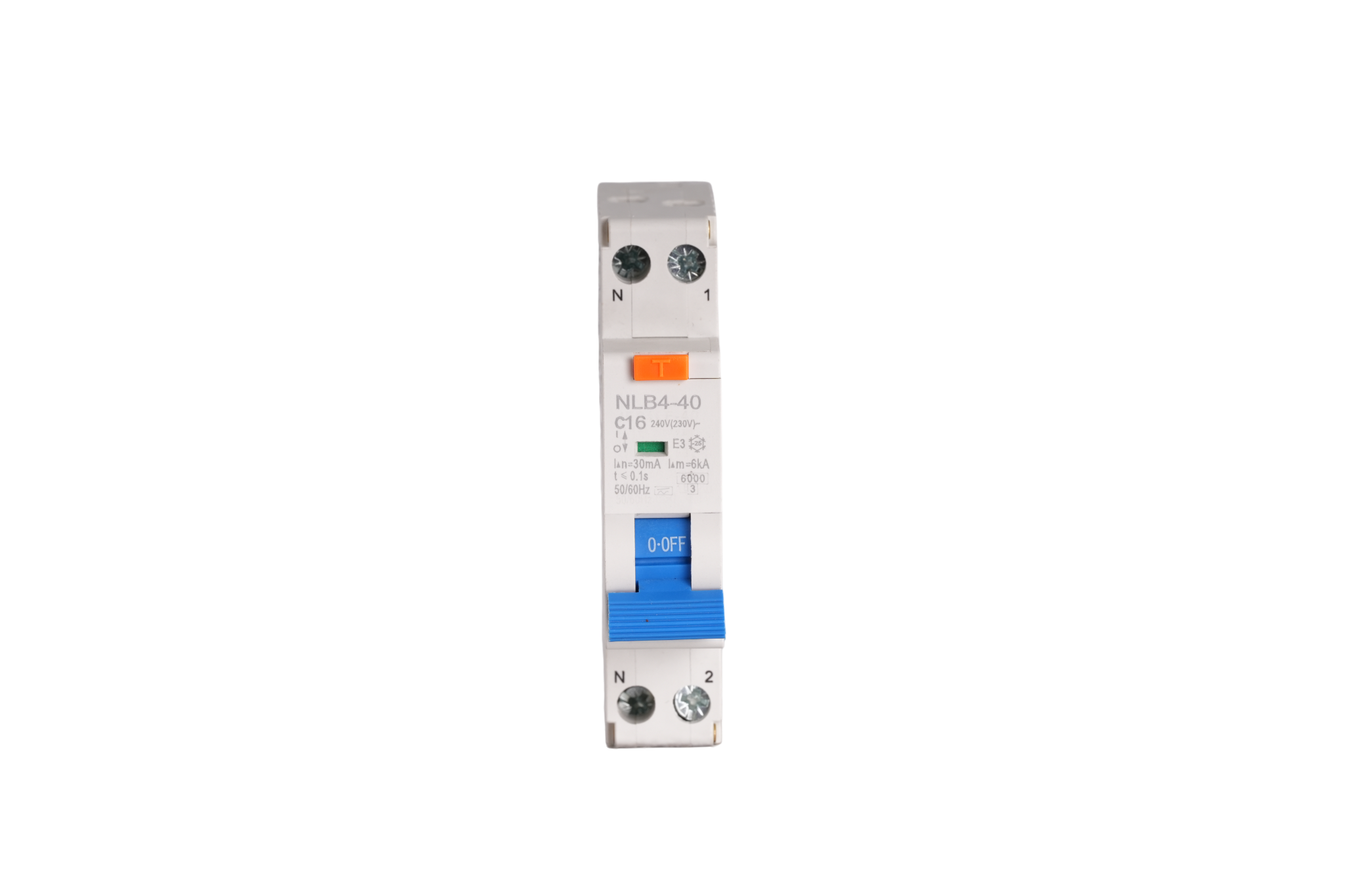

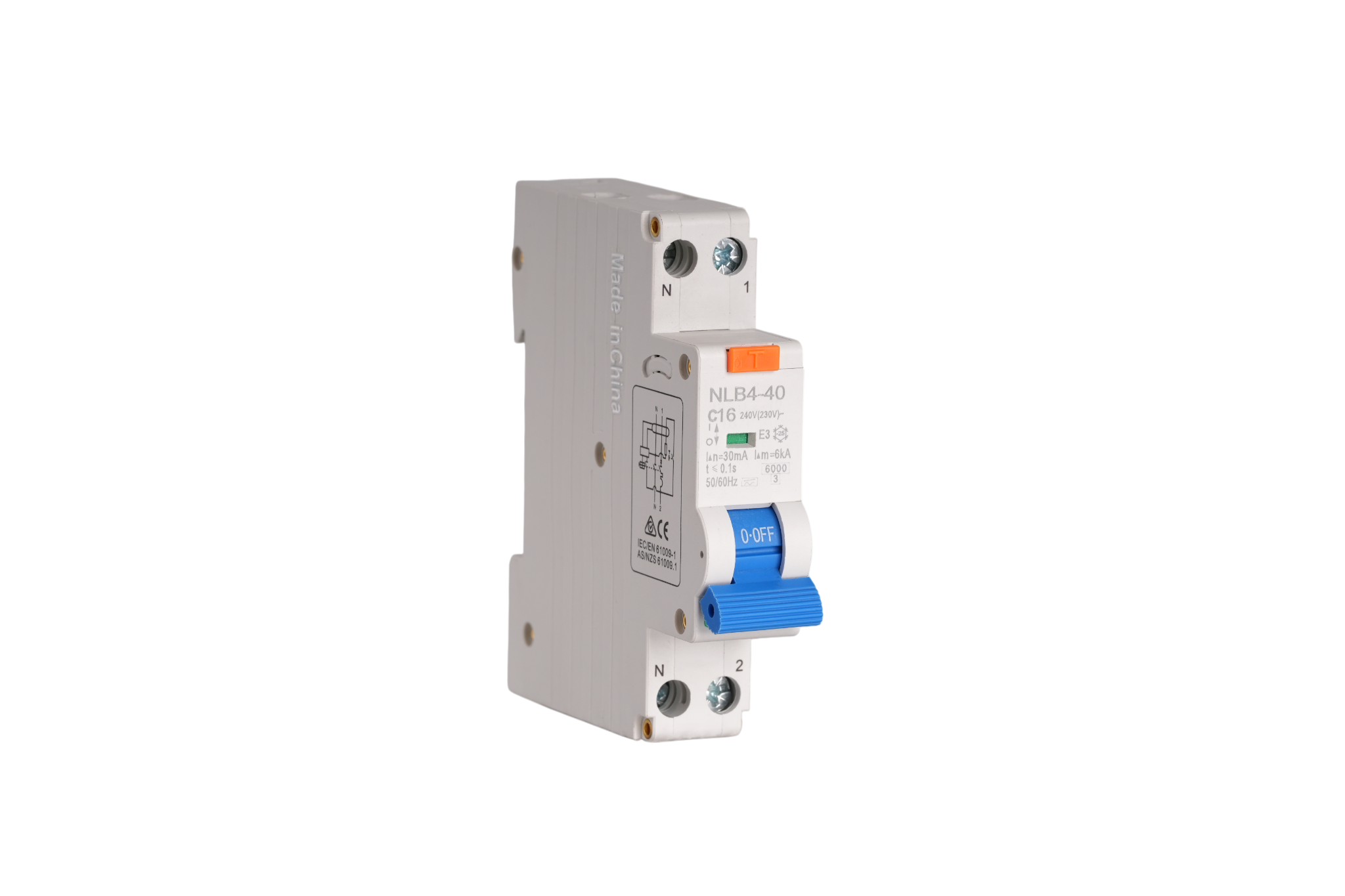

The royal-blue toggle handle of the NLB4-40 — visible in the product image as a deep cobalt-blue actuator bearing the "O·OFF" off-state position marking, occupying the central zone of the device face between the orange test button above and the load terminal block below — represents the fourth distinct handle colour identity encountered across this product series, following teal-green (BD1-63S/XL7-63), lime-green (BD1-63H), steel-blue (HHM17N-63), and the new royal-blue of the NLB4-40. Each colour identity in this family serves a device category differentiation function: a panel builder who specifies teal-green BD1-63S MCBs for standard overcurrent-only circuits and royal-blue NLB4-40 RCBOs for residually-protected circuits within the same consumer unit creates a colour-coded protection hierarchy whose device category is legible from handle colour alone, without requiring the installer or maintenance technician to read individual circuit labels or examine the device face in detail. In a residential consumer unit where the property's electrical installation certificate requires identification of all RCBO-protected circuits, the royal-blue/teal-green colour-coding scheme converts this identification requirement from a documentation exercise (reading the circuit schedule) to a visual observation exercise (locating the blue-handled devices), reducing the panel inspection time during electrical installation condition reports (EICRs) and annual rental property checks in the UK market, and equivalent periodic inspection processes in Gulf Cooperation Council markets where rental property electrical certification is increasingly mandated by local municipal authorities. The orange "T" test button — positioned at the upper section of the device face and immediately identifiable by its vivid amber-orange colour contrasting against the white housing — provides the IEC61009 monthly functional verification interface whose colour differentiation from the blue toggle and the white housing makes it identifiable to the property's occupant from a standing position at the consumer unit without requiring the occupant to approach the live busbars. The green LED indicator below the test button — a small but high-contrast element confirming energisation — completes a three-colour face architecture (royal-blue toggle, orange test button, green LED) that communicates three independent status signals without any label reading: handle position for mechanical state, LED for electrical energisation, and test button presence for RCBO identification.

The consumer unit manufacturing segment — the production of pre-wired residential distribution boards assembled to a standard design and sold as complete units to electrical contractors and house builders — is structurally different from the bespoke switchgear assembly context of the reviewed throughout this series, and its commercial dynamics create a specific value proposition for single-module RCBO sourcing from a source factory rather than through a distributor chain. A consumer unit manufacturer assembling 500 units per month — each containing an average of eight NLB4-40 RCBO positions — procures 4000 RCBO units per month, a volume at which the unit price differential between distributor-channel sourcing and factory-direct OEM sourcing compounds to a monthly saving that funds the consumer unit manufacturer's investment in RCBO-protected design as a standard feature rather than a premium option. At this volume tier, factory-direct sourcing from our manufacturing facility — with private-label face marking replacing the CHNAILE designation with the consumer unit manufacturer's own brand, and the housing colour configurable to match the consumer unit enclosure's interior aesthetic — transforms the NLB4-40 from a third-party component into a branded element of the consumer unit manufacturer's proprietary product, whose visual consistency across the complete board assembly presents the consumer unit as a designed product rather than an assembled collection of industry-standard components. The current rating configurability from 6A through 63A within the NLB4-40 platform — maintaining the same single-module housing form factor, the same royal-blue handle colour, and the same orange test button position across all current ratings — allows the consumer unit manufacturer to build a complete protected circuit range (6A lighting, 16A socket ring, 20A immersion heater, 32A cooker, 40A EV charging) from a single device family, with all current ratings qualifying under a single OEM supply agreement and a single IEC61009 type-test certificate scope. The E3 classification marked on the NLB4-40's label — corresponding to the IEC61009 device category that specifies the worst-case voltage waveform type to which the residual current detection circuit must respond — provides the panel builder with the documentation evidence that the device's residual current detection performance has been verified across the Type AC (sinusoidal) and pulsating DC residual current waveforms that modern electronic loads generate, satisfying the specification requirement that appears in UK BS 7671 Amendment 2 and in the IEC 60364 national derivatives of Gulf and African markets that mandate RCBO Type A or Type F performance at circuits supplying electronic equipment. Our production facility subjects every NLB4-40 unit to a three-parameter acceptance test — residual current trip threshold measurement, t ≤ 0.1s response time verification, and overcurrent instantaneous release confirmation — before release, with batch traceability records maintained against the production lot identifier that the consumer unit manufacturer can reference in the electrical installation documentation accompanying each board. Panel builders assembling residential or commercial consumer units, switchgear integrators developing compact distribution board product ranges, commercial building EPC electrical contractors, and electrical product distributors targeting UK, EU, Gulf, or African residential and commercial sectors who are evaluating the NLB4-40 platform for single-module RCBO circuit protection positions are encouraged to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820, where rated current, voltage marking, housing colour, handle colour, private-label content, and project volume parameters will be addressed by a bilingual export applications engineer returning a complete technical and commercial proposal within one working business day.

Global B2B Partnership with CHNAILE Factory

• Factory-Direct Public Infrastructure Supply: Bypass intermediary markups. Sourcing these specialized winter-grade 1-module RCBOs directly from our automated lines drastically optimizes the BOM for your massive municipal infrastructure rollouts.

• Grueling Climate Chamber Testing: We do not guess on safety. Every batch undergoes exhaustive environmental chamber testing—cycling from deep freezes (-25°C) to high humidity—alongside brutal 6kA short-circuit blasts to guarantee absolute IEC 61009-1 compliance.

• OEM Customization for Kiosk Builders: We partner with global outdoor equipment manufacturers, offering bespoke laser-engraved faceplates, specific toggle color-coding, and custom packaging to perfectly align with your proprietary smart-city solutions.
