Reassessing High-Amperage Main Incomers in Modern Switchboard Assembly
The construction of Main Distribution Boards (MDBs) intended for national grid upgrades or large-scale commercial solar photovoltaic farms presents a recurring dilemma for structural electrical engineers. When the specified continuous load reaches the 800-Ampere threshold, panel builders often debate between deploying highly complex electronic breakers or relying on traditional thermal-magnetic architecture. While electronic trip units offer digital telemetry, they are notoriously susceptible to failure when installed in geographically harsh environments plagued by severe electromagnetic interference, extreme temperature fluctuations, or poor grid stability. Recognizing this vulnerability in municipal power projects, CHNAILE focused its engineering resources on perfecting the heavy-duty physical resilience of the Molded Case Circuit Breaker (MCCB). The resulting platform, exemplified by the 800A unit under review, provides switchgear fabricators with an indestructible electro-mechanical backbone that guarantees decades of maintenance-free operation in environments where digital components simply cannot survive.
Technical Parameters
| Device Category: | Thermal-Magnetic Molded Case Circuit Breaker (TM MCCB) |
| Poles Configuration: | 3P (Simultaneous 3-Phase Heavy Motor Isolation) |
| Frame Size & Rated Current (In): | 800A (Sustains massive continuous loads up to ~500kW) |
| Rated Operating Voltage (Ue): | AC 400V (50Hz) |
| Rated Insulation Voltage (Ui): | 800V |
| Rated Impulse Withstand Voltage (Uimp): | 8kV (Superior transient surge immunity) |
| Ultimate Breaking Capacity (Icu): | 65kA (L-Type high-capacity fault suppression) |
| Service Breaking Capacity (Ics): | 50kA (Sustained heavy-duty reliability) |
| Instantaneous Magnetic Trip (Ii): | 10In ± 20% (Calibrated at 8000A for extreme inrush) |
| Arc Distance: | ≤ 100mm |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |

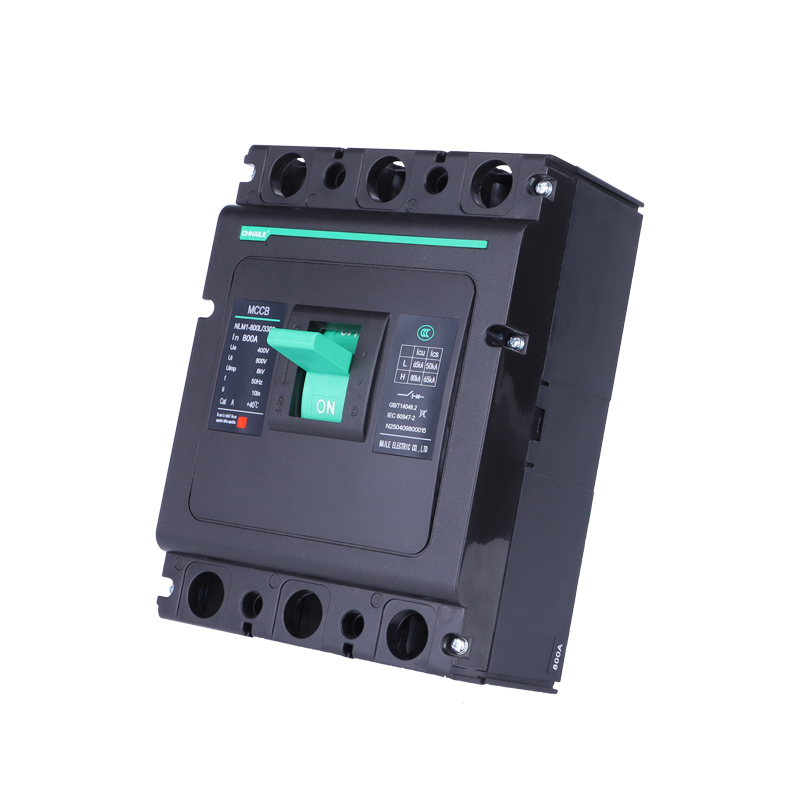

A meticulous examination of the physical characteristics and specified tolerances of this heavy-duty unit reveals a design explicitly tailored for industrial reliability. Operating securely within AC 400V distribution networks, the internal architecture eschews microprocessors in favor of massive, precision-calibrated bimetallic strips and heavy-gauge electromagnetic coils. As indicated on the device's specification plate, the magnetic instantaneous trip is hardcoded to 10 times the nominal current (10In). For a panel builder outfitting a commercial facility, this means the breaker can effortlessly absorb an 8000-Ampere temporary magnetic surge. This specific calibration is critical for successfully starting centralized HVAC chillers or heavy municipal water pumps without triggering a frustrating, facility-wide nuisance trip. Furthermore, classified as a Category A device, it reacts with brutal, instantaneous speed to genuine short-circuit events. Depending on the specified variant (L or H type), the massive internal de-ion arc chutes aggressively stretch and vaporize catastrophic fault plasmas ranging from 65kA up to an astonishing 80kA, ensuring that the physical steel enclosure and expensive downstream assets remain entirely protected from explosive electrical fires.
Guaranteeing Compliance Through Smart Manufacturing Integration
However, engineering a robust 800A thermal-magnetic breaker is only the first step; producing it with absolute consistency across thousands of units requires a fundamental shift in manufacturing methodology. National grid inspectors and utility consultants demand flawless uniformity in tripping curves and dielectric strength (such as the impressive 800V Ui and 8kV Uimp ratings featured on this unit). Relying on antiquated manual assembly techniques introduces unacceptable human error into the supply chain. To eradicate this risk, CHNAILE has heavily reinvested in state-of-the-art production infrastructure. The intricate internal components of this MCCB are positioned and secured utilizing fully automated, smart assembly lines. This robotic precision guarantees that the mechanical tension on every bimetallic strip is identical from the first unit to the last.
Beyond assembly, the validation process is equally rigorous. Before any heavy-duty breaker is authorized for export to our international panel-building partners, it must pass through an array of computerized smart inspection equipment. These automated testing rigs subject each breaker to simulated high-voltage short circuits and prolonged thermal stress tests. By capturing and analyzing performance data in real-time, we ensure that every single switchgear component strictly adheres to the mandated IEC 60947-2 standards. For the procurement director of a switchgear assembly plant, this level of data-driven quality control translates into absolute confidence. It ensures that when your technicians bolt our breakers onto your copper busbars, the completed distribution panel will seamlessly pass rigorous Factory Acceptance Testing (FAT) and subsequent government utility audits without delay.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your corporate growth.
Private Labeling and Faceplate Branding:
Elevate your corporate identity. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the MCCB faceplates. Instructional safety labeling, operating toggles, and customized bulk packaging can all be tailored to match your specific corporate design language. Your clients will receive a world-class switchboard component carrying your trusted brand name.
Certified Quality to Fast-Track Your Panel Certifications:
Winning major commercial bids requires your completed switchgear to pass strict regional certifications. Our 800A MCCBs are rigorously tested in state-of-the-art high-current laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your engineering department with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Stabilizing Your Bill of Materials (BOM) in a Volatile Market:
Relying on intermediary trading companies for core components often leads to disastrous supply chain delays and inflated costs. By sourcing these heavy-duty thermal-magnetic MCCBs directly from our highly automated manufacturing lines in China, you secure highly aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on high-volume commercial panel bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production.
