Mitigating Voltage Anomalies in Modern Distribution Infrastructure
The proliferation of decentralized renewable energy sources, specifically municipal solar arrays and highly sensitive commercial server farms, has exposed a severe vulnerability within localized power grids: voltage volatility. When utility power experiences severe sags (undervoltage) during peak demand or dangerous swells (overvoltage) following a load rejection, traditional thermal-magnetic miniature circuit breakers remain entirely oblivious. They are designed to react to overcurrent, leaving delicate downstream rectifiers, solar string inverters, and HVAC variable frequency drives fully exposed to catastrophic voltage-induced component failure. Procurement directors and structural designers at elite switchgear fabrication plants recognize that deploying distribution boards into geographically diverse environments—particularly in emerging markets with unstable municipal grids—requires the integration of proactive, digital power quality management. The CHNAILE Intelligent Voltage and Current Protector functions as this precise digital firewall, actively disconnecting the load when the grid deviates from safe operational parameters and autonomously restoring power only when absolute grid stability is verified.

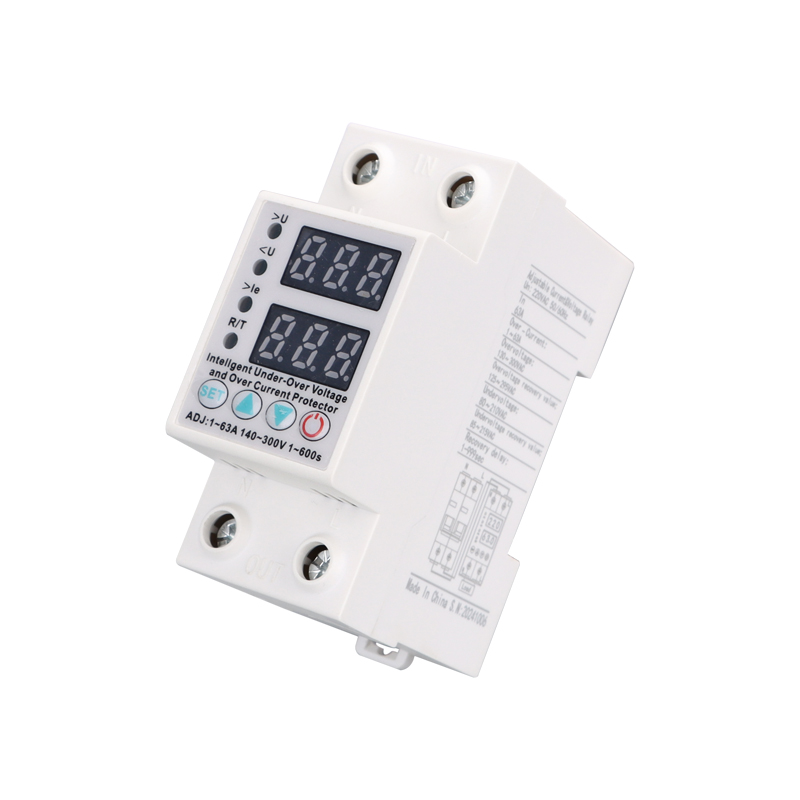

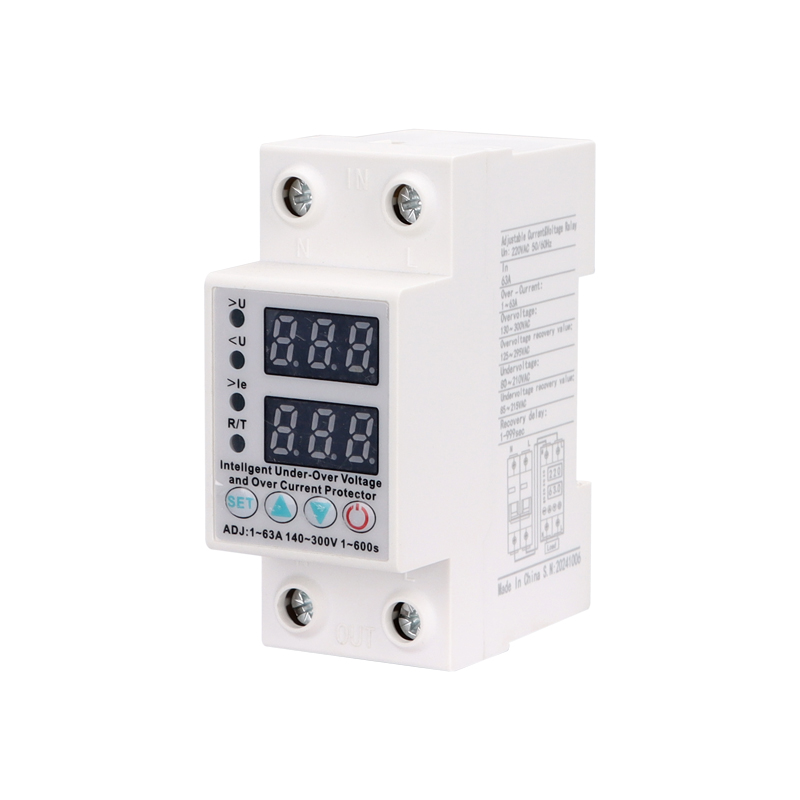

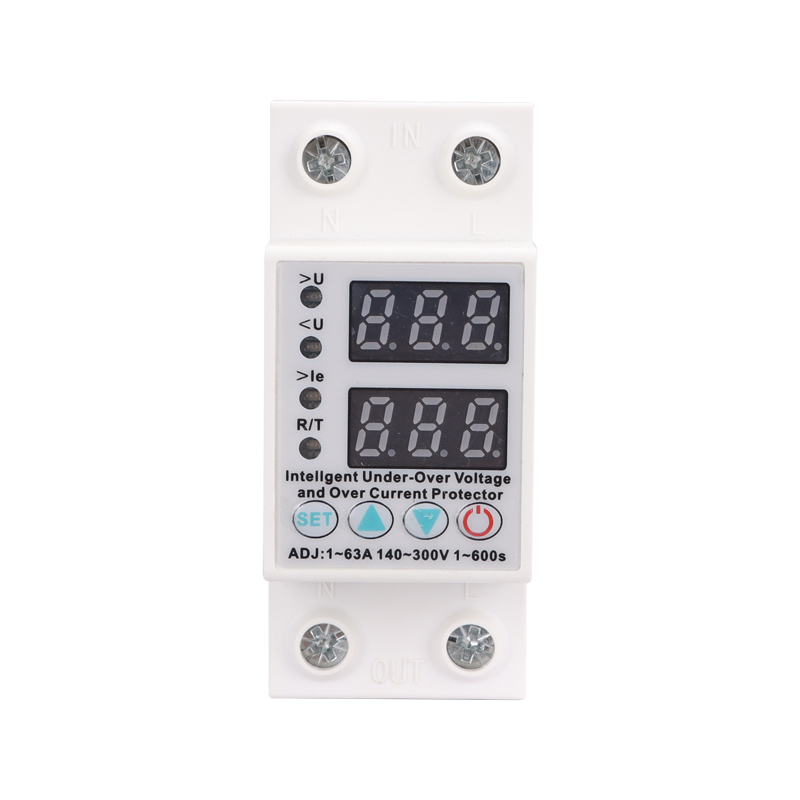

A forensic evaluation of the digital interface on this specific unit unveils a profound level of operational elasticity designed strictly to benefit the switchboard assembly floor. Situated below the dual high-contrast LED displays are tactile membrane keys that govern an extraordinary parameter spectrum, prominently labeled as "ADJ: 163A 140300V 1~600s". This is the ultimate catalyst for Bill of Materials (BOM) consolidation. In historical panel designs, accommodating a 10-Ampere lighting circuit, a 32-Ampere server rack, and a 63-Ampere main sub-feed required sourcing three distinct, hardcoded protection relays from external vendors, severely complicating inventory management. This singular CHNAILE module eradicates that supply chain friction. Your assembly technicians can physically install this uniform device across the entire DIN-rail network and simply digitally program the exact Overcurrent (>Ie), Overvoltage (>U), and Undervoltage (<U) thresholds mandated by the consulting engineer's blueprints just prior to the final Factory Acceptance Testing (FAT). Furthermore, the programmable Recovery Time (R/T) delay, adjustable up to 600 seconds, is crucial for protecting heavy compressor motors that require system pressure equalization before being re-energized following a rolling blackout, preventing disastrous mechanical locked-rotor conditions.
Establishing Procurement Sovereignty Through Deep OEM Integration
While the digital agility of the component solves significant engineering hurdles, the commercial reality of the switchboard manufacturing sector demands supply chain exclusivity and aggressive brand differentiation. Sourcing highly visible, interface-driven components from generic wholesale distributors inevitably results in distribution panels that project a commoditized, low-tier aesthetic to government and commercial inspectors. CHNAILE is strategically positioned to dismantle this intermediary reliance by operating as your dedicated, highly scalable manufacturing vanguard. We understand that a truly elite electrical enclosure must carry a cohesive proprietary identity. Therefore, our automated manufacturing infrastructure is intentionally engineered to accommodate extreme parametric and aesthetic customizations that transcend standard catalog constraints.
If your localized municipal tenders require specific pre-programmed voltage thresholds straight out of the box to prevent field-technician tampering, our software engineers will embed those exact algorithms into the firmware during production. We elevate this customization to the absolute visual level; should your corporate branding dictate a specialized charcoal polymer housing rather than standard white, or if you prefer the dual LED telemetry displays to illuminate in a striking proprietary blue rather than traditional red, our injection molding and surface-mount technology facilities will execute those precise aesthetic directives. We also construct and print fully bespoke retail and bulk packaging to synchronize flawlessly with your internal inventory logistics. Guaranteeing this immense level of personalized manufacturing whilst ensuring that every internal relay switches flawlessly requires an absolute rejection of outdated manual labor. The complex microprocessors and current-sensing shunts within these devices are populated utilizing state-of-the-art smart automated assembly lines. Subsequently, every single custom-ordered unit must navigate a gauntlet of computerized smart inspection equipment, verifying its exact digital tripping latency and voltage measurement accuracy against rigorous international baselines before export clearance. We actively encourage procurement executives, chief panel designers, and switchboard fabricators seeking to escape generic component sourcing to initiate a direct, highly technical dialogue with our manufacturing liaisons via WhatsApp at +86 15985210820. Partner directly with our smart factory to engineer absolute power resilience, aggressive cost optimization, and unparalleled proprietary branding into your global distribution boards.
