In the post-incident engineering reviews that follow catastrophic distribution board failures — the kind that result in insurance claims, contractor blacklisting, and in the worst cases, loss of life — one design decision appears with disproportionate frequency in the root-cause column: the use of single-pole overcurrent devices in circuits where the neutral conductor carries a realistic fault current. This is not an academic consideration. In the three-phase, four-wire low-voltage networks that dominate commercial infrastructure across the Middle East, North Africa, and sub-Saharan markets, the neutral conductor is not an inert return path — it is an active participant in asymmetric fault events, third-harmonic current accumulation from non-linear loads (LED drivers, variable-frequency drives, UPS rectifiers), and the kind of sustained overvoltage that arises when a neutral-to-earth connection deteriorates undetected inside a wall conduit.

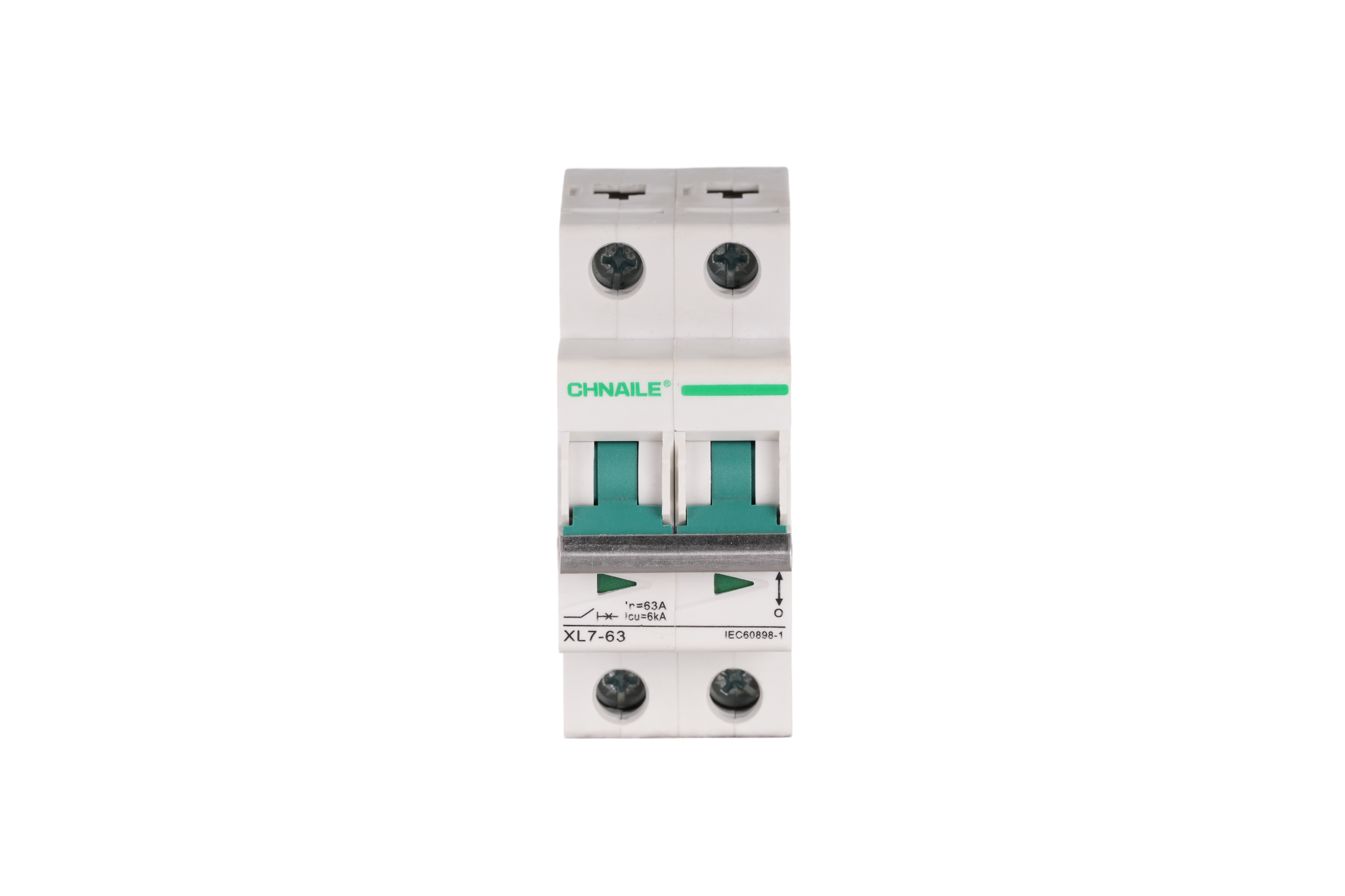

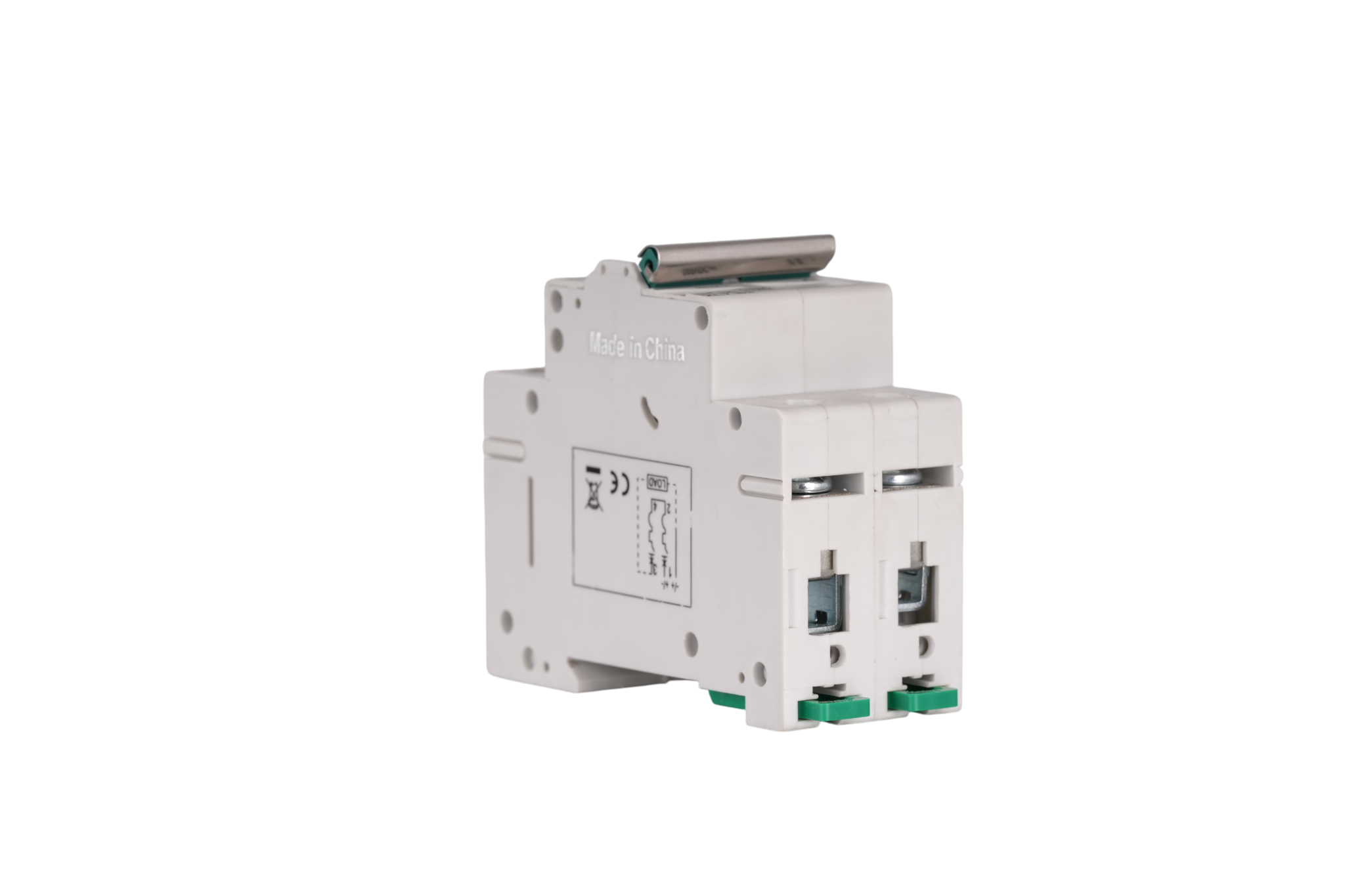

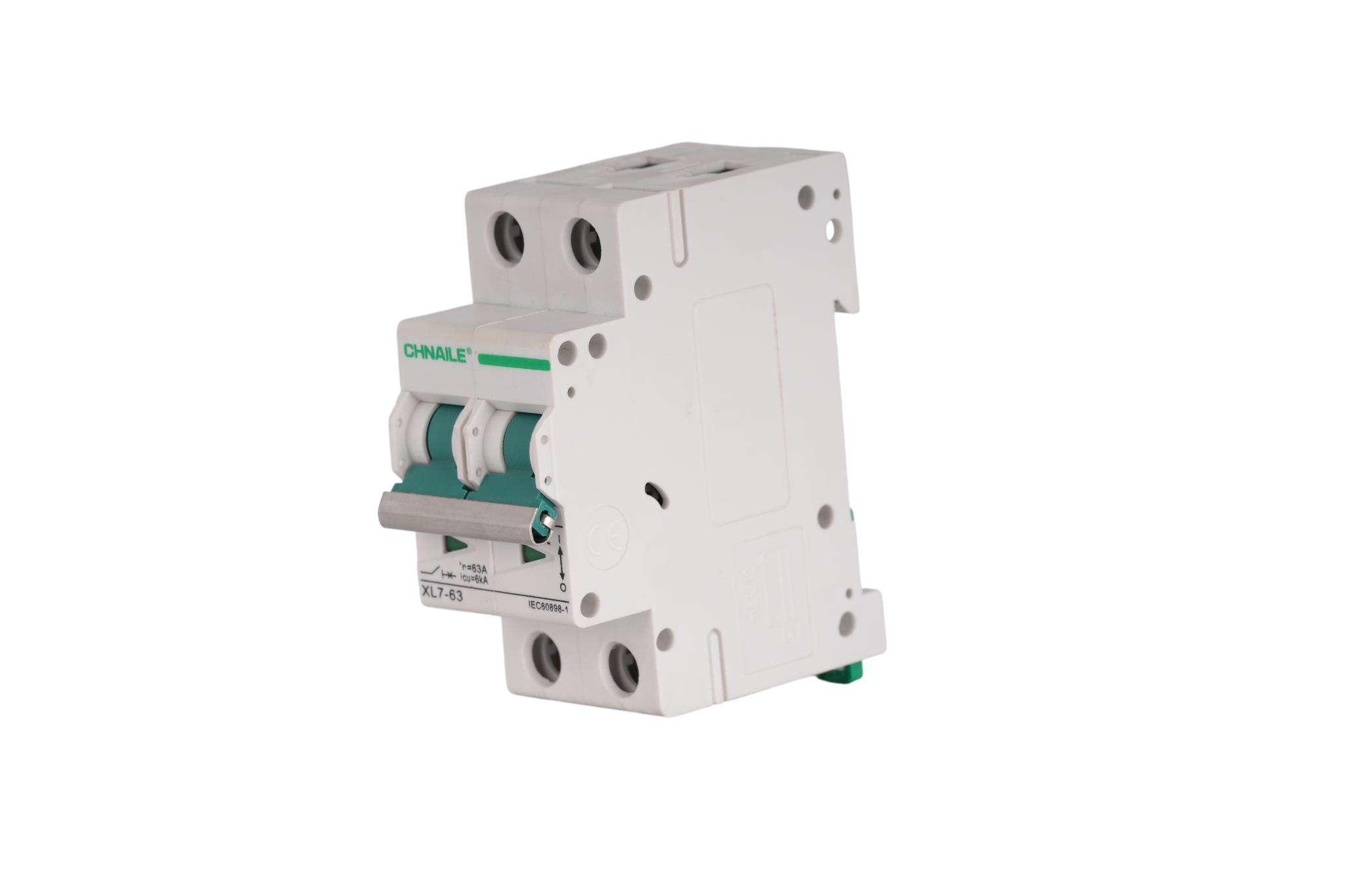

The XL7-63 2P 63A MCB addresses this structural vulnerability at the architectural level. Its double-pole switching mechanism operates both the Line and Neutral contacts from a single, mechanically coupled actuator, meaning that the moment the thermal-magnetic trip unit detects an overcurrent or short-circuit condition on the monitored conductor, it simultaneously isolates both poles. The mechanical linkage between the two poles is not achieved through a simple tie bar that can fracture under shock loading; instead, it is a unibody toggle bridge moulded from high-impact, glass-fibre-reinforced polyamide 6.6 — a material chosen specifically because its mechanical properties remain stable between −25 °C and +85 °C, the thermal envelope that covers panel-room conditions from the air-conditioned data hall in Riyadh to the un-insulated equipment room in Lagos during a dry-season heatwave.
The thermal-magnetic trip unit deserves a more rigorous technical examination than it typically receives in commodity product listings. The bimetallic strip — the thermal element — consists of two metallurgically bonded layers exhibiting substantially different coefficients of thermal expansion. Under sustained overcurrent conditions (typically defined as 1.13× to 1.45× In for IEC 60898-1 compliance), Joule heating causes the composite strip to deflect at a rate that is precisely calibrated by controlling the thickness ratio of the two alloy layers and the geometry of the cold-formed strip. The deflection is not instantaneous; it follows an inverse-time characteristic that mirrors the thermal capacity of the protected conductor — heavier currents produce faster trips, lighter overcurrents produce slower trips, which prevents nuisance interruption of inrush currents from motor starts or transformer energisation. At the XL7-63's rated 63 A, the trip unit is calibrated so that the device will not trip below 1.13 × In for at least one hour at ambient temperature, complying precisely with the IEC 60898-1 time-current characteristic Table 3 requirements. For panel builders assembling boards destined for third-party inspections under local electrical codes derived from IEC, this calibration traceability is not a marketing footnote — it is the difference between a board that passes type-testing and one that doesn't.
The short-circuit interruption mechanism operates on an entirely different physical principle, one that is worth understanding in detail because it directly explains the Icu = 6 kA breaking capacity marked on the device faceplate. When a bolted short-circuit fault occurs downstream of the MCB, current rises at a rate governed by the source impedance and the circuit inductance — a rate that, in low-impedance commercial distribution networks fed by large MV/LV transformers, can reach tens of kiloamperes per second. Before the bimetallic strip has had any thermal response whatsoever, the electromagnetic release — a solenoid whose armature is calibrated to release at approximately 10 to 14 times In for a standard Type C characteristic — detects the instantaneous overcurrent and drives the contact arm open with a force derived directly from the electromagnetic attraction between the armature and the pole piece. Simultaneously, the arc extinction chamber — a stack of parallel steel arc-splitter plates arranged in a proprietary geometry within the moulded arc chute — divides the resulting arc into a series of shorter arcs, each of which contributes a voltage drop (the arc voltage) that collectively opposes the source voltage and limits the prospective short-circuit current to a value that the contact system can safely clear. The gas pressure generated by arc plasma assists in driving the arc along the arc runner into the splitter stack, a fluid-dynamic process whose efficiency depends critically on the tolerances of the arc chute moulding and the surface condition of the steel plates — two variables that our automated manufacturing lines control with repeatability that batch-assembled, manually inspected commodity products cannot match.
The proliferation of IEC standard markings on low-cost MCBs from second- and third-tier trading companies has made this certification label almost meaningless to experienced procurement engineers — and rightly so. What the standard actually mandates, when properly applied, is a regime of design-type testing, routine production testing, and quality management that most intermediary-trading supply chains are structurally incapable of guaranteeing, because they exercise zero control over the factory floor where the device is actually manufactured.

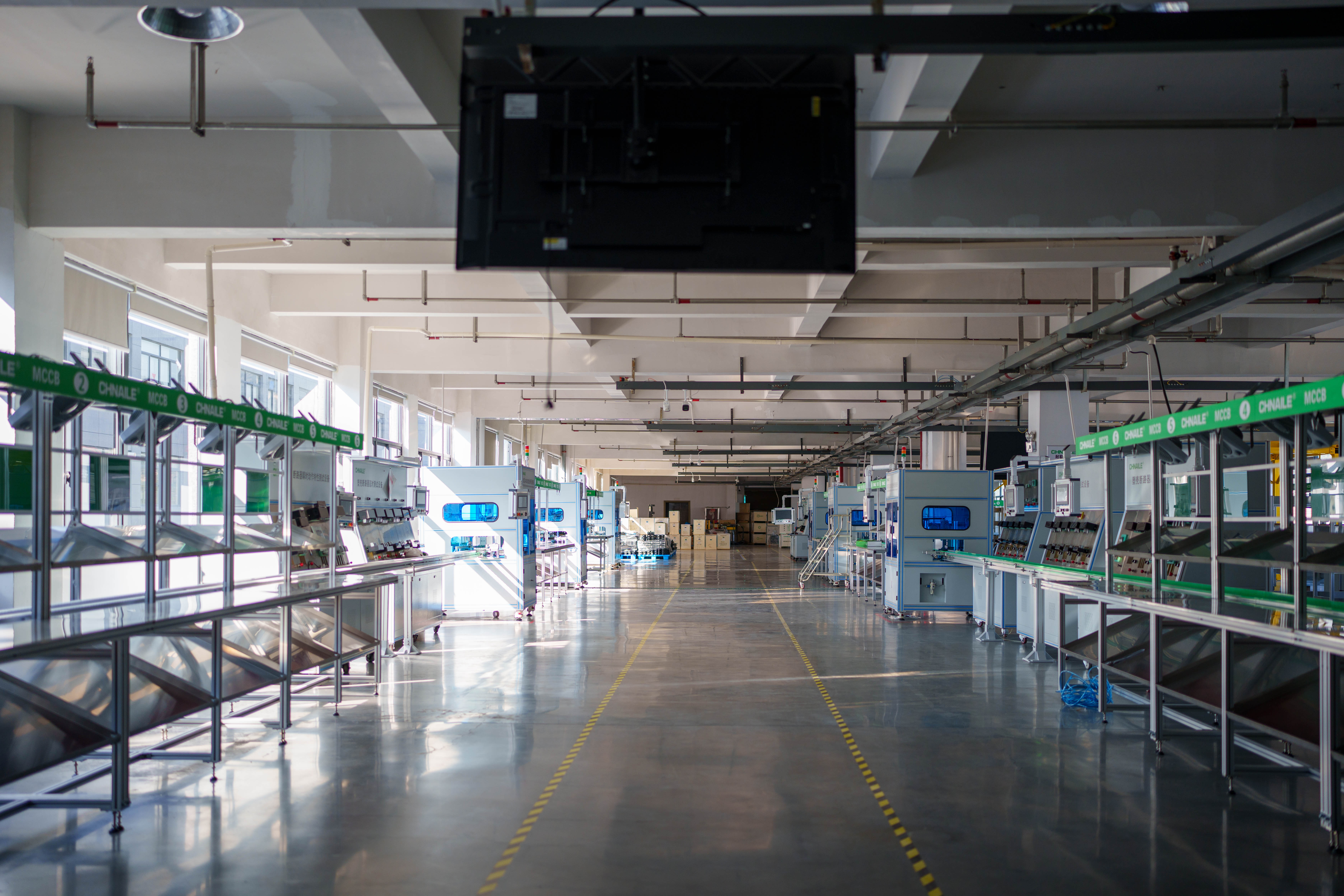

The XL7-63 2P 63A MCB is produced in our own vertically integrated factory, operating computer-controlled automatic assembly lines that handle contact riveting, bimetal calibration, arc chute assembly, and housing moulding under process parameters that are logged, timestamped, and archived for each production batch. The routine testing regime applied to every unit before it leaves the line includes: dielectric voltage withstand (2000 V AC applied between line and load terminals for 1 minute, verifying insulation integrity of the moulded housing), operational verification (the actuator toggle is cycled through On–Off–Trip sequences under no-load and resistive-load conditions to confirm positive contact make and break), and trip-time verification on a statistically sampled basis using computerised current injection test equipment calibrated against national standards traceable to CNAS-accredited metrology laboratories.
For EPC contractors and national utility procurement offices — the agencies assembling low-voltage switchgear for municipal substations in Nairobi, for commercial tower distribution boards in Dubai, or for grid-tied solar installations in São Paulo — the traceability of the manufacturing process is as commercially important as the device specification itself. When a post-fault investigation begins, the ability to pull a batch record and demonstrate that every unit in a given production run passed calibrated electrical testing is the difference between a warranty claim that is quietly resolved and a liability exposure that involves expert witnesses and arbitration. Our factory documentation system supports batch traceability to this standard, and we make test record packages available on request as part of the OEM supply agreement — a level of transparency that trading companies who outsource production to rotating factories cannot offer.
The IEC 60898-1 standard also prescribes specific mechanical endurance requirements: the device must complete a defined number of operating cycles (mechanical and electrical) without degradation of performance below the rated parameters. Our XL7-63 is designed and tested to satisfy the standard's mechanical and electrical endurance categories, meaning that panel builders who specify this device in designs with high-cycle maintenance scenarios — energy metering cabinets that are tested and reset monthly, for example, or PV string protection boards that may be operated during routine commissioning at multiple sites — can rely on consistent performance throughout the service life, not just during initial type-testing.
Procurement engineers who wish to review our third-party type-test certificates, factory audit reports, or request a technical parameter comparison against a currently approved supplier's product are invited to contact our export technical team directly. WhatsApp: +86 15985210820 connects directly to a bilingual (English/Arabic) senior sales engineer with authority to issue formal quotations, arrange sample shipment, and schedule video factory audits — a process that typically completes within 72 business hours from first contact.
One of the structural disadvantages that panel builders in emerging markets face when sourcing MCBs from European brand distributors is the absence of any meaningful customisation pathway. The catalogue part number is fixed; the housing colour is fixed; the voltage and frequency markings are fixed to the domestic European market; and the packaging is designed for a retail consumer channel that has nothing to do with the B2B panel-assembly workflow. The result is that panel builders in Saudi Arabia, Nigeria, or Colombia are assembling premium-branded distribution boards using devices that are, in every visible respect, optimised for a different market — a mismatch that sophisticated end-customers are increasingly aware of and increasingly unwilling to accept.
Our XL7-63 MCB platform is designed from the ground up as a configurable manufacturing module, not a fixed catalogue item. The key customisation dimensions available to OEM customers are as follows, though this enumeration is not exhaustive: Pole count can be specified as 1P, 2P, 3P, or 4P, with the 2P double-pole configuration reviewed here representing the most common specification in single-phase commercial circuits requiring simultaneous L+N isolation. Rated current within the XL7-63 frame is available from 6 A through 63 A, with trip characteristic curves available in Type B (3–5 × In instantaneous), Type C (5–10 × In instantaneous), and Type D (10–20 × In instantaneous), enabling the same housing form factor to address resistive load, general-purpose, and high-inrush applications without changing the panel cutout or DIN rail allocation. Voltage rating markings on the device label and product documentation can be adjusted to reflect the nominal system voltage of the destination market — 230 V/50 Hz for single-phase European-standard networks, 240 V/50 Hz for Gulf and East African grids, 220 V/60 Hz for parts of Latin America, or dual-voltage marking where code permits. Housing colour is customisable to support brand differentiation or market-specific colour-coding conventions; while white/light grey is the standard finish shown in the product image, full-body colour variants in black, dark grey, beige, or custom RAL references are available for OEM orders meeting agreed minimum quantities. Private-label branding encompasses laser-engraved or pad-printed logo, model number series, and regulatory marking on the device face, combined with custom-printed retail or industrial packaging — brown carton, polybag-in-box, blister card, or foam-inset master carton formats are all supported by our packaging line.
For panel builders building towards a proprietary product line — a commercially legitimate and increasingly common strategy in competitive markets where the margin on assembly labour is thin and brand equity is the primary differentiator — the ability to source a fully private-labelled, IEC-compliant MCB directly from the source factory, at factory pricing, without the layer of distributor margin and minimum order constraints that brand owners impose, represents a structural cost and margin advantage that compounds across every project the panel builder wins. The economics are straightforward: when the MCB carrying your brand name costs you 30–40% less than the equivalent branded device, and the technical specification is comparable or superior on the metrics your local electrical inspector actually measures, the business case does not require a spreadsheet.
We recommend that first-time OEM enquiries include the following information to allow our team to return a complete technical and commercial proposal within one working day: target rated current and pole configuration, trip characteristic (B/C/D), destination country and applicable electrical code, annual volume estimate (even a rough range is sufficient for initial pricing), logo artwork in vector format if private labelling is required, and any specific packaging or labelling requirements mandated by local import regulations. Sending this brief via WhatsApp: +86 15985210820 initiates a conversation with our export team, not a call centre — you will be speaking with the engineer who manages the production file, not a sales representative reading from a spec sheet.
Understanding where the 2P 63A MCB belongs in a distribution board's protection coordination hierarchy — and where it does not belong — is the kind of application engineering guidance that separates a technically credible supplier from a box-mover. The XL7-63, with its Icu of 6 kA, is correctly positioned as a final-circuit protection device in low-voltage systems where the available fault current at the installation point has been limited by upstream protection devices (typically an MCCB or ACB at the incomer, followed by a busbar distribution system with sufficient impedance to attenuate fault levels). In a properly coordinated panel, the MCB's 6 kA breaking capacity is adequate for circuits fed from a bubar system at three or more tiers removed from a large transformer, or for installations where the supply authority's service connection impedance limits available fault current to below this threshold — a condition that applies to the vast majority of commercial tenant fit-outs, small industrial units, residential apartment distribution boards, and the final-circuit protection layer in solar PV systems where the string inverter's output impedance inherently limits fault current.
In photovoltaic combiner boxes and string protection boards, the 2P configuration is particularly appropriate because modern string inverters are designed for single-phase AC output connection in the 230–240 V range, and the NEC 690 / IEC 62548 requirement for simultaneous disconnection of both conductors maps directly onto the 2P MCB's switching architecture. The 63 A rating, in the context of PV AC output protection, covers string inverters with single-phase output up to approximately 14 kVA at 230 V — a range that encompasses the dominant residential and small commercial inverter segment globally. For battery energy storage container (BESS) applications, where the AC coupling protection board must handle bidirectional current flow during both charge and discharge cycles, the XL7-63's symmetrical contact construction ensures that its performance characteristics are identical regardless of current direction — a detail that some lower-cost MCB designs do not verify explicitly in their type-test regime but which our IEC 60898-1 type tests document under both conventional current directions.
In commercial building main distribution boards serving tenant circuits — the sub-distribution scenario common in office towers, shopping centres, hotel back-of-house panels, and data centre power distribution units — the 2P 63A MCB provides final-circuit protection for circuits supplying HVAC fan-coil units, lighting distribution boards, UPS input circuits in the 10–14 kVA range, and general power circuits serving dense office fit-outs. The device's compact double-module DIN rail footprint (35 mm DIN rail, 2 × 18 mm module width) allows for high-density installation in the panel widths that are commercially standard in these applications, and the top/bottom cable entry with two independent screw terminals (one per pole) accommodates both single-core and multi-core conductors to IEC-standard sizes appropriate for a 63 A circuit.
Municipal and utility-grade applications — metering cabinets, streetlighting distribution panels, irrigation control boards, water treatment plant MCC feeders — represent a procurement context where long-term spares availability and cross-batch performance consistency are evaluated alongside initial unit price. Our commitment to maintaining the XL7-63 frame as a stable production platform, with engineering change notices issued to OEM customers in advance of any design modification that affects form, fit, or function, addresses this concern directly. We do not retire product platforms without adequate notice and without offering a qualified replacement path — a supply continuity discipline that is unusual among manufacturers at our price point and that procurement teams managing 10–15 year asset lifecycle projects are increasingly requiring as a formal contractual condition.
Procurement managers, engineering consultants, and panel builder operations directors who are evaluating the XL7-63 against currently approved substitutes, or who are building a long-list of qualified MCB suppliers for a major infrastructure programme, are encouraged to request our full technical data sheet, IEC type-test certificate extracts, and factory capability summary as a starting point. All documentation is available in English, and Arabic or Spanish translations of key technical parameters can be provided on request. The fastest path to receiving this package — along with a commercial quotation calibrated to your specific volume and configuration — remains a direct message to our export engineering team: WhatsApp +86 15985210820. We respond within business hours (UTC+8), and for time-sensitive project enquiries, we maintain an extended-hours monitoring window to cover the working day of our customers in the Gulf, East Africa, and Western Europe simultaneously.
