Reclaiming Reliability in Utility-Grade Power Distribution
Navigating the stringent procurement specifications of national grid operators and heavy commercial infrastructure developers requires panel builders to make critical architectural decisions. In the contemporary rush toward highly digitized electrical components, structural engineers often overlook the fundamental resilience of pure electro-mechanical physics. When designing localized municipal feeder pillars, commercial solar combiner outputs, or the sub-distribution nodes within a massive data center, the environment is rarely pristine. These enclosures are frequently subjected to severe ambient temperature fluctuations, heavy dust accumulation, and unpredictable grid transients. Deploying sensitive electronic breakers in these harsh, secondary-level utility applications frequently leads to premature component degradation and frustrating nuisance tripping, ultimately damaging the reputation of the switchgear manufacturer. Recognizing this specific industry vulnerability, our engineering divisions focused on perfecting the traditional Thermal-Magnetic Molded Case Circuit Breaker (MCCB) architecture, resulting in the highly dependable 400-Ampere platform presented herein.
A thorough examination of the physical characteristics of this unit reveals a design ethos dedicated strictly to heavy-duty stability. Operating securely across AC 400V networks, the device relies on substantial bimetallic strips for inverse-time overload protection and massive copper coils for instantaneous magnetic defense. As explicitly indicated on the frontal specification plate, the magnetic trip threshold is statically calibrated to ten times the nominal current (10In), translating to a massive 4000-Ampere ceiling before instantaneous actuation occurs. For a panel builder outfitting a commercial facility, this specific parameter is invaluable. It ensures that the breaker will comfortably absorb the brutal, temporary inrush currents generated when heavy ventilation motors or massive strings of solar inverters are energized, thereby preventing localized power interruptions. Conversely, classified as a Category A device, it sacrifices no speed when confronting a genuine, catastrophic short circuit. Supported by a robust 800V dielectric insulation (Ui) and an 8kV atmospheric surge immunity (Uimp), the internal de-ion arc chutes are engineered to violently extinguish severe fault plasmas reaching up to 50,000 Amperes (50kA), or even 80kA in the high-capacity variant, ensuring the structural survival of the surrounding steel enclosure.
Technical Parameters
| Device Category: | Thermal-Magnetic Molded Case Circuit Breaker (TM MCCB) |
| Poles Configuration: | 3P (Simultaneous 3-Phase Heavy Motor Isolation) |
| Frame Size & Rated Current (In): | 400A (Sustains massive continuous loads up to ~270kW) |
| Rated Operating Voltage (Ue): | AC 400V (50Hz) |
| Rated Insulation Voltage (Ui): | 800V |
| Rated Impulse Withstand Voltage (Uimp): | 8kV |
| Ultimate Breaking Capacity (Icu): | 50kA (L-Type severe fault suppression) |
| Service Breaking Capacity (Ics): | 35kA |
| Instantaneous Magnetic Trip (Ii): | 10In ± 20% (Crucial for heavy motor inrush immunity) |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |
Engineering Predictability Through Smart Automation

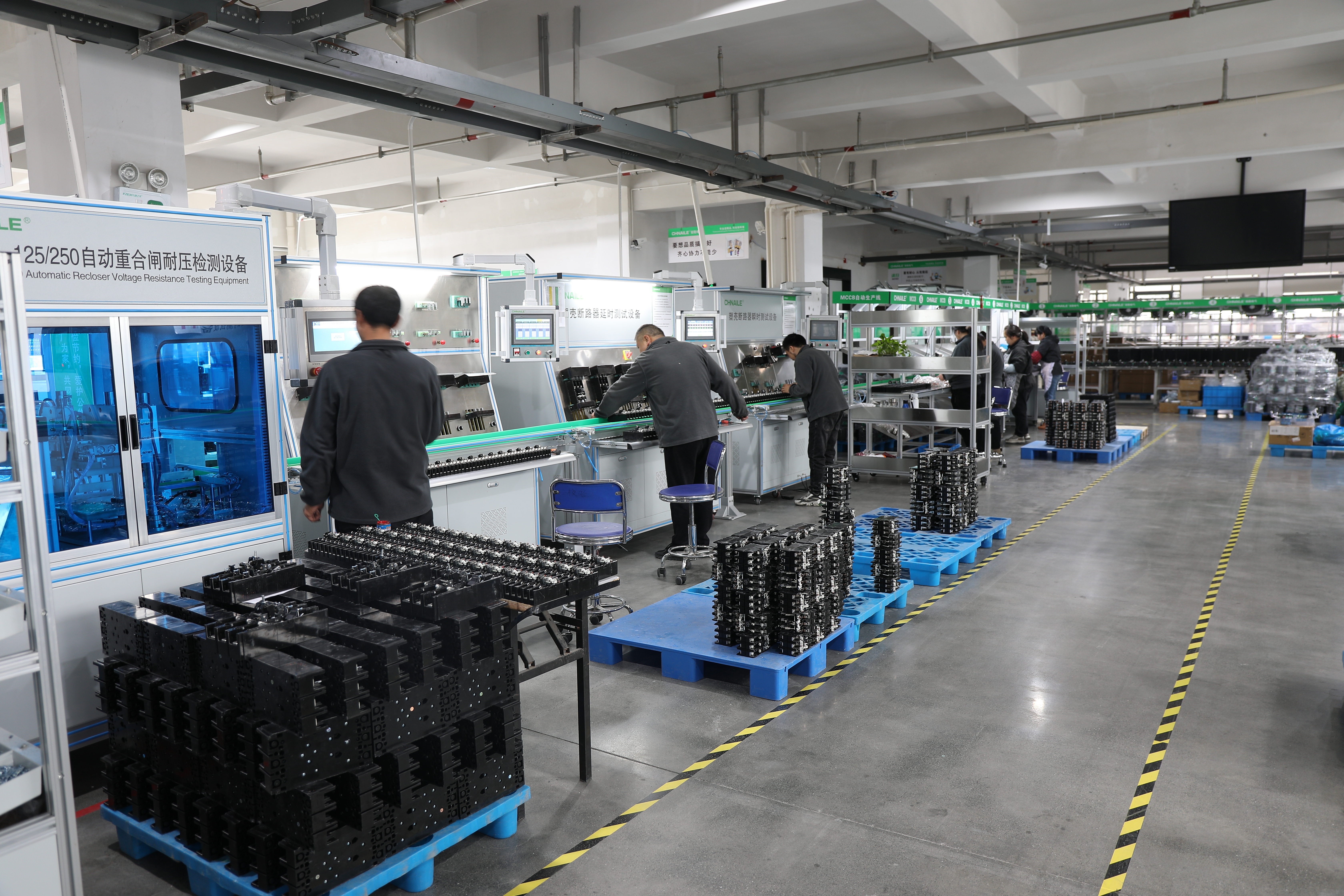

While the underlying physics of a thermal-magnetic breaker are well established, the true challenge for a global manufacturing partner lies in producing these devices with absolute, unyielding consistency across production runs of thousands of units. When an Original Equipment Manufacturer (OEM) incorporates our 400A breakers into a municipal switchboard, they are staking their compliance with IEC 60947-2 standards on our fabrication precision. Human error in the tensioning of a bimetallic strip or the positioning of an arc chute can result in wildly shifting tripping curves. To eradicate this inconsistency, the CHNAILE manufacturing facilities have fully transitioned to automated smart production lines.
The entire internal mechanism of this heavy-duty MCCB is assembled, calibrated, and torqued by advanced robotics, guaranteeing sub-millimeter tolerances. Furthermore, the validation of this precision is not left to chance. Every single unit must pass through our computerized smart inspection equipment before being cleared for international export. These automated testing matrices simulate continuous thermal loads and inject high-voltage short-circuit impulses, digitally recording the precise reaction times to ensure every breaker mirrors the exact safety curve mandated by national utility consultants. Additionally, the inclusion of a dedicated red 'Push to Trip' mechanical diagnostic button on the breaker's faceplate allows your factory assembly technicians to manually verify the kinetic health of the spring-latch mechanism during your internal Factory Acceptance Testing (FAT), providing an extra layer of quality assurance before the panel is shipped to the installation site.
Forging a Resilient Procurement Pipeline
The profitability of a professional switchgear assembly plant is inexorably linked to the efficiency and scalability of its supply chain. Sourcing a 3-Pole 400A breaker for a standard commercial project from one regional distributor, while struggling to locate a matching 4-Pole variant for a specialized solar project requiring complete neutral isolation, fragments your purchasing power and disrupts assembly line rhythms. Our operational mandate is to operate as your singular, highly adaptable manufacturing conduit. We possess the automated capacity to custom-fabricate this exact architectural footprint across both 3-Pole and 4-Pole configurations, with customized amperage ratings specifically tailored to your evolving project blueprints.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your corporate growth.
Private Labeling and Faceplate Branding:
Elevate your corporate identity. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the MCCB faceplates. Instructional safety labeling, operating toggles, and customized bulk packaging can all be tailored to match your specific corporate design language. Your clients will receive a world-class switchboard component carrying your trusted brand name.
Certified Quality to Fast-Track Your Panel Certifications:
Winning major commercial bids requires your completed switchgear to pass strict regional certifications. Our 400A MCCBs are rigorously tested in state-of-the-art high-current laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your engineering department with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Stabilizing Your Bill of Materials (BOM) in a Volatile Market:
Relying on intermediary trading companies for core components often leads to disastrous supply chain delays and inflated costs. By sourcing these heavy-duty thermal-magnetic MCCBs directly from our highly automated manufacturing lines in China, you secure aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on high-volume commercial panel bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production.
