Rethinking Component Resilience for High-Particulate and Rapid-Deployment Grids
The operational reality of deploying low-voltage Main Distribution Boards (MDB) into heavy extraction industries, aggregate processing plants, or expansive temporary event staging areas presents a unique set of engineering hurdles that standard commercial switchgear simply cannot surmount. Panel builders tasked with fulfilling these specialized contracts must select components that not only deliver exceptional electro-dynamic protection but also physically endure highly abrasive, dust-choked atmospheres while facilitating immediate, tool-less maintenance. Recognizing the severe limitations of traditional, hard-wired white-casing breakers in these environments, the industrial design division at CHNAILE engineered the NLL7-63 plug-in platform. This specific architecture is a direct response to the persistent demands of international Engineering, Procurement, and Construction (EPC) firms who require robust, scalable switching solutions that actively minimize facility downtime and maintain a professional aesthetic under the most punishing field conditions.
Core Technical Specifications
| Brand: | CHNAILE |
| Model: | NLL7-63 |
| Number of Poles: | 3P (Three Phase) |
| Current Type: | AC (Alternating Current) |
| Rated Operating Voltage (Ue): | AC 240/415V~ |
| Rated Current (In): | 63A |
| Tripping Characteristic: | Curve C (Ideal for standard inductive loads) |
| Rated Short-circuit Breaking Capacity (Icu): | 10000A (10kA) |
| International Standard: | IEC60898-1 |
| Mounting Type: | Quick-swap Plug-in Base (Sold separately / Included) |

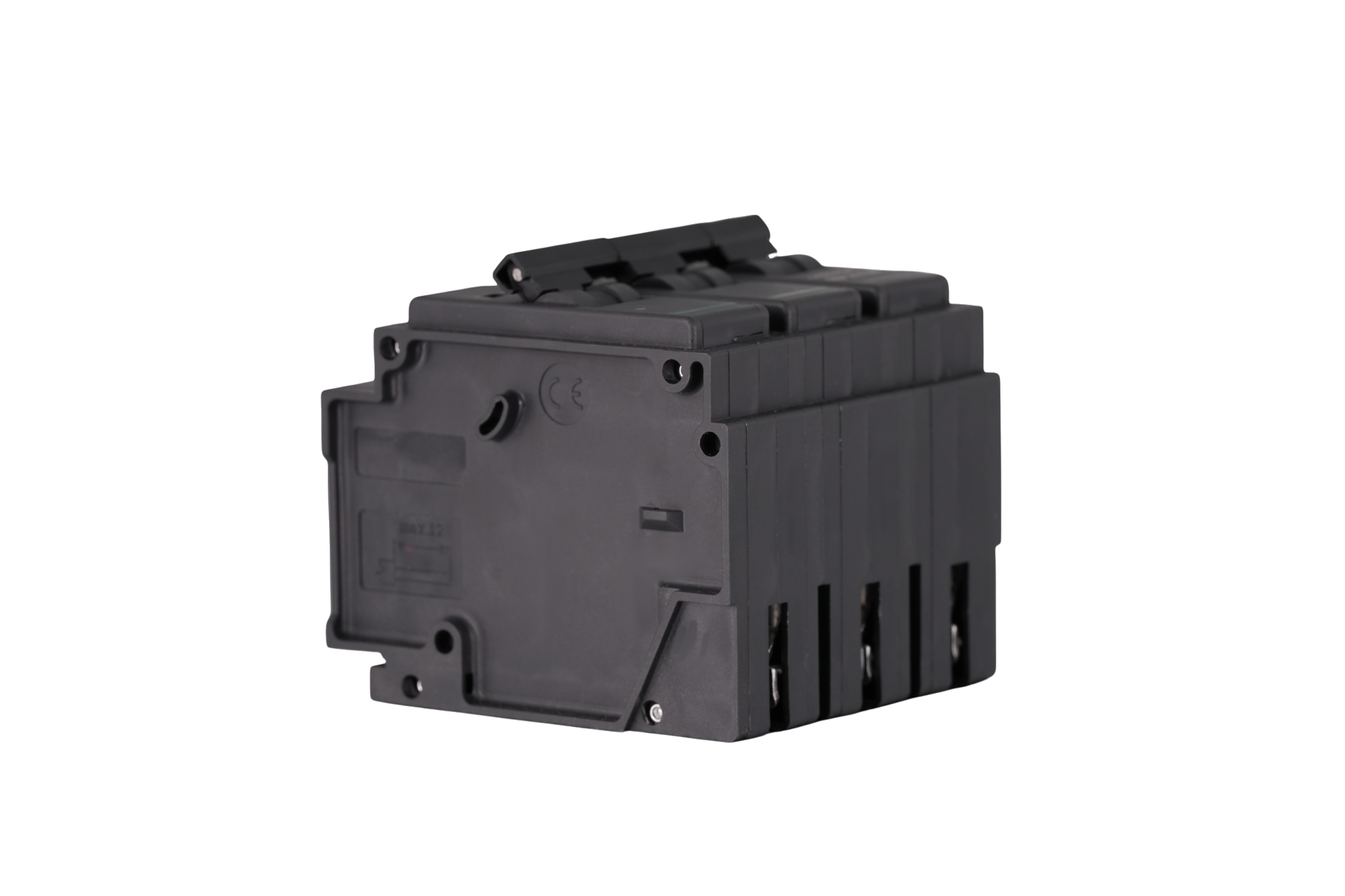

A meticulous visual inspection of the featured 3-Pole, 50-Ampere unit reveals a deliberate departure from conventional design protocols. Most notably, the utilization of a specialized, high-density dark-grey thermosetting polymer for the exterior housing serves a distinct operational purpose. In mining control rooms, cement fabrication facilities, or muddy construction site "spider boxes," airborne particulate matter and grease rapidly permanently stain standard white electrical components, rendering distribution panels unreadable and accelerating perceived degradation. The CHNAILE dark-housing architecture masks this inevitable industrial accumulation, ensuring that the control panel maintains a rugged, professional appearance throughout its lifecycle, which is highly appreciated by facility safety inspectors. Beneath this resilient armor, the breaker is armed with a substantial 10,000-Ampere (10kA) short-circuit extinguishing capacity, providing the critical overcurrent defense necessary to protect massive 3-phase conveyor motors and temporary lighting rigs operating on AC 400V networks from catastrophic electrical explosions.
The Economics of Plug-in Architecture and Parametric Scalability
However, the true commercial leverage this platform offers to global switchgear manufacturers is deeply rooted in its mechanical interface and our boundless production scalability. In remote mining operations or during a live, multi-day music festival, a localized electrical fault that destroys a breaker must be rectified instantaneously. If a panel builder specifies traditional DIN-rail breakers, the responding technician is forced to execute a complex, hazardous procedure: isolating the main power, unscrewing live, heavy-gauge copper terminal lugs, forcibly extracting the melted unit, and painstakingly rewiring the replacement. This archaic process results in unacceptable facility downtime and significant lost revenue for the end-user.

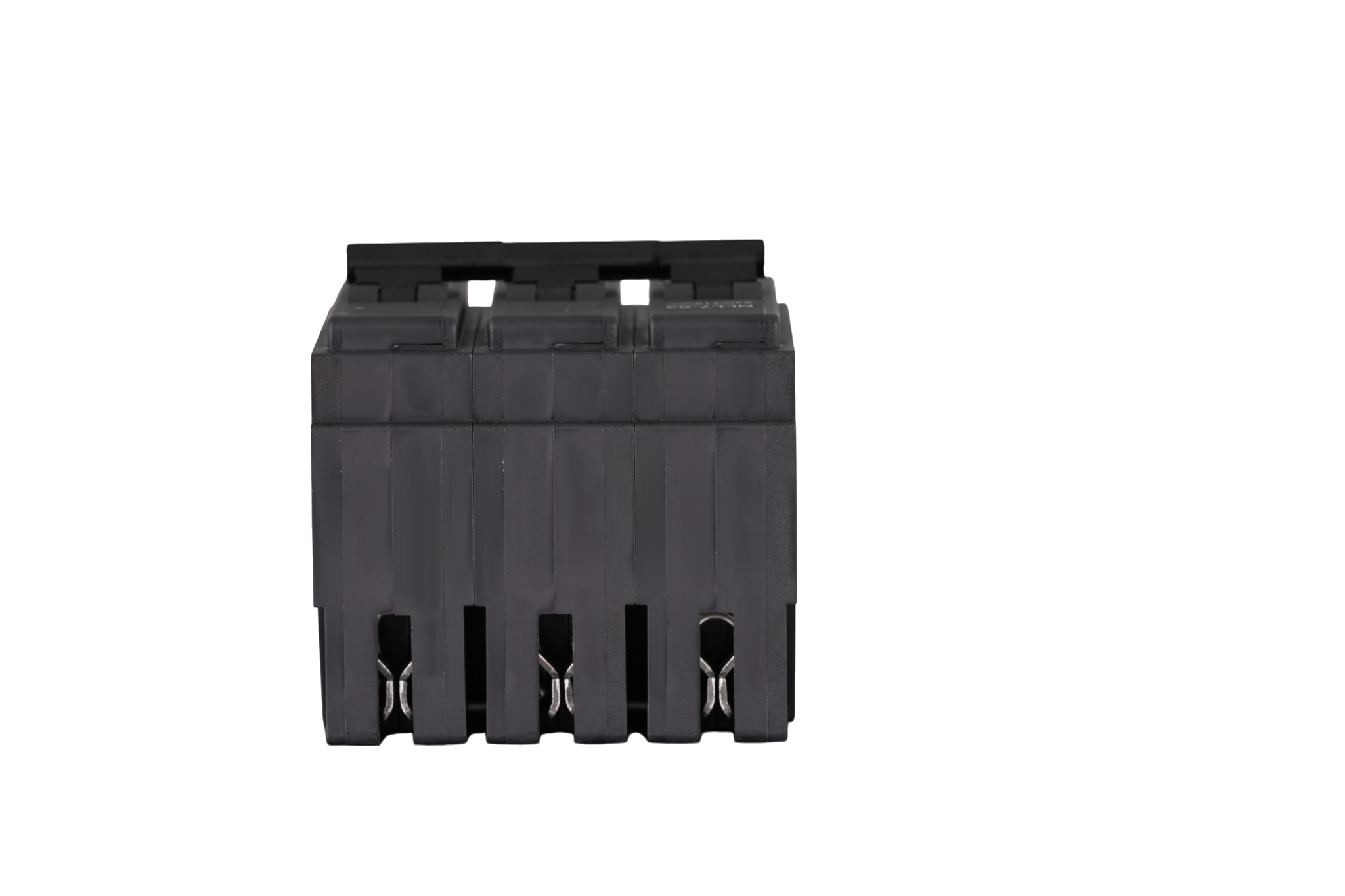

The CHNAILE plug-in methodology completely eradicates this maintenance bottleneck. Your assembly technicians permanently torque the incoming and outgoing wiring into the fixed base receptacles during the initial factory build. When a fault occurs in the field, the site operator simply grasps the tripped breaker module and pulls it smoothly from its socket, inserting a fresh module in a matter of seconds. This "hot-swappable" capability drastically reduces the Mean Time To Repair (MTTR), transforming a complex electrical repair into a simple, rapid-exchange process. Furthermore, relying on fragmented distribution networks to source varying capacities of these specialized breakers exposes your fabrication plant to volatile pricing and unpredictable lead times. As a foundational manufacturing source, CHNAILE guarantees absolute supply chain sovereignty.
We possess the automated industrial infrastructure to custom-manufacture this exact, heavy-duty plug-in profile across an exhaustive operational spectrum. Whether your specific enclosure blueprints necessitate a single-pole (1P) 6A configuration for delicate localized control circuits, or a comprehensive 4-Pole (4P) 63A main disconnect that guarantees total neutral isolation for critical 3-phase machinery, we supply a unified, visually cohesive ecosystem. This profound parametric scalability allows your procurement directors to consolidate their entire Bill of Materials (BOM) into a single, highly reliable factory-direct conduit. By standardizing your entire heavy-duty enclosure portfolio around the CHNAILE platform, your assembly technicians benefit from unified wiring methodologies, drastically accelerating factory throughput. For panel building executives and chief electrical designers seeking to optimize their production costs, explore specific amperage calibrations, or establish extensive Original Equipment Manufacturer (OEM) white-labeling partnerships, our senior international engineering team is immediately accessible to discuss strategic procurement via WhatsApp at +86 15985210820. Partner directly with the source manufacturer to secure your dominance in the global industrial distribution market.
