Rethinking Spatial Economics in Photovoltaic Switchgear Assembly
The commercial solar sector operates on razor-thin margins, placing immense pressure on electrical panel builders to value-engineer every aspect of their Solar Combiner Boxes and Battery Energy Storage System (BESS) enclosures. A persistent bottleneck on the factory floor occurs when routing high-amperage direct current. Traditionally, protecting a 160-Ampere solar array circuit mandated the integration of a bulky Molded Case Circuit Breaker (MCCB). These larger devices consume vast amounts of internal cabinet real estate, forcing structural designers to specify oversized steel enclosures, which inevitably inflates both sheet metal costs and shipping logistics. The engineering division at CHNAILE recognized this inherent industry inefficiency and responded by developing the NLB1-160 PV series. This specialized component delivers a paradigm shift in enclosure design by compressing 160 Amps of reliable, continuous DC load-carrying capacity into a highly condensed Miniature Circuit Breaker (MCB) profile. By adopting this space-saving architecture, panel fabricators can drastically shrink the physical dimensions of their combiner boxes, yielding a more competitive, cost-effective end product for commercial rooftop solar developers and municipal grid-tie projects.
Addressing the Realities of DC Arc Suppression and Cable Termination

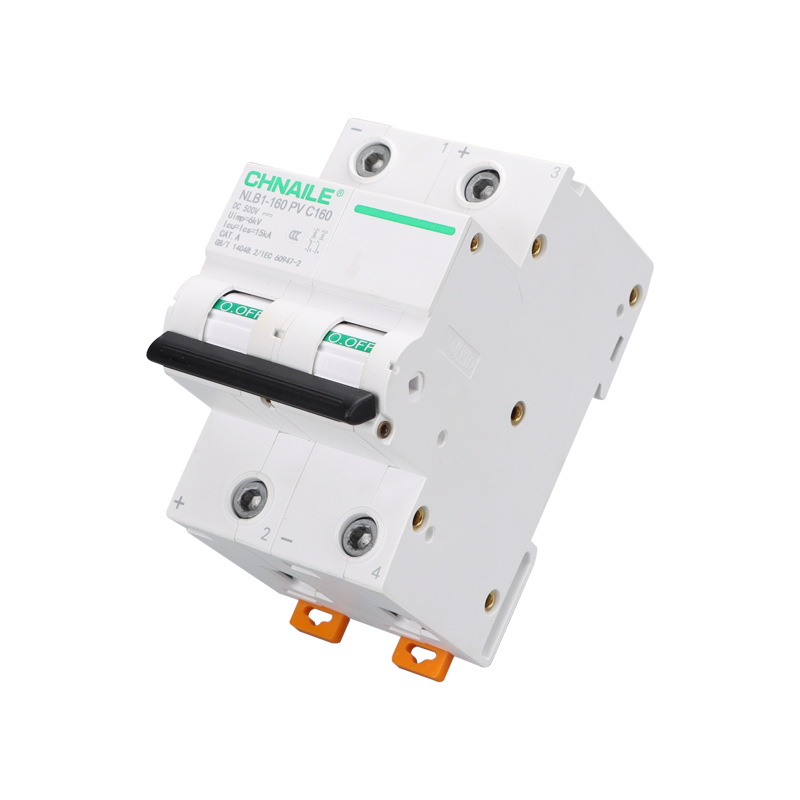

Direct current systems are notoriously hostile. Unlike alternating current, a DC 500V fault does not self-extinguish; it sustains a violent, continuous plasma arc that can rapidly melt inferior plastics and ignite adjacent switchgear. To guarantee absolute survival in these commercial photovoltaic environments, this specific 2-Pole breaker is fortified with a 15,000-Ampere (15kA) ultimate breaking capacity, where the service breaking capacity equals 100% of the ultimate limit (Ics=Icu). This symmetrical rating is crucial for panel builders, as it certifies that the breaker can withstand a catastrophic short circuit from a solar string or battery rack and remain fully operational without requiring immediate factory replacement.

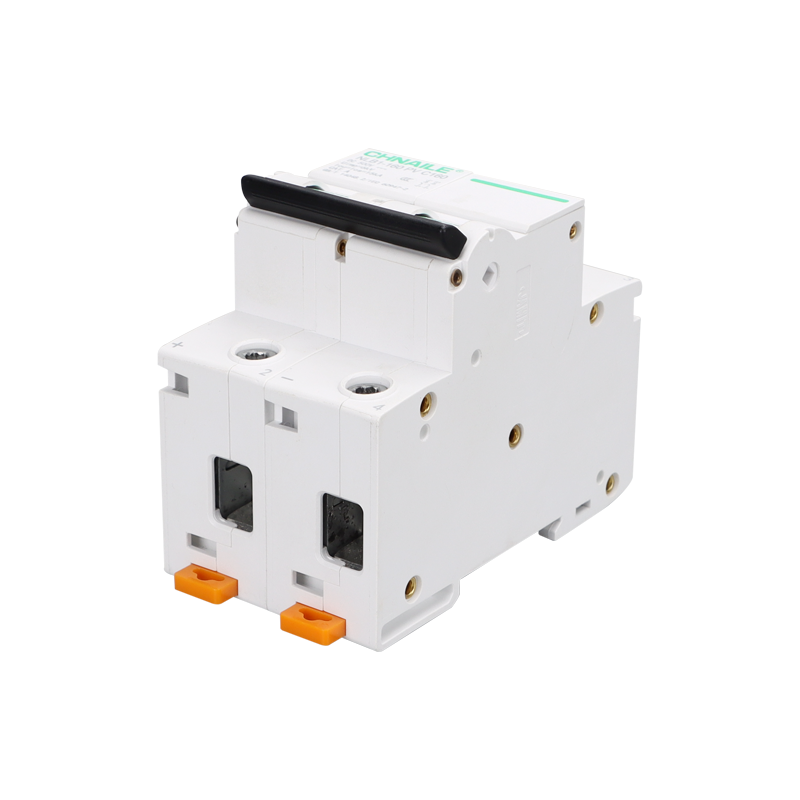

Equally critical is the physical process of cabinet assembly. Routing 160 Amps of power requires exceptionally thick, heavy-gauge copper cabling. Standard screw terminals found on typical MCBs strip and fail when technicians attempt to apply the necessary torque to secure such massive conductors. By examining the structural interfaces of the CHNAILE 160A unit, assembly managers will note the implementation of heavy-duty, hex-driven socket terminals. This robust mechanical design allows factory floor workers to utilize industrial hex keys to apply immense clamping pressure. This guarantees a zero-gap, vibration-resistant termination that completely eliminates the risk of thermal creep and terminal fires, a frequent point of failure in continuously operating commercial solar farms. Furthermore, clearly printed polarity markings (+ and -) alongside the connection ports ensure foolproof wiring during rapid production cycles, preventing disastrous reverse-polarity connections during panel integration.
Supply Chain Consistency Through Intelligent Automated Manufacturing
For a procurement director managing the output of a high-volume electrical panel facility, component reliability is non-negotiable. Relying on manually assembled switchgear introduces dangerous batch-to-batch inconsistencies. CHNAILE eradicates this quality control risk through profound investments in manufacturing infrastructure. Every breaker in this series is produced on state-of-the-art, automated smart assembly lines. The intricate internal magnetic blow-out coils and sensitive bi-metallic thermal releases are positioned and calibrated by precision robotics. Following assembly, no product is packed before passing through our proprietary smart inspection equipment. These computerized testing rigs automatically simulate severe DC short circuits and sustained high-temperature overloads, digitally verifying that every unit performs exactly to IEC 60947-2 standards.

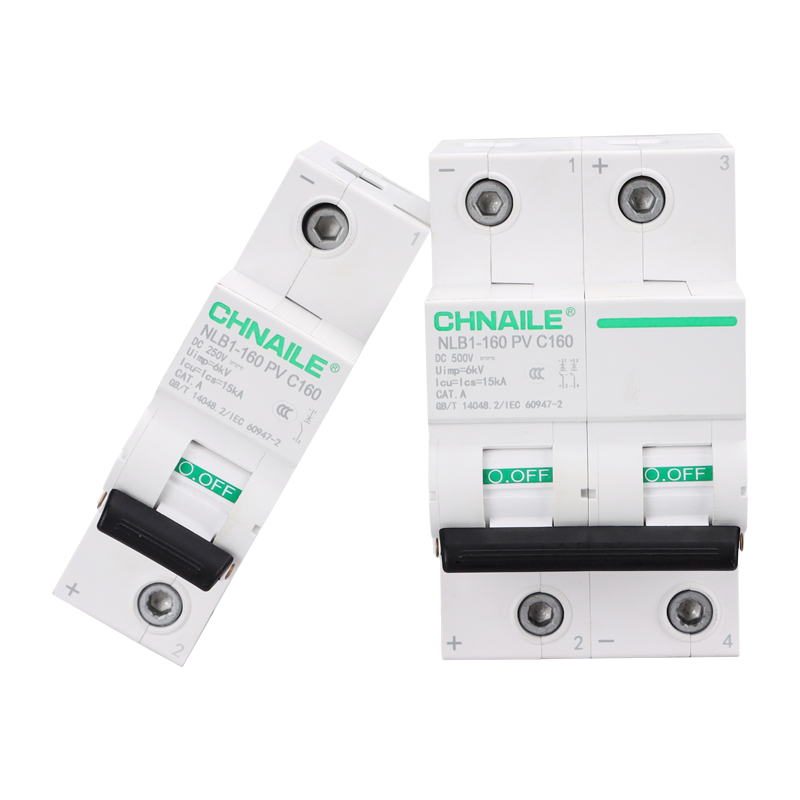

This level of manufacturing sophistication underpins our ability to offer unparalleled supply chain scalability to our B2B partners. We recognize that municipal power projects and solar developers demand diverse panel configurations. Therefore, our automated lines are equipped to supply this exact, high-performance DC architecture across an infinite matrix of specifications. Whether your current enclosure schematics dictate a narrow 1-Pole isolation switch, a standard 2-Pole configuration for typical strings, or a comprehensive 3-Pole and 4-Pole setup for complex battery rack isolation, we manufacture the exact footprint required. Furthermore, the amperage calibration can be custom-ordered anywhere from a highly sensitive 6A up to the formidable 160A threshold. By centralizing your procurement strategy with the CHNAILE factory, you secure aggressive wholesale pricing, eliminate intermediary trading friction, and gain access to comprehensive white-labeling services to elevate your own switchgear brand. For specialized schematic requirements, tailored OEM branding, or to initiate a direct factory partnership, switchgear manufacturing executives and chief electrical engineers are encouraged to communicate directly with our export production team via WhatsApp at +86 15985210820. Partner with an intelligent manufacturing source to dominate the global renewable energy infrastructure market.
