Vendor Audit Protocol: OEM AC 1140V High-Voltage MCCB (250A) for Heavy Switchgear Fabricators

[ ARTICLE I : Dielectric Resilience and High-Voltage AC Infrastructure Imperatives ] Within the uncompromising parameters of heavy industrial power routing, electrical engineering consultants and facility procurement directors frequently encounter a fundamental obstacle regarding cable economics and power transmission efficiency. In sprawling operational footprints such as subterranean mining complexes or expansive renewable energy transmission nodes, distributing power at the conventional 400V or 690V alternating current (AC) necessitates utilizing immensely thick, cost-prohibitive copper cabling to mitigate substantial voltage drop over long distances. The standardized engineering countermeasure is to dramatically elevate the distribution voltage to 800V, 1000V, or specifically 1140V AC, thereby allowing the safe utilization of thinner, more economical wiring infrastructures. However, this strategic elevation of voltage places catastrophic dielectric stress upon the internal switching components populating the Main Distribution Boards (MDBs). Standard commercial Molded Case Circuit Breakers deployed into an AC 1140V environment represent a fatal miscalculation; upon attempting to interrupt a fault, the massive voltage potential will effortlessly strike a continuous, unquenchable plasma arc across the insufficient internal gaps, instantly melting the silver-alloy contacts and inevitably triggering a violent enclosure fire. The CHNAILE NLM3HU-250 platform is structurally architected to exclusively manage this extreme high-voltage vulnerability for international switchgear fabricators. A forensic examination of the device's heavily reinforced polymer casing reveals a profound Rated Insulation Voltage (Ui) of 1150V, corroborated by an 12kV atmospheric impulse withstand capability (Uimp). This extraordinary dielectric fortitude ensures that the massive AC 1140V arc is violently aggressively stretched, fragmented, and cooled within specialized, enlarged de-ion arc chutes, guaranteeing absolute physical phase separation and ensuring your assembled panels seamlessly pass the most stringent government utility safety inspections.

Technical Highlights

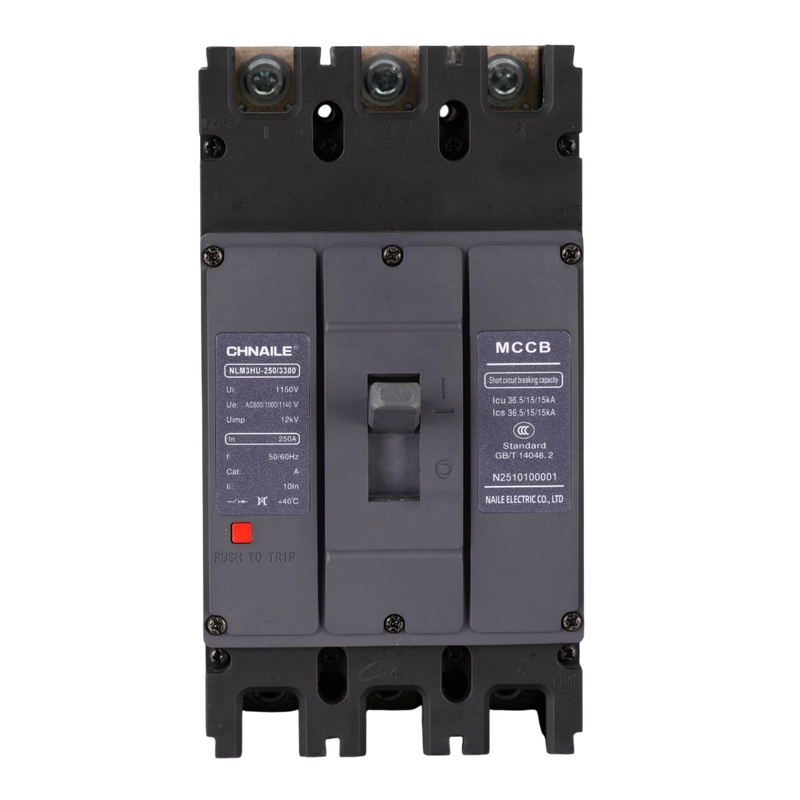

[ ARTICLE II : Kinetic Verification and Electro-Mechanical Integrity Mechanisms ] Outfitting commercial panel builders with high-voltage apparatus requires more than mere static insulation; it demands dynamic, verifiable mechanical reliability. The switchboards deployed into remote mining sectors or decentralized wind farms operate in environments characterized by persistent heavy vibration and unpredictable load demands. The 250-Ampere continuous load capacity of this specialized MCCB provides the unyielding kinetic backbone required to manage these aggressive industrial applications. As delineated on the frontal specification matrix, the magnetic instantaneous trip mechanism is precisely calibrated to ten times the nominal current (Ii = 10In), translating to a massive 2500-Ampere tolerance ceiling before autonomous actuation occurs. For the structural panel designer, this metric is critically important; it ensures the breaker will comfortably absorb the brutal, temporary inrush currents generated when heavy metallurgical crushers or massive ventilation fans initially energize, thereby eradicating the operational disruptions caused by frustrating nuisance tripping. Furthermore, the deliberate integration of a highly visible red 'PUSH TO TRIP' diagnostic actuator located on the lower left fascia serves a mandatory function during factory assembly protocols. This seemingly minor mechanical inclusion allows your Quality Assurance (QA) technicians to manually simulate a fault condition, physically verifying the health and kinetic responsiveness of the internal spring-latch carriage during rigorous Factory Acceptance Testing (FAT) before the completed distribution panel is authorized for overseas shipment.

[ ARTICLE III : Consolidating Supply Chain Elasticity via Smart Manufacturing Automation ] The theoretical brilliance of an AC 1140V high-voltage breaker is entirely negated if the supplying manufacturer lacks the industrial infrastructure to guarantee absolute batch consistency across procurement orders spanning thousands of units. When global switchgear fabricators specify components for specialized heavy industry tenders, relying on variable, outdated manual human assembly introduces unacceptable margins of error. A misaligned arc chute or improperly tensioned bimetallic element operating under 1140 Volts will result in disastrous thermal runaway. To pre-qualify as your primary Tier-1 manufacturing partner, CHNAILE enforces a strict protocol of technological reliance. The intricate internal switching bridges, the positioning of the heavy-gauge conductive pathways, and the compression of the magnetic blowout coils within the NLM3HU series are executed exclusively by highly sophisticated smart automated production lines. This robotics-driven fabrication ensures sub-millimeter tolerances, eradicating the inconsistencies inherent in manual labor. Furthermore, the validation phase demands relentless scrutiny. Prior to receiving international export clearance, every single high-voltage module must navigate a complex gauntlet of computerized smart inspection equipment. These digital testing matrices subject the breakers to simulated multi-kA fault currents and prolonged thermal stress, recording exact tripping latencies to verify strict compliance with GB/T 14048.2 and IEC equivalencies, providing panel builders with unquestionable, data-driven confidence.

[ ARTICLE IV : Enforcing Brand Sovereignty and Bespoke Component Customization ] The ultimate imperative for a profitable global switchgear assembly plant is the assertion of brand sovereignty and the optimization of the Bill of Materials (BOM). Procuring generic, off-the-shelf components from intermediary trading conglomerates forces a panel builder to dilute their corporate identity, resulting in completed switchboards that project a commoditized aesthetic to discerning utility consultants. CHNAILE is strategically structured to operate as a deeply integrated Original Equipment Manufacturer (OEM), dismantling these rigid supply chain constraints. We acknowledge that the featured 3-Pole 250A unit is merely a baseline engineering requirement. Our smart manufacturing facilities possess the profound elasticity to custom-fabricate this exact high-voltage architecture across whatever specific parameters your electrical blueprints dictate. Whether your localized industrial telemetry arrays demand a compact lower-amperage calibration, or your complex generator grounding architectures require a comprehensive 4-Pole setup, our production lines adapt seamlessly. We push this sovereignty into absolute aesthetic control. Should your corporate design guidelines require the exterior thermosetting polymer housing to be injection-molded in a proprietary brand color—perhaps to denote high-voltage danger zones within the cabinet—or if you require custom-printed retail and bulk packaging boxes to integrate flawlessly into your localized assembly line logistics, our facility will execute those exact chromatic directives. Procurement executives, chief electrical designers, and switchboard fabricators seeking to eradicate generic component sourcing are mandated to initiate a direct, high-level technical dialogue with our manufacturing team via WhatsApp at +86 15985210820. Establish a direct alliance with our automated smart factory to engineer absolute high-voltage power resilience, aggressive BOM optimization, and unparalleled proprietary branding into your global industrial distribution boards.
