A Strategic Manufacturing Alliance for National Grid Panel Builders
In the highly lucrative but intensely regulated sector of national utility infrastructure and smart grid deployment, electrical panel builders face daunting challenges. Securing government power projects or massive municipal utility contracts requires constructing Main Distribution Boards (MDBs) that go beyond simple fault protection. Utility operators now mandate "Self-Healing" grids—systems that can autonomously recover from transient faults, report real-time status to central control rooms, and drastically reduce the System Average Interruption Duration Index (SAIDI).
At CHNAILE, our B2B manufacturing model is built to empower your switchgear assembly firm to win these exact bids. We are your silent, high-capacity manufacturing engine. The CHNAILE NLM1EL-125 Series 3P+N Intelligent Auto-Reclosing MCCB is specifically engineered for the professional panel assembly floor targeting smart city and utility grid projects. Capable of safely routing continuous loads up to 125 Amperes at AC 400V, it integrates a heavy-duty motorized actuator, a digital microprocessor, and advanced SCADA telemetry interfaces into a single, cohesive unit. By incorporating our smart auto-reclosers into your proprietary electrical enclosures, you instantly upgrade your product portfolio to "Smart Grid Ready," enabling your firm to aggressively outbid competitors on major national infrastructure projects with vastly improved profit margins.
Technical Parameters
Device Category: | Smart Auto-Reclosing Earth Leakage MCCB (ARD) |
Poles Configuration: | 3P+N (Optimized for mixed 3-phase and single-phase municipal loads) |
Digital Rated Current (In): | Adjustable 50A to 125A (via LCD Keypad) |
Digital Earth Leakage (I∆n): | Adjustable 30mA to 1000mA (from life-safety to fire-protection) |
Rated Operating Voltage (Ue): | AC 400V (50Hz) |
Ultimate Breaking Capacity (Icu): | 65kA (Extreme open-air plasma suppression) |
Short-Time Withstand (Icw): | 10kA for 1s (Category B Elite Selectivity) |
Auto-Reclosure Delay: | Adjustable 20s to 60s |
Operator Interface: | High-Contrast LCD Screen with Tactile Membrane Keypad |
Standard Compliance: | GB/T 14048.2 (CCC Certified) |
Elevating Panel Capabilities: Autonomous Recovery and SCADA Integration
For a professional structural panel designer and control engineer, adding complex automation to a switchboard usually means wiring external PLCs, motorized drives, and separate earth-leakage relays—inflating the Bill of Materials (BOM) and exhausting assembly hours. We engineered the architecture of this 125A Smart ARD MCCB specifically to streamline your factory assembly process while maximizing panel intelligence.
Integrated Auto-Reclosure (ARD) for Utility Bids:
National grid operators despise dispatching maintenance trucks for temporary faults (like a branch touching a power line). This unit is a game-changer for your panel designs. It features an integrated motorized drive mechanism. When a transient fault trips the breaker, the microprocessor waits for a programmable delay (20s to 60s) and automatically re-engages the 125A contacts. This autonomous power restoration is frequently a mandatory specification in modern utility tenders. By embedding this functionality natively within the main breaker, you offer your municipal clients a "Self-Healing" distribution board without the need for complex, custom-engineered external motor setups in your factory.
Streamlined Telemetry Integration (Bottom Terminal Block):

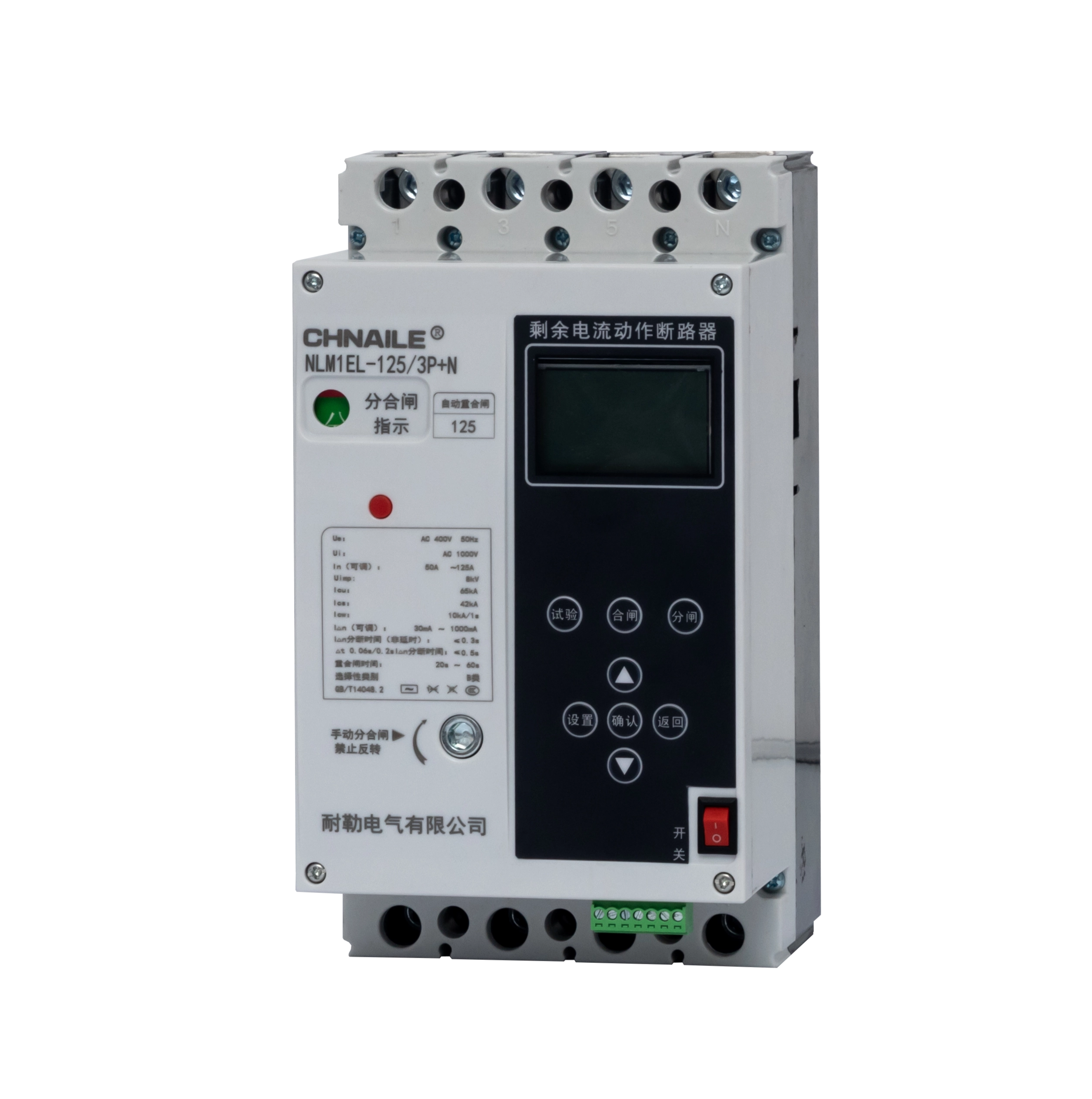

Look closely at the design—we have integrated a dedicated green communication terminal block at the base. Modern distribution boxes must talk to the utility's central SCADA (Supervisory Control and Data Acquisition) system. This interface allows your control panel wirers to cleanly, logically, and rapidly route RS485 or external 4G module connections directly to the breaker's brain. It transmits real-time status, trip history, and fault data, drastically reducing the time your technicians spend wiring auxiliary monitoring relays and accelerating your factory throughput.
Digital LCD Calibration for Standardized Enclosures:
Stocking different breaker ratings for various utility zones destroys your working capital. The front-facing digital LCD and membrane keypad allow your assembly technicians to digitally calibrate the rated current (In) up to 125A and the earth leakage threshold (I∆n: 30mA to 1000mA) during the final stages of panel construction. By standardizing your smart panel designs around this single, highly adaptable CHNAILE component, your procurement department can drastically reduce SKU inventory, freeing up cash flow while perfectly matching the breaker to the exact load profile of the specific substation.
Uncompromising Heavy-Duty Grid Protection
A modern municipal electrical panel is judged by its ability to survive catastrophic grid events. The CHNAILE 125A Auto-Reclosing MCCB empowers your custom switchgear with robust, top-tier physical and digital protection.
65kA Catastrophic Arc Vaporization:
Substations connected directly to national grids experience terrifying short-circuit potentials. This MCCB offers a formidable ultimate short-circuit breaking capacity (Icu) of 65,000A (65kA). It guarantees that your assembled panels can safely interrupt massive fault plasmas, maintaining their structural integrity and protecting the multi-million-dollar grid infrastructure from devastating panel fires.
3P+N Absolute Galvanic Isolation:
In complex utility networks, unbalanced loads or ground faults can energize the neutral line, posing a lethal threat to line workers. The internally synchronized 4-pole tripping bar ensures the neutral conductor is physically disconnected simultaneously with the three active phases. This guarantees absolute zero-voltage safety for utility technicians performing maintenance on your distribution boards.
Category B Selective Coordination (Icw 10kA/1s):
Achieving a Category B rating on a 125A intelligent breaker is a massive engineering advantage. It means this breaker possesses the extreme contact pressure to safely "hold" a 10,000-Ampere short-circuit fault for a full second. This allows downstream miniature breakers in your panel design to trip first, isolating a localized fault while keeping the main 125A utility feed active for the rest of the facility.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation in national infrastructure projects. Partnering with CHNAILE ensures that the core components inside reflect the premium, high-tech nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your corporate growth.
Private Labeling and Faceplate Branding:
Elevate your corporate identity on the national stage. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the smart MCCB faceplates. The digital interface, instructional safety labeling, and customized bulk packaging can all be tailored to match your specific corporate design language. Your government clients will receive a world-class switchboard component carrying your trusted brand name.
Certified Quality to Fast-Track Your Panel Certifications:
Winning major government utility bids requires your completed switchgear to pass strict regional certifications. Our Smart Auto-Reclosing MCCBs are rigorously tested in state-of-the-art laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your engineering department with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Stabilizing Your Bill of Materials (BOM) in a Volatile Market:
Relying on intermediary trading companies for complex smart grid components often leads to disastrous supply chain delays and inflated costs. By sourcing these intelligent, motorized MCCBs directly from our highly automated manufacturing lines in China, you secure highly aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on high-volume national grid panel bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production.
