Product Overview

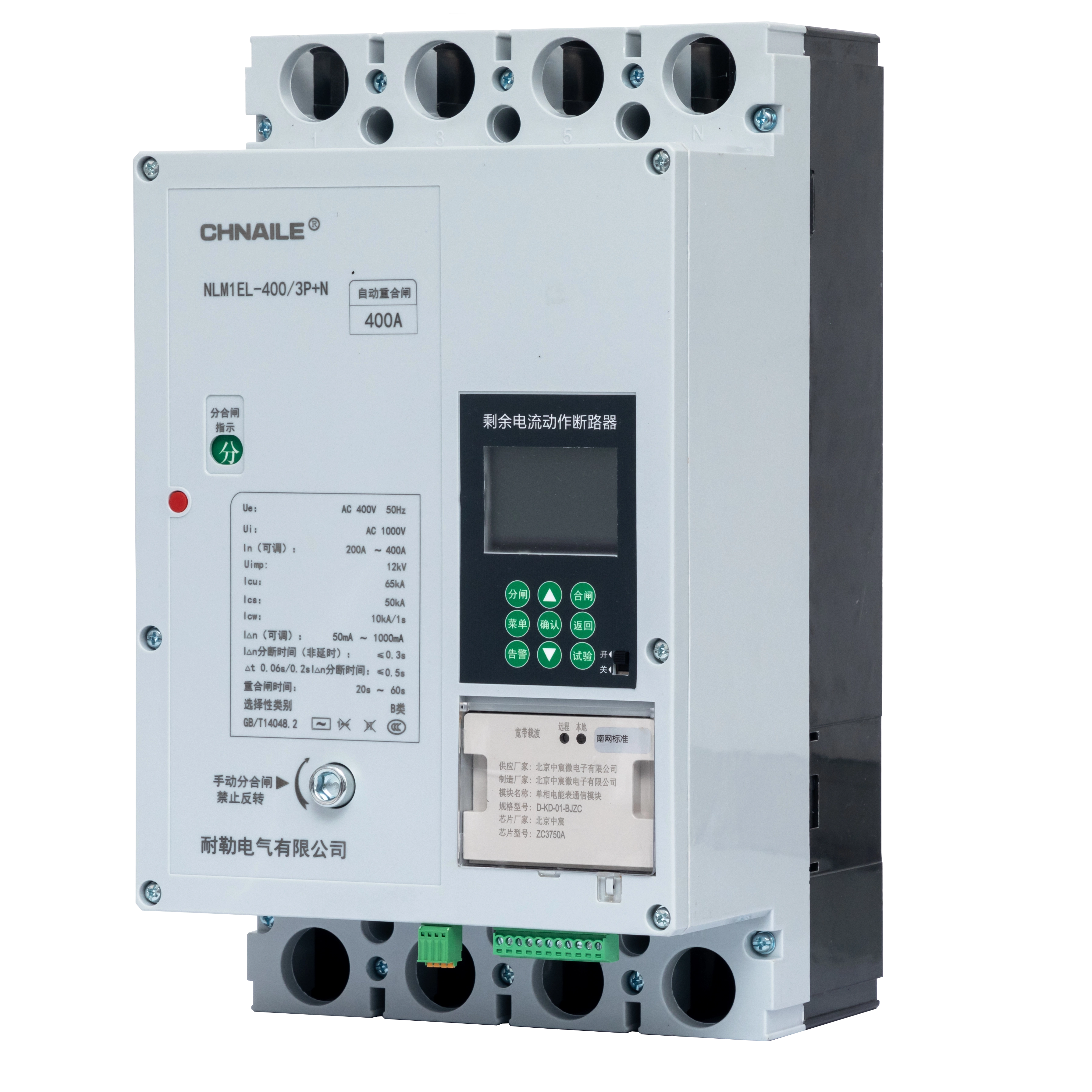

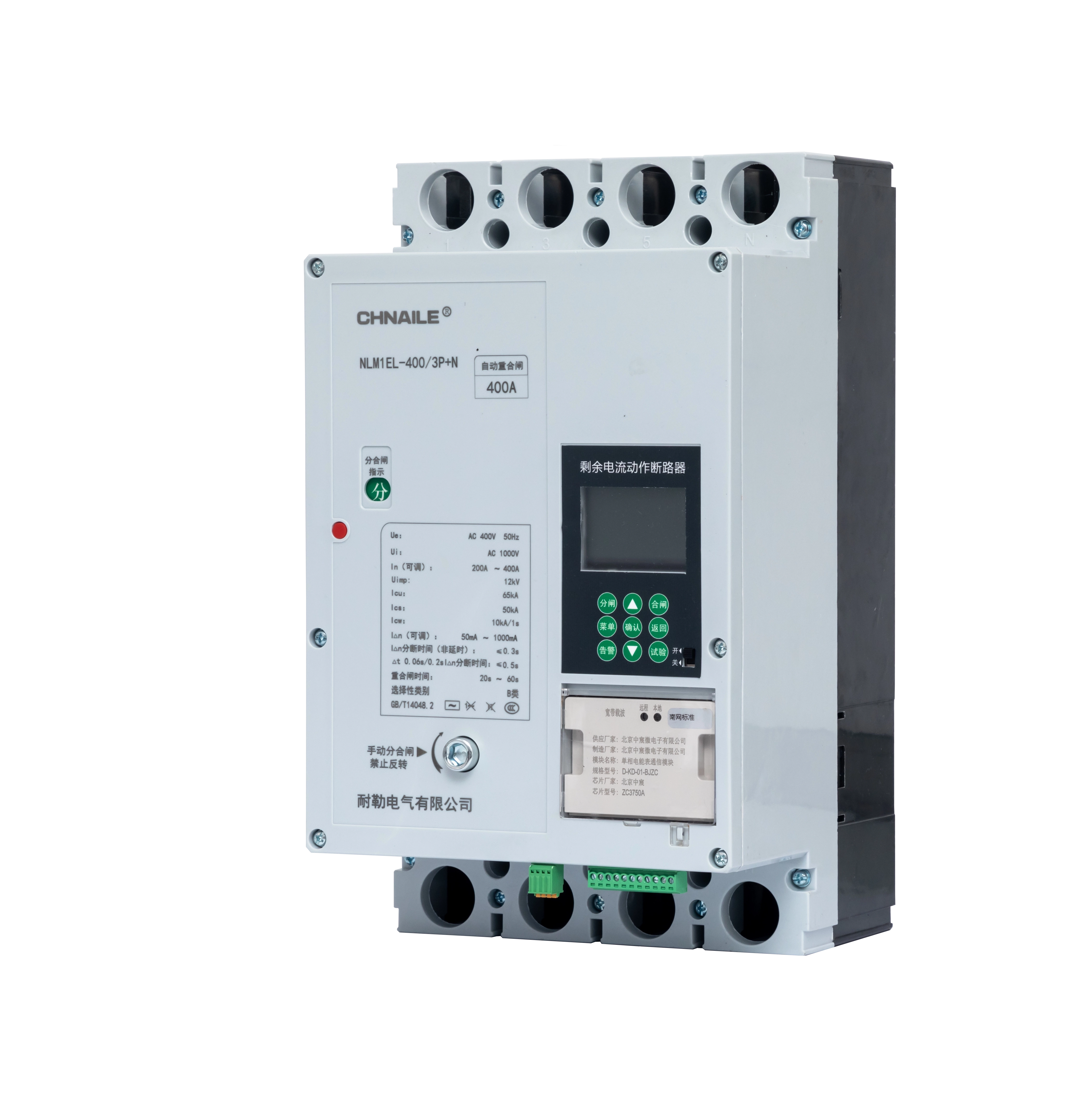

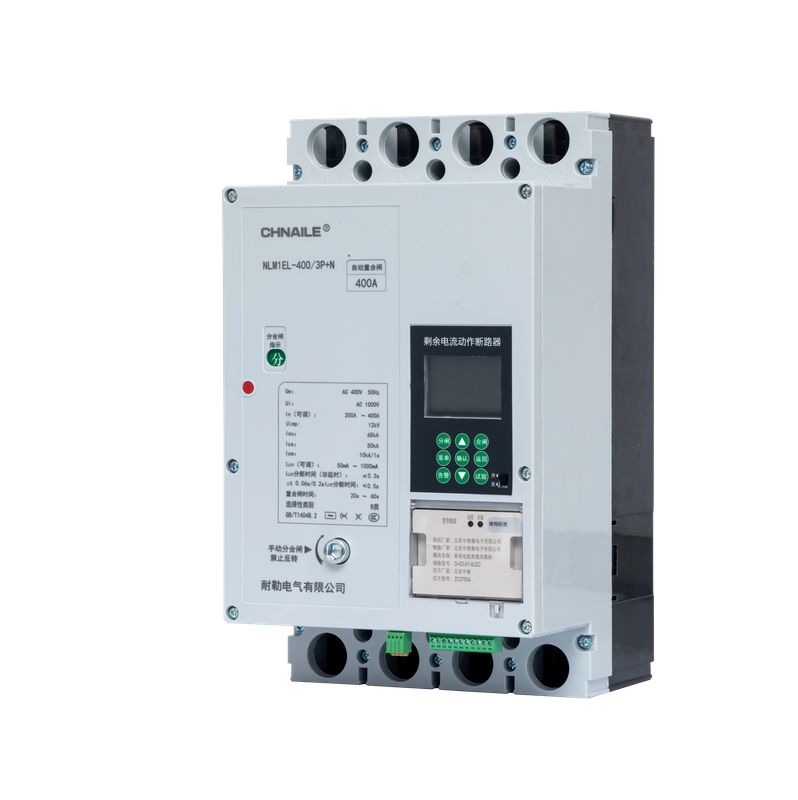

As municipal grids transition into bi-directional smart networks, the threat vector shifts from pure electrical overloads to cyber-security breaches and data integrity failures. The CHNAILE Intelligent 3P+N IoT Auto-Reclosing MCCB is a revolutionary device engineered for the Internet of Energy. While its physical chassis boasts an immense 400-Ampere capacity, a 12kV lightning shield, and a 65kA plasma-extinguishing core, its true power lies within its digital matrix. Integrating live geographic positioning, dynamic network topology mapping, and strict ESAM encrypted communications, it prevents malicious grid takeovers. Furthermore, its autonomous motorized reclosure minimizes physical maintenance, making it the supreme 4-pole gateway for unmanned mega-infrastructure and highly lucrative Virtual Power Plant (VPP) architectures.
Technical Parameters
Device Category: | IoT-Enabled Auto-Reclosing MCCB (Smart Grid Gateway) |
Poles Configuration: | 3P+N (Simultaneous Phase & Neutral Isolation) |
Rated Current (In): | Adjustable up to 400A (Supports ~270kW decentralized loads) |
Operating Voltage (Ue) & Insulation (Ui): | AC 400V / Ui 1000V |
Ultimate Breaking Capacity (Icu): | 65kA (Heavy-duty plasma extinction) |
Cybersecurity Protocol: | Integrated ESAM Hardware Encryption |
Smart Grid Telemetry: | Built-in GPS/Beidou, Topology Identification, Class 1.0 Power Metering |
Thermal Diagnostics: | Real-time A, B, C, N Terminal Temperature Monitoring |
Communication Interfaces: | 4G Cellular, HPLC, RS-485 |
Standard Compliance: | GB/T 14048.2 / Smart Grid Telemetry Mandates |
1. Unprecedented Cyber-Physical Grid Security
ESAM Hardware Command Encryption: In decentralized VPP networks, hacking a 400A main switch can cascade into a regional blackout. This MCCB features a dedicated ESAM encryption chip that authenticates every remote ON/OFF command and parameter adjustment. It guarantees that only the national utility or authorized aggregator platforms can control the switchgear, neutralizing cyber-warfare threats.
Network Topology & Geographic ID: Forget manual grid mapping. This smart breaker autonomously calculates and reports its exact physical location (Altitude/Longitude) and its hierarchical position within the local sub-grid (Topology ID). When a fault occurs, the central SCADA system instantly visually pinpoints the exact node, drastically accelerating disaster recovery.
Live Terminal Temperature Over-watch: Transmitting 400 Amps continuously—especially in bi-directional V2G charging hubs—creates immense thermal stress on cable lugs. Integrated thermal sensors continuously monitor the junction temperatures of all four poles (A,B,C,N). If a loose connection generates abnormal heat, the breaker issues a predictive alarm before a devastating electrical fire erupts.
2. Autonomous High-Power Management
Motorized Transient "Self-Healing": Weather-induced anomalies frequently trip isolated microgrids. The integrated heavy-duty motor drive evaluates the fault and, if deemed transient, automatically re-engages the 400A contacts (adjustable 20-60s delay), restoring power to critical regional infrastructure without rolling expensive maintenance trucks.
Class 1.0 Revenue-Grade Metering: Acting as a highly precise smart meter, it accurately tracks voltage, current, power factor, and bi-directional Active/Reactive energy (kWh). This provides the exact, legally compliant data required for utility billing and energy trading in commercial VPP deployments.
3. Target Application Scenarios
Because of its extreme cybersecurity, live telemetry, and autonomous power recovery, this 400A IoT MCCB is explicitly mandated by next-generation energy EPCs for:
Virtual Power Plants (VPP): Serving as the highly secure, data-rich aggregation gateway that feeds decentralized commercial solar and battery power back into the national grid.
V2G (Vehicle-to-Grid) Charging Hubs: Acting as the primary, temperature-monitored 3-phase disconnect for massive commercial electric bus depots that discharge power back to the city during peak hours.
Automated Water Desalination Plants: Providing unhackable, remote-controlled power shedding and load management for isolated, high-consumption municipal utility stations.
Smart City Microgrid Nodes: Guaranteeing resilient, self-recovering, and perfectly mapped power distribution for elite, future-proofed urban developments.
4. Global B2B Partnership with CHNAILE Factory
Direct Supply of Apex Smart Tech: Sourcing military-grade encrypted, 400A motorized switchgear directly from our R&D facility gives your system integration firm a profound technological and pricing edge in highly-regulated government and national grid tenders.
Exhaustive Digital & Physical QA: Every IoT unit is subjected to rigorous cyber-penetration simulations, automated 4G/HPLC signal testing, live thermal load mapping, and physical 65kA short-circuit blasts before leaving our smart factory.
API & Software Integration: We don't just supply hardware. We offer comprehensive protocol integration support, ensuring our encrypted telemetry streams flawlessly into your proprietary Smart City or VPP management dashboards.
