Product Overview

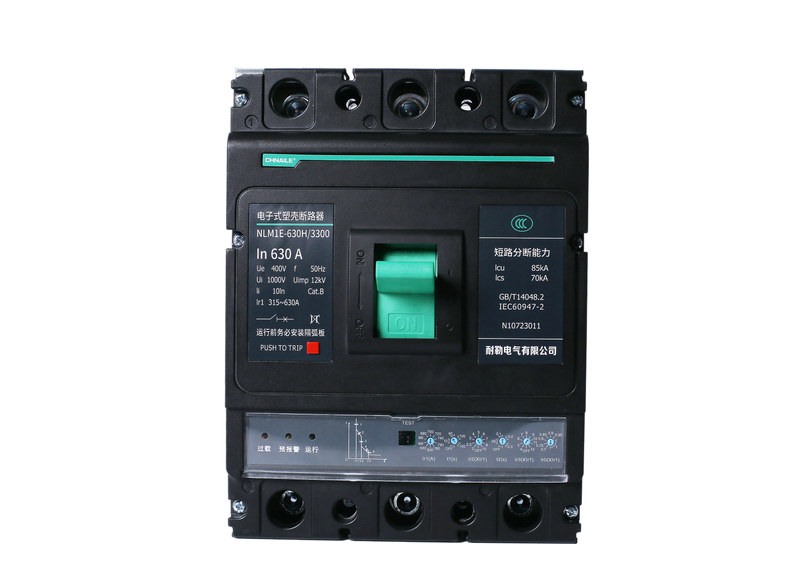

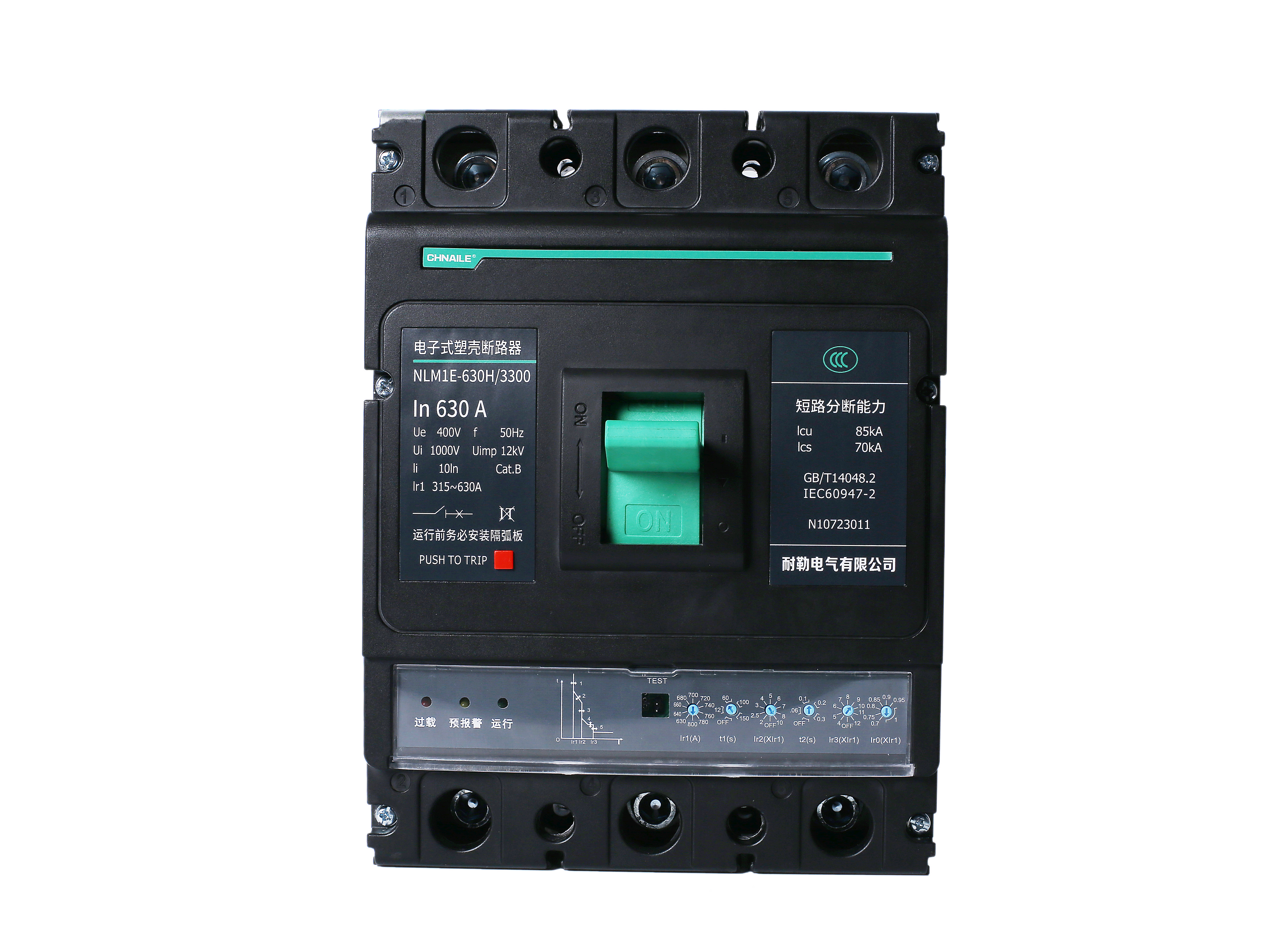

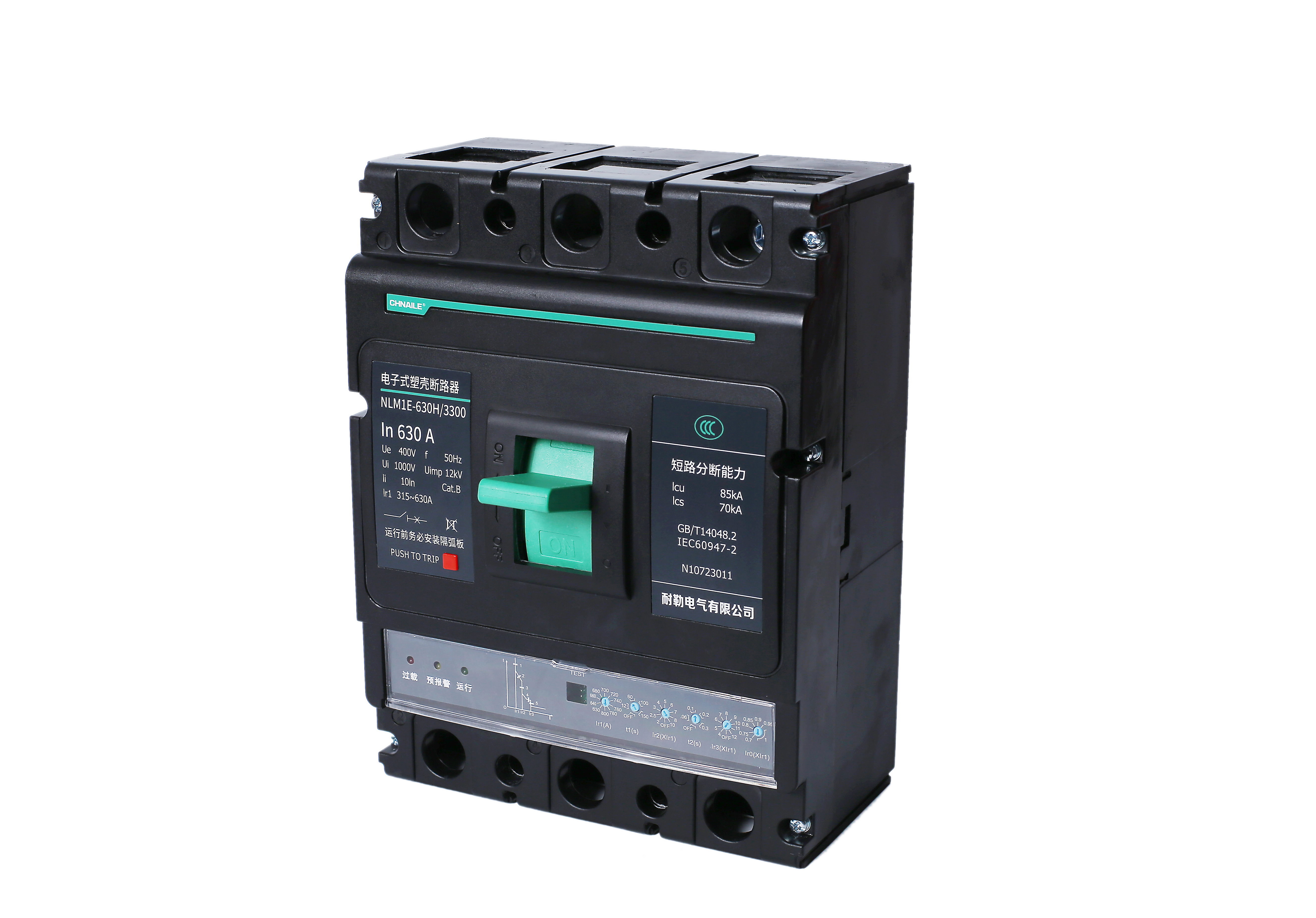

When a catastrophic electrical fault strikes a massive municipal or maritime grid, the short-circuit current can instantly exceed 50,000 Amps, obliterating standard distribution panels. The CHNAILE Intelligent 3-Pole 630A Electronic MCCB is explicitly engineered as an impenetrable firewall against these extreme events. Replacing outdated mechanical thermal trips with a highly sensitive solid-state microprocessor, it routes massive 3-phase power with flawless precision. Its defining feature is the extraordinary H-Type 85kA breaking capacity, ensuring unparalleled safety. Backed by a transparent 6-dial LSIG control matrix for perfect downstream coordination, this IEC 60947-2 certified powerhouse secures the continuous operation of capital-intensive assets like district cooling compressors and shipyard gantry cranes.
Technical Parameters
Device Category: | Electronic Molded Case Circuit Breaker (Smart MCCB) |
Poles Configuration: | 3P (Simultaneous 3-Phase Intelligent Load Control) |
Frame Size & Max Current: | 630A Frame (Supports colossal loads up to ~450kW) |
Adjustable Base Current (Ir1): | 315A to 630A (Digitally precise tuning via front dials) |
Trip Unit Technology: | Solid-State Microprocessor |
Protection Matrix: | Full LSIG (Long, Short, Instantaneous, Ground configurable) |
Rated Operating Voltage (Ue): | AC 400V (50Hz) |
Rated Insulation Voltage (Ui): | 1000V (Exceptional dielectric strength) |
Rated Impulse Withstand Voltage (Uimp): | 12kV (Extreme grid surge & lightning immunity) |
Ultimate Breaking Capacity (Icu): | 85kA (H-Type Extreme Plasma Suppression) |
Service Breaking Capacity (Ics): | 70kA (Sustained heavy-duty reliability) |
Selectivity Category: | Category B (Designed for complex downstream coordination) |
Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |
1. Advanced LSIG Microprocessor Defense
Granular Load Sculpting (Ir1: 315-630A): Beneath the tamper-proof polycarbonate shield lies the digital brain of the facility. Engineers can meticulously scale the primary overload threshold from 315A up to the full 630A. This allows the breaker to perfectly match the specific full-load amperage of aging or highly specialized 400kW inductive motors, extending equipment lifespan and preventing wire degradation.
Flawless Selective Coordination (Cat B): In massive port grids, a single faulty crane should not black out the entire dock. Because of its massive internal reinforcement, this breaker boasts a Category B classification. By adjusting the short-time delay dials, this 630A main breaker safely "holds" a severe short circuit for milliseconds, forcing the smaller downstream sub-breaker to clear the localized fault first.
Proactive Load Diagnostics: Equipped with an intuitive LED traffic-light system (Run, Pre-Alarm, Overload). The amber 'Pre-Alarm' illuminates when the current approaches the danger threshold, giving automated Building Management Systems (BMS) crucial time to shed non-essential loads before a hard blackout forces a facility shutdown.
2. Heavy-Duty Structural & Dielectric Integrity
85,000A Catastrophic Arc Vaporization: The energy released by an 85kA short circuit is equivalent to a localized bomb. This MCCB is armed with aggressively oversized magnetic blow-out coils and expansive, multi-tiered de-ion arc chutes. It instantly draws, fragments, and vaporizes violent 85kA short-circuit plasmas in milliseconds, protecting the structural integrity of the main switchboard.
12kV Atmospheric Surge Firewall: Port terminals and massive rooftop cooling plants are highly exposed to weather extremes. The staggering Ui 1000V internal dielectric insulation and 12kV Uimp rating act as a heavy-duty firewall, ensuring that nearby lightning strikes and violent grid-switching transients cannot breach the breaker to destroy downstream electronic VFDs.
3. Target Application Scenarios
Because of its extraordinary 85kA breaking capacity and sophisticated LSIG solid-state adjustability, this 630A Electronic MCCB is strictly specified by global EPCs for:
District Cooling Hubs: Serving as the intelligent, highly coordinated main incomer for massive centralized chiller plants supplying chilled water to entire city blocks or airport terminals.
Port Terminal & Shipyard Switchboards: Providing rugged, surge-proof power isolation for heavy maritime distribution networks feeding massive ship-to-shore gantry cranes.
Heavy Mining & Aggregate Crushing: Acting as the stable main disconnect for heavy 3-phase rock crushers where extreme load fluctuations would cause standard thermal breakers to fail.
Large-Scale Water Desalination: Supplying tightly monitored, temperature-immune 3-phase power distribution to critical high-pressure reverse osmosis pump matrices.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct High-Ampere Supply: Sourcing advanced microprocessor-controlled MCCBs directly from our manufacturing hub eliminates immense international trader markups, giving your engineering firm a decisive financial advantage in bidding for municipal and maritime infrastructure projects.
Rigorous Digital & Arc Calibration: We leave nothing to chance at 85kA. Every electronic trip unit undergoes exhaustive automated secondary injection testing to verify 100% tripping accuracy across the 315A-630A spectrum, alongside brutal 85kA short-circuit blasts prior to IEC certification.
Premium OEM Panel Builder Support: We partner with the world's most demanding system integrators, offering bespoke labeling, customized factory-preset calibrations, and scalable manufacturing tailored to your heavy-duty smart-grid sol

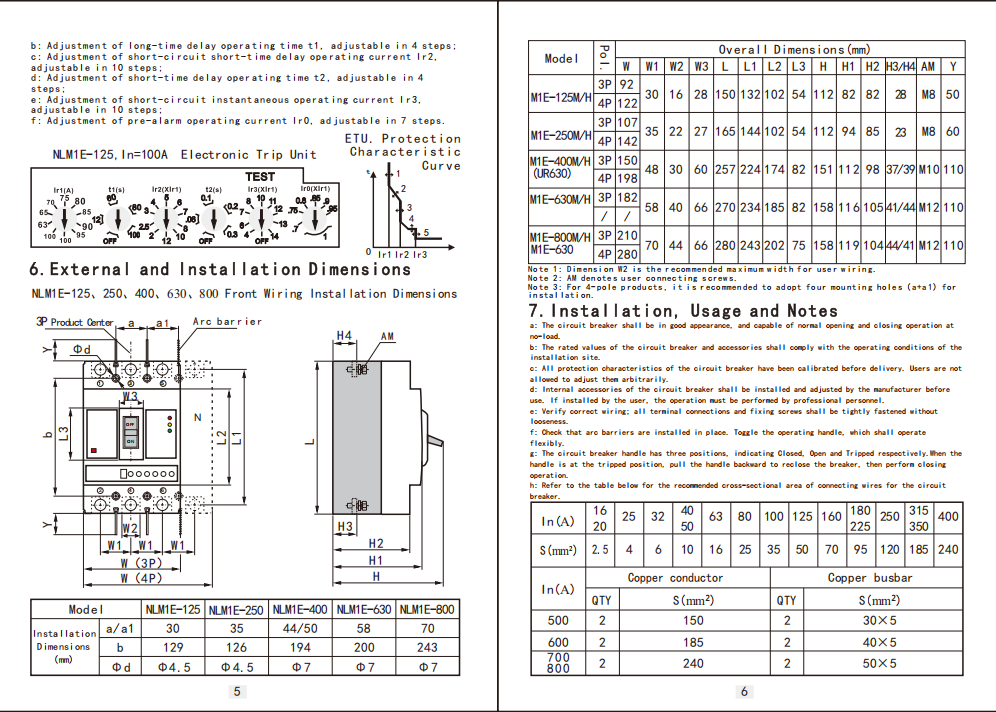

Instruction Manual for Electronic Molded Case Circuit Breakers
