Product Overview
When an Original Equipment Manufacturer (OEM) ships a half-million-dollar CNC machine or a complex HVAC system overseas, the main circuit breaker must function flawlessly whether installed in a freezing Nordic facility or a sweltering Middle Eastern desert. Traditional thermal-magnetic breakers drift wildly in extreme temperatures, causing costly nuisance trips. The CHNAILE Intelligent 3-Pole Electronic MCCB utilizes a 'Micrologic' solid-state processor that relies on precise True RMS current sampling, rendering it completely immune to ambient temperature fluctuations. Armed with a formidable 50,000A (50kA) fault extinction capacity and carrying the prestigious dual-certification of IEC and NEMA AB1, this compact 100A titan guarantees uncompromising asset protection on a global scale.
Technical Parameters
| Device Category: | Electronic Molded Case Circuit Breaker (Solid-State MCCB) |
| Poles Configuration: | 3P (Simultaneous 3-Phase Intelligent Control) |
| Rated Current Range (In): | Adjustable 40A to 100A |
| Rated Operating Voltage (Ue): | AC 415V (Compatible up to 690V grids) |
| Rated Insulation Voltage (Ui): | 800V (Exceptional dielectric strength) |
| Rated Impulse Withstand Voltage (Uimp): | 8kV (Grid surge & lightning immunity) |
| Ultimate Breaking Capacity (Icu): | 50kA (at AC 415V) |
| Service Breaking Capacity (Ics): | 50kA (100% of Icu for sustained operational integrity) |
| Control Core: | Advanced Solid-State Trip Unit (Dials: Io, Ir, Isd) |
| Selectivity Category: | Category A (Instantaneous ultra-fast fault clearance) |
| Standard Compliance: | IEC/EN 60947-2, NEMA AB1 |
1. Solid-State Precision & Global Adaptability

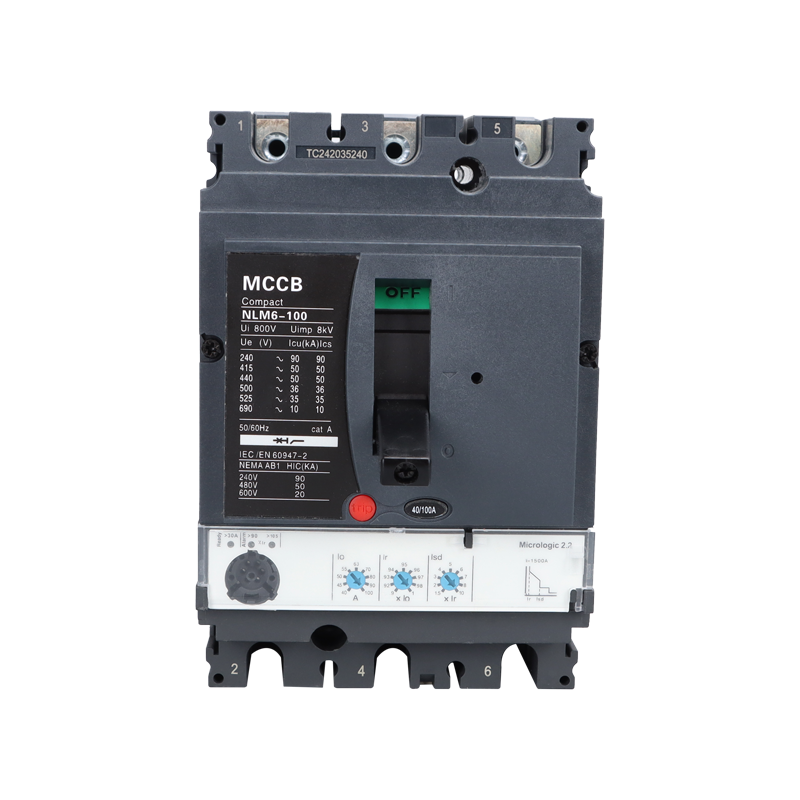

Temperature-Immune Micrologic Tuning: The transparent lower fascia houses three critical rotary dials (Io, Ir, Isd). This solid-state interface allows electrical designers to intricately shape the Long-time overload and Short-time delay protection curves. Because it uses digital sampling rather than bending metal strips, the 100A threshold remains absolutely precise, preventing false shutdowns in climate-extreme export destinations.
100% Ics=Icu Sustained Reliability: In the realm of industrial protection, an Ics rating that matches the Icu (50kA) is the hallmark of elite engineering. It guarantees that even after clearing a devastating 50,000-Ampere dead-short, the internal contacts and arc chutes remain structurally intact and fully capable of resuming 100A continuous service without requiring immediate replacement.
Dual IEC & NEMA Compliance: Bridging the gap between European/Asian regulations and American structural standards. The NEMA AB1 compliance signifies that this MCCB features enhanced internal spacing, superior tracking resistance, and robust mechanical enclosures demanded by trans-national engineering firms.
2. Heavy-Duty Structural & Dielectric Integrity
Instant Category A Vaporization (50kA): Precision exported equipment cannot tolerate prolonged voltage dips during a fault. This MCCB is rated Category A. The moment a catastrophic short circuit is detected, the electronic brain fires the magnetic latch instantly, driving the 50kA plasma into dense internal arc chutes for immediate neutralization.
8kV Atmospheric Surge Firewall: Industrial equipment is highly exposed to factory grid transients. The staggering Ui 800V internal insulation and 8kV Uimp rating act as a heavy-duty dielectric firewall, ensuring that violent grid-switching transients cannot breach the breaker to destroy downstream sensitive VFDs or PLCs.
3. Target Application Scenarios
Because of its sophisticated True RMS sensing, 100% Ics reliability, and dual-standard certifications, this 100A Electronic MCCB is strictly specified by global OEMs for:
Global Export OEM Machinery: Serving as the universally compliant main control switch for automated packaging lines, multi-axis CNC machines, and heavy textile equipment exported worldwide.
Data Center Precision Cooling (CRAC): Providing surgically precise, nuisance-trip-free power protection for Computer Room Air Conditioning units, accommodating heavy compressor startups while remaining deadly accurate.
Marine Auxiliary Control Panels: Supplying tightly monitored, temperature-immune 3-phase power distribution inside fluctuating-temperature shipboard engine rooms.
High-End Commercial Water Pumping: Acting as the stable main disconnect for VFD-driven booster pumps in luxury high-rises where voltage drops must be strictly managed.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct OEM Component Supply: Sourcing advanced microprocessor-controlled MCCBs directly from our manufacturing hub eliminates immense trader markups, giving your machinery export firm a decisive financial advantage in global bids.
Rigorous Digital Calibration: We leave nothing to chance. Every electronic trip unit undergoes exhaustive automated secondary injection testing to verify 100% tripping accuracy across all three dial settings (Io, Ir, Isd) before IEC/NEMA certification is finalized.
Premium White-Labeling for Panel Builders: We partner with the world's most demanding system integrators, offering bespoke labeling, customized calibration ranges, and scalable manufacturing tailored to your proprietary machinery brands.
