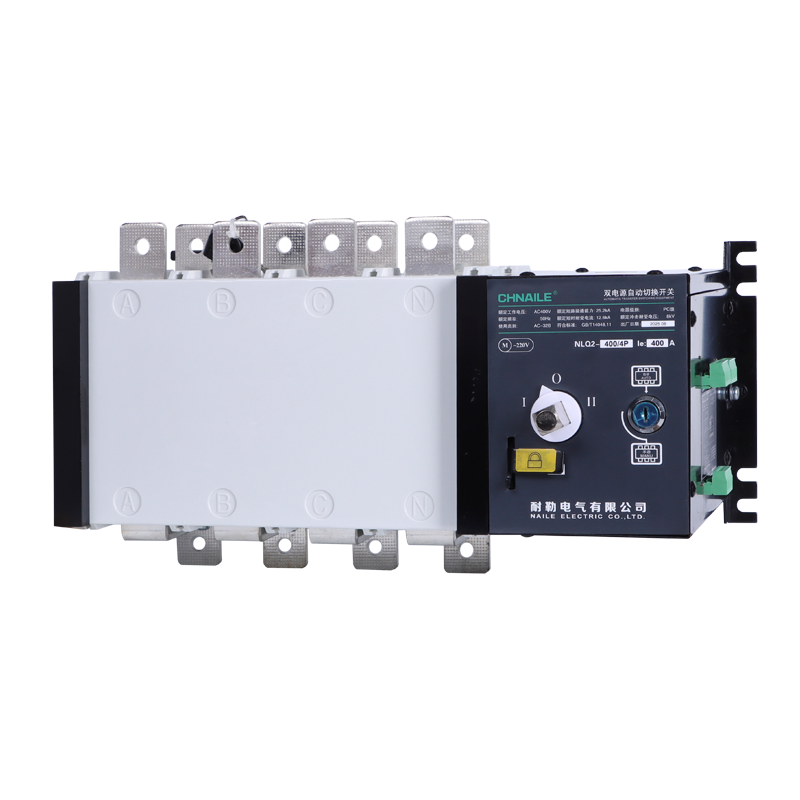

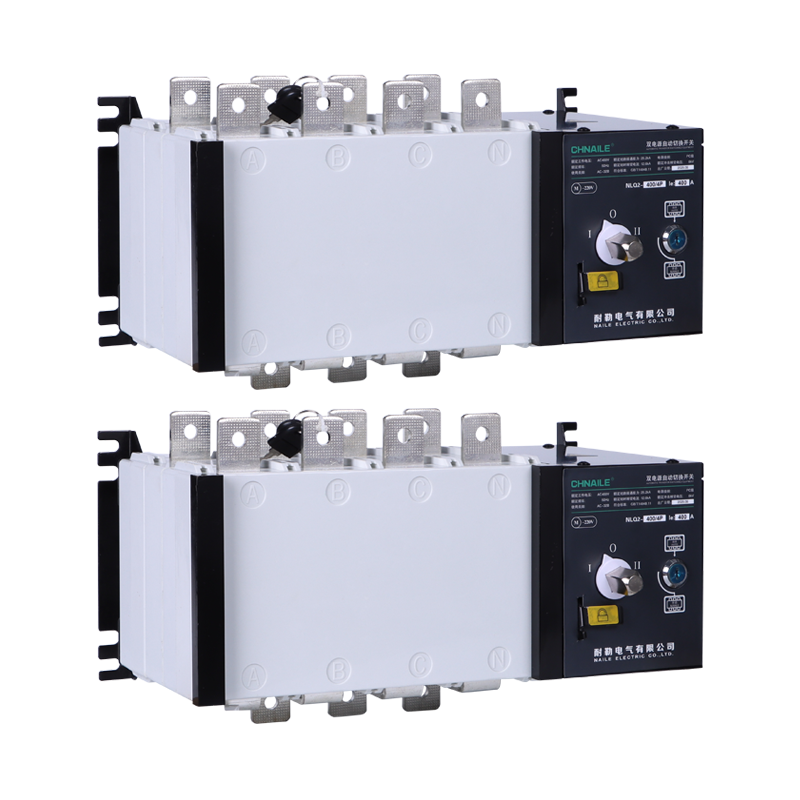

NLQ2-400/4P ATS
CHNAILE
Product Overview
In enterprise data centers and intensive care hospitals, power continuity is a matter of corporate survival and human life. Using standard circuit breakers for dual-power changeovers introduces a fatal flaw: they may falsely trip during the massive inrush currents generated when heavy backup generators spool up. The CHNAILE Heavy-Duty 4-Pole Automatic Transfer Switch eliminates this vulnerability entirely through its PC-Class architecture. By relying on a pure, ultra-robust mechanical contactor design rather than thermal trips, it guarantees an uninterrupted power bridge capable of handling 270kW (400 Amps) of continuous load. Compliant with GB/T 14048.11 and IEC 60947-6-1, it delivers automated, fail-safe power source switching for the world's most demanding industrial and commercial infrastructures.

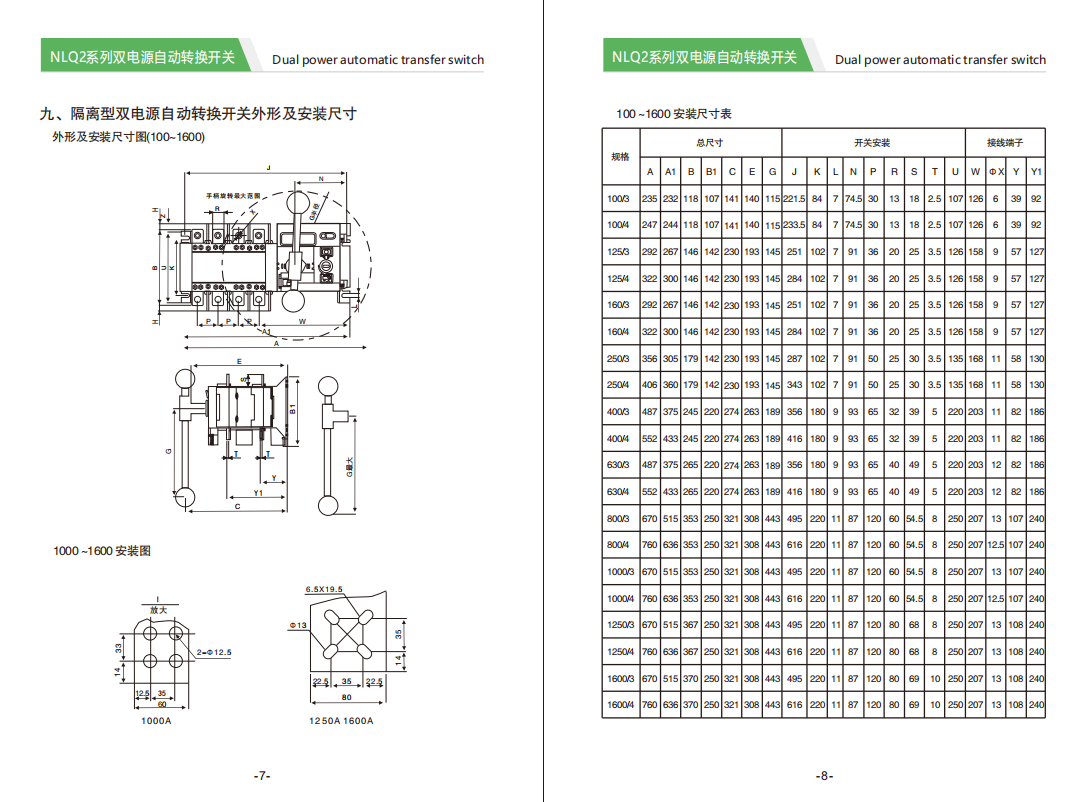

Technical Parameters
| Device Category: | Dual Power Automatic Transfer Switch (ATS) |
| Switching Level: | PC Class (Pure mechanical isolation; no thermal tripping) |
| Poles Configuration: | 4P (Simultaneous 3-Phase + Neutral Absolute Isolation) |
| Rated Current (In): | 400A (Engineered for heavy commercial generator loads) |
| Utilization Category: | AC-33A (Optimized for frequent switching of highly inductive motor loads) |
| Rated Operating Voltage (Ue): | AC 400V (50/60Hz) |
| Rated Short-Time Withstand (Icw): | 13kA (Extreme structural rigidity during faults) |
| Transfer Time: | 0.6s (Lightning-fast motorized changeover) |
| Safety Interface: | Key-Operated Auto/Manual Lock & LOTO Padlock Hasp |
| Standard Compliance: | GB/T 14048.11 / IEC 60947-6-1 |

1. Elite PC-Class & AC-33A Changeover Dynamics
PC-Class Nuisance-Trip Immunity: Unlike CB-class switches, this PC-Class ATS focuses entirely on load transfer. It is built with immense contact pressure to physically withstand a massive 13,000A short-time fault (Icw) without blowing open. This allows upstream protective devices to clear grid faults while the ATS maintains a rock-solid connection to the incoming generator feed.
AC-33A Inductive Load Mastery: Hospitals and factories run on heavy inductive loads (large chillers, pumps, and transformers). The AC-33A rating certifies that the massive silver-alloy contacts can safely switch these highly inductive, arc-prone loads under full 400A operational stress without suffering from catastrophic contact welding.
Complete 4-Pole Neutral Isolation: When switching from the grid to an ungrounded standby generator, the neutral wire must be severed. The synchronized 4-pole mechanism breaks L1, L2, L3, and Neutral simultaneously. This completely eradicates lethal circulating ground currents that could otherwise destroy sensitive IT servers and medical imaging equipment.
2. Heavy-Industrial Structural Engineering
Massive Exposed Copper Busbars: Routing 400 Amps requires monumental heat dissipation. The unit features eight oversized, heavily plated copper busbar extensions. This design allows panel builders to easily bolt on heavy-gauge industrial cabling, guaranteeing zero voltage drop and preventing terminal fires during continuous 24/7 backup operations.
Dual-Layer Manual Safety Locks: Safety during maintenance is paramount. The front fascia is equipped with a physical Key-Lock to authorize 'Auto' or 'Manual' modes. Furthermore, it features a yellow Padlock Hasp (Lock-Out/Tag-Out - LOTO), allowing technicians to physically padlock the transfer mechanism during dangerous generator servicing.
Rapid Motorized Actuation: Driven by an industrial-grade internal motor, the ATS executes a complete, arc-quenched transition between Normal (Grid) and Reserve (Generator) power sources in just 0.6 seconds, minimizing the duration of facility blackouts.

3. Target Application Scenarios
Because of its uncompromising PC-Class architecture, AC-33A rating, and massive 400A capacity, this ATS is exclusively mandated by global EPCs for:
Hyperscale Data Centers: Serving as the foolproof, automated changeover gateway between the municipal grid and massive diesel generator arrays feeding centralized UPS rooms.
Hospital Life-Support Grids: Providing mandatory 4-pole, neutral-isolated power switching for operating theaters, ICUs, and critical vaccine refrigeration circuits.
Heavy Manufacturing Facilities: Guaranteeing uninterrupted power transitions for continuous processing lines and robotic matrices where a micro-second power drop ruins production batches.
Commercial Airport Infrastructure: Managing the vital emergency backup power for runway lighting systems and air traffic control communication towers.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Sourcing: Bypass intermediary trading networks. Sourcing heavy-duty, PC-Class transfer switches directly from our manufacturing lines drastically lowers the BOM for your large-scale government and healthcare infrastructure bids.
Exhaustive AC-33A Endurance Testing: We do not gamble with mission-critical changeovers. Every 400A unit undergoes rigorous automated load-switching cycles under highly inductive AC-33A conditions to guarantee flawless IEC compliance before export.
OEM Customization for Generator Builders: We actively partner with global diesel generator manufacturers, offering custom control voltages, bespoke faceplate branding, and scalable manufacturing to elevate your proprietary generator transfer panels.
