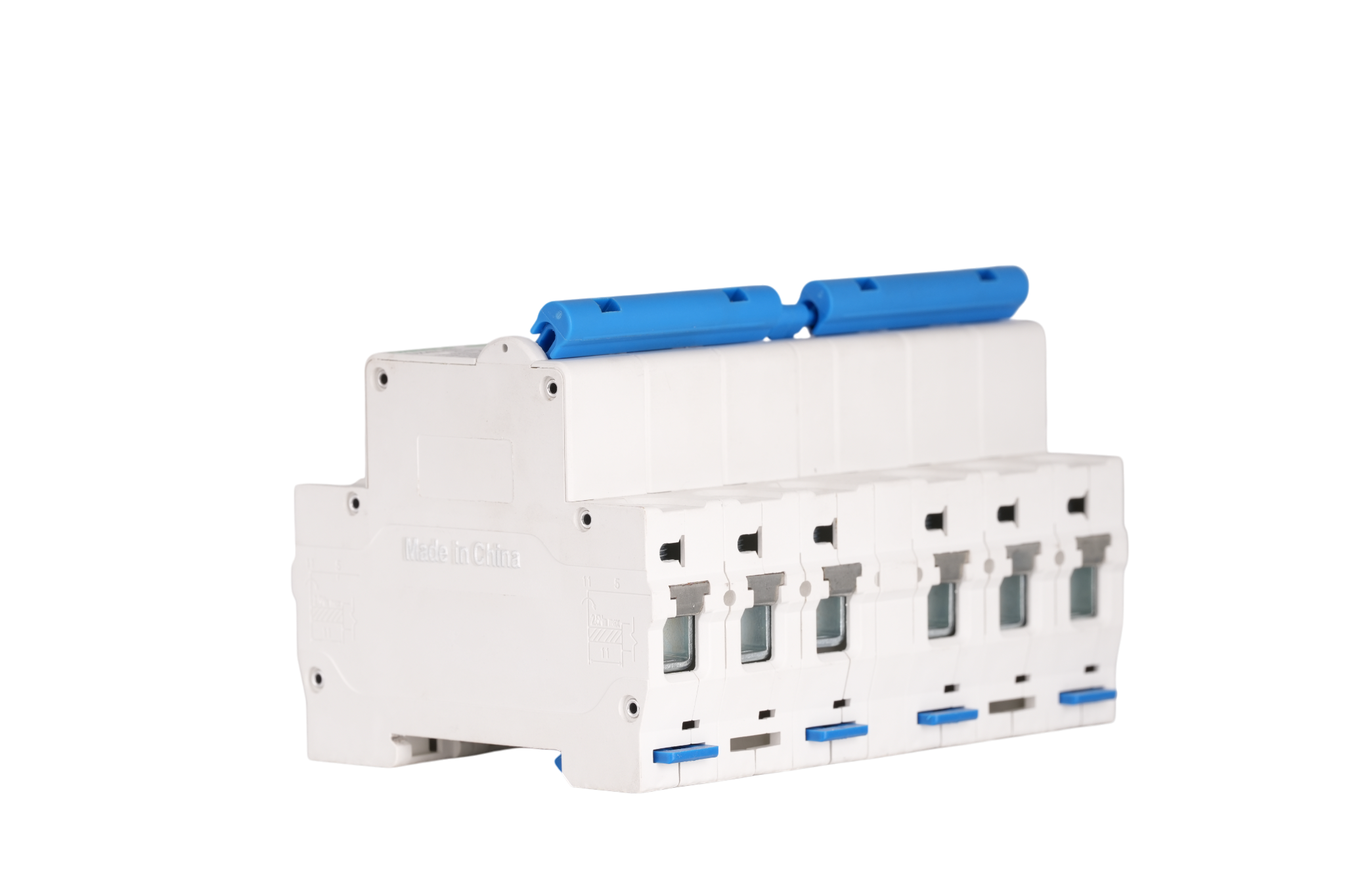

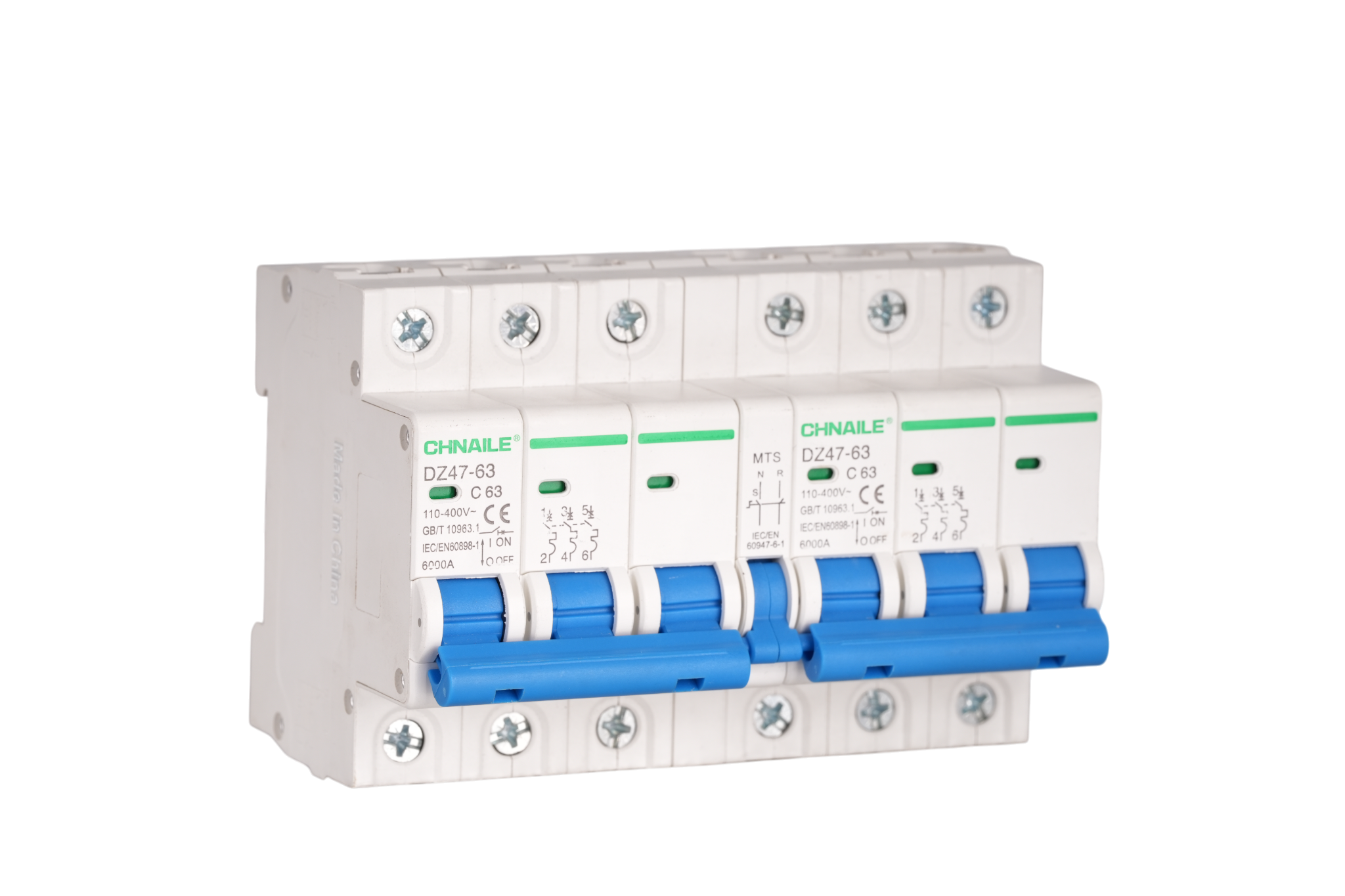

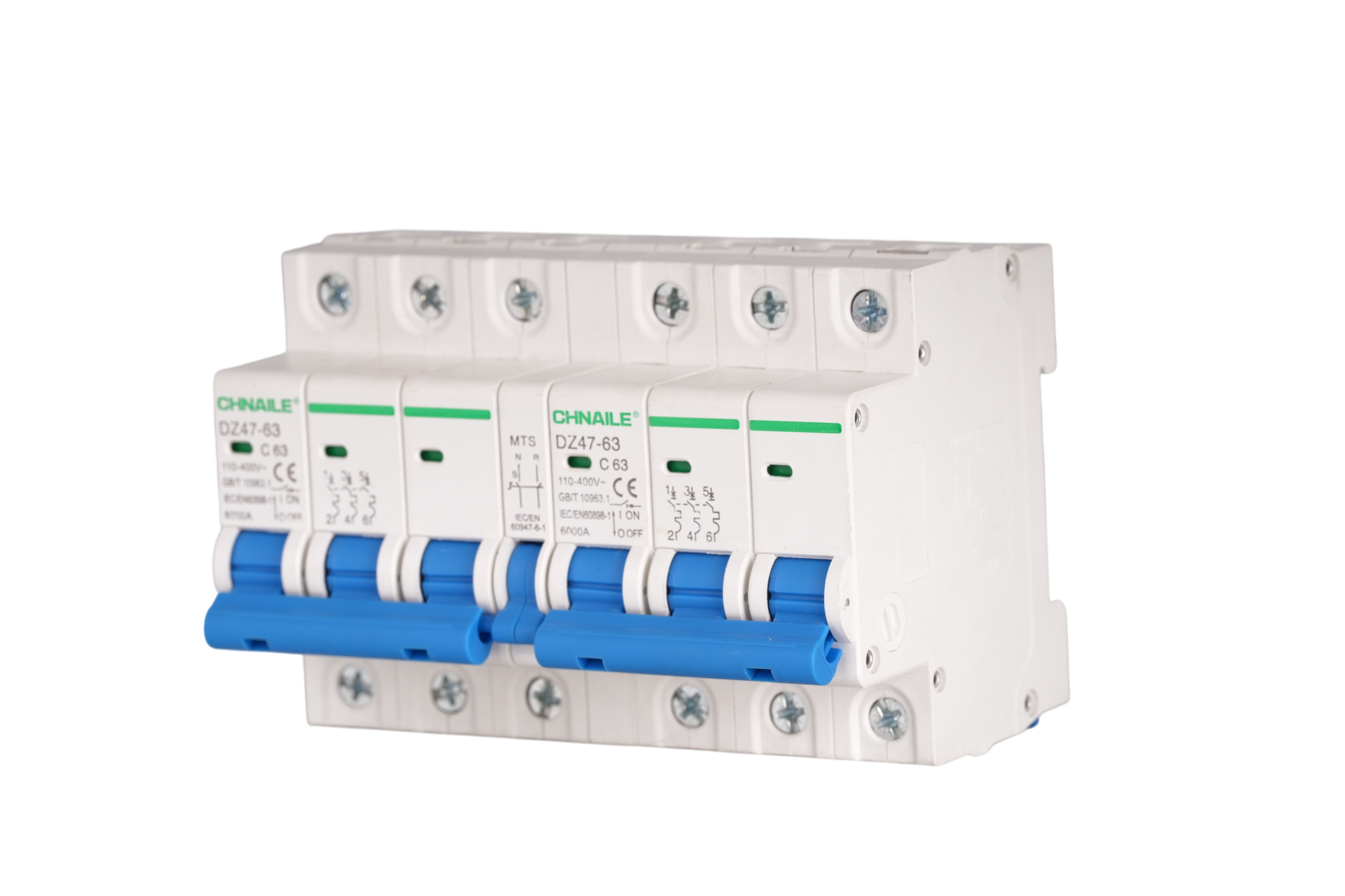

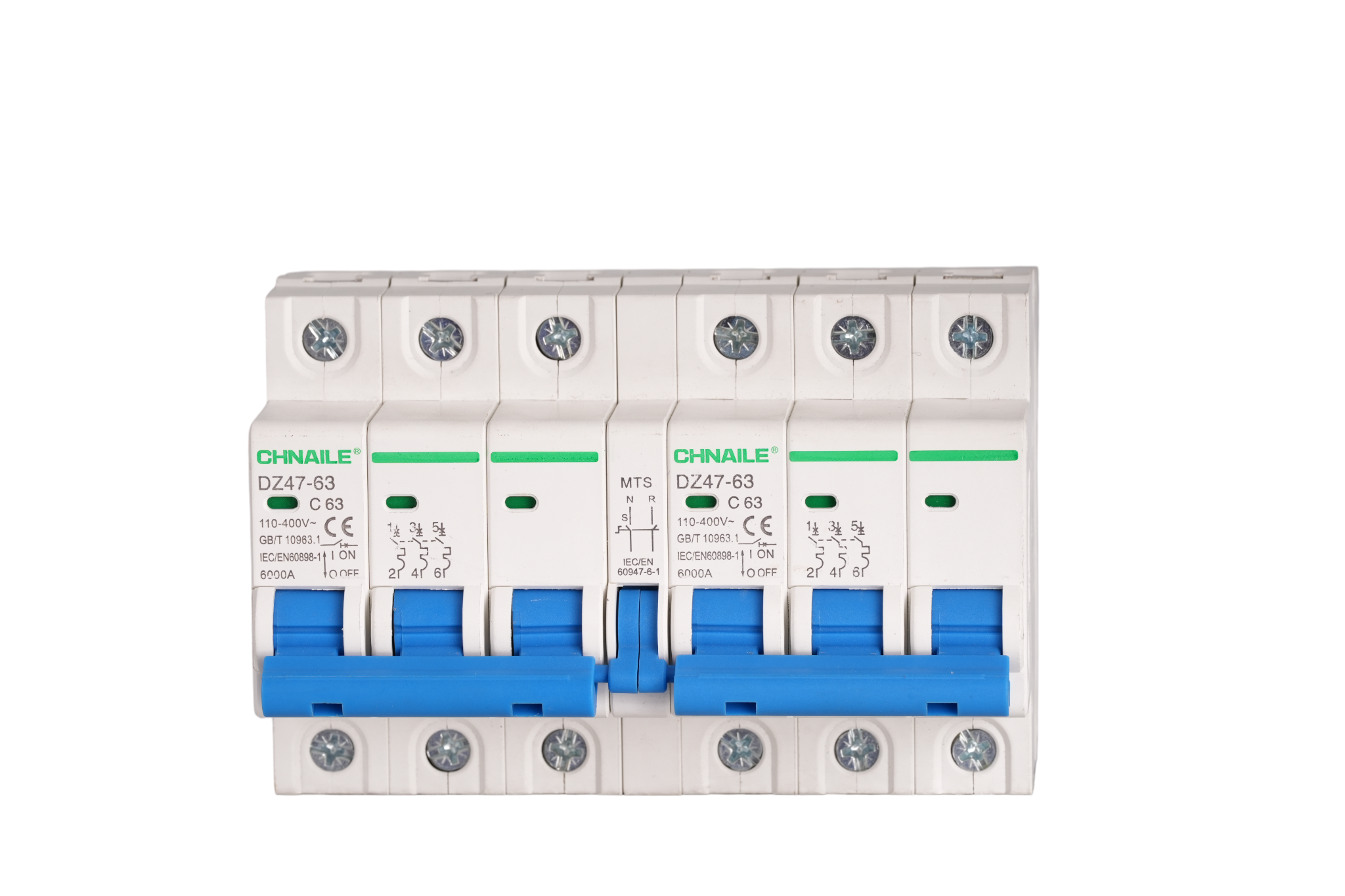

Product Overview
When a commercial facility connects a 40kW backup diesel generator to its main distribution board, the greatest hazard is a "power collision"—where the municipal grid and generator power intersect, causing catastrophic explosions and endangering grid workers. The CHNAILE Heavy-Duty 3-Pole Manual Transfer Switch (MTS) eradicates this risk through uncompromising physics. Unlike simple rotary isolators, this unit integrates two 63A MCBs joined by a centralized sliding mechanical interlock. This ensures a strict "Break-Before-Make" operation. Certified to IEC 60947-6-1 transfer switching standards, it provides EPC contractors with a rugged, visually intuitive, and exceptionally reliable manual changeover solution for dual-power commercial environments.
Technical Parameters
Device Category: | Manual Transfer Switch (MTS / Interlocked Circuit Breaker) |
|---|---|
Poles Configuration: | 3P (3-Phase Utility) + 3P (3-Phase Backup) |
Rated Current (In): | 63A (Supports massive 40kW 3-phase commercial loads) |
Rated Operating Voltage (Ue): | AC 400V |
Rated Frequency: | 50/60Hz |
Short-Circuit Breaking Capacity (Icu): | 6000A (6kA Integrated protection) |
Transfer Mechanism: | Foolproof Mechanical Interlock (Sliding barrier) |
Operational Logic: | Break-Before-Make (N & R cannot close simultaneously) |
Standard Compliance: | IEC/EN 60947-6-1 (Transfer Switching Equipment) |
1. Elite Failsafe Changeover Mechanisms
Foolproof Mechanical Interlocking: The central sliding barrier physically locks one breaker in the 'OFF' position before the other can be switched 'ON'. This absolute mechanical constraint makes it impossible for human error to cause dangerous backfeeding or phase collisions between the utility grid and the standby generator.
Integrated CB-Class Protection: Unlike basic manual changeover switches that only isolate power, this MTS is built upon two fully functional circuit breakers. It actively provides thermal overload and 6kA short-circuit protection for both the incoming grid line and the expensive backup generator circuit simultaneously.
Break-Before-Make Transition: The design enforces a mandatory momentary 'OFF' state during the transition. This safely quenches any residual arcs and protects downstream sensitive 3-phase motors from violent phase shifts during the power changeover.
2. Specialized Structural Engineering

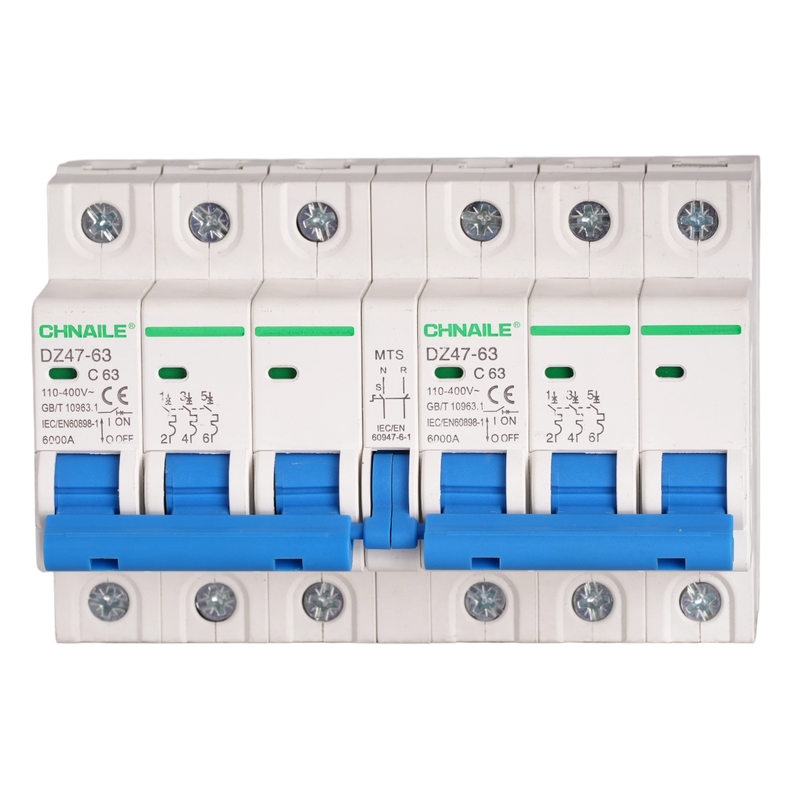

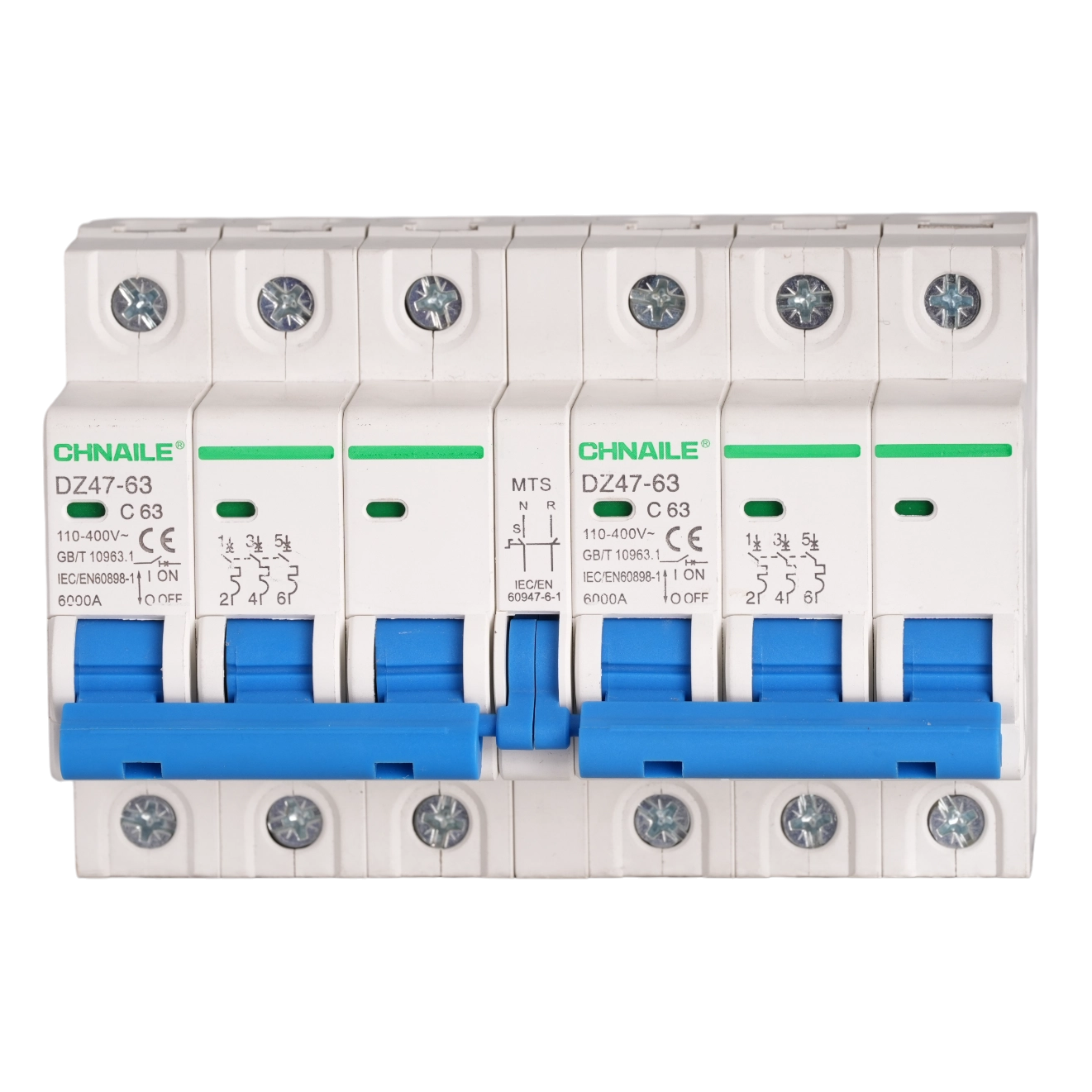

High-Visibility Status Identification: Clear N (Normal) and R (Reserve) markings, combined with highly visible blue operational toggles, allow facility personnel to instantly identify which power source is actively feeding the building during a stressful blackout scenario.
V0-Rated Thermal Armor: The twin-breaker assembly and the interlocking bridge are housed in a structurally rigid, fire-retardant thermosetting polymer block. It effortlessly dissipates the significant heat generated by 63A continuous transmission inside sealed commercial distribution boxes.

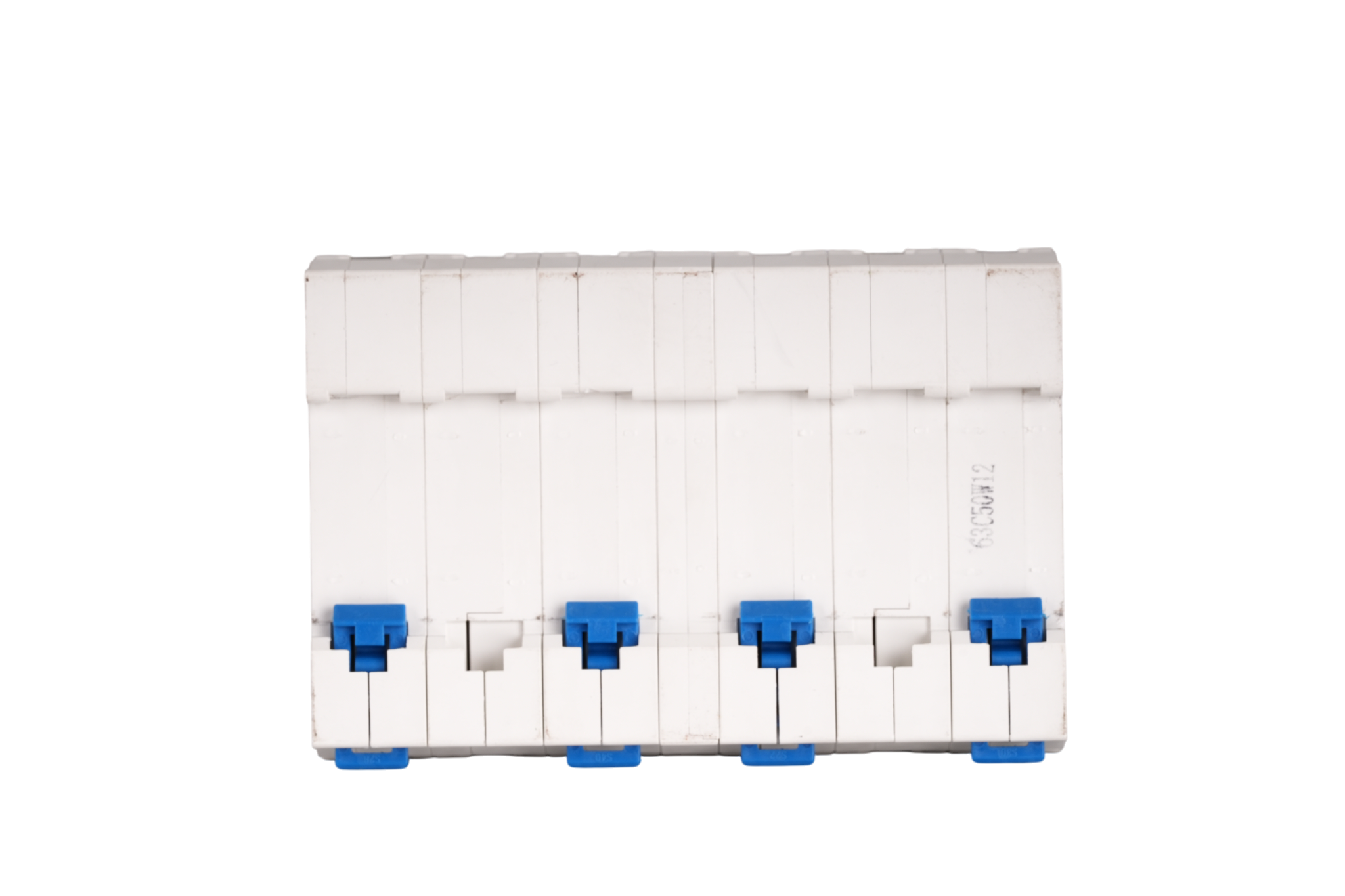

Streamlined DIN-Rail Integration: Despite packing dual 3-phase breakers and an interlock, the unified modular chassis snaps directly onto a standard 35mm DIN rail. This allows panel builders to construct highly professional, space-saving generator integration boards without complex custom wiring.
3. Target Application Scenarios
Because of its massive 63A rating, physical interlocking, and integrated protection, this MTS is heavily requested by global EPCs for:
Commercial Standby Generators: Serving as the mandatory, code-compliant manual changeover switch connecting 3-phase diesel or gas generators to small factories and retail complexes.
UPS Maintenance Bypass Panels: Acting as the critical manual bypass switch in data centers, allowing technicians to isolate and service massive Uninterruptible Power Supplies (UPS) without dropping the server loads.
Agricultural & Off-Grid Farms: Providing a rugged, low-maintenance manual toggle between a localized solar microgrid and a supplementary heavy-duty fuel generator.
Industrial Redundant Feeders: Managing power distribution in manufacturing plants equipped with dual municipal utility feeds (Grid A / Grid B) for maximum redundancy.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Supply: Bypass intermediary trading markups. We provide aggressive, direct-from-factory wholesale pricing on integrated MTS devices, significantly optimizing the Bill of Materials (BOM) for your generator installation projects.
Rigorous Interlock Tolerance Testing: We do not gamble with power collisions. Every MTS unit is subjected to thousands of forceful, rapid manual switching cycles in our laboratory to ensure the mechanical interlock barrier never binds or fails under stress.
Custom OEM Solutions for Generator Brands: We offer comprehensive white-labeling services, including bespoke laser-engraved faceplates and specific interlocking configurations to perfectly match your proprietary generator transfer panels.
