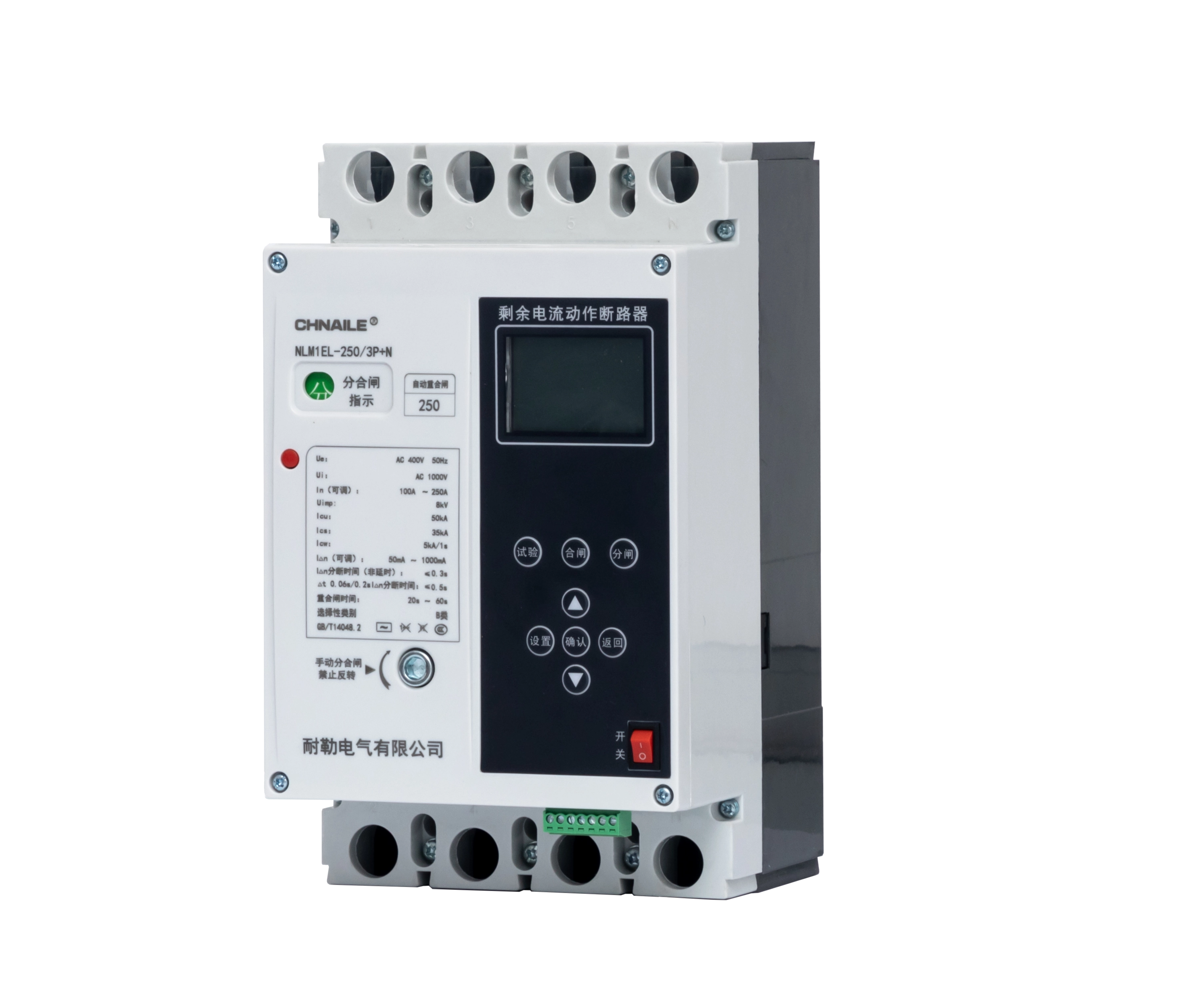

The NLM1EL-250/3P+N occupies a device category that has no precise equivalent in the standard DIN-rail or conventional MCCB product families reviewed across this series: it is simultaneously a 250A-frame molded case circuit breaker providing thermal-magnetic or electronic overcurrent and short-circuit protection at up to 50 kA ultimate breaking capacity, a Class B selective residual current device with an adjustable IΔn range spanning 50 mA to 1000 mA and time-delay trip characteristics that qualify it for selective coordination upstream of 30 mA instantaneous RCCBs, and an automatic reclosing controller that sequences a timed contact re-closure following a residual current trip event — restoring supply to the protected circuit after a delay of 20 to 60 seconds that allows transient earth fault conditions (moisture ingress, accidental contact, thermal insulation breakdown under surge) to resolve before the reconnection attempt. The convergence of these three functions within a single 3P+N frame housing — observable in the product image as the left-side MCCB mechanism module combined with the right-side black-panel intelligent controller — eliminates the external component chain that an equivalent three-function protection scheme would require if implemented with discrete devices: a separate main MCCB for overcurrent protection, a separate selective Class B RCCB for earth fault detection and time-delayed tripping, and a separate external automatic reclosing relay with its own power supply, wiring harness, auxiliary contact interconnection, and panel mounting footprint. The bill-of-materials consequence of this integration is directly calculable by the panel builder: three devices, each requiring individual DIN rail allocation, individual control wiring, and individual commissioning testing, are replaced by a single assembly whose commissioning testing is executed through the eight-key membrane interface visible in the product image, and whose parameter configuration — rated current, residual sensitivity, time delay, reclose delay — is stored in the internal controller rather than maintained as a combination of rotary dial positions on three separate devices.

Technical Parameters

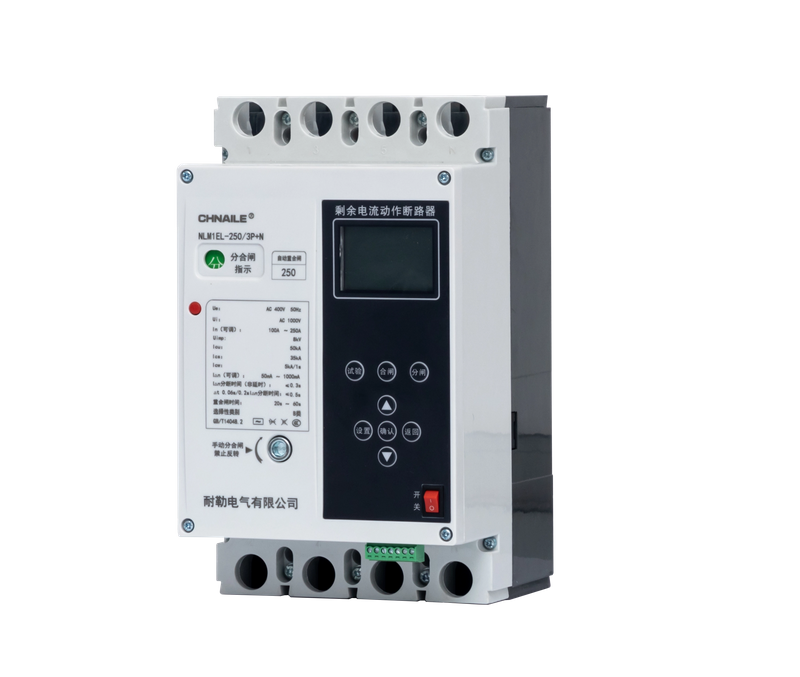

Reading the specification label visible in the product image provides the quantitative framework that validates this functional integration at the engineering level. The Icw = 5 kA/1s short-time withstand current — the parameter that distinguishes this device's position in the protection coordination hierarchy — confirms that the NLM1EL-250/3P+N is designed to carry 5 kA for one second during a downstream fault event without structural failure, a capability that is the precondition for its deployment as a selective upstream device that intentionally delays its own trip while coordinating with faster-acting downstream protective devices. At the Class B selective classification — designated as the time-delayed residual current category in IEC 62423, and visible in the specification block alongside the GB/T 14048.2 standard reference — the device's residual current trip time at IΔn is ≤ 0.3 s (non-delayed instant trip) and at the programmed time delay setting Δt of 0.06 s or 0.2 s, the overall trip time is ≤ 0.5 s, providing a coordination window that is wider than the ≤ 0.04 s instantaneous response of the 30 mA Class A RCCBs downstream, and that therefore satisfies the IEC 60364-4-41 selective coordination requirement without imposing a disconnection delay so long as to constitute a personnel safety hazard at the IΔn current level. The IΔn adjustable range of 50 mA to 1000 mA is the specification parameter that makes the NLM1EL-250/3P+N simultaneously applicable as the upstream selective earth fault protection device in a coordinated residual current cascade (where the 300 mA or 500 mA setting coordinates with 30 mA downstream devices), as a ground fault equipment protection device in a commercial building MV/LV substation low-resistance earthed neutral system (where the 1000 mA setting coordinates with the transformer's neutral earthing resistor current and the upstream earth fault relay's minimum operating current), and as an enhanced-sensitivity protection device in installations where the combined leakage current of distributed electronic equipment and VFD-connected motors elevates the background earth leakage above the 30 mA threshold but below the 100 mA level.

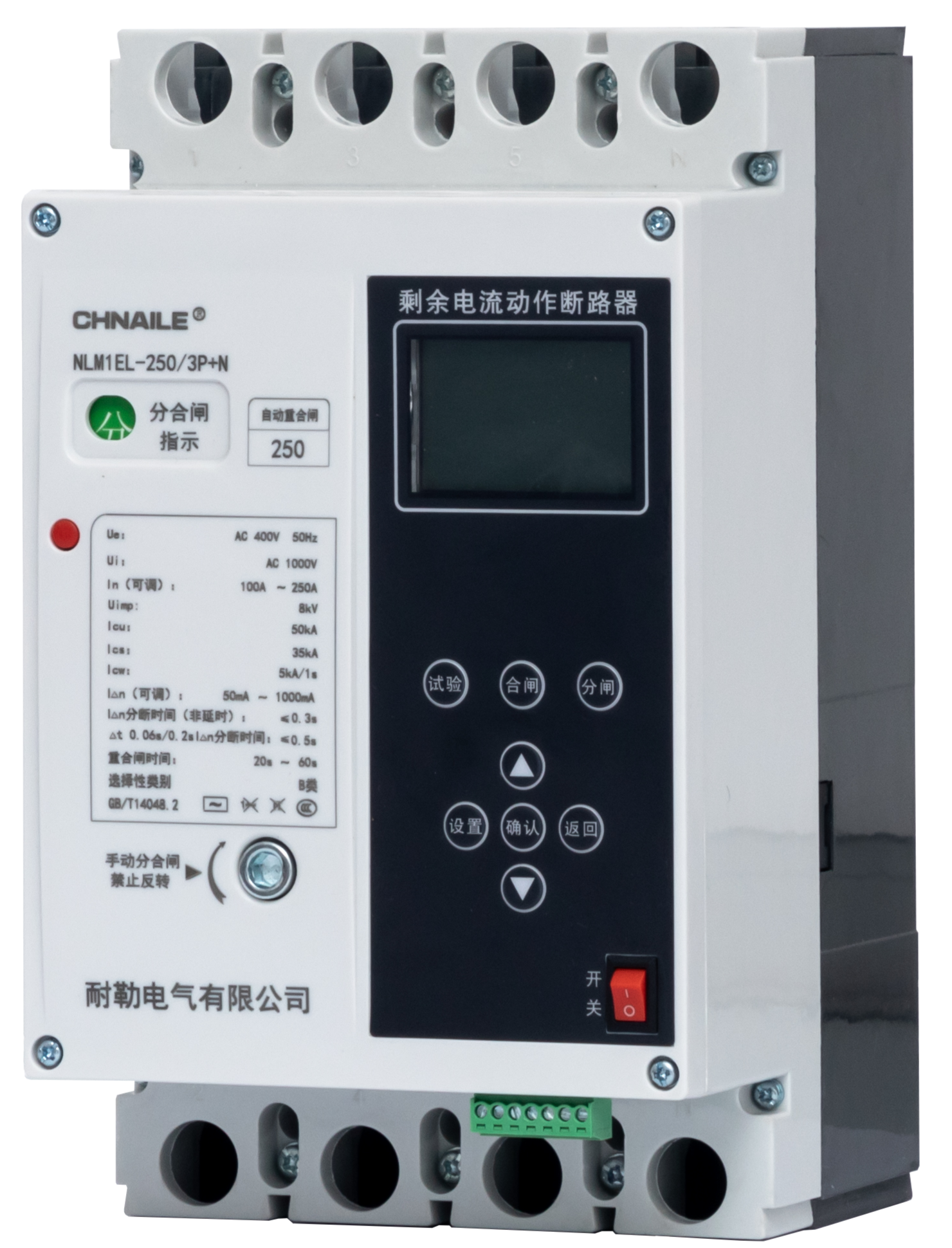

The right-face controller module of the NLM1EL-250/3P+N — occupying approximately two-thirds of the device's total face width and bounded by the matte-black moulded controller housing visible in the product image — presents a commissioning and operation interface whose functional density distinguishes it from the single-button test interfaces of conventional RCCBs and the rocker-only operation of standard MCCBs, and whose design logic is oriented toward the commissioning engineer performing the device's initial parameterisation and the building management system integrator connecting the device to a remote monitoring network. The LCD display at the top of the controller panel provides the real-time parameter readout that confirms the active configuration settings — current In set value, IΔn sensitivity setting, time delay Δt setting, and auto-reclose time window — as numeric values whose precision exceeds what a rotary dial scale can convey, eliminating the read-error risk that analogue dial settings introduce when a commissioning engineer reads a rotary scale under the poor lighting conditions typical of electrical plant rooms and switchboard interiors. The "250" figure displayed in the auto-reclose counter window visible in the product image represents the reclose attempt counter or the reclose time setting — a numeric display that provides the commissioning engineer with a clear confirmation of the auto-reclose function's active parameter without requiring the engineer to enter a configuration menu. The eight-key membrane button interface — arranged in the layout observable in the image: 试验 (Test), 合闸 (Close), 分闸 (Open) in the upper row; up and down navigation arrows flanking the centre; 设置 (Settings), 确认 (Confirm), 返回 (Return) in the lower row — provides the complete parameter navigation and operational control capability that, in earlier-generation intelligent protection devices, required a separate hand-held programming terminal. The three-key operational row (Test / Close / Open) enables commissioning engineers to execute functional verification sequences — confirming that the residual current detection chain responds to the Test command, that the motorised closing mechanism drives the contacts to the closed position on Close command, and that the contacts open correctly on Open command — without requiring external test equipment or supplementary control wiring to be temporarily connected. The manual operating knob on the left face of the device — marked with the rotation direction arrow and a prohibition-of-reverse-rotation warning visible in the image — provides a mechanical backup operating path for maintenance personnel who need to manually open or close the device when the controller power supply is interrupted, without requiring a tool or a supplementary actuator accessory. The green screw terminal block at the bottom of the controller face — a six-position terminal strip visible in the image as a green moulded connector accepting fine-gauge control conductors — provides the external signal interface through which the NLM1EL-250/3P+N integrates with the building management system, SCADA gateway, or remote monitoring panel: the terminal block carries the trip alarm dry contact, the open/close status signal, and the remote close enable input that allow the device to participate in a supervisory control scheme where a building operator can acknowledge a residual current trip event and authorise a remote reclose command from the BMS workstation rather than dispatching a maintenance electrician to the distribution board location. The green open/close status LED on the left face — displaying the triangular graphic symbol and providing the binary closed/open indication that supplements the controller LCD's status display — is readable at panel door distance without illuminating the board interior, satisfying the safe-working confirmation requirement that the device's circuit status be verifiable by observation before any maintenance intervention is permitted.

The automatic reclosing function — the capability that distinguishes the NLM1EL-250/3P+N from a conventional selective RCCB-MCCB combination and that is expressed in the product image's specification block as a reclose time of 20 to 60 seconds — addresses a specific operational failure mode whose frequency in commercial building electrical infrastructure and municipal low-voltage grid equipment is substantially higher than the frequency of sustained solid earth fault conditions: the transient residual current event, caused by momentary condensation on exposed insulation surfaces during a temperature cycling event, brief contact between a grounded surface and a live conductor during equipment vibration, partial discharge in aged cable insulation under temporary voltage stress elevation, or the capacitive coupling current transient generated when a large VFD-connected motor drive completes its output voltage ramp at startup. A transient earth fault of this type — where the root cause condition disappears within seconds of the protective device tripping, without leaving any residual damage or hazard — nonetheless produces a supply interruption whose commercial consequence is identical to that of a sustained fault: the load-side equipment loses power, the building occupants or industrial process operators experience an unplanned supply interruption, and a maintenance technician must travel to the distribution board location to reset the tripped device before supply can be restored. In a commercial building where the protected circuit feeds the ground floor retail area's point-of-sale systems, the HVAC unit serving a meeting room suite, or the server room's UPS charging circuit, the duration of this service disruption — from the moment of trip to the moment a maintenance technician arrives, locates the tripped device, verifies that no hazard condition persists, and manually resets the breaker — may be measured in tens of minutes rather than seconds, with a cost-per-minute impact that is disproportionate to the trivial nature of the original transient fault. The NLM1EL-250/3P+N's auto-reclose function compresses this disruption duration to the configured reclose delay (20 to 60 seconds), automatically executing the trip-verification-reclose sequence without human intervention: the device trips on the residual current event, waits for the configured delay (during which the transient condition is statistically expected to resolve), attempts a motorised reclose, and — if the reclose is successful (indicating that the earth fault was indeed transient) — logs the event and restores supply within one minute of the original trip. If the reclose attempt detects that the residual current condition persists (indicating a sustained solid fault), the device locks out and generates the alarm signal via the external terminal block, at which point human investigation is genuinely warranted. This auto-reclose decision logic — which the switchgear integrator's commissioning engineer configures through the eight-key interface during panel factory acceptance testing — reduces the false-trip maintenance call frequency that buildings with aging or environmentally stressed electrical infrastructure accumulate over their operational life, producing a measurable reduction in the facilities management team's reactive maintenance labour cost that the building owner can quantify across a five-year operational horizon.

The In adjustable range of 100 A to 250 A represents a current rating flexibility that, from the perspective of the switchgear integrator building standardised distribution board assemblies in volume, converts the NLM1EL-250 from a fixed-rating component into a configurable protection platform whose single-frame stocking covers the full current rating range of commercial building main incomer and sub-incomer protection positions in the 100 A to 250 A tier — the range that encompasses the incoming supply rating of commercial tenant sub-boards in office tower developments (typically 100 A to 160 A per floor tenant), the main incomer of medium-sized commercial buildings (200 A to 250 A for buildings served by 160 kVA to 200 kVA transformers), and the AC bus protection position of grid-connected BESS systems in the 50 kWh to 100 kWh storage capacity range. The ability to stock a single frame and configure the rated current at the workshop level — without ordering different components for each In value within the range — reduces both the number of distinct SKUs the integrator must maintain in their component inventory and the risk of inventory misallocation (where stock of one In value is exhausted while another accumulates) that fixed-rating component procurement creates. Our manufacturing facility subjects every NLM1EL-250/3P+N unit to a calibrated functional test sequence before release — verifying the residual current trip threshold at the minimum, mid-range, and maximum IΔn settings, confirming the reclose mechanism's operation through a timed close-trip-reclose cycle, and measuring the LCD display's parameter readout against the internally stored settings — generating the production test record that the switchgear integrator can reference in the factory acceptance test documentation submitted to the project commissioning engineer. Panel builders, MV/LV substation switchgear integrators, municipal infrastructure procurement engineers, commercial building EPC electrical contractors, and BESS system electrical architects whose projects require automatic-reclosing selective earth fault protection at the 100–250 A tier in 3P+N configurations are encouraged to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820, where rated current setting range, IΔn sensitivity, reclose delay window, external signal interface requirements, and project volume parameters will be addressed by a dedicated export applications engineer returning a complete technical and commercial proposal within one working business day.
