A Strategic Manufacturing Alliance for Mission-Critical Panel Builders
In the elite echelon of low-voltage electrical manufacturing, particularly when engineering power distribution for hospitals, hyperscale data centers, and telecommunication hubs, absolute power continuity is the ultimate deliverable. Panel builders and switchgear assemblers are frequently tasked with designing complex Automatic Transfer Switch (ATS) panels and Generator Paralleling Switchboards. However, what happens when the ATS itself requires maintenance or replacement? The facility cannot be powered down. This necessitates the integration of a foolproof, purely physical Maintenance Bypass Switch (MBS).
At CHNAILE, our B2B operational model is engineered to solve this exact procurement and design dilemma. We do not compete with you for local end-user installation contracts; we serve as your dedicated manufacturing backbone. The CHNAILE 3-Pole Heavy-Duty Knife Disconnect Switch is explicitly crafted for the cost-conscious yet quality-driven assembly floor. It serves as the rugged, fail-safe manual bypass core of your custom-built electrical panels. Relying on pure, indestructible physical mechanics rather than sensitive electronics, this isolator provides your proprietary switchboards with the extreme electro-mechanical resilience required to pass stringent IEC 60947-3 verifications. By integrating our pure physical knife switches into your designs, you standardize your bypass panel production, secure a vital supply chain for copper-intensive components, and drastically improve your profit margins on high-volume infrastructure projects.
Optimizing Switchboard Architecture: The Mastery of Copper and Mechanics
For a professional structural panel designer, routing thousands of Amperes through a physical disconnect switch is a relentless battle against thermal dynamics and mechanical stress. Excessive contact resistance creates localized heating, which can warp copper busbars and cause catastrophic panel fires. We engineered the physical architecture of this Knife Switch explicitly to eliminate thermal bottlenecks and streamline your factory assembly process.

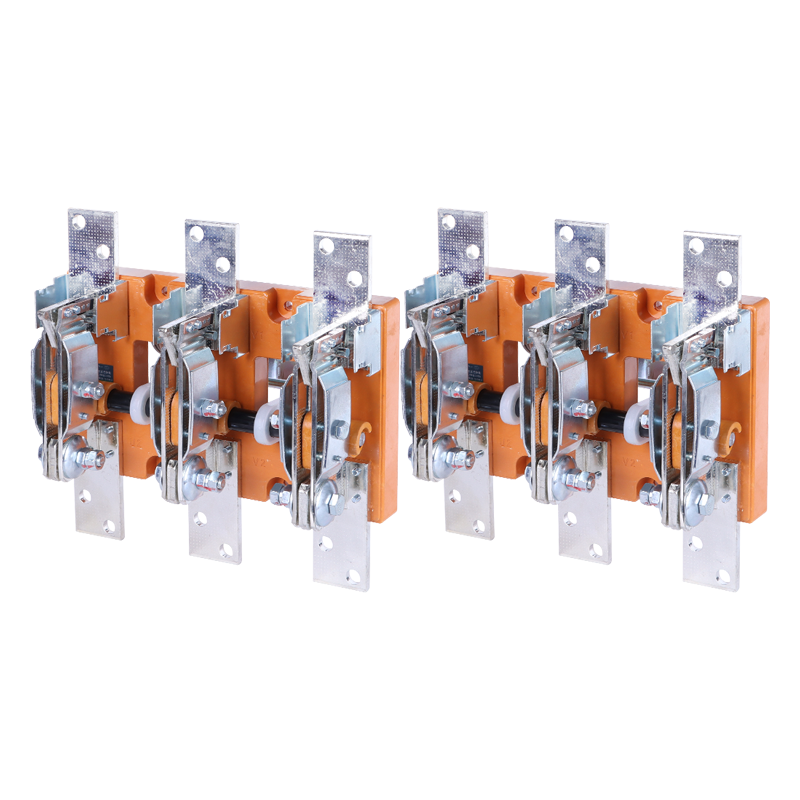

Pre-Drilled, Silver-Plated Copper Busbars:
A defining feature of this heavy-duty isolator is its massive conductive terminal plates. To drastically reduce your factory-floor fabrication time, the extended copper busbars arrive pre-punched with standardized mounting holes. Your assembly technicians can immediately bolt your custom vertical or horizontal cabinet busbars directly to the switch without spending expensive labor hours drilling thick copper plates. Furthermore, the conductive surfaces feature a specialized "dimpled" texture heavily plated with anti-corrosive silver. When bolted, this texture bites into the mating copper, squeezing out microscopic air pockets and breaking through surface oxidation. This guarantees a zero-gap, ultra-low resistance connection, crucially aiding your completed panels in passing the mandatory temperature-rise tests required for IEC 61439 Type-Tested Assemblies (TTA).
High-Tension Spring-Loaded Contact Jaws:
During the massive power surges associated with bridging a heavy generator to the main grid, electro-dynamic repulsion forces attempt to push the knife blades out of their receptors. To counteract this, the receiving jaws of the CHNAILE Knife Switch are fortified with oversized, heavy-duty external coil springs. These springs ensure an unrelenting, high-pressure clamping force onto the conductive blade. This mechanical vice-grip effectively eliminates "contact chatter" and the resulting thermal runaway, ensuring the switch handles massive continuous currents without micro-welding.
Ultra-Rigid Thermosetting Baseboard:
Mounting heavy copper components requires a foundation that will not flex or crack under immense torque. The entire conductive assembly is anchored to a thick, specialized orange thermosetting polymer baseplate. This industrial-grade material boasts exceptional dielectric strength, preventing phase-to-ground flashovers against the steel cabinet chassis. More importantly, it provides the extreme structural rigidity needed to withstand the aggressive mechanical shock of a technician manually slamming the heavy knife contacts closed during a high-stress generator changeover.
The Ultimate Failsafe for ATS Maintenance and Generator Grids
A modern heavy-duty distribution board is judged by its ability to protect the personnel servicing the downstream equipment while maintaining facility uptime. This CHNAILE Disconnect Switch empowers your custom switchgear with robust, purely physical safety assurances.
Visible Air Gap for Absolute Galvanic Isolation:
In mission-critical maintenance, seeing is believing. When an ATS fails and a technician must replace it, relying on enclosed breakers is a safety risk. When the handle of our knife switch is thrown to the open position, the large physical separation between the blades and the jaws provides an undeniable, verifiable "Visible Air Gap." This instantly satisfies the strictest international maintenance protocols, assuring facility engineers that the bypass circuit is completely severed and it is safe to begin servicing the adjacent megawatt machinery.
High Short-Circuit Withstand Capability (Icw):
While this device is an isolator (not a circuit breaker designed to trip automatically), its massive copper construction and high-tension spring jaws grant it an exceptional short-time withstand current rating (Icw). If a catastrophic short-circuit occurs downstream while the bypass switch is engaged, it possesses the mechanical rigidity to remain solidly clamped, allowing the dedicated upstream circuit breakers the critical milliseconds they need to safely clear the fault plasma without the knife switch blowing open.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the foundational components inside reflect the premium, heavy-duty nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your corporate growth.
Private Labeling and Structural Integration:
Elevate your corporate identity. We offer comprehensive OEM customization. Beyond simple labeling, we can collaborate with your structural CAD engineers to customize the mounting hole patterns on the epoxy baseboard and the copper terminals, ensuring the switch drops perfectly into your proprietary steel enclosure chassis, drastically reducing assembly line drilling and modification times.
Certified Quality to Fast-Track Your Panel Certifications:
Winning major commercial bids requires your completed switchgear to pass strict regional certifications. Our Knife Switches are rigorously tested to strictly comply with IEC 60947-3 international standards. We supply your engineering department with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Stabilizing Your Copper-Intensive BOM in a Volatile Market:
Products like heavy-duty knife switches are incredibly raw-material intensive. Relying on intermediary trading companies exposes your panel-building business to volatile copper commodity pricing and disastrous supply chain delays. By sourcing these massive copper isolators directly from our highly automated manufacturing lines in China, you secure highly aggressive, stabilized wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on heavy commercial panel bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production.
