1P 20A Type C MCB 6kA Breaking Capacity | IEC60898-1 CE-Certified Single Pole Circuit Breaker — OEM Factory Direct, Custom Label & Packaging

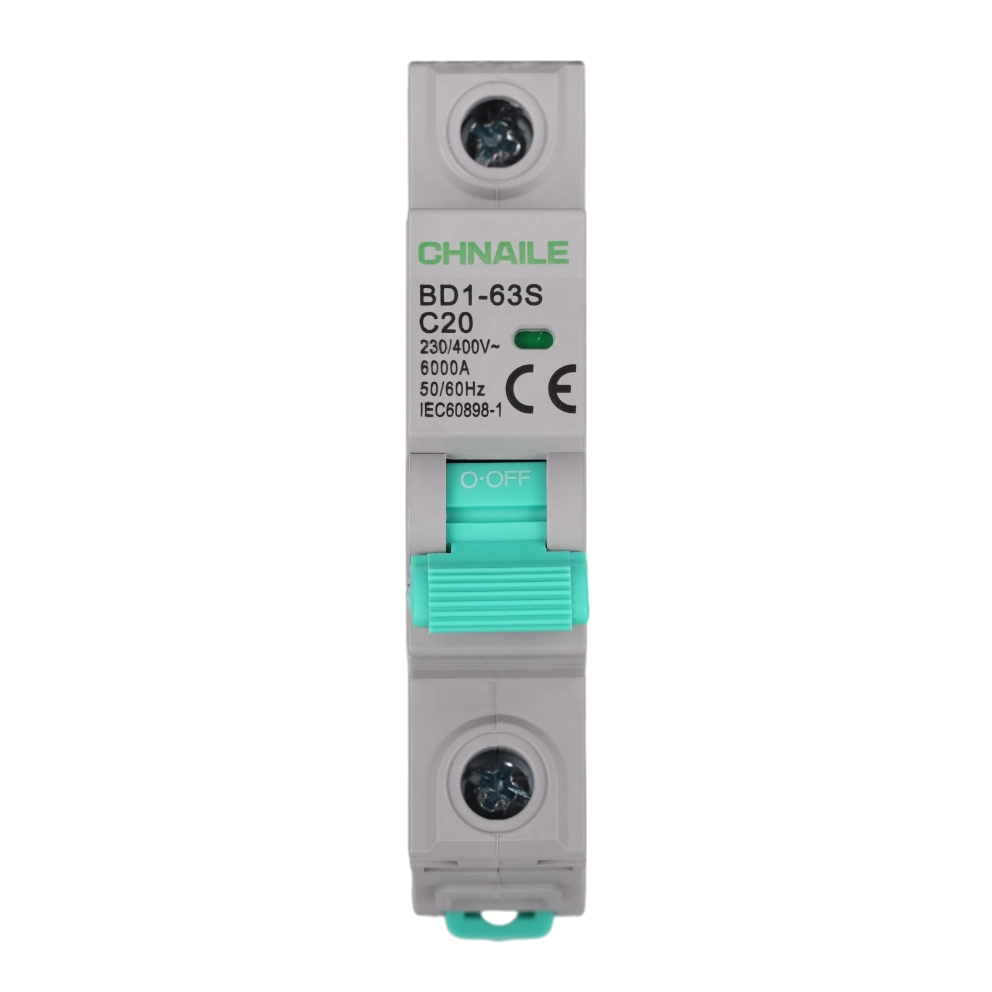

What the front face of the BD1-63S C20 communicates to a trained electrical engineer is not merely a catalogue specification — it is a compressed compliance biography. Reading the label from top to bottom, one encounters, in immediate succession: the manufacturer designation, the frame series identifier, the trip characteristic and rated current in the format "C20" (a shorthand encoding the entire IEC 60898-1 Type C instantaneous release band of 5 to 10 times In, meaning that at 100 A — five times the 20 A rating — the electromagnetic release is obligated to actuate, and at 200 A it is obligated to have already done so), the dual voltage rating of 230/400 V, the breaking capacity expressed as 6000 A, the frequency tolerance of 50/60 Hz, the CE mark attesting to European Low Voltage Directive conformity, and the governing standard IEC 60898-1. That this entire compliance declaration occupies a label area no wider than a human thumb on a housing that itself spans only 18 mm on a 35 mm DIN rail is, from a metrological standpoint, the most compact engineering credential document in common industrial use. The physical housing observed in the product image is moulded in a light neutral grey — a colour choice that is not accidental but is calibrated to the universal convention of low-voltage final-circuit protection devices across IEC-governed markets, and one that reads as visually subordinate inside a panel board so that wiring and terminal identification remain the dominant navigational elements for the maintenance technician. The teal-green toggle handle — matching the brand's signature colour family as seen across the product range — sits in a recessed channel that exposes the O·OFF position indicator only when the device has tripped or been manually opened, providing an unambiguous at-a-glance status read from panel door distance without requiring the technician to approach the live busbar zone. Both the line-side and load-side terminals are fitted with slotted-cross combination screw heads recessed within circular protective collars, a structural detail that prevents accidental contact with energised terminals during conductor insertion and that, in the context of panel assembly ergonomics, allows the same screwdriver tip to be used consistently across the full DIN rail assembly without tool changes. The DIN rail clip visible at the device's base is spring-loaded, permitting single-hand snap-on installation — a workflow detail that, when multiplied across the several hundred MCBs a panel builder's technician may install in a single project shift, produces measurable reductions in assembly cycle time and a corresponding reduction in the labour-cost component of the finished panel's bill of materials.

Key Technical Specifications

The selection of a Type C trip characteristic for this device reflects a deliberate engineering judgement about the statistical distribution of loads encountered in the commercial and light-industrial circuits that constitute the primary application domain of a 20 A single-pole MCB. Type C's instantaneous release band — calibrated to actuate between 5 and 10 times In — is positioned explicitly between the Type B characteristic (3–5 × In, optimised for purely resistive loads with negligible inrush) and Type D (10–20 × In, reserved for high-inrush motor and transformer applications). The Type C window is, by this logic, the general-purpose engineering compromise: it tolerates the brief inrush transients produced by fluorescent lighting ballasts, small compressor motors, desktop UPS units, and switch-mode power supply banks — all loads characteristic of commercial office, retail, and light industrial circuits — without nuisance tripping, while still providing genuine short-circuit clearance at fault current levels that, in a properly coordinated low-voltage network, will be well within the device's 6000 A breaking capacity. The thermal element of the trip unit — a bimetallic strip whose deflection rate under sustained overcurrent is determined by the metallurgical bond between two alloys with differing coefficients of thermal expansion — is calibrated at the factory to deliver the IEC 60898-1 Table 3 non-trip/trip time-current pair: the device is obligated to carry 1.13 × In (22.6 A) for at least one hour without tripping, and to trip within one hour when subjected to 1.45 × In (29 A). This calibration discipline — performed on automated current injection equipment whose measurement traceability runs back through our CNAS-referenced internal metrology laboratory — is what separates a device that genuinely protects a 2.5 mm² conductor from one that merely claims to do so on the label. The 6000 A breaking capacity, meanwhile, is the parameter that defines the device's safe deployment envelope in the low-voltage network hierarchy. In a commercial building distribution system fed by a 400 kVA MV/LV transformer through a main MCCB at the incomer and a sub-distribution MCCB at the floor-level panel, the available prospective short-circuit current at the final-circuit terminal block — after impedance attenuation through the transformer winding resistance, the main busbar run, the sub-distribution cable, and the floor panel busbar — will, in the overwhelming majority of commercial building scenarios, fall well below 6 kA. This arithmetic is not abstract: it is the calculation that every electrical inspector in every IEC-governed jurisdiction performs when reviewing a panel builder's short-circuit coordination study, and it is the calculation that justifies the selection of a 6 kA MCB over higher-breaking-capacity alternatives whose additional cost provides no protective benefit in this network position. For photovoltaic AC-coupling protection boards — a growing application segment across the Gulf, East Africa, and Latin America's expanding rooftop solar market — the 1P configuration addresses the single-phase string inverter output protection requirement, and the 6 kA rating comfortably envelops the fault current available at the AC output terminals of inverters in the 3–4.6 kW range that dominate the residential and small-commercial PV installation market.

The panel builder's commercial problem, stripped of its engineering language, is this: two assembly shops in the same industrial district, using components sourced from the same European brand's regional distributor, produce panels that are functionally indistinguishable to the end customer's electrical consultant and therefore compete exclusively on installation price — a race to the bottom that erodes workshop margins and makes investment in skilled labour, quality management infrastructure, and technical sales capability economically irrational. The resolution of this problem does not begin at the marketing department; it begins at the component sourcing specification. A panel builder who sources MCBs directly from the source factory — with the device labelled under their own brand designation, coloured to their own visual identity standard, packaged in cartons carrying their company logo and project reference, and documented with test certificates that name their brand as the product identity — is no longer selling a commodity assembly service. They are selling a branded electrical product that happens to be delivered as an installed panel, and that distinction allows them to defend a margin structure that their distributor-sourced competitors cannot access. Our manufacturing platform supports this brand sovereignty architecture in concrete, production-line terms: housing colour is configurable across the full moulded-polymer process palette, from the standard light grey shown in the product image to black, dark grey, cream, RAL 7035, or any customer-specified reference that can be matched in our injection moulding compound preparation; face label content — including brand name, model series designation, rated current, voltage marking, frequency specification, and any certification marks applicable to the destination market — is set per OEM customer and applied via high-resolution pad printing or laser engraving depending on volume and permanence requirements; packaging format ranges from individual polybag-in-retail-box with custom print artwork through industrial polybag bulk pack in master carton to blister-card consumer format, all produced on our in-house packaging line rather than outsourced to a packaging subcontractor whose quality control is outside our process envelope. The rated current is configurable from 6 A through 63 A within the BD1-63S frame, the trip characteristic is selectable across Type B, C, and D to address the full spectrum of the panel builder's load portfolio without requiring a second supplier qualification, and the pole count — 1P as reviewed here, or 2P, 3P, 4P as required by the panel design — is available within the same product family, allowing a single approved-supplier relationship to cover the entire MCB population of a distribution board design. For procurement directors managing sourcing decisions across multiple project countries simultaneously, the ability to specify a single product family with destination-specific voltage and frequency markings — 230 V/50 Hz for Gulf single-phase circuits, 240 V/50 Hz for East African utility standards, 220 V/60 Hz for Latin American hybrid networks — eliminates the inventory duplication and customs documentation complexity that arises when separate SKUs are maintained per market.

In the supply chain due diligence frameworks now applied by international EPC contractors, national utility procurement offices, and data centre operators to their electrical component vendors, the question that has moved from footnote to first-page requirement is not "what is the unit price" but "can you demonstrate where, on which production line, under what process controls, and with which calibrated test equipment this specific batch of devices was manufactured?" This shift reflects the post-installation failure economics of low-voltage switchgear: an MCB that fails to interrupt a fault current due to a calibration error in its trip unit, or that loses contact integrity due to a terminal screw manufactured outside its specified torque-yield relationship, does not produce a warranty claim — it produces an insurance event, a project suspension, a regulator investigation, and the kind of reputational damage to the panel builder that no unit-price saving can retrospectively offset. Our factory's response to this due diligence requirement is structural, not cosmetic. Every production batch of BD1-63S devices passes through a computerised test station that applies a calibrated overcurrent injection at 1.45 × In and records the trip time to within ±0.1 seconds against the IEC 60898-1 Table 3 requirement; applies a 2000 V AC dielectric withstand between line and load terminals for a timed duration, with automatic rejection of any unit whose leakage current exceeds the acceptance threshold; and verifies contact resistance at both terminals against a maximum allowable value that reflects the thermal performance assumptions embedded in the rated-current specification. The test data for each batch is archived with a batch identifier that is marked on the master carton, creating a traceability chain from the installed device back to the production record that procurement engineers can call upon in the event of a post-installation investigation. This is the same traceability infrastructure that our IEC type-test submissions are built upon — the same batch control discipline that allows a third-party laboratory to pull representative samples from a production run and confirm that the samples' measured performance matches the type-test envelope. Panel builders who are navigating government procurement approval processes that require them to name and qualify their component suppliers — a condition increasingly attached to municipal infrastructure contracts in East Africa, Gulf Cooperation Council utility programmes, and Latin American public works tenders — will find that this documentation package substantially reduces the qualification timeline compared to the due diligence audit of a trading company whose factory relationships are arm's-length and whose process records are, at best, summaries provided by the manufacturer rather than primary records. To initiate a direct technical dialogue with our manufacturing team, including requests for type-test certificate extracts, sample shipment, factory audit scheduling, or a formal OEM quotation calibrated to your specific pole, current, and volume configuration, the most efficient path is to reach our export engineering team via WhatsApp at +86 15985210820 — a direct channel to the engineers who manage the production files, not a customer service layer, staffed across time zones to cover the working hours of our customers from Riyadh to Lagos to São Paulo.
