Rethinking Direct Current Mechanical Isolation on the Assembly Floor
The global transition toward telecommunication grid modernizations and decentralized solar energy storage has placed a significant burden on the switchgear fabrication industry. When electrical structural designers are drafting blueprints for a telecom battery backup rack or a localized photovoltaic combiner box, routing direct current (DC) requires components that offer absolute reliability. A persistent frustration on the factory assembly line occurs when technicians are required to construct a manual bypass or transfer circuit using independent DC breakers. Attempting to manually align and pin two separate breakers with an aftermarket mechanical interlock is a highly inefficient process. It consumes excessive labor hours, introduces mechanical alignment errors that can lead to catastrophic short circuits during a transfer, and often fails stringent quality assurance inspections before the panel even leaves the facility.

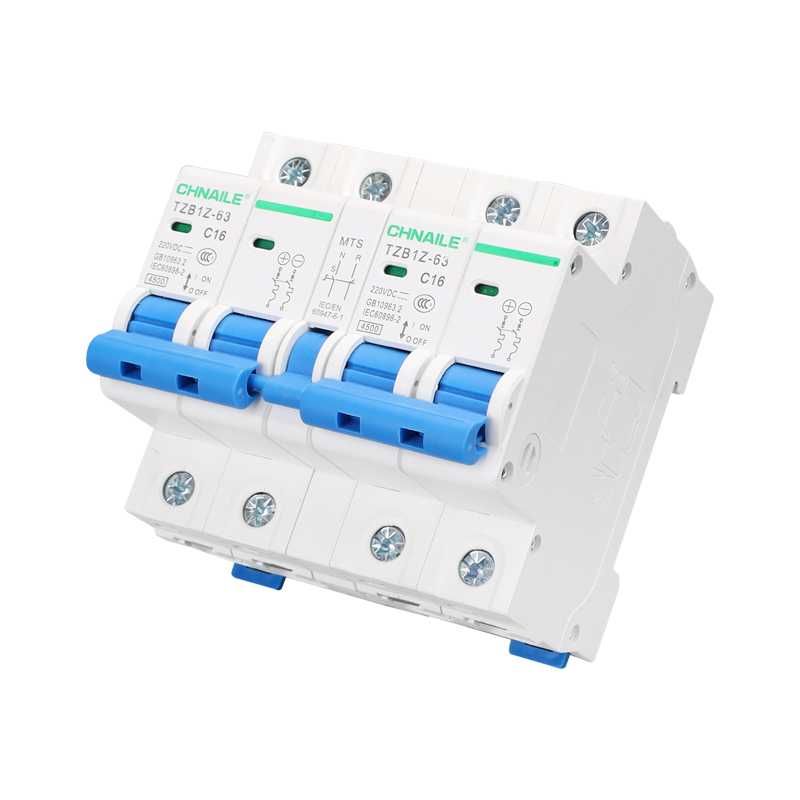

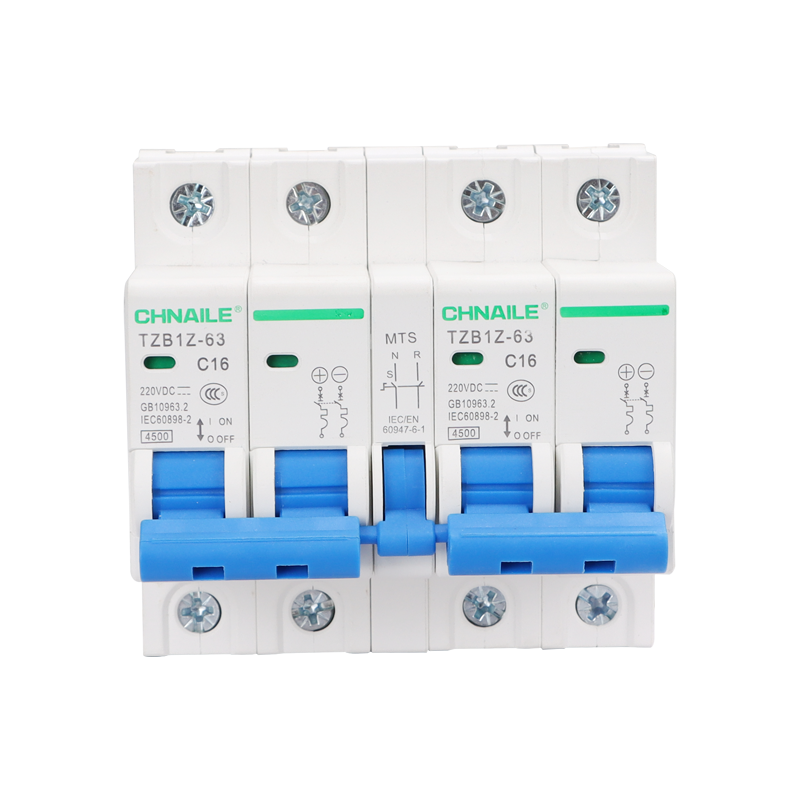

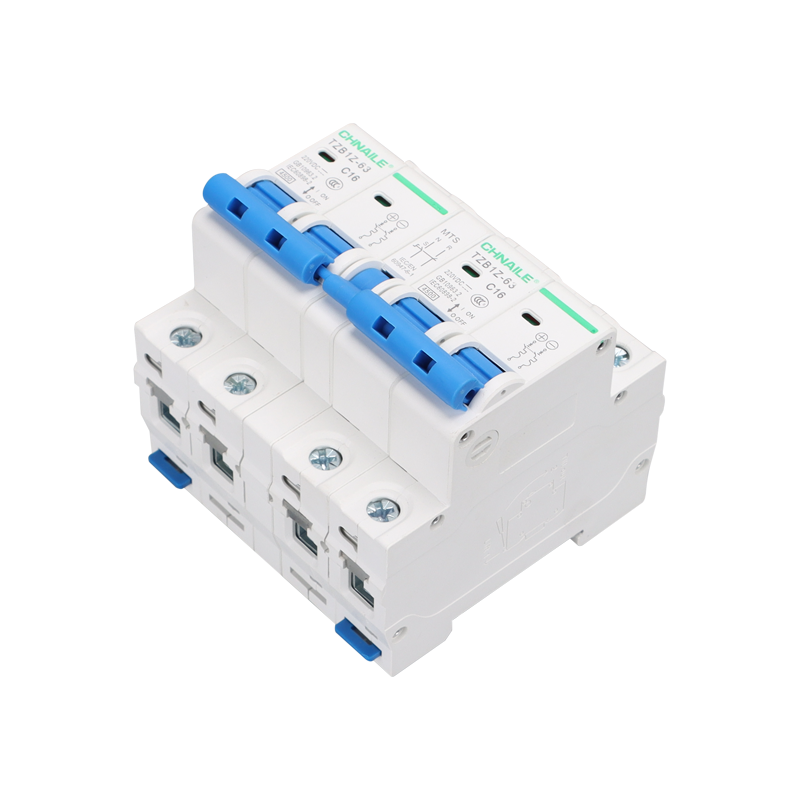

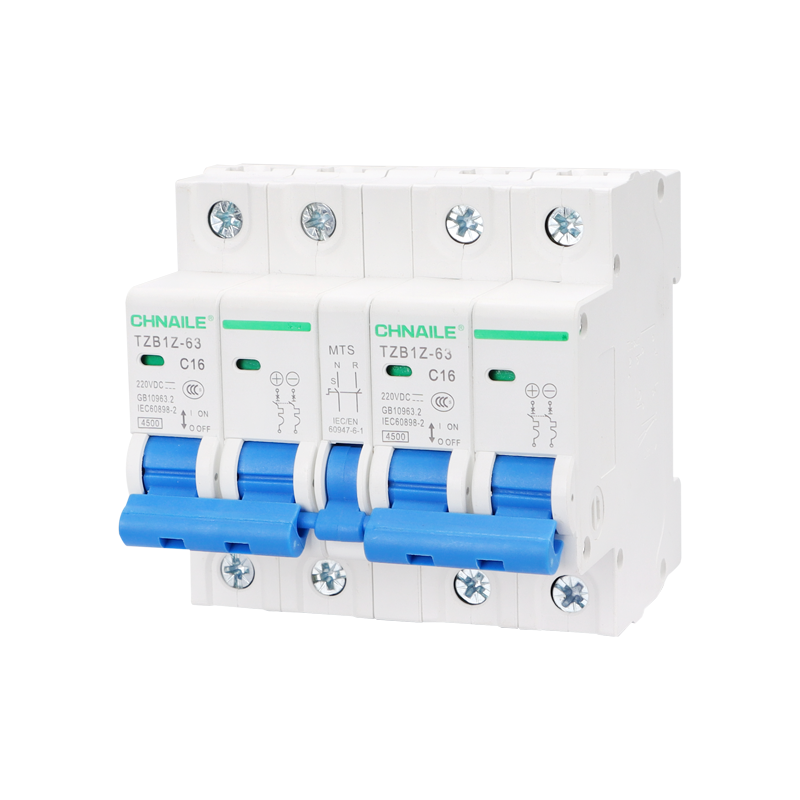

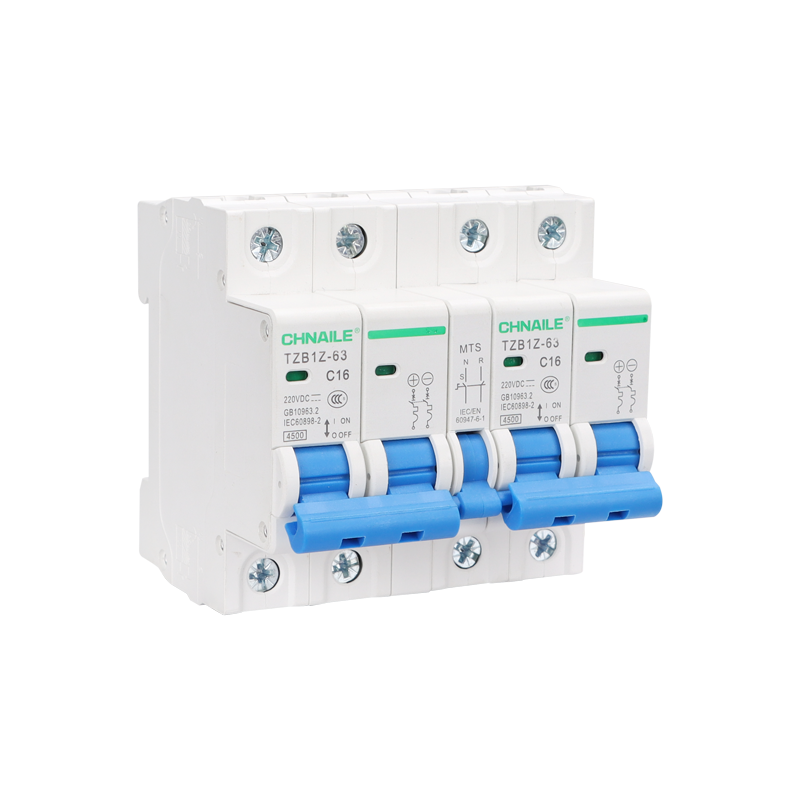

The engineering paradigm behind the CHNAILE DC Manual Transfer Switch (MTS) was formulated specifically to eradicate this fabrication inefficiency for our B2B partners. An examination of the TZB1Z-63 platform—as visually demonstrated in its interlocked 2P+2P configuration—reveals a pre-engineered, factory-sealed solution. We deliver the component with the mechanical interlocking bridge (notably featuring a distinct blue actuating arm) already precision-installed and torque-tested. When your assembly technicians receive this unit, they simply snap the unified block onto the standard DIN-rail of the DC distribution board. This pre-assembled architecture guarantees a flawless, simultaneous break-before-make transition between the primary solar inverter feed and the standby battery bank. Operating safely under a DC 220V threshold with a proven 4.5kA fault suppression capability, this integrated MTS vastly accelerates your factory throughput, reducing the labor overhead per cabinet and ensuring your finished panels flawlessly pass IEC60947-6-1 compliance audits.
The Power of Aesthetic Sovereignty and Deep OEM Customization
However, in the fiercely competitive landscape of municipal power contracting and commercial energy storage, supplying a functionally sound distribution panel is merely the baseline. High-end EPC (Engineering, Procurement, and Construction) firms and global system integrators demand enclosures that reflect their proprietary brand identity. Relying on generic, off-the-shelf components from third-party wholesale distributors completely strips a panel builder of their visual and structural sovereignty. At CHNAILE, our manufacturing infrastructure is not built to dictate terms to our partners; it is designed to adapt to them. We operate as your dedicated, highly elastic back-end production facility, offering a level of deep customization that transforms a standard switchboard into a premium, branded asset.
The aesthetic presentation of the internal components serves as a vital psychological indicator of quality during client site-acceptance testing. The vivid blue interlocking handle showcased on this specific 16A DC MTS is merely a single example of our injection-molding capabilities. If your corporate design language requires the primary housing to be cast in a specific dark industrial grey to mask construction dust, or if you require the operational toggles to be molded in a striking safety orange to denote critical DC isolation points, our automated manufacturing lines will execute those exact chromatic specifications. Beyond aesthetics, this profound customization extends directly into the electro-magnetic core. Whether your engineering schematics demand a delicate low-amperage calibration for sensitive telemetry boards, or require massive continuous current capacities beyond standard catalog limits, our facility will engineer, calibrate, and manufacture the exact DC transfer switch your project requires. We even extend this customization to the external bulk packaging, ensuring the components arrive at your assembly plant perfectly aligned with your internal inventory management protocols.
Guaranteeing Fidelity Through Smart Manufacturing
Offering infinite customization is commercially useless if the underlying electrical reliability is inconsistent. Dealing with the explosive potential of direct current arcs mandates absolute manufacturing precision. To ensure that every single bespoke DC Manual Transfer Switch perfectly matches the approved prototype, CHNAILE relies exclusively on state-of-the-art smart automated assembly lines. The intricate tensioning of the internal mechanical interlocks and the alignment of the DC-specific magnetic blow-out coils are executed by robotics, entirely removing the variability inherent in human manual assembly.
Before any custom-manufactured batch is cleared for international export, it must successfully navigate our computerized smart inspection equipment. These digital testing matrices subject the transfer switches to rigorous mechanical cycling and simulated DC voltage stresses, capturing real-time data to verify that the break-before-make timing and the 4500A arc-extinguishing chambers perform flawlessly. This relentless dedication to automated quality assurance provides panel builders with the absolute certainty that their custom-branded switchgear will perform safely in the harshest global environments. We actively encourage procurement directors, switchboard fabrication managers, and chief engineers seeking to liberate their supply chain from generic components and establish a deeply customized OEM partnership to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820. Partner with CHNAILE to engineer absolute resilience and proprietary branding into your commercial DC distribution panels.
