NLQ8-63AE-4P
CHNAILE
Product Overview

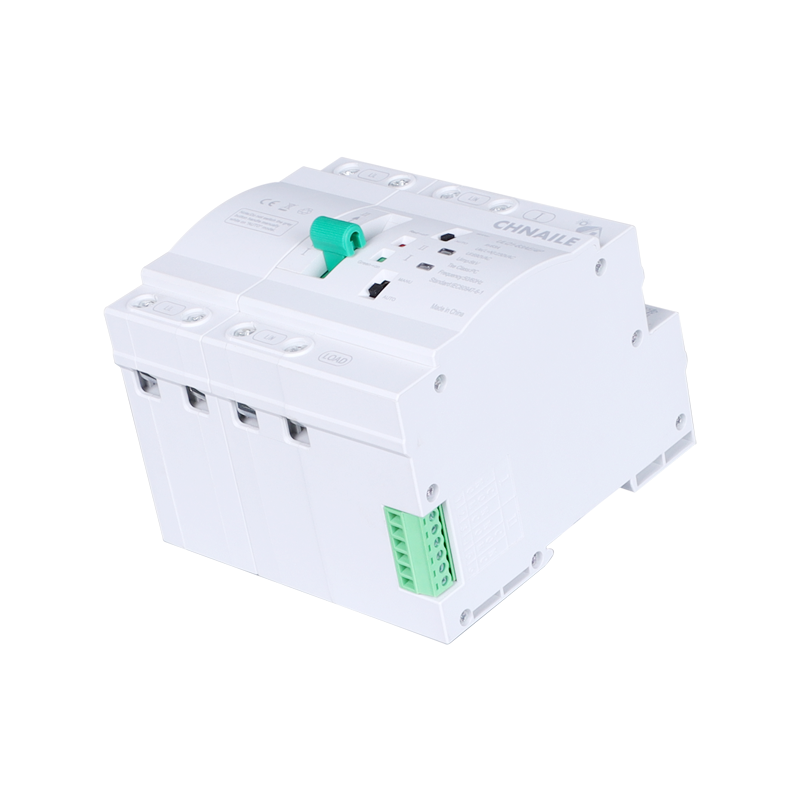

In complex 3-phase solar-hybrid systems, a slow power transfer or a shared neutral wire can cause catastrophic inverter damage and drop mission-critical IT loads. The CHNAILE Ultra-Fast 4-Pole Automatic Transfer Switch (ATS) is explicitly engineered to bridge municipal grid power and renewable battery banks with surgical precision. Utilizing a highly advanced motorized kinetic mechanism, this true PC-Class device physically transfers a 63-Ampere payload in less than 50 milliseconds. By strictly isolating the neutral line alongside the three active phases, it prevents hazardous reverse-feed circulating currents. Compliant with IEC 60947-6-1, it is the ultimate automated power manager for tech-heavy commercial facilities and high-end energy-independent residences.

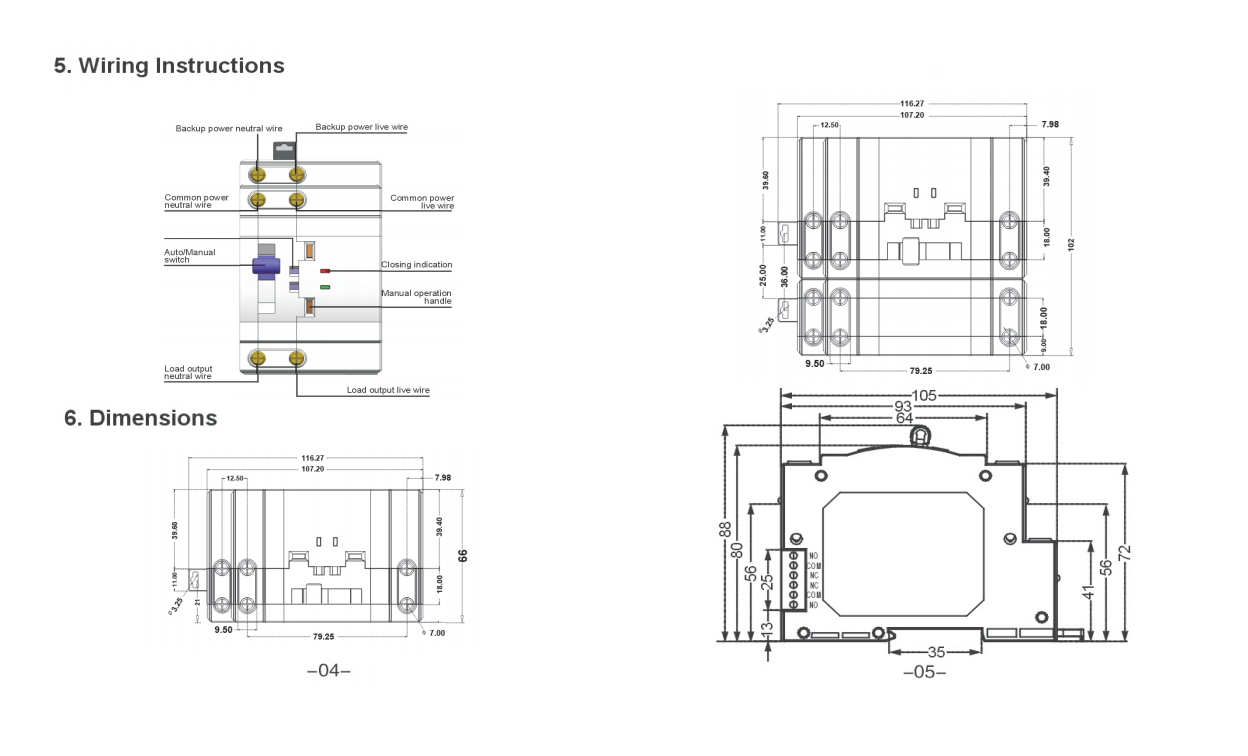

Technical Parameters
| Device Category: | Dual Power Automatic Transfer Switch (ATSE) |
| Switching Level: | PC Class (Pure mechanical isolation; highly immune to nuisance tripping) |
| Poles Configuration: | 4P (Simultaneous 3-Phase + Neutral Total Isolation) |
| Rated Current (In): | 63A (Sustains substantial residential & commercial loads) |
| Rated Operating Voltage (Ue): | AC 400V (Supports complex 3-phase architectures) |
| Utilization Category: | AC-31B (Optimized for precision resistive and smart-home loads) |
| Transfer Speed / Power-off Time: | < 50ms (Ultra-Fast "Zero-Flicker" Response) |
| Rated Impulse Withstand Voltage (Uimp): | 8kV (Grid surge & lightning defense) |
| Visual Interface: | Laser-etched Grid (Tower) and Solar/Backup (House) Icons |
| Standard Compliance: | GB/T 14048.11 / IEC 60947-6-1 |

1. Elite Renewable Energy Changeover Dynamics
<50ms Zero-Flicker Transfer: Standard transfer switches cause a noticeable 1-second blackout, resetting routers, servers, and smart lighting systems. The CHNAILE ATS utilizes a hyper-accelerated motorized drive. When the municipal grid fails, it engages the solar battery inverter in under 50 milliseconds. Paired with standard appliance capacitors, this creates a "Zero-Flicker" transition, ensuring uninterrupted digital continuity for luxury smart estates.
Absolute 4-Pole Anti-Islanding Isolation: Sharing a neutral wire between the public grid and a private 3-phase solar inverter creates deadly "floating neutral" feedback. The synchronized 4-pole mechanism guarantees that the Neutral conductor is completely severed during the transition. This provides 100% galvanic isolation, protecting utility linemen and your expensive solar inverters from ground loop damage.
PC-Class AC-31B Reliability: Designed without sensitive thermal-magnetic trips, this pure PC-Class isolator acts as an unyielding mechanical bridge. It is specifically rated for AC-31B, ensuring it flawlessly switches sensitive resistive loads without contact degradation, leaving short-circuit protection to dedicated upstream MCBs.

2. Specialized Structural & Visual Engineering
Intuitive Solar-Ready Iconography: Minimizing wiring errors during complex solar installations is crucial. The front fascia features permanently molded visual icons clearly designating Source II for the Municipal Grid (Transmission Tower icon) and Source I for Solar/Generators (House & Sun icon).
8kV Lightning Surge Firewall: Rooftop solar arrays act as giant lightning rods. With an exceptional 8kV Uimp impulse resistance, this ATS effectively blocks severe atmospheric overvoltages from jumping across the switchgear contacts and destroying your delicate interior smart-home appliances.
Motorized & Manual Dual-Control: Equipped with dedicated 'Auto/Manu' micro-switches. During automated operation, the motor handles the <50ms transfer. For routine inverter maintenance, facility engineers can toggle to manual and use the provided hex tool to safely force the connection to the desired power source.
3. Target Application Scenarios
Because of its ultra-fast <50ms transfer time and 4-pole neutral isolation, this ATS is exclusively sourced by specialized renewable EPCs for:
3-Phase Solar-Hybrid Microgrids: Acting as the smart automated bridge that switches a commercial facility's power from the failing municipal grid to the localized megawatt battery inverter seamlessly.
Luxury Smart Estates & Villas: Providing "zero-flicker" power continuity to ensure high-end home automation servers, security systems, and AV racks never reboot during a blackout.
Commercial Backup Generators: The essential, code-compliant automated 4P transfer mechanism for 3-phase standby diesel or natural gas generators in light-industrial parks.
Telecommunication Relay Hubs: Delivering space-saving, dual-power redundancy for remote 5G relay stations that rely on a mix of grid and solar power.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Renewable Tech: Sourcing ultra-fast, PC-Class transfer switches directly from our manufacturing floor eliminates international trader margins, providing your solar integration firm with a decisive financial advantage.
Exhaustive Millisecond Timing Tests: We do not guess on speed. Every single ATS unit undergoes rigorous high-speed oscilloscope testing to guarantee the transfer mechanism physically breaks and makes the connection in less than 50 milliseconds before it passes IEC quality control.
OEM Solutions for Inverter Brands: We actively partner with global solar inverter manufacturers, offering tailored OEM branding, customized faceplate iconography, and bespoke packaging for your complete solar-hybrid energy kits.
