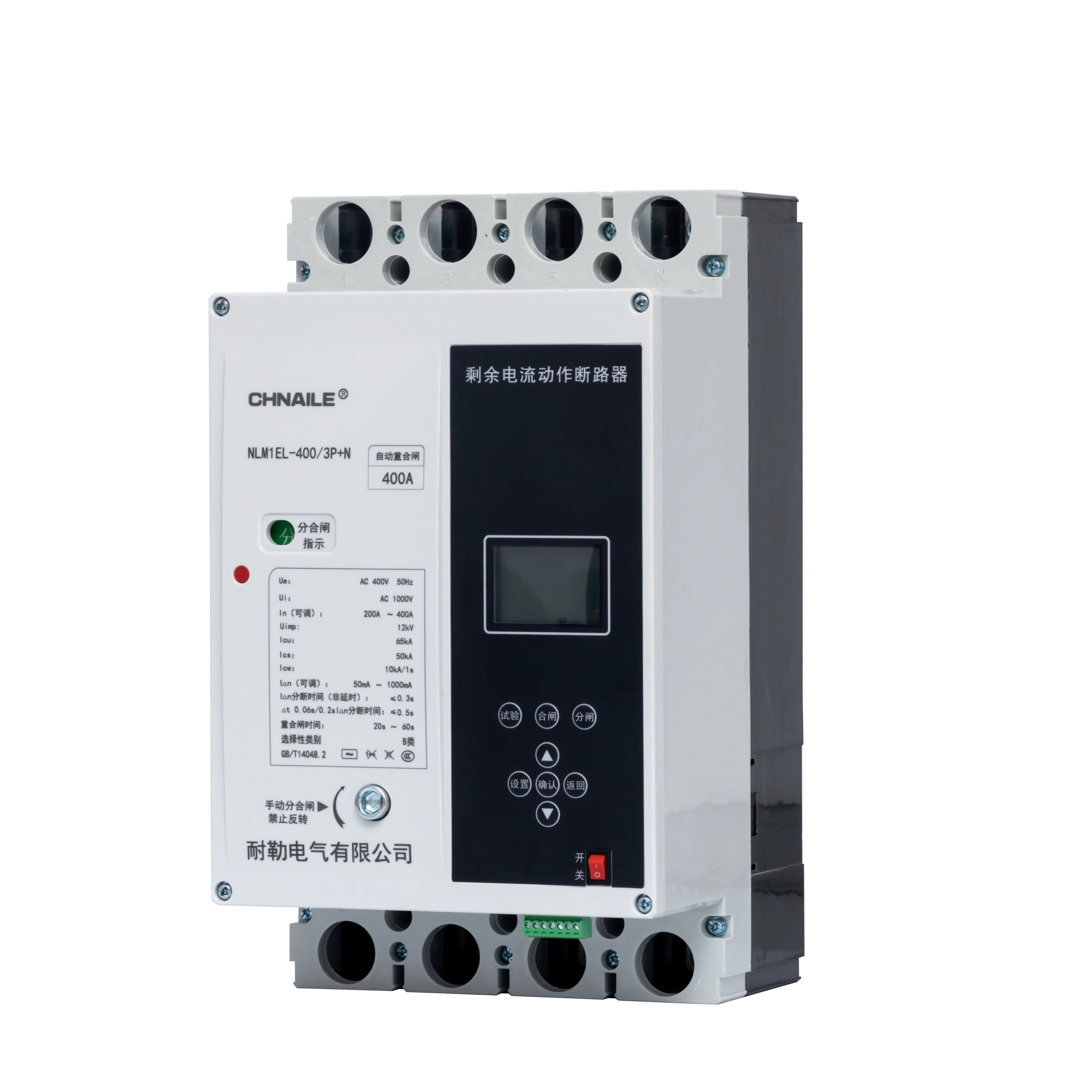

In sprawling, inaccessible infrastructures like high-altitude cable car networks or deep-valley hydroelectric dams, a momentary lightning strike or moisture-induced ground fault can trip a main breaker, leaving megawatt facilities paralyzed. The CHNAILE NLM1EL-400 Intelligent 400A Auto-Reclosing Molded Case Circuit Breaker (Smart ARD MCCB) grants these isolated grids autonomous "Self-Healing" capabilities.
By merging a colossal 65kA physical chassis with an advanced LCD microprocessor and a heavy-duty motorized actuator, this 4-Pole device automatically attempts to restore power after a transient fault clears. Delivering precise digital coordination and sustaining up to 270kW of heavy 3-phase power, it drastically slashes operational expenditure (OPEX) for global engineering, procurement, and construction (EPC) firms operating in extreme topographies.
Dispatching technicians via snowcats or helicopters to reset a tripped breaker in remote locations can cost $10,000+ per incident and cause hours or even days of downtime. Our smart auto-reclosing MCCB completely eliminates this logistical nightmare by evaluating transient grid faults and restoring power within 20 to 60 seconds—all without human intervention.
Motorized Transient Reclosure (ARD): When severe mountain blizzards or thunderstorms induce temporary ground faults, the breaker trips to protect the 400A circuit. The internal microprocessor initiates a programmable countdown (20s-60s). If the grid normalizes, the heavy-duty motor aggressively re-engages the main contacts, instantly restoring power to critical winches and pumps.
Granular LCD Capacitive Leakage Tuning: Long, submerged cables in dams generate harmless background capacitive leakage. Using the intuitive LCD interface, engineers can adjust the leakage threshold from 50mA to 1000mA. This ensures the main breaker ignores natural background "noise" while retaining the ability to detect genuine, catastrophic electrical fires.
Category B Selective Coordination (10kA/1s): A localized short in a single snowmaking machine shouldn't shut down an entire mountain. With a robust 10,000A / 1-second short-time withstand rating, this main incomer safely "holds" its position during a fault, forcing the downstream 63A sub-breaker to clear the danger while the rest of the facility remains fully powered.
3P+N Absolute Isolation: Unattended facilities mix heavy 3-phase pump motors with delicate single-phase telemetry electronics. The 3P+N architecture ensures complete phase and neutral severance during severe faults, preventing deadly neutral-return voltages from frying sensitive SCADA monitoring equipment.
65kA Catastrophic Arc Vaporization: Armed with aggressively oversized magnetic blow-out coils and expansive de-ion arc chutes, this 400A MCCB instantly fragments and extinguishes violent 65,000-Ampere short-circuit plasmas, protecting the structural integrity of remote distribution boards.
Manual LOTO Override: Features a dedicated physical switch to mechanically disable the motorized auto-reclosure function, complemented by an isolation lock interface. This guarantees absolute Lock-Out/Tag-Out (LOTO) safety for technicians when they finally reach the remote site for hands-on maintenance.
High-Contrast LCD Screen with Tactile Membrane Keypad: Provides clear visibility even in direct sunlight and allows for precise on-site configuration without additional tools.
Adjustable Digital Rated Current: Fine-tune the rated current from 200A to 400A via the LCD keypad, making this breaker suitable for a wide range of load requirements.
Nuisance Trip Immunity: Advanced filtering technology prevents false trips caused by voltage fluctuations, harmonics, and capacitive leakage common in long cable runs.
Parameter | Specification |
|---|---|
Device Category | Smart Auto-Reclosing Earth Leakage MCCB (ARD RCBO) |
Poles Configuration | 3P+N (Absolute 4-Wire Isolation for complex control grids) |
Digital Rated Current (In) | Adjustable 200A to 400A (Via LCD Keypad) |
Digital Earth Leakage (IΔn) | Adjustable 50mA to 1000mA (Nuisance trip immunity) |
Rated Operating Voltage (Ue) | AC 400V (50Hz) |
Ultimate Breaking Capacity (Icu) | 65kA (Extreme open-air plasma suppression) |
Short-Time Withstand (Icw) | 10kA for 1s (Category B Elite Selectivity) |
Auto-Reclosure Delay | Adjustable 20s to 60s |
Operator Interface | High-Contrast LCD Screen with Tactile Membrane Keypad |
Standard Compliance | GB/T 14048.2 (CCC Certified) |
Due to its autonomous power recovery, broad digital adjustability, and massive 400A continuous payload, this Smart ARD MCCB is exclusively mandated by EPCs for:
Remote Hydroelectric Dams: Acting as the self-healing main power hub for unmanned spillway gate winches, dewatering pumps, and dam telemetry control rooms. Ensures critical safety systems remain operational during severe weather events.
Alpine Ski Resorts & Cable Cars: Providing autonomous electrical oversight and nuisance-trip immunity for high-altitude gondola drive motors and expansive snowmaking grids. Minimizes revenue loss from unexpected power outages during peak ski season.
Offshore Island Microgrids: Serving as the intelligent, self-resetting main distribution breaker for isolated island communities reliant on localized diesel and solar hybrid generation. Reduces reliance on emergency maintenance teams.
Mining Ventilation Networks: Ensuring continuous, auto-recovering power for massive subterranean exhaust fans where manual reset access takes hours of underground travel. Protects worker safety and prevents production downtime.
Factory-Direct Infrastructure Supply: Sourcing intelligent, motorized 400A switchgear directly from our R&D and manufacturing facility gives your system integration firm a profound pricing edge, allowing you to offer clients massive savings on long-term helicopter and off-road maintenance dispatches.
Exhaustive Automated QA Testing: Auto-reclosing 400 Amps requires absolute mechanical perfection. Every single LCD unit undergoes exhaustive automated leakage simulations, heavy-load motorized endurance testing, and 65kA short-circuit blasts before leaving our smart factory.
OEM/ODM for Global Utility Providers: We offer comprehensive white-labeling solutions, custom software parameter pre-sets, and bespoke communication module integrations tailored specifically for multinational energy operators and resort developers.
Global Technical Support: Our team of experienced electrical engineers is available 24/7 to provide project consultation, technical support, and on-site training.
Category A MCCBs have no intentional short-time delay and trip instantaneously on short circuits. Category B MCCBs have a short-time withstand rating (Icw), allowing them to carry short-circuit current for a specified period (typically 1 second). This enables selective coordination with downstream breakers, ensuring only the faulty circuit is disconnected.
Auto-reclosing works by automatically re-energizing the circuit after a predetermined delay following a trip. It is designed to handle transient faults such as lightning strikes, tree branches touching lines, or momentary ground faults caused by moisture. For permanent faults, the breaker will remain tripped to prevent damage.
Yes, the NLM1EL-400 features a dedicated physical switch to mechanically disable the motorized auto-reclosure function. It also includes an isolation lock interface for Lock-Out/Tag-Out (LOTO) procedures, ensuring absolute safety during maintenance.
The heavy-duty motorized actuator is designed for over 10,000 operation cycles under full load. With proper maintenance, the expected service life of the entire unit is 10+ years.
Yes, we can pre-configure the rated current, leakage threshold, and auto-reclosure delay to your specific project requirements before shipping. We also offer custom software modifications for specialized applications.
