A Strategic Manufacturing Alliance for Global Switchgear Panel Builders
In the fast-paced and highly competitive sector of low-voltage electrical panel manufacturing, constructing reliable Sub-Distribution Boards and Main Distribution Boards (MDBs) requires more than just sourcing generic parts. Switchgear assemblers and panel builders demand an integrated supply chain that delivers components designed specifically to streamline factory-floor assembly, reduce sheet metal waste, and ensure unyielding compliance with international safety standards. At CHNAILE, our entire operational model is strictly B2B-focused. We do not compete with our partners for local installation contracts; rather, we function as your dedicated, high-volume manufacturing engine.

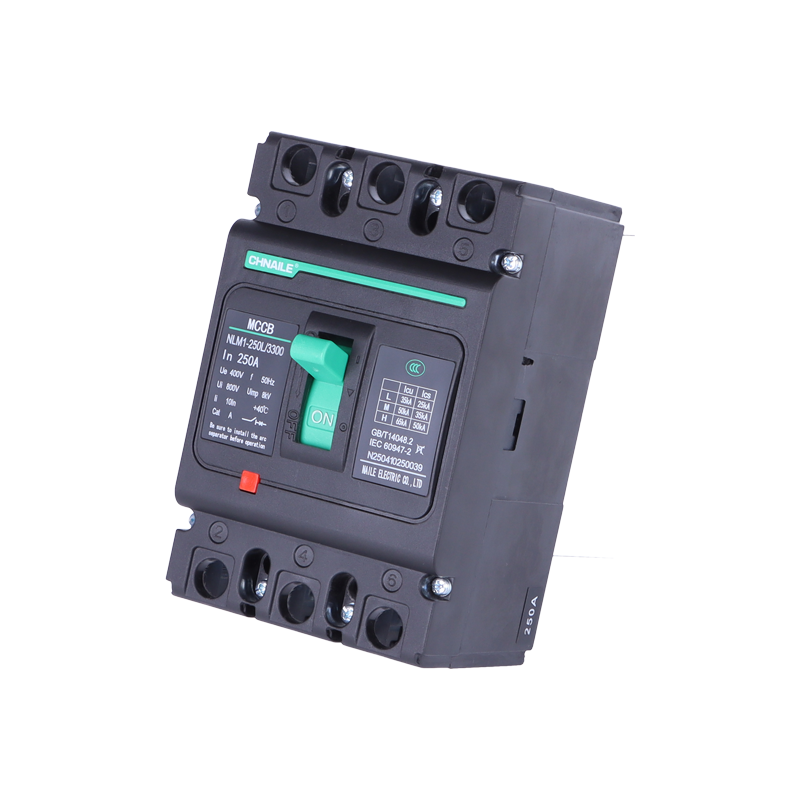

The CHNAILE NLM1-250 Series 3-Pole Molded Case Circuit Breaker (MCCB) is explicitly engineered for the switchgear assembly line. Capable of safely routing continuous loads up to 250 Amperes at AC 400V, it serves as the rugged, fail-safe core for your proprietary electrical panels. With a formidable ultimate short-circuit breaking capacity (Icu) reaching up to 65,000A (65kA) for the H-Type variant, this MCCB provides your custom switchboards with the extreme electro-dynamic resilience required to pass stringent IEC verifications. By integrating our 250A MCCBs into your designs, you standardize your production process, enabling your firm to aggressively and confidently bid on commercial, industrial, and heavy-infrastructure projects worldwide.
For a professional panel building facility, constantly altering sheet metal designs and copper busbar routing to accommodate varying breaker sizes destroys assembly line efficiency and inflates the Bill of Materials (BOM). We engineered the physical architecture of the NLM1-250 Series to systematically eliminate these structural bottlenecks.
Unified 250A Frame Size (Standardized Cutouts):
A defining feature of this product line is its standardized 250A physical frame. Whether your client requires a 100A, 125A, 160A, 200A, or a full 250A rating, the external dimensions of the breaker remain absolutely identical. This allows your structural CAD engineers to design a single, standardized steel escutcheon plate and internal mounting chassis for a wide array of sub-distribution panels. You no longer need to halt production to punch custom holes or laser-cut new faceplates when load requirements change mid-project. This design consistency drastically accelerates your factory throughput and reduces expensive sheet metal scrap.
Streamlined Front Connection Wiring:
Reviewing our detailed engineering blueprints, you will note the optimized Front Plate Wiring configuration. The robust, exposed terminal lugs are meticulously spaced to accommodate standard heavy-gauge copper cables or prefabricated rigid copper busbars. The accessible frontal bolt-on design allows your assembly technicians to apply maximum tightening torque effortlessly, minimizing contact resistance and ensuring rapid, error-free connections on the factory floor without struggling in the dark corners of the cabinet.
Compact Arc Clearance (≤50mm):
Space inside a distribution board is a premium commodity. This MCCB is engineered with highly efficient internal de-ion arc chutes that rapidly cool and exhaust plasma during a fault. This advanced internal suppression restricts the required external arc clearance distance to under 50mm. This crucial spatial optimization allows your mechanical designers to stack breakers closer together, shrinking the overall dimensions of the distribution board and providing a more compact, cost-effective enclosure to your end-users.
Uncompromising Heavy-Duty Performance
A modern electrical panel is judged by its ability to survive catastrophic grid events. The CHNAILE 250A MCCB empowers your custom switchgear with robust, purely physical thermal-magnetic protection.
Exceptional Fault Interruption (Up to 65kA):
Industrial environments can generate explosive short-circuit currents. This MCCB series offers L, M, and H breaking capacity classes. The H-Type variant boasts an Icu of 65kA and an Ics of 50kA. This guarantees that your assembled panels can safely interrupt massive fault plasmas, maintaining their structural integrity and protecting expensive downstream machinery from fire.
Category A Instantaneous Response:
Designed for immediate fault clearance, this Category A device utilizes a fixed electromagnetic trip unit. It ensures that any severe short circuit is detected and mechanically severed in fractions of a millisecond, preventing devastating thermal damage to your panel's internal copper busbars.
High-Impact Dielectric Resilience:
Fortified with a Rated Insulation Voltage (Ui) of 800V and an 8kV Impulse Withstand Voltage (Uimp), this breaker acts as a dielectric fortress. It ensures your custom switchboards survive severe lightning strikes and extreme grid-switching transients without internal flashovers.
Parameter | Value |
|---|---|
Device Category | Thermal-Magnetic Molded Case Circuit Breaker (TM MCCB) |
Poles Configuration | 3P (Simultaneous 3-Phase Solid Disconnect) |
Frame Size & Rated Current (In) | 250A (Optimized for heavy conveyor & chiller motors) |
Rated Operating Voltage (Ue) | AC 400V (50Hz) |
Rated Insulation Voltage (Ui) | 800V |
Rated Impulse Withstand Voltage (Uimp) | 8kV |
Ultimate Breaking Capacity (Icu) | 35kA (L-Type robust fault suppression) |
Service Breaking Capacity (Ics) | 25kA |
Instantaneous Magnetic Trip (Ii) | 10In ±20% (Motor inrush immunity threshold) |
Arc Distance | ≤50mm (High-density panel requirement) |
Standard Compliance | GB/T 14048.2 / IEC 60947-2 |
Thanks to its foolproof thermal-magnetic design, ideal 10In motor-starting profile and compact arc clearance, this MCCB 250A for Logistics Hubs is the industry-standard workhorse specified by EPCs worldwide for:
Automated Logistics & Sorting Hubs: Serving as the primary sub-distribution breaker powering massive automated sorting matrices and multi-kilometer conveyor belt systems
Commercial Cold Storage Facilities: Providing rugged, nuisance-trip-free 3-phase protection for the massive compressors and condenser fans used in industrial deep-freeze warehouses
Heavy HVAC & Chiller Sub-Panels: Supplying safe, high-inrush tolerant power to central air conditioning plants in commercial shopping malls and office high-rises
General Factory Floor Distribution: Acting as the highly cost-effective, reliable branch protection in the Main Distribution Boards (MDB) of textile mills and light metallurgical plants
Factory-Direct Industrial Procurement: Eliminate intermediary trading margins on these essential high-volume panel components. Sourcing directly from our automated production lines drastically optimizes the BOM for your mega-warehouse construction projects.
Exhaustive Quality Testing: Mechanical reliability is paramount. Every 250A unit undergoes rigorous thermal-bath calibration to verify the exact inverse-time curve, alongside 35kA short-circuit blast tests, ensuring flawless performance prior to global export.
OEM Integration for Switchboard Builders: We actively partner with global control panel manufacturers, providing customized laser-engraved faceplates, specifically tailored phase barriers and bespoke packaging to elevate your industrial switchgear brand.
Global Technical Support: Our team of experienced electrical engineers is available to assist with product selection, system design and technical troubleshooting for projects of any size.
The instantaneous magnetic trip current is 10In ±20% (2500A ±20%), specifically calibrated to ignore motor startup surges while providing rapid short-circuit protection.
It fully complies with GB/T 14048.2 and IEC 60947-2 international standards for low-voltage switchgear and controlgear.
The external arc exhaust distance is ≤50mm, making it ideal for high-density panel installations where space is at a premium.
Yes, we provide comprehensive OEM services including customized faceplates, phase barriers and packaging to meet your specific requirements.
