3P+N 800A Intelligent Auto-Reclose MCCB 100kA Icu | Class B Selective, Adjustable 50mA–1000mA, LCD Controller, Modbus Communications — GB/T14048.2 Factory for National Grid, Panel Builders

The parameter that most immediately distinguishes the NLM1EL-800/3P+N from the 250 A variant reviewed in the preceding product page — and that defines its application domain as a different order of magnitude from the sub-incomer and floor-distribution positions that the smaller frame addresses — is the Icu = 100 kA ultimate breaking capacity, which places this device at the apex of the IEC/GB short-circuit interruption performance hierarchy for low-voltage molded case circuit breakers and qualifies it for deployment at the main incomer position of MV/LV transformer secondary switchboards serving the largest commercial and utility power infrastructure installations. To contextualise this 100 kA figure concretely: the maximum prospective short-circuit current generated at the 400 V secondary terminals of a 6300 kVA MV/LV power transformer at 4% impedance — the largest single transformer unit commonly deployed in Chinese municipal substation and commercial building main supply configurations — reaches approximately 91 kA. The NLM1EL-800's 100 kA Icu envelope therefore covers the most fault-current-intensive main incomer position encountered in the low-voltage infrastructure of Chinese national grid urban distribution substations, commercial tower development main LV switchrooms, grid-scale BESS container AC bus protection assemblies, and large data centre main distribution board incomers — all of which represent the procurement tier of national utility engineers, EPC principal contractors, and switchgear integrators whose technical specifications mandate the highest available breaking capacity tier for the main incomer position. The Ics = 65 kA service breaking capacity — the current level at which the device can interrupt and return to rated service without maintenance — provides the fault-clearance-and-restore capability required in the automatic protection schemes of national grid urban distribution automation programmes, where a faulted LV feeder must be isolated, the fault condition verified, and supply restored to healthy sections of the network within a defined time window that precludes dispatching a maintenance crew to manually replace or inspect the protective device after each fault clearance event.

Technical Parameters

The Icw = 10 kA/1s short-time withstand rating — double the 5 kA/1s of the 250 A variant, and visible in the specification block on the left housing face of the product image — is the parameter whose engineering significance for national grid utility distribution automation programmes is most frequently underestimated in procurement discussions focused on breaking capacity and rated current. Icw defines the fault current magnitude that the device can sustain for one full second without contact welding, structural deformation of the current-carrying path, or dielectric failure between the open poles — the withstand capability that is the precondition for the device to function as the selective upstream protective element in a time-graded protection coordination cascade where downstream MCCBs, ACBs, or feeder protection relays are expected to clear zone faults within their own protective zone before the upstream 800 A device interrupts. In a national grid urban distribution substation's LV switchboard architecture — where the main incomer MCCB must coordinate with outgoing feeder MCCBs protecting distribution cables to building sub-distribution boards, with Short-time delay (S function) set to 0.06 s or 0.2 s as visible in the specification block — the 10 kA/1s Icw rating confirms that the NLM1EL-800 can sustain the prospective fault current of an outgoing feeder fault (which may reach 8–10 kA at the LV bus after transformer impedance attenuation) for the full selective coordination delay without any mechanical or thermal consequence that would invalidate the device's subsequent service rating. This is the mathematically verifiable basis for the time-selective coordination study that the utility's protection engineer must submit to the national grid authority's technical approval office as a mandatory documentation element of any new LV distribution switchboard installation — and the 10 kA/1s Icw of the NLM1EL-800 satisfies this study's requirement at the main incomer tier across the full range of MV/LV transformer ratings encountered in urban distribution substations. The Uimp = 12 kV impulse withstand voltage — 50% higher than the 8 kV value of the 250 A variant — extends the device's dielectric protection margin to cover the more severe transient overvoltage environment of a utility-grade LV switchboard that is directly connected to the transformer secondary terminals without the impedance attenuation provided by distribution cables: at this connection topology, the transient overvoltages generated by MV switching events in the upstream network couple directly to the LV bus through the transformer, and the 12 kV Uimp provides the dielectric withstand headroom that IEC 60664-1 specifies for installation category IV environments — the highest overvoltage category, applied to equipment connected at or near the origin of the LV installation.

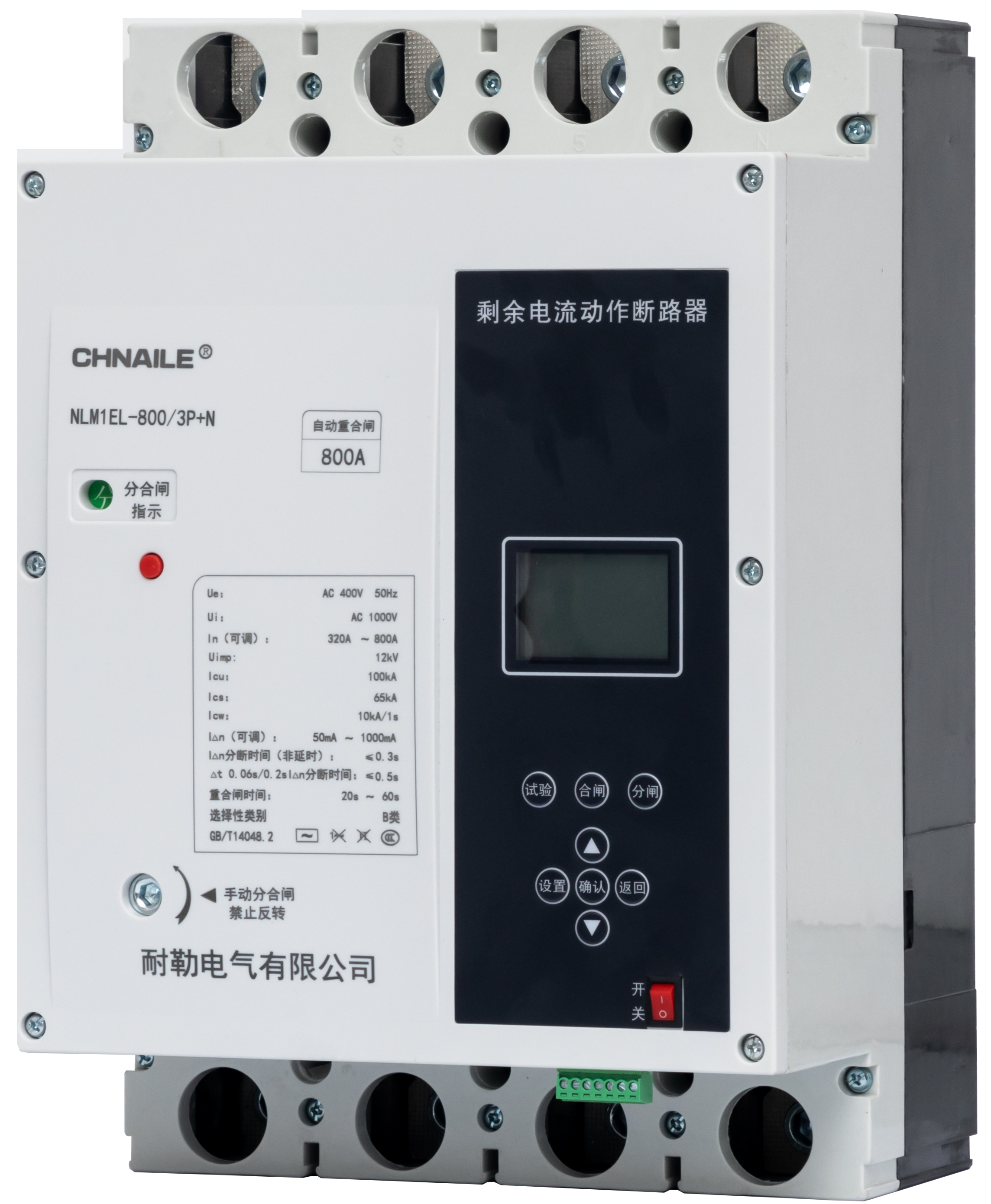

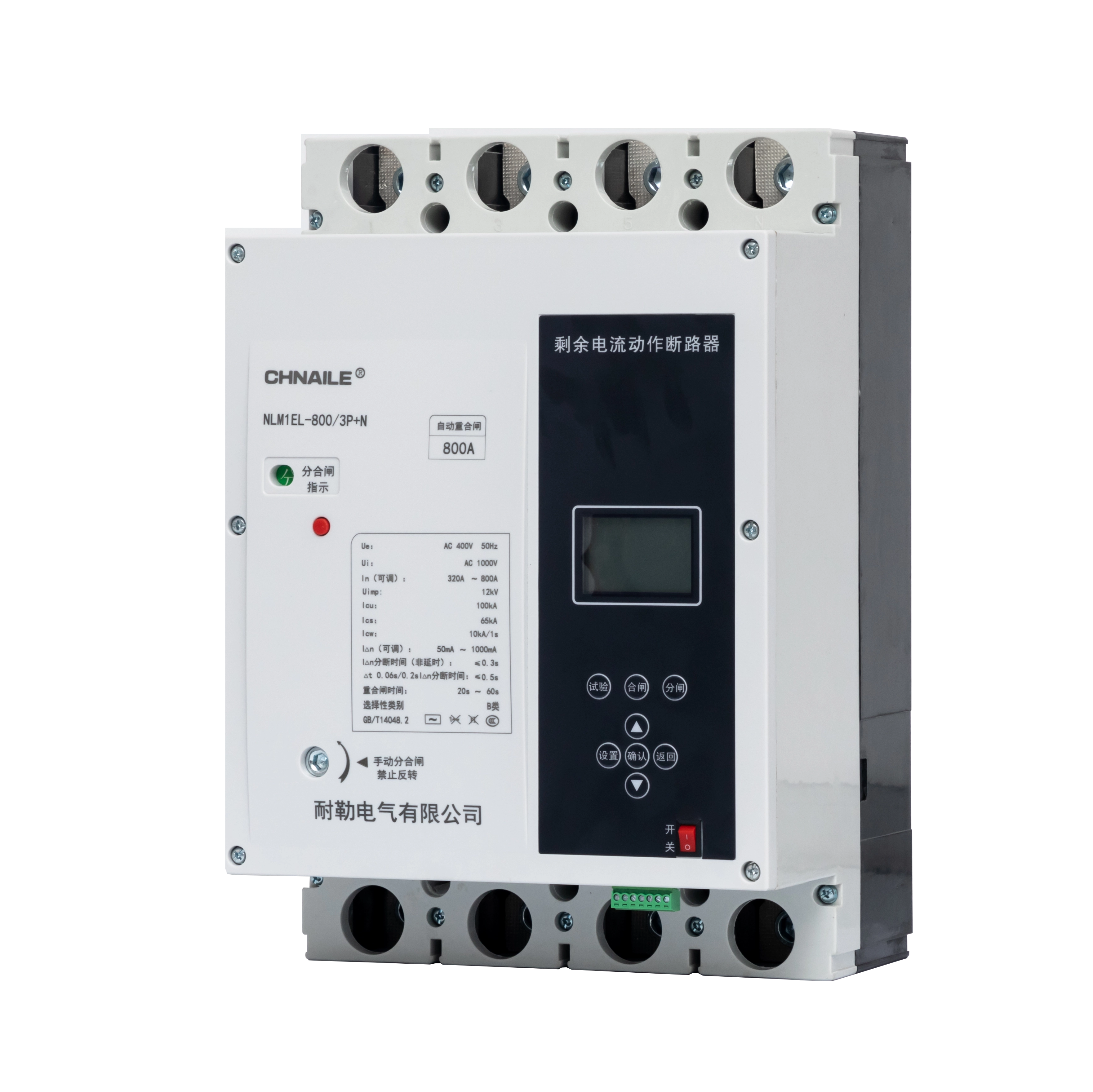

The black intelligent controller panel occupying the right half of the NLM1EL-800's face — visible in the product image as a larger, more substantial controller assembly than the equivalent panel on the 250 A device, reflecting the greater functional density required at the 800 A utility-grade tier — is the physical manifestation of a device philosophy that is categorically different from a conventional MCCB at this current level: it is a grid automation node that happens to incorporate a molded case circuit breaker mechanism, rather than a molded case circuit breaker that happens to have a test button. The distinction is operationally significant: where a conventional 800 A MCCB at a utility LV substation incomer requires a separate earth fault relay, a separate automatic reclosing relay, a separate event logging system, and a separate SCADA interface module — each occupying panel space, requiring individual wiring, consuming individual auxiliary power, and creating individual failure points in the automation chain — the NLM1EL-800 integrates all five functions within the controller module, presenting a single device that the switchgear integrator wires to the communication bus and the 6-position screw terminal block and then commissions through the 7-key membrane interface. The 6-position green screw terminal block at the base of the controller panel — directly visible in the product image, identical in format to the 250 A version but handling the higher signal loading appropriate to a utility-grade installation — provides the physical wiring interface for the RS485 Modbus RTU communication bus that connects the NLM1EL-800 to the LV distribution automation master terminal unit (MTU) or to the substation's SCADA gateway, enabling real-time parameter telemetry (measured current, IΔn setting, reclose status, fault event log) and remote command reception (Close / Open commands from the SCADA operator, IΔn parameter adjustment, reclose enable/disable) over a communication link that requires only a twisted-pair cable rather than the separate relay wiring harness that a conventionally automated switchboard position demands.

The operational consequence of this RS485 Modbus integration in the context of national grid LV distribution automation programmes is best understood through the operational scenario it enables: a faulted LV feeder in an unattended urban distribution substation triggers an earth fault trip of the NLM1EL-800 at the main incomer position. Within 0.3 seconds (IΔn trip time non-delayed, as specified in the product label visible in the image), the device has opened its contacts and generated a trip event record. The auto-reclose controller initiates its configurable waiting period of 20 to 60 seconds — during which the fault condition is expected either to clear (if transient) or to be confirmed as persistent by the continued measurement of earth leakage current following the reclose attempt. Simultaneously, the RS485 Modbus link transmits the trip event notification to the distribution automation master station, which logs the event, alerts the duty operator, and prepares a remote close authorisation for transmission if the operator determines that a reclose attempt is warranted. If the auto-reclose function executes a successful reclose (fault was transient), the master station receives a "closed — normal" status update and logs the event as a transient fault self-cleared — a record that accumulates over time to produce the earth fault event frequency map that the utility's LV network reliability engineers use to prioritise cable inspection and replacement programmes. This entire sequence — trip, auto-reclose, status reporting, and event logging — occurs without dispatching a maintenance crew to the substation, without interrupting the duty operator's attention for more than a notification acknowledgement, and without generating a manual intervention record that would inflate the substation's maintenance activity statistics beyond its actual fault frequency. The auto-reclose counter display visible in the product image showing "800 A" — the frame rating display that also serves as the reclose attempt counter in the device's operational interface — provides the local status reference that a maintenance crew inspecting the substation during a scheduled visit uses to assess the reclose history without connecting a programming terminal. The 7-key membrane controller interface with Test, Close, Open, Settings, Confirm, Return, and navigation arrow functions enables local commissioning and parameter verification without requiring the RS485 communication link to be active — a local-priority design that ensures the device remains operable by maintenance personnel even when the communication infrastructure is under maintenance or has experienced a communication fault.

The In adjustable range of 320 A to 800 A within the NLM1EL-800 frame — expressed in the product image's specification block as "In : 320A～800A" and implemented through the LCD controller's parameter setting interface rather than a hardware interlock that requires device replacement to change the current rating — produces a procurement standardisation opportunity whose financial value to the national utility authority or the large EPC contractor managing an infrastructure programme of twenty to fifty LV distribution substation upgrades is qualitatively different from the similar argument made for smaller-frame devices. At the utility programme procurement scale, the ability to specify a single frame SKU that covers every main incomer current rating between 320 A and 800 A eliminates the procurement lot fragmentation that would otherwise arise when different substations in the same programme have different transformer sizes (and therefore different LV main incomer current ratings): a programme comprising substations with 630 kVA, 800 kVA, 1000 kVA, and 1600 kVA transformers — whose LV secondary main incomer current ratings at 400 V span approximately 910 A, 1155 A, 1445 A, and 2310 A respectively for 3P systems — would, if each rating required a separate MCCB SKU, require the procurement authority to manage four separate device specifications, four separate type-test documentation packages, four separate approved-vendor qualification records, and four separate spare parts inventory positions. For the 320–800 A range where the NLM1EL-800 applies — covering the smaller transformers in the programme range or the outgoing feeder positions of larger substations — the single-SKU architecture reduces this four-position procurement complexity to one, with the rated current adjustment performed in the controller during on-site commissioning rather than in the procurement specification. The IΔn adjustable range of 50 mA to 1000 mA adds a second dimension of protection parameter standardisation that is particularly valuable in utility distribution automation contexts where different substations' load profiles produce different background earth leakage current levels — the 1000 mA setting appropriate for a heavily loaded urban commercial substation whose aggregated VFD, power supply, and motor leakage current may approach several hundred milliamperes of background leakage, and the 50 mA or 100 mA setting appropriate for a lighter-loaded residential feeder substation where background leakage is lower and a more sensitive threshold provides enhanced fire and equipment protection. Rather than stocking separate devices for each IΔn tier, the commissioning engineer selects the appropriate sensitivity during the substation-specific commissioning procedure — a configuration workflow that the utility's commissioning management system can document, archive, and audit as a parameter record rather than a component change record.

The Selectivity Class B designation — printed in the specification block alongside the GB/T 14048.2 standard reference on the product's label — is the certification category that the national grid authority's protection coordination standard references when specifying the upstream residual current protective device at a substation main incomer position in a distribution network that uses 30 mA or 100 mA instantaneous RCDs at the downstream feeder or consumer connection positions. Class B ensures that the NLM1EL-800's trip characteristic at any IΔn setting incorporates the time delay (Δt = 0.06 s or 0.2 s) that prevents the main incomer device from tripping simultaneously with the downstream device when a consumer-level earth fault occurs — preserving the supply continuity of all healthy feeders connected to the same LV bus while the affected consumer's local 30 mA RCD isolates only the faulted circuit. This is the operational principle that the State Grid Corporation's LV distribution reliability improvement programme requires as a minimum protection architecture standard for new and upgraded urban distribution substations — and the NLM1EL-800's Class B certification under GB/T 14048.2 is the documentation that the switchgear integrator submits as evidence of compliance when the substation's LV switchboard is presented for State Grid technical acceptance. Our factory's production control system subjects every NLM1EL-800 unit to a calibrated test programme before release: residual current trip threshold measurement at three IΔn set points (minimum, mid-range, and maximum) confirms sensitivity calibration accuracy; auto-reclose sequence timing measurement verifies the reclose delay within the 20–60 s window; RS485 communication register read/write verification confirms the Modbus interface integrity; and motorised close/open command response timing confirms the automated operation capability that the SCADA remote control function depends upon. The test records are archived against the unit's serial number in our production management system and are available to the switchgear integrator and the end-client's commissioning engineer as part of the device documentation package — satisfying the State Grid Corporation's equipment traceability requirement without requiring a separate factory audit procedure. Switchgear integrators, State Grid-approved equipment suppliers, commercial building main distribution board assemblers, BESS grid connection panel builders, and municipal utility infrastructure procurement engineers whose technical specifications require intelligent auto-reclose selective earth fault protection at the 320 A to 800 A main incomer tier, with Modbus SCADA integration and GB/T 14048.2 CCC certification, are encouraged to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820, where rated current set range, IΔn sensitivity configuration, Modbus register map, communication protocol version, housing colour, and project volume parameters will be addressed by a dedicated export applications engineer returning a complete technical and commercial proposal within one working business day.
