4P 63A Type C Switch-Disconnector MCB IEC60947-3 | 230/400V 6kA Four-Pole Blue Handle DIN Rail — OEM Source Factory, Custom 6A–63A, 1P–4P for Panel Builders

The NLM4-63's compliance declaration under IEC 60947-3 rather than IEC 60898-1 is the parameter whose engineering significance is most frequently underestimated by procurement engineers who habitually treat all DIN-rail-format protective devices as belonging to a single product category differentiated only by pole count and current rating. IEC 60947-3 and IEC 60898-1 address structurally different device roles within the low-voltage protection and isolation hierarchy: IEC 60898-1 governs miniature circuit breakers whose primary function is overcurrent and short-circuit protection with defined time-current tripping characteristics, specifying the trip curves (Type B, C, D), the minimum and maximum trip times at defined overcurrent multiples, and the breaking capacity under fault conditions as an interrupting device. IEC 60947-3, by contrast, governs switches, disconnectors, and switch-disconnectors whose primary function is load switching and isolation — making and breaking load current under normal operating conditions, and in the switch-disconnector configuration, providing visible isolation — with breaking capacity specified as the device's ability to make and break a defined multiple of rated current rather than to interrupt a prospective fault current as the sole protective device. The consequence of this standard distinction for the protection coordination engineer is that an IEC 60947-3 switch-disconnector in the sub-circuit position is legitimately deployed as the switching and isolation element of a coordinated protection scheme where an upstream IEC 60947-2 MCCB or ACB provides the fault-current interruption function — the switch-disconnector handling the load current make-break duty that occurs hundreds or thousands of times over the installation's life, while the upstream device handles the rare but severe fault interruption event that the switch-disconnector's contact system was not designed to absorb. This role separation — upstream fault protection by MCCB, downstream load isolation by IEC 60947-3 switch-disconnector — is the design philosophy that IEC 60364-4-43 and IEC 60364-5-53 formalise in their equipment selection guidance, and it is a philosophy whose commercial consequence for the panel builder is the ability to specify a lower-cost, longer-endurance switching element at the sub-circuit tier while concentrating the higher-cost fault interruption capability at the incomer tier where it is needed.

Technical Parameters

The 6000 A breaking capacity marked on the NLM4-63 label represents the IEC 60947-3 switching capability — the maximum current the device is rated to make and break under the test conditions specified in that standard, which are distinct from (and less severe than) the short-circuit interruption conditions tested under IEC 60947-2. This distinction must be clearly understood by the switchgear integrator designing the protection coordination documentation for government infrastructure project submission: specifying an IEC 60947-3 switch-disconnector as the sole protective device in a sub-circuit where the prospective short-circuit current exceeds its making and breaking rating would constitute a non-compliant design, but specifying it as the switching element in a coordinated scheme where an upstream device provides backup protection at the fault current level is fully compliant and is, in many building electrical system configurations, the technically and commercially optimal design choice. The 230/400 V dual voltage rating positions the device correctly for the TN-S four-wire network standard — the 230 V corresponding to the line-to-neutral voltage at which single-phase branch circuits operate, and the 400 V designating the line-to-line voltage at which the device's insulation is rated — confirming the device's suitability for simultaneous three-phase-plus-neutral pole switching in the TN-S commercial building distribution environments that constitute the primary application domain for a four-pole switching device at this current tier.

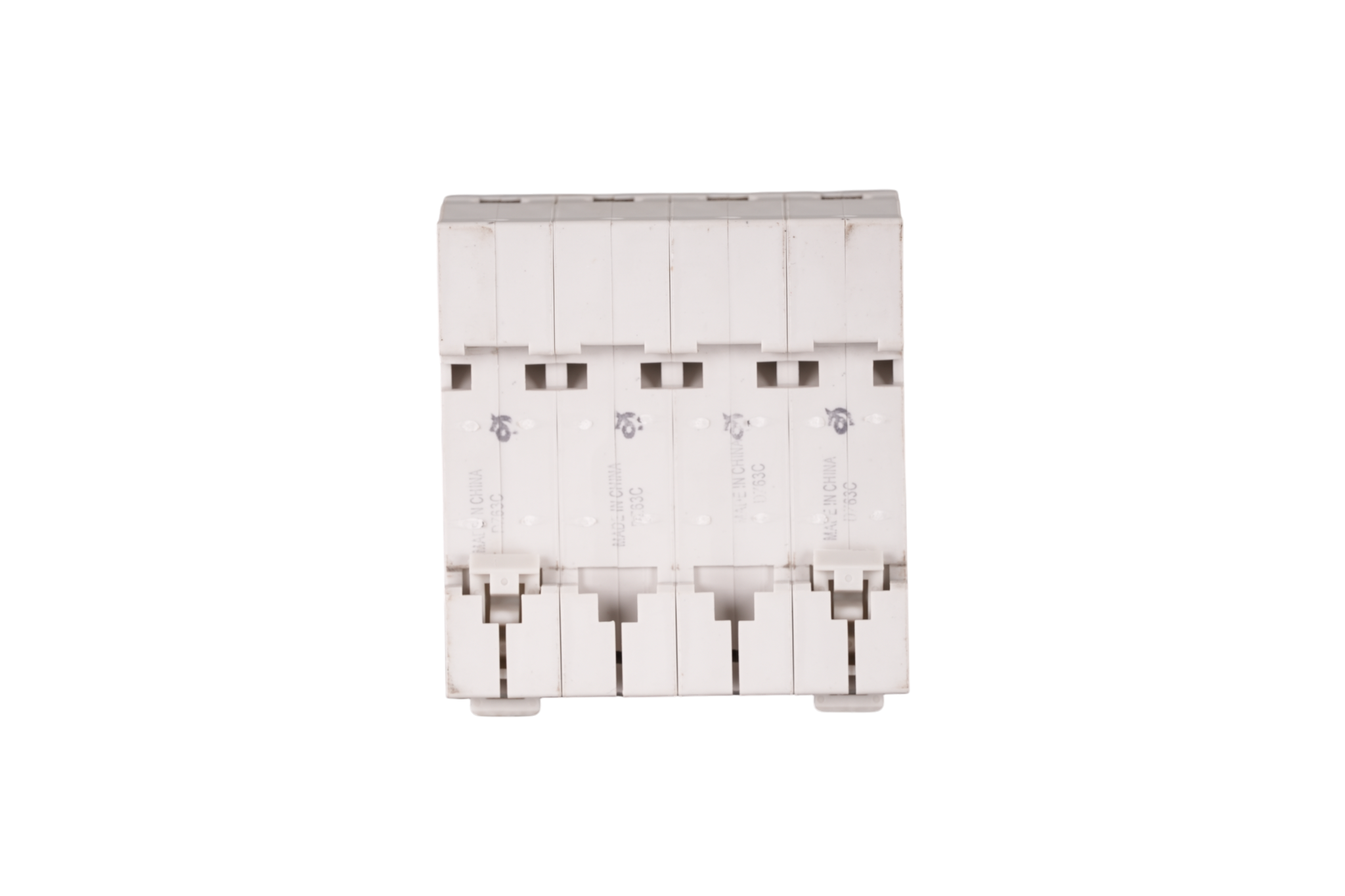

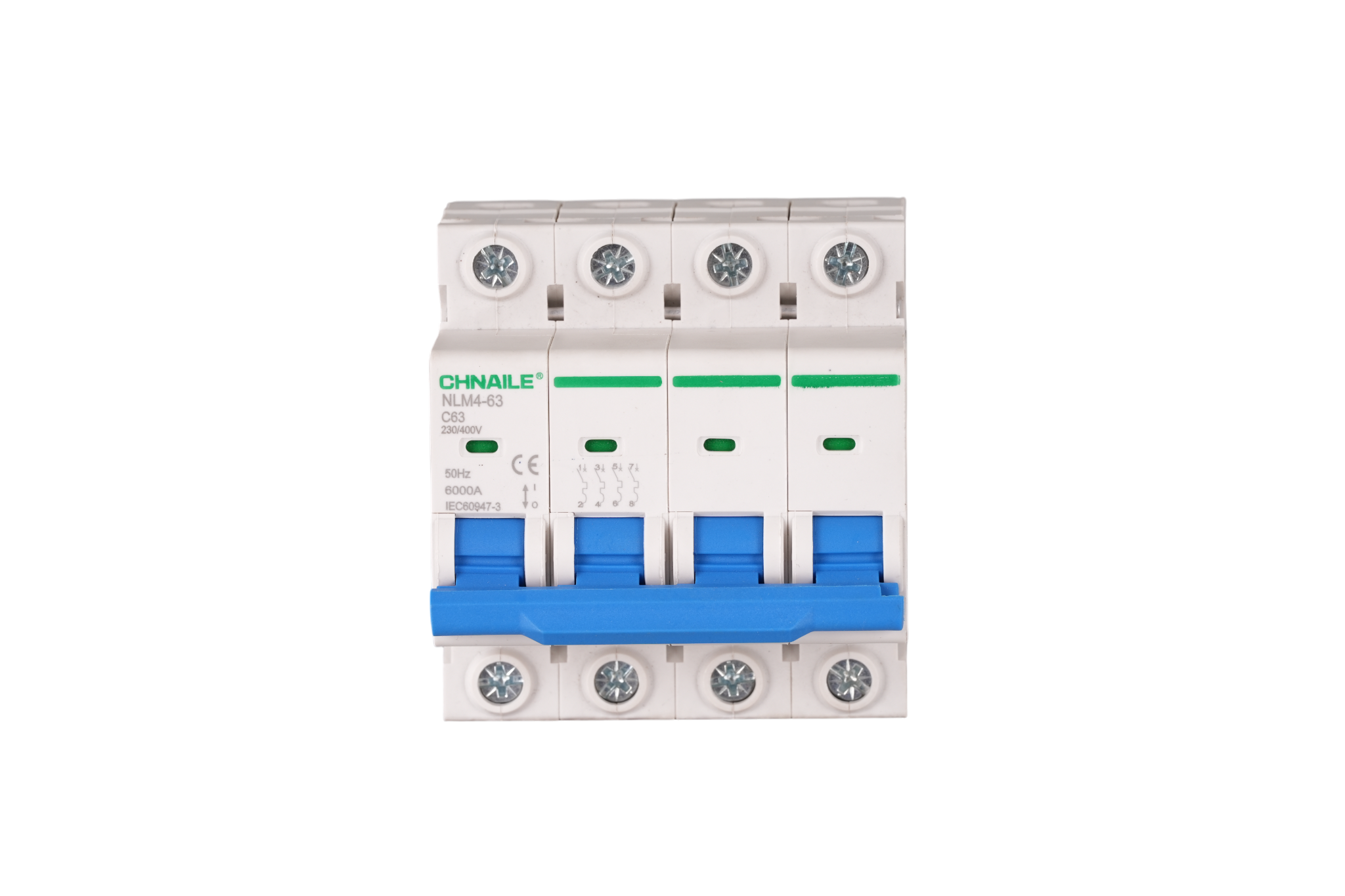

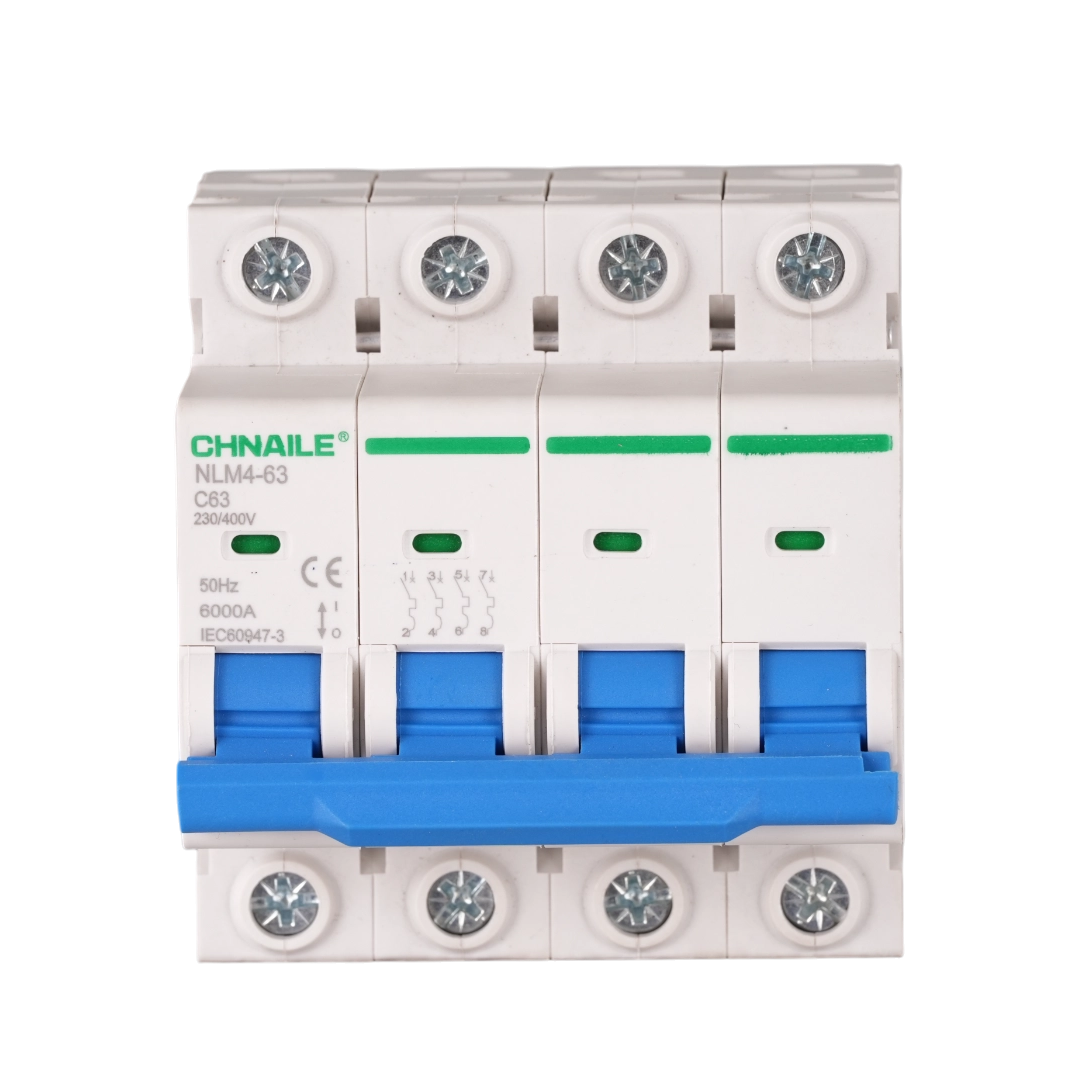

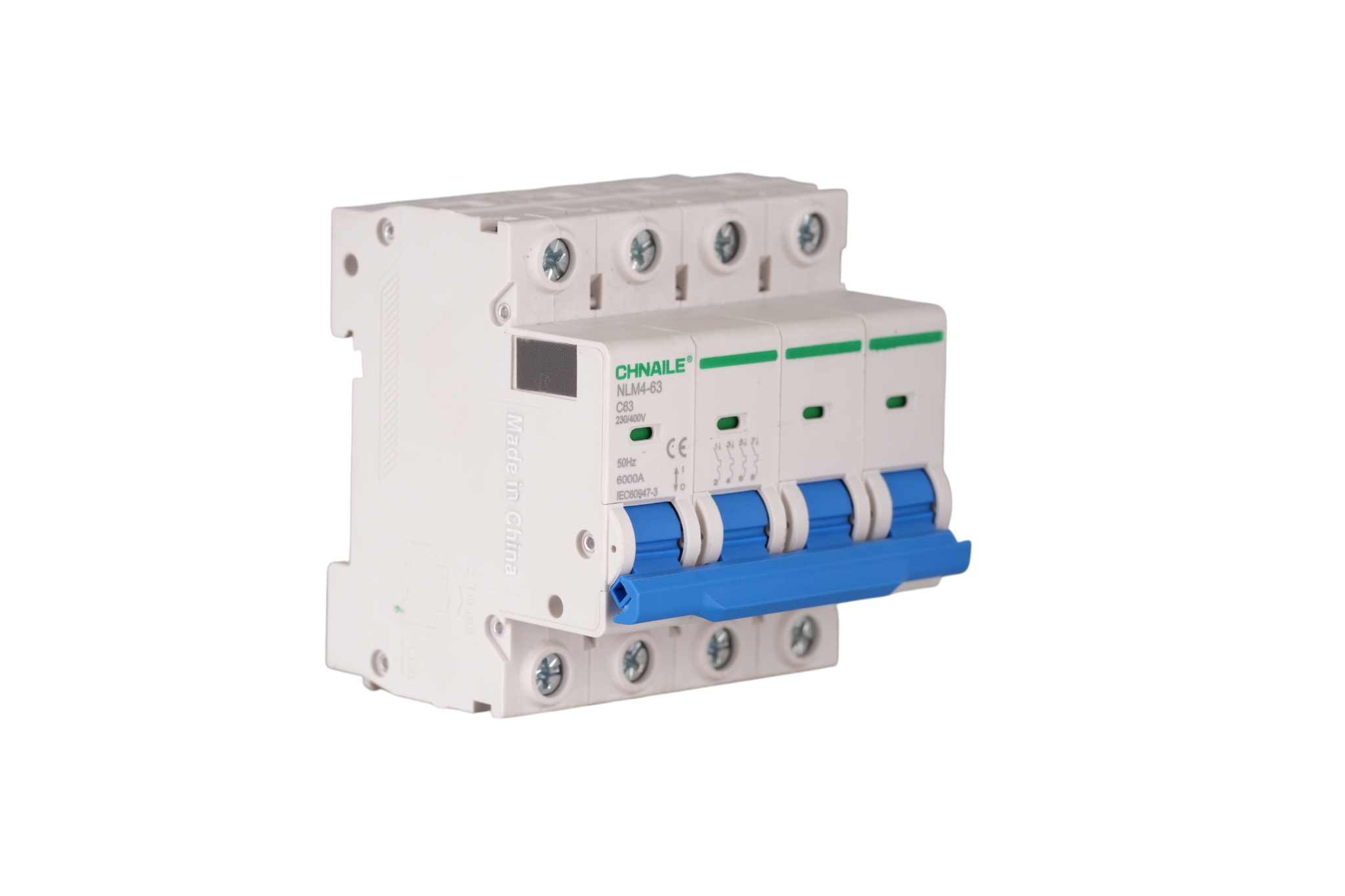

The royal-blue unified actuator handle observed in the product image — spanning the full width of all four pole modules in a single moulded actuator element whose vivid blue colouring has no precedent in any previously reviewed device within this product series — is the most commercially leverageable visual feature of the NLM4-63 from the panel builder's perspective, and its significance operates on two distinct levels simultaneously. At the functional level, the blue handle encodes a colour convention that, within a distribution board populated with the teal-green BD1-63S MCBs and lime-green BD1-63S C32 double-pole devices that constitute the majority of the sub-circuit protective device population, immediately communicates device category differentiation: the four-pole blue-handle device is the isolation switching element, while the green-handle devices are the overcurrent protective elements — a visual hierarchy that a building facilities manager, a maintenance electrician, or a local authority inspector can read without consulting the panel schedule. At the commercial level, this colour differentiation is an OEM customisation asset whose value to a panel builder building a branded product range lies in the ability to specify the blue handle as a brand-exclusive colour standard — a decision that, once implemented across the panel builder's product catalogue and communicated to their customer base as their brand's switching-device colour convention, creates a visual vocabulary that competitors using standard colour conventions cannot replicate without abandoning their own colour discipline. The blue handle's unified four-pole spanning geometry provides the same ergonomic advantage at the 4P scale that the wide-span handle of the DZ47-63H 2P device provides at the two-pole scale, but amplified: a unified actuator spanning 72 mm (four 18-mm DIN rail modules) presents an operating surface that is graspable with the full hand rather than the fingertips, reducing the force required to actuate the device and eliminating the risk of partial-actuation (where one or two poles switch while the coupling mechanism resists the others) that arises when individual pole handles are mechanically linked by a tie bar with finite torsional stiffness.

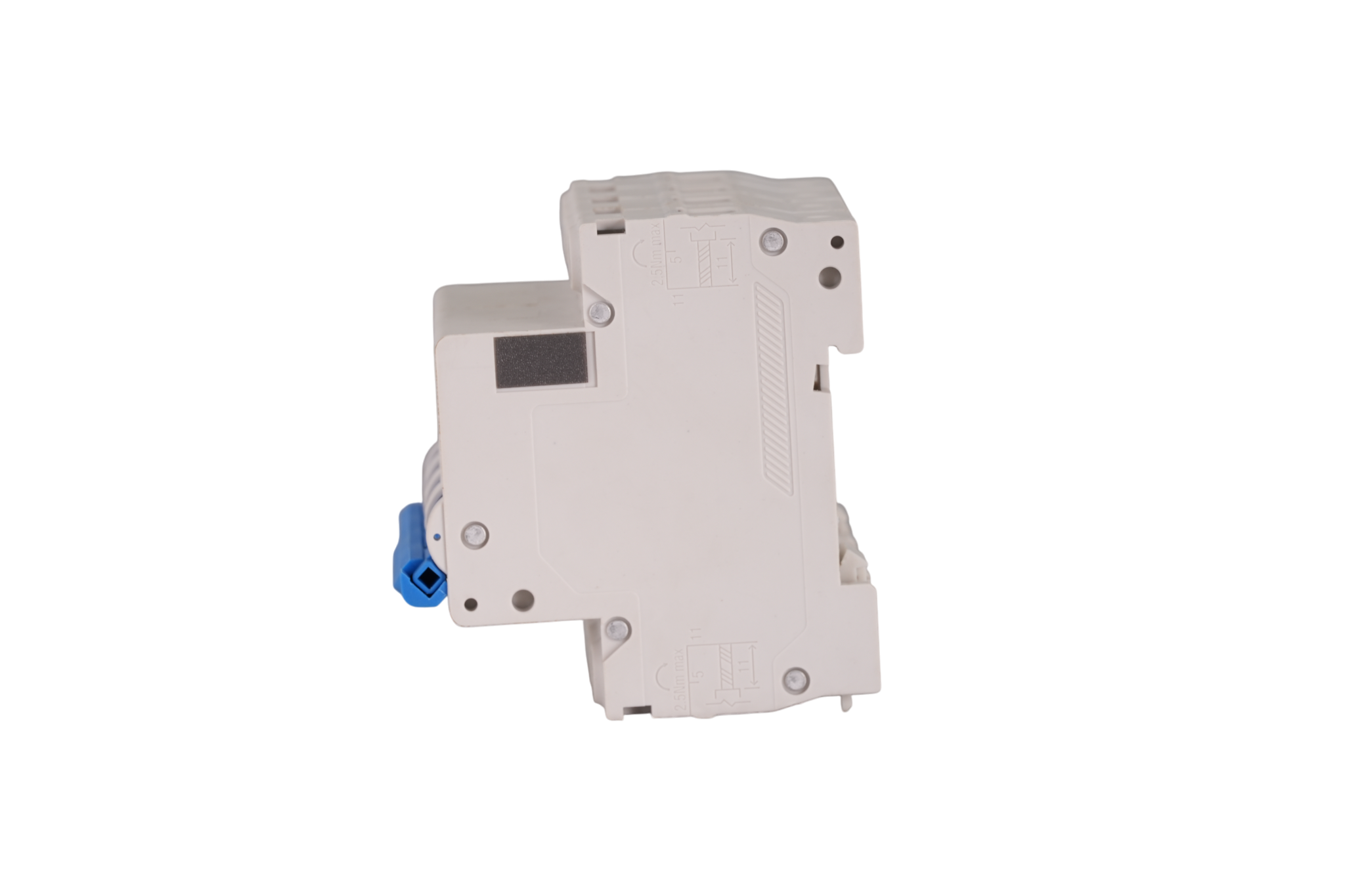

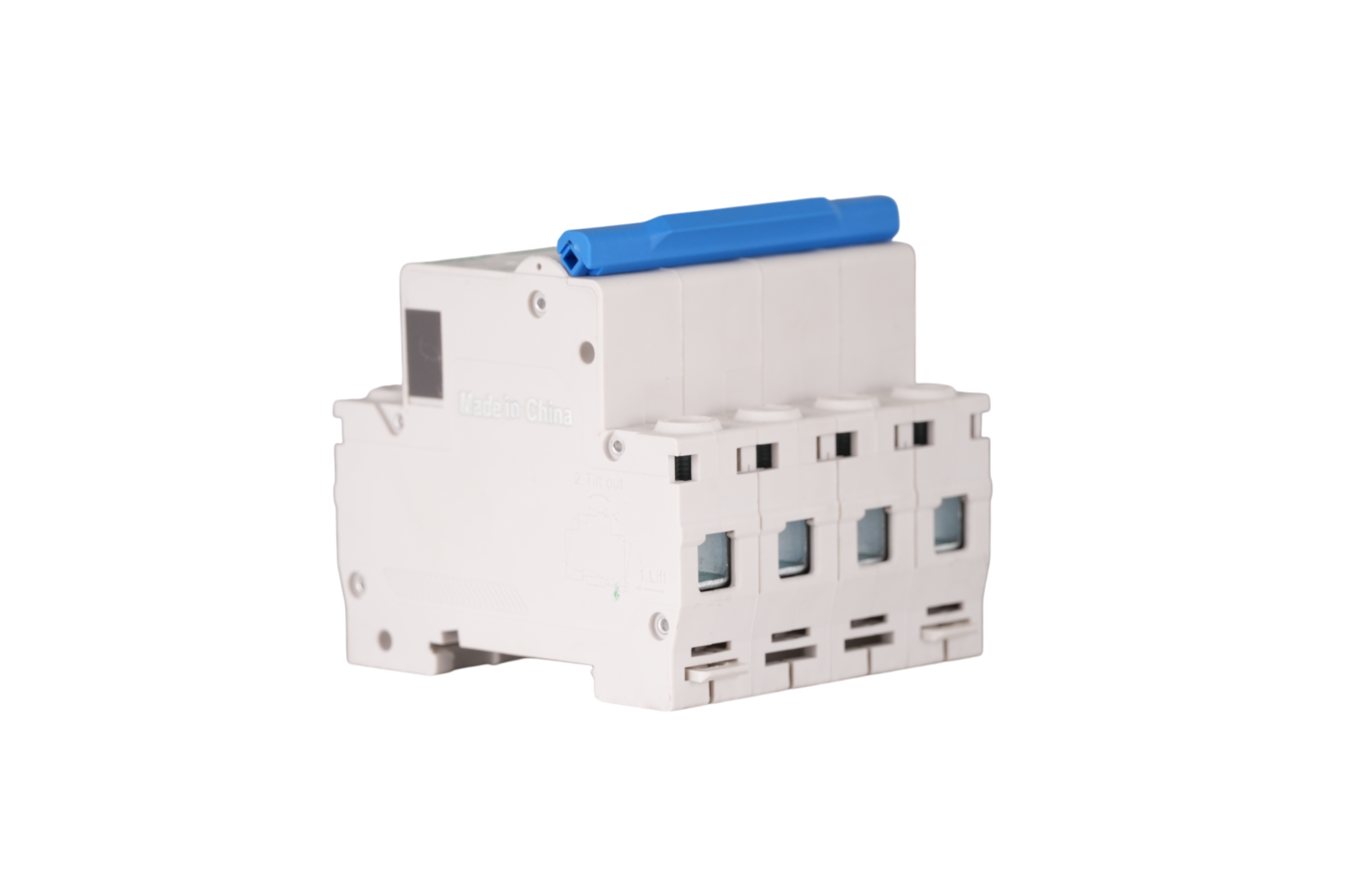

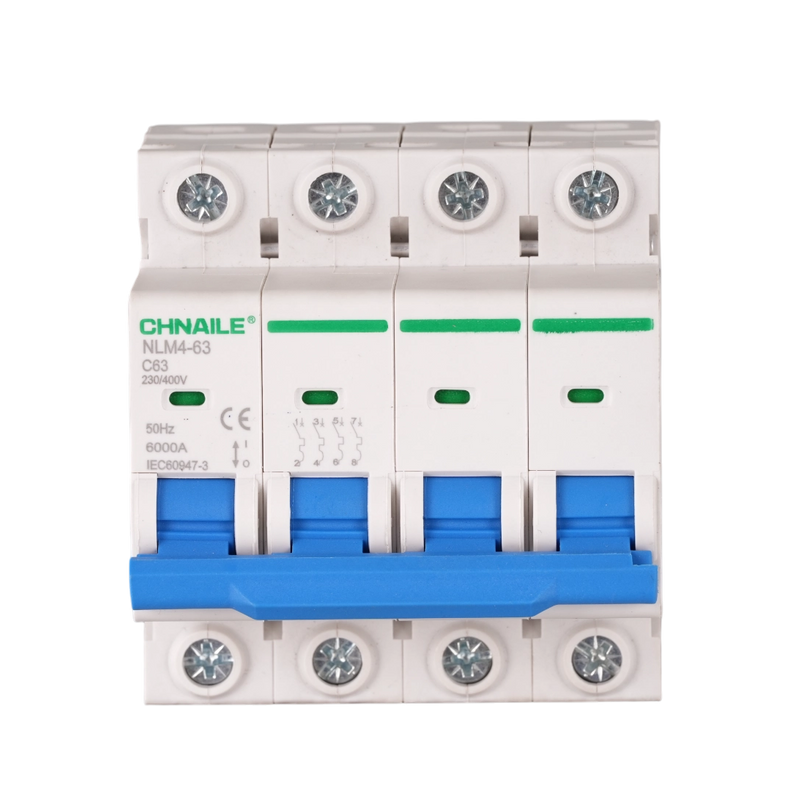

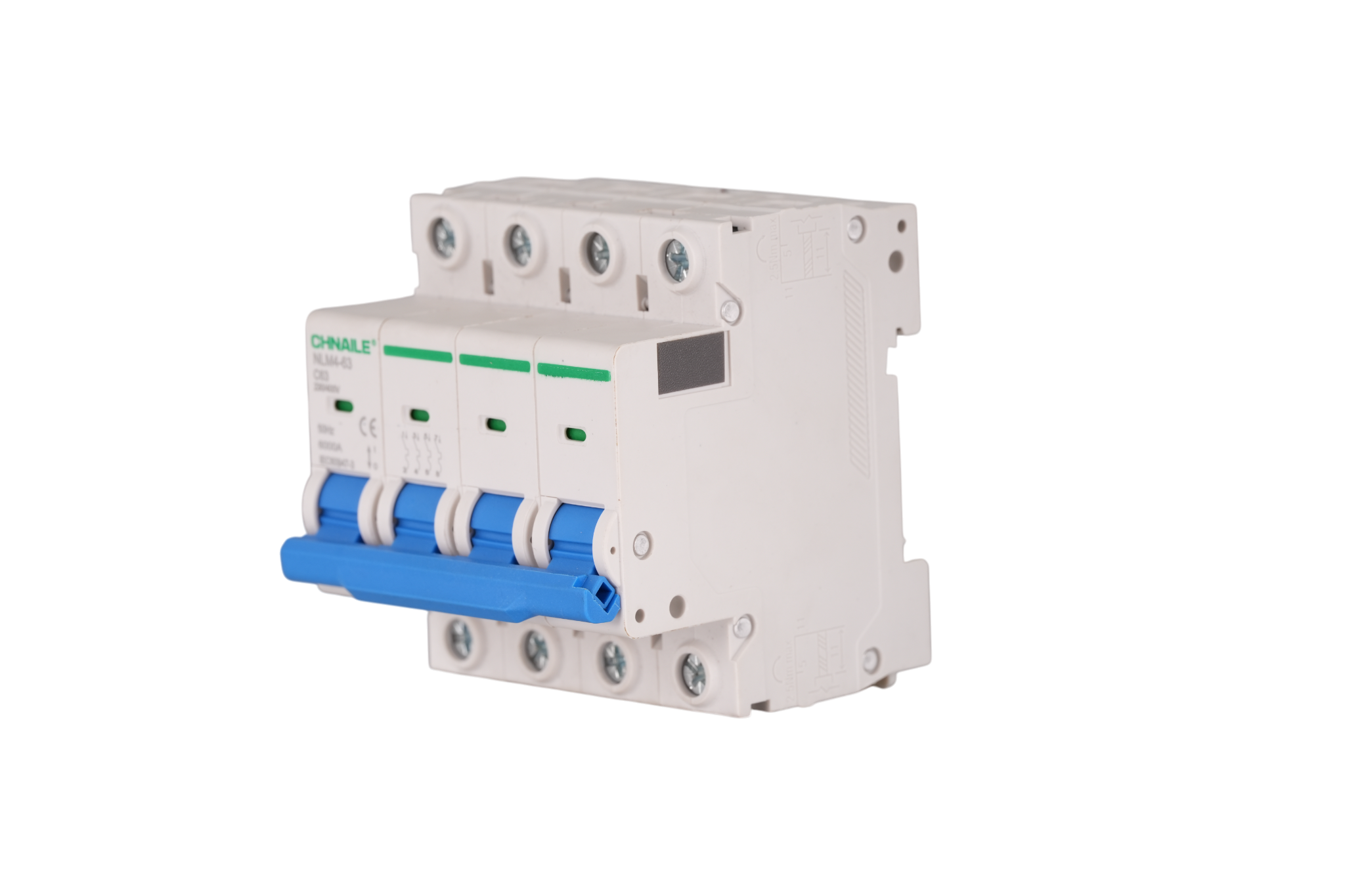

The four green LED status indicators — one positioned centrally on each of the four pole modules and clearly observable in the product image as small rectangular green elements contrasting against the white housing face — provide a per-pole energisation status display that exceeds the positional status information conveyed by the handle position alone. While the handle position communicates the actuator's mechanical state (ON or OFF), a per-pole LED indicator confirms that the current path through each individual pole is electrically active — a distinction that is functionally significant in scenarios where a contact failure on a single pole (contact weld preventing opening, or contact erosion preventing adequate closure) produces a mechanical handle position that does not correspond to the electrical state of that pole's main contacts. For the commissioning engineer performing a four-pole isolation verification as part of the panel's pre-energisation checklist — confirming that all four poles are simultaneously de-energised before maintenance work is permitted on the downstream circuit — the per-pole LED array provides a four-point independent confirmation that supplements the handle position observation with individual pole-level evidence, reducing the risk of permitting maintenance work on a circuit that appears isolated but retains a live contact due to a single-pole mechanical fault. The four horizontal green identification stripes at the top of each pole module — visible in the image as bold green horizontal bars immediately below the DIN rail clip zone — serve the panel population management function of allowing a switchgear assembler, in a fully loaded distribution board where devices are mounted adjacently on shared DIN rail sections, to count the four-pole device's module span at a glance without leaning in to read individual terminal numbers, simplifying the panel population audit that forms part of the factory acceptance test procedure.

 The panel builder whose component selection process is optimised for lowest initial procurement cost — selecting an IEC 60898-1 MCB for every switching and protection function in a distribution board regardless of the role distinction between overcurrent protection and load switching — is, in effect, loading the ten-year maintenance cost of the distribution board onto the end client without the end client's knowledge or consent, because an MCB deployed primarily in a load-switching role (making and breaking load current multiple times per day across a building automation or load-management application) accumulates contact erosion at a rate calibrated for protection duty (infrequent switching events interspersed with long continuous-conduction periods) rather than switching duty (frequent make-break cycles at rated current). The IEC 60898-1 electrical endurance requirement specifies a rated number of operating cycles — typically 4000 to 8000 electrical operations — that is sufficient for a protective device operated on average twice per day across a fifteen-year panel life, but that may be exhausted within three to five years in a load-management switching application where the device is operated six to ten times daily. An IEC 60947-3 switch-disconnector, by contrast, is type-tested to an electrical endurance requirement expressed in operating cycles at rated current and utilisation category that is directly calibrated to switching duty — covering the full expected lifecycle of a device deployed in a daily-switching application without the contact erosion acceleration that arises from using a protective device outside its intended duty envelope. This lifecycle cost argument — the total cost of ownership engineering case for correct standard selection at initial component procurement — is the narrative that experienced switchgear integrators and specifying engineers present to end clients when justifying the component mix of a premium distribution board assembly, and it is the narrative that differentiates a panel builder whose technical sales capability commands a price premium from a competitor who sells on unit price alone. Our manufacturing facility's IEC 60947-3 type-test programme for the NLM4-63 platform was conducted at an accredited third-party laboratory under the full electrical endurance schedule of the standard, generating a type-test report whose data covers the contact resistance progression, the temperature rise evolution, and the mechanical and electrical operating force measurements at intervals across the full rated endurance cycle — a dataset that our OEM customers can reference in their technical sales presentations to clients and specifying engineers as independent evidence of the device's switching life performance. The current rating configurability from 6 A through 63 A within the NLM4-63 DIN-rail switch-disconnector frame, combined with the 1P through 4P pole count range, means that a panel builder who qualifies this platform as their switching-device standard covers the full switching population of a commercial building distribution board design — from the single-pole switching positions on individual lighting circuits through the four-pole incomer switching position reviewed here — within a single vendor qualification relationship whose documentation, audit schedule, and commercial terms are managed as a single supplier relationship rather than a fragmented multi-vendor procurement portfolio. The white housing, the blue unified handle, the green pole-identifier stripes, and the per-pole LED array are all configurable to OEM customer specifications — with housing colour selectable across the moulding compound palette, handle colour assignable as a brand-exclusive private-label specification, and label content redesigned to carry the panel builder's own brand designation, model reference, and any certification marks applicable to the destination market's regulatory framework. Panel builders, switchgear integrators, commercial building EPC electrical contractors, BESS system integrators, and municipal infrastructure procurement engineers who are evaluating the NLM4-63 switching platform for inclusion in a current project BOM, an approved component specification update, or a private-label product development programme are encouraged to initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820, where rated current, pole count, housing colour, handle colour, label content, and project volume parameters will be addressed by a dedicated export applications engineer returning a complete technical and commercial proposal within one working business day.
