3P+N 630A Reclosing MCCB for Industrial Panel Builders

Modern engineering managers in the switchgear sector frequently struggle with the competing demands of shrinking enclosure spaces and escalating functional requirements. Traditional layouts require separate mounting and wiring of a standard moulded case circuit breaker, an external residual current relay, an associated toroidal current transformer, and a motorized reclosing mechanism. This fragmented approach not only consumes excessive physical real estate on the mounting plate but also introduces numerous failure points through extensive auxiliary control wiring. The NLM1EL-630/3P+N addresses this issue directly by integrating these functions into a single, cohesive chassis. For panel builders, this means a significant reduction in labor hours on the assembly floor; mounting one consolidated device rather than four separate components reduces drilling, DIN-rail mounting, and wire termination times by up to forty percent. Additionally, the elimination of external control wiring loops dramatically decreases the time required for internal point-to-point continuity testing during quality control phases. By optimizing the internal bill-of-materials and condensing physical space requirements, system integrators can select smaller, more cost-effective enclosure shells, directly enhancing their competitive positioning in commercial bids for data center distributions, municipal grid upgrades, and large-scale solar photovoltaic combiner projects.

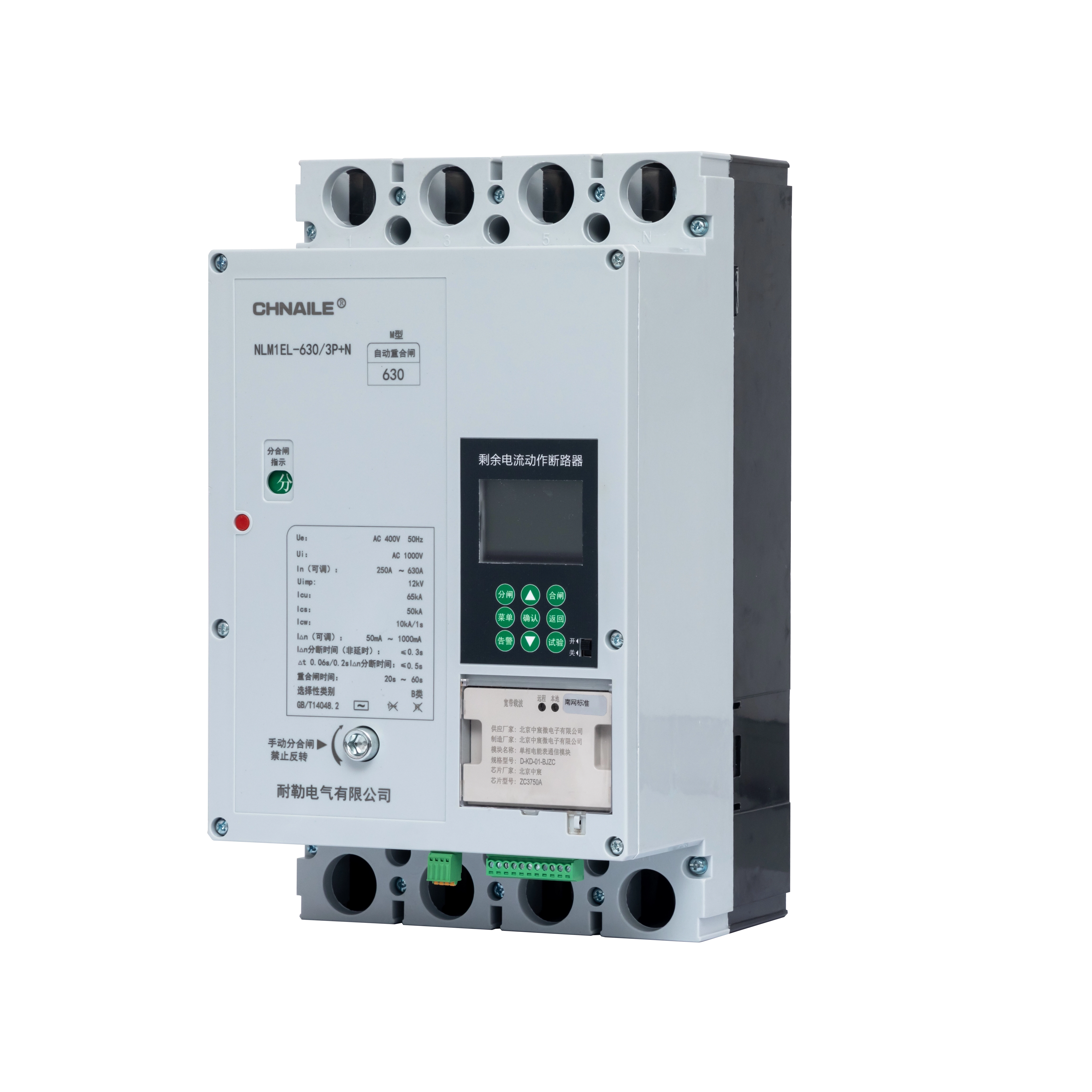

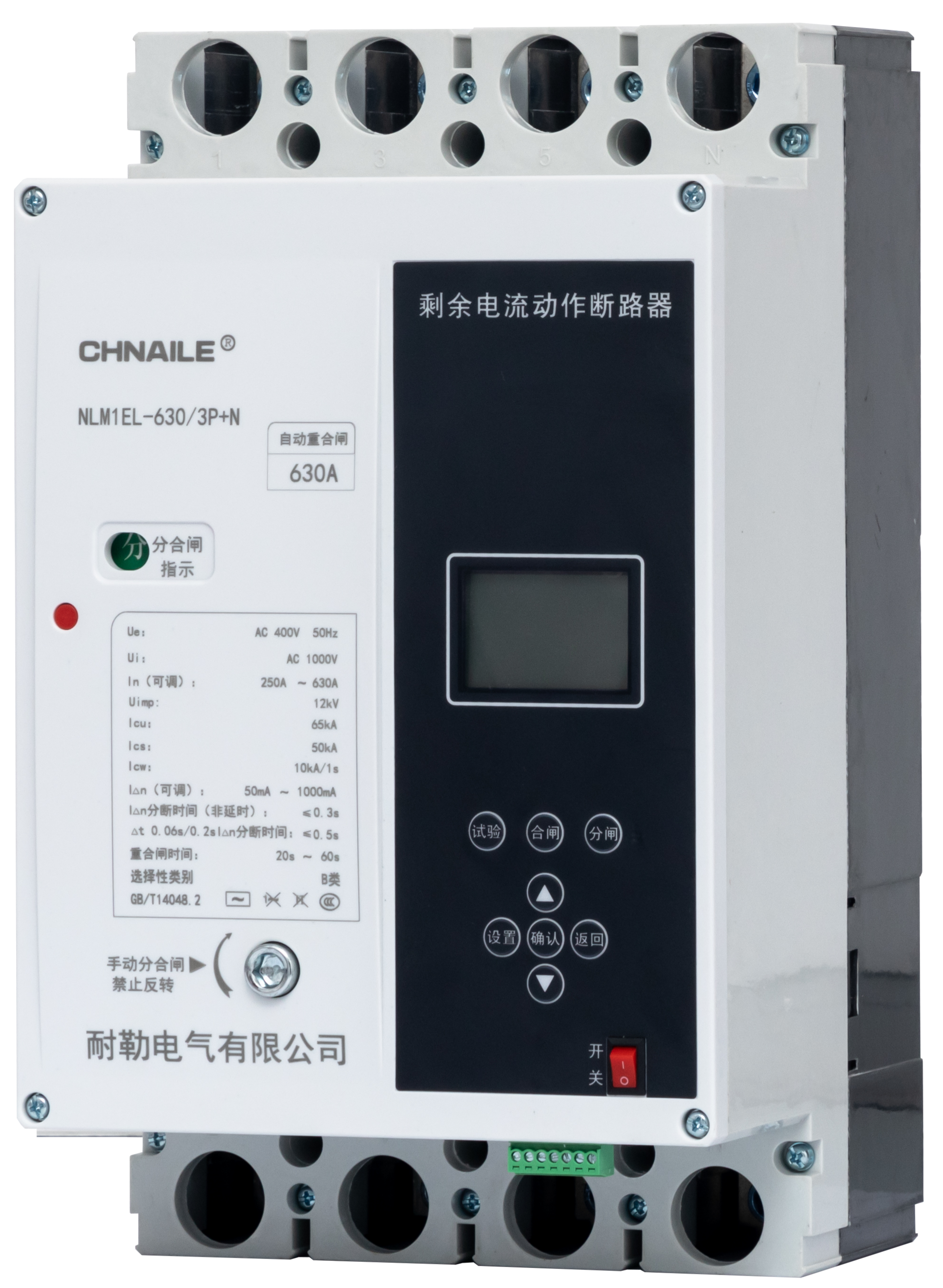

The unit's physical construction reflects an emphasis on durability and user ergonomics. The exterior is defined by a clean, robust white industrial polymer casing, which is contrasted by a central midnight-black digital control and monitoring interface. Centered on this black panel is an integrated micro-LCD display that provides real-time diagnostic readouts of operational currents and leakage levels. Surrounding the display are dedicated tactile operation buttons—specifically designed for set, confirm, return, and directional configuration—allowing field engineers to navigate parameters and view historical fault codes without the need for external diagnostic machinery. To ensure secure commissioning, the faceplate includes a manual toggle-switch on the bottom right to quickly disconnect auxiliary control power, as well as a prominent green status window indicating open or closed states. For physical safety during maintenance protocols, a robust mechanical rotary lockout mechanism is located on the bottom left, featuring explicit engravings to prevent reverse rotation and ensure standard lockout-tagout procedures can be executed securely. Terminal connectivity is established via heavy-duty, isolated terminal blocks on both the top and bottom of the chassis, supported by an auxiliary pluggable green terminal strip for external signal integration, which allows remote monitoring systems to capture breaker telemetry seamlessly.

From an electrical physics perspective, the device is engineered to deliver highly configurable protection profiles across a broad operational envelope, facilitating its integration into diverse power distribution architectures. Operating at a rated voltage of AC 400V (50Hz) with an insulation rating of AC 1000V and an impulse withstand capability of 12kV, the NLM1EL-630/3P+N is well-suited for demanding electrical environments. The thermal-magnetic trip unit is adjustable, allowing the rated operational current to be calibrated from 250A up to its maximum 630A limit, which enables a single stock-keeping unit to serve multiple application ratings. Short-circuit performance is characterized by an ultimate breaking capacity of 65kA and a service breaking capacity of 50kA, supported by a short-time withstand current of 10kA for one second to ensure proper selective coordination under Class B criteria. Earth-leakage protection is managed through an adjustable residual current detection circuit with thresholds configurable from 50mA to 1000mA, paired with an ultra-fast non-delayed tripping time of less than 0.3 seconds. The integrated automatic recloser mechanism features configurable auto-reclose delays from 20 to 60 seconds, which minimizes downtime from transient faults in remote utility stations and solar installations without requiring manual dispatch of maintenance technicians.

In the global distribution market, establishing market differentiation requires component supply partners who prioritize the brand sovereignty of their clients. We support this objective by offering extensive OEM and ODM customization services that allow partners to adapt our technology into their proprietary product lines. This includes tailored enclosure colors, custom-branded front faceplates with localized language interfaces, and customized terminal geometries to match specific regional switchboard installation standards. To protect your supply chain from quality-related risks, our manufacturing facilities utilize computerized end-of-line calibration benches where every circuit breaker undergoes diagnostic testing before packaging. Every parameter, from the magnetic trip threshold to the micro-second response of the residual current module, is verified and logged, ensuring full traceability and reliable field performance. This structured quality assurance process ensures the equipment complies with international standards, helping your systems pass demanding grid authority audits and build long-term value in your local markets. To explore how this integrated platform can optimize your next switchgear project, initiate a direct technical dialogue with our manufacturing team via WhatsApp at +86 15985210820.
