OEM 3P Integrated Air Circuit Breaker 1600A for Distributed Energy Grid-Tie Switchgear

A Strategic Manufacturing Alliance for Next-Generation Switchgear Panel Builders

The global transition toward Distributed Energy Resources (DER)—encompassing commercial solar arrays, wind generation, and localized energy storage—has fundamentally disrupted traditional low-voltage distribution. Switchgear manufacturers and professional panel builders are now tasked with engineering complex "Grid-Tie Panels" and "Multi-Energy Synchronization Switchboards." These advanced cabinets must safely manage megawatt-scale reverse currents, harmonize inverter outputs with the municipal grid, and do so within increasingly constrained physical footprints.

At CHNAILE, we recognize that to win these lucrative renewable energy infrastructure bids, panel builders require more than just standard electrical parts; they demand highly specialized, space-optimized, and economically viable supply chain solutions. We do not compete with our B2B partners for end-user installation contracts. Instead, we serve as your dedicated manufacturing engine. The CHNAILE 3-Pole 1600A Plastic Frame Integrated Circuit Breaker is a revolutionary hybrid switchgear component. It captures the colossal continuous current capacity (1600 Amps) and intelligent Class B fault selectivity of a massive universal Air Circuit Breaker (ACB) and compresses it into a heavily insulated, highly compact plastic molded frame. By integrating this advanced component into your proprietary panel designs, you drastically reduce your cabinet dimensions, lower your copper busbar costs, and elevate your brand's capability to deliver elite, IEC-compliant distributed power solutions.

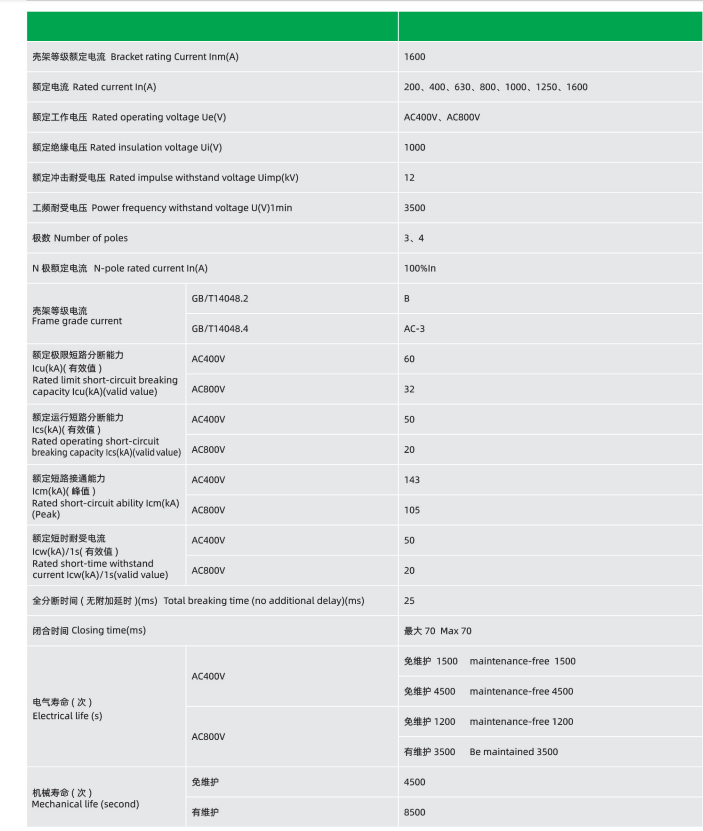

Technical Parameters

Optimizing Switchboard Assembly: The "Integrated Plastic Frame" Advantage

In a switchgear assembly facility, the physical size and thermal characteristics of a main breaker directly dictate the cost of the entire cabinet. Traditional open-air ACBs require massive steel enclosures and extensive safety clearances to prevent arc flashovers, leading to bloated material costs. We engineered the NLW1-1600 Series to systematically eliminate these assembly bottlenecks.

• Radical Panel Space Reduction:
  The defining feature of this 1600A unit is its "Plastic Frame Integrated" architecture. By completely encapsulating the high-capacity arc chutes, vacuum interrupters, and heavy copper contacts within a premium, V0-rated thermosetting polymer casing, the required dielectric clearance distances are exponentially reduced. This allows your mechanical design engineers to construct significantly narrower and shallower switchgear cabinets. For panel builders constructing containerized microgrids or E-Houses where every square inch is monetized, this compact footprint is a massive competitive advantage.

• Drawout Cradle for Streamlined Factory FAT:
  Despite its compact nature, this unit features a fully professional drawout (withdrawable) chassis. During panel fabrication, your assembly line workers only bolt the lightweight empty cradle into the enclosure, allowing for unobstructed copper busbar routing and secondary wiring. The heavy 1600A intelligent breaker module is only racked in during the final Factory Acceptance Testing (FAT). This modularity prevents accidental damage during cabinet construction and provides your end-user clients with a premium, hot-swappable maintenance experience.

• Copper Busbar Value Optimization:
  Routing 1600 Amps of continuous power requires an immense volume of expensive copper. The rear connection terminals of this integrated ACB are geometrically optimized and heavily silver-plated to provide maximum clamping surface area. This ultra-low resistance interface minimizes thermal bottlenecks, ensuring your completed panels easily pass the stringent temperature-rise limits required for IEC 61439 Type-Tested Assemblies (TTA) while using the most cost-effective busbar cross-sections possible.

Revolutionary Hybrid Architecture

• The "Integrated Frame" Advantage: Traditional ACBs use open metallic frames requiring massive clearance distances to prevent arc flashovers. This device utilizes an advanced V0-rated thermosetting plastic shell that completely encapsulates the live components. This exceptional dielectric insulation drastically reduces the required safety clearances, allowing multiple 1600A units to be stacked tightly within modern, low-profile switchgear cabinets.

• Modular Plug-and-Play Maintenance: Downtime in a power grid is unacceptable. The internal architecture features highly accessible, cartridge-style accessory modules. The Undervoltage Release, Shunt Release, Closing Electromagnet, and the Special Energy Storage Motor can be individually hot-swapped in minutes without dismantling the entire breaker mechanism, setting a new benchmark for field serviceability.

Mastering Multi-Energy Grid-Tie Synchronization

A modern distributed energy switchboard is the brain of a microgrid. It must flawlessly synchronize the AC output of massive solar inverters with the municipal grid or localized rotating generators. The CHNAILE 1600A Integrated ACB empowers your custom panels with unparalleled digital control to manage this complex task.

• Advanced Microprocessor Trip Unit (Digital LCD):
  Grid-tie operations involve severe harmonic distortions and erratic inrush currents from inverters. The embedded intelligent controller replaces rigid mechanical bimetals with surgical digital precision. Your engineering department can program highly specific LSIG (Long-time, Short-time, Instantaneous, and Ground-fault) protection curves via the digital interface.

• Category B Selectivity for Uninterrupted Power:
  With an exceptional Short-Time Withstand Current capability, this breaker achieves perfect Category B selective coordination. In a multi-energy network, if a localized inverter fails, this 1600A main tie-breaker will safely "hold" the fault for crucial milliseconds, allowing the downstream sub-breaker to trip first. This prevents a localized fault from collapsing the entire commercial microgrid.

• AC 800V Capability for Modern Inverters:
  To minimize transmission losses, modern high-capacity solar and wind inverters are pushing output voltages higher. This integrated ACB is explicitly rated for operating voltages (Ue) up to AC 800V, ensuring your switchboards are fully compatible with the latest generation of distributed energy power conversion systems.

Complete OEM/ODM White-Labeling and Supply Chain Dominance

Your completed grid-tie panels carry your reputation. Partnering with CHNAILE ensures that the core intelligence inside reflects the premium nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your profit margins.

• Private Labeling and Bespoke Faceplate Branding:
  Elevate your corporate identity in the renewable energy sector. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the breaker’s plastic frame and control fascia. We can tailor the digital interface, instructional safety labeling, and packaging to match your specific corporate design language, ensuring a cohesive brand experience for your clients.

• Certified Quality to Fast-Track Your Panel Certifications:
  Securing major government and commercial renewable energy bids requires your completed switchgear to pass strict regional certifications (such as ASTA, KEMA, or CE). Our 1600A Integrated ACBs are rigorously tested in state-of-the-art high-voltage laboratories to exceed GB/T 14048.2 and IEC 60947-2 standards. We supply your compliance department with all necessary technical documentation, dimensional CAD drawings, and test reports, significantly accelerating the certification process for your custom switchgear assemblies.

• Stabilizing Your Bill of Materials (BOM) in a Volatile Market:
  Relying on intermediary trading companies for high-capacity switchgear leads to supply chain delays and eroded profits. By sourcing these advanced integrated ACBs directly from our highly automated manufacturing lines in China, you secure aggressive, factory-direct wholesale pricing. This direct pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on mega-scale microgrid bids, and guarantees stable component lead times so your assembly plant never halts production. Partner with CHNAILE, and let our manufacturing muscle drive your switchboard business forward.

Global B2B Partnership with CHNAILE Factory

• Factory-Direct Modular Solutions: Sourcing compact, highly engineered switchgear directly from our R&D facility provides your panel-building firm with a significant competitive and spatial advantage over rivals using outdated, bulky ACBs.

• Rigorous Integrated Testing: We validate every innovation. Each Plastic Frame Integrated Breaker undergoes severe thermal dissipation testing inside confined simulation boxes, ensuring the 1600A load remains perfectly stable within its compact shell prior to export.

• OEM Packaging for Skid Builders: We actively partner with global containerized substation manufacturers, offering tailored OEM branding, bespoke accessory configurations, and custom control voltages to integrate flawlessly into your turnkey E-House designs.

Instruction Manual for NLW1-1600 Frame Air Circuit Breaker (Integrated Frame and Molded Case)
