OEM 3P Drawout Air Circuit Breaker 8000A 150kA for Heavy Switchgear Panel Builders

A Strategic Manufacturing Alliance for Top-Tier Global Panel Builders

In the elite echelon of low-voltage electrical manufacturing, constructing a Main Distribution Board (MDB) capable of safely sustaining 8000 Amperes is the ultimate engineering crucible. At this massive scale—routing over 5.5 Megawatts of continuous power at AC 400V—switchgear manufacturers and panel builders are not merely looking for a circuit breaker; they are seeking a highly engineered, deeply integrated supply chain solution that mitigates assembly risks, reduces structural cabinet costs, and guarantees uncompromising regulatory compliance.

At CHNAILE, our operational philosophy is strictly B2B-focused: your success in the competitive switchboard market is our success. We do not compete with our partners for end-user infrastructure or installation contracts. Instead, we serve as your dedicated, unyielding manufacturing engine. The CHNAILE 3-Pole 8000A Drawout Air Circuit Breaker (ACB) is explicitly engineered for the workshop assembly floor. It addresses the exact mechanical and thermal pain points that assembly technicians and switchgear structural design engineers face daily: managing immense thermal outputs, accommodating staggering amounts of raw copper busbar weight, achieving complex secondary wiring logic, and ultimately passing the unforgiving IEC 61439 Type-Tested Assembly (TTA) verifications. By integrating our 8000A ACB into your proprietary electrical panels, you elevate your brand's capability to secure the most lucrative, heavy-industrial, and government-level infrastructure bids worldwide without relying on overpriced European conglomerates.

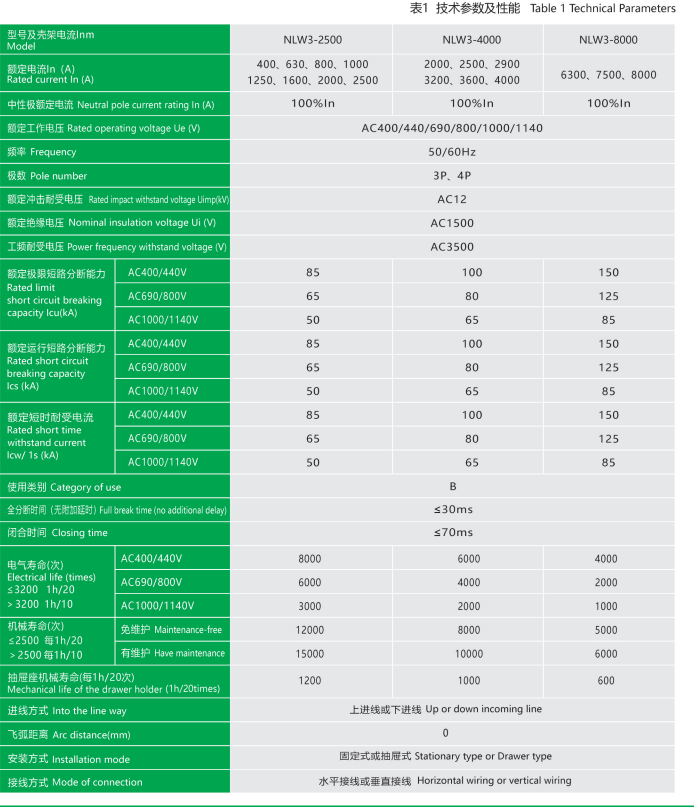

Technical Parameters

Revolutionizing Switchboard Architecture: The Zero Arc Distance Advantage

For a professional panel builder, the physical size and thermal dissipation characteristics of a main breaker directly dictate the cost of the entire steel enclosure. Traditional open-air ACBs require massive overhead clearances to safely exhaust arc flashes, leading to bloated, oversized cabinets and wasted sheet metal. We engineered the NLW3-8000 Series to systematically eliminate these spatial bottlenecks.

• Zero Arc Distance (0mm) for Compact Enclosures:
  A defining, revolutionary feature of this 8000A titan is its internal plasma suppression matrix, which achieves an astonishing "Zero Arc Distance" (0mm). By aggressively cooling and exhausting the 150,000A (150kA) fault plasma entirely within the breaker's internal arc chutes, no dangerous ionized gas is expelled upwards. This allows your mechanical designers to drastically reduce the vertical dielectric clearance required above the breaker. You can design significantly shallower and shorter Form 4b or Form 4a switchgear cabinets, slashing your sheet metal fabrication costs and making your assembled panels much easier to transport and install in tight electrical vault rooms.

• Modular Drawout Cradle for Streamlined Assembly:
  Lifting and aligning an 8000A circuit breaker—which weighs hundreds of kilograms—into a steel enclosure is a massive logistical hazard. This ACB features an ultra-robust, industrial-grade withdrawable chassis (cradle). During the initial cabinet construction phase, your assembly line workers only need to mount the relatively lightweight, empty cradle. They can perform all the heavy copper busbar drilling, alignment, and torque-wrenching without the delicate breaker body obstructing their workspace. Once the cabinet is completely wired and cleaned of metal shavings, the 8000A breaker body is effortlessly racked into the cradle using the integrated mechanical drive system. This modular approach drastically accelerates your factory throughput and protects the core asset during fabrication.

• Thermal-Dynamic Copper Interfaces:
  Pushing 8000 Amps continuously generates formidable thermal energy. The rear connection terminals on the cradle are massively oversized, forged from high-purity copper, and heavily silver-plated. They are specifically dimensioned to align seamlessly with the multiple parallel heavy-gauge copper busbars (droppers and risers) required for 8000A routing. This specialized geometry ensures maximum clamping torque and vastly increases the surface area for heat radiation, crucially aiding your final panel in passing the mandatory temperature-rise limits required for IEC 61439 certifications.

Pushing the Boundaries of Physical Protection

• 150,000A (150kA) Plasma Eradication: A short circuit immediately downstream of a power plant transformer generates explosive kinetic and thermal forces. This 8000A ACB utilizes a colossal internal arc-chute matrix to aggressively stretch, cool, and vaporize 150kA fault plasmas in under 30 milliseconds (Full break time ≤30ms), preventing a catastrophic chain reaction across the plant.

• Revolutionary Zero Arc Distance (0mm): Typically, massive ACBs eject dangerous arc flashes upwards during a fault, requiring panel builders to leave significant empty clearance space above the breaker. Through advanced internal exhaust baffling, this unit achieves a 0mm arc distance, allowing engineers to design highly compact, space-optimized 8000A main switchboards without compromising safety.

• 150kA / 1s Indestructible Coordination: Achieving Category B selectivity at 150kA is an engineering triumph. It means this behemoth can mechanically endure a 150,000-Ampere dead short for a full second without tripping or welding, allowing localized sub-breakers to clear the fault and preserving power to the rest of the multi-megawatt facility.

Advanced Secondary Control Matrix and Intelligent Calibration

A modern 8000A Main Distribution Board is the central brain of an entire industrial facility or hyperscale data center. The CHNAILE ACB empowers your custom switchgear with unparalleled digital oversight and highly programmable fault coordination.

• Expansive 47-Pin Secondary Wiring Hub:
  Mega-watt distribution panels require extensive integration with facility SCADA systems, remote motorized charging actuators, and interlocking safety loops. Stretching across the top of the breaker chassis is an expansive 47-pin secondary wiring terminal block. This centralized hub empowers your control panel wirers to cleanly, logically, and rapidly route auxiliary connections without fighting for hand-space deep inside the dense breaker cavity, drastically reducing wiring errors during production.

• Microprocessor-Based LSIG Protection:
  Preventing a facility-wide blackout relies on strict selective coordination. The integrated intelligent controller (featuring a crisp digital display) replaces rigid mechanical bimetals with surgical digital precision. Your engineering department can program highly specific LSIG (Long-time, Short-time, Instantaneous, and Ground-fault) protection curves. With an astonishing Icw (Short-time withstand current) rating of 100kA for 1.0 second, this breaker achieves perfect Category B selective coordination, ensuring that your massive main panel holds steady during a localized fault, allowing downstream breakers to trip first.

• Factory Pre-Setting Services for Accelerated Commissioning:
  As your direct source manufacturer, we offer bespoke factory pre-setting services. We can digitally calibrate the intelligent trip units to match your exact project blueprints and load calculations before bulk shipping. This eliminates the need for your technicians to manually program these massive breakers on the assembly line, significantly reducing your factory turnaround time and minimizing on-site commissioning delays

Target Application Scenarios
Because of its terrifying 8000A continuous rating and 150kA breaking capacity, this ACB is exclusively sourced by state-backed EPCs and global conglomerates for:

• Nuclear & Thermal Power Plants: Serving as the ultimate main incomer for auxiliary power systems and massive generator step-up transformer isolations.

• Aluminum Smelting & Electrowinning: Managing the relentless, extreme multi-megawatt continuous currents required by heavy metallurgical arc furnaces and smelting pots.

• Mega-Scale Green Hydrogen/Ammonia Hubs: Acting as the primary high-voltage AC input isolation switch for sprawling fields of multi-megawatt water electrolyzer rectifiers.

• National Grid Hub Substations: Providing impenetrable, intelligent power distribution and fault coordination at the absolute core of municipal utility networks.

Complete OEM/ODM White-Labeling and Supply Chain Sovereignty

Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to protecting your supply chain sovereignty and amplifying your profit margins.

• Private Labeling and Faceplate Branding:
  Elevate your corporate identity. We offer comprehensive OEM customization, including high-precision laser-engraving or silk-screening of your company logo directly onto the ACB faceplates. The digital interface, instructional safety labeling, and even the design language can be tailored to match your specific corporate guidelines. Your clients will receive a world-class product carrying your trusted brand name.

• Certified Quality to Fast-Track Your Panel Certifications:
  Winning major government and commercial infrastructure bids requires your completed switchgear to pass strict regional and international certifications (such as ASTA, KEMA, or CE). Our 8000A ACBs are rigorously tested in state-of-the-art high-current laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your compliance departments with all necessary technical documentation, dimensional CAD drawings, and test reports, significantly accelerating the certification process for your custom switchgear assemblies.

• Stabilizing Your Bill of Materials (BOM) in a Volatile Market:
  Relying on intermediary trading companies for 8000A components often leads to disastrous supply chain delays and inflated costs. By sourcing these heavy-duty drawout ACBs directly from our highly automated manufacturing lines in China, you secure highly aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on mega-scale infrastructure bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production. Partner with CHNAILE, and let our manufacturing muscle drive your switchboard business forward globally.
