A Strategic Manufacturing Alliance for Top-Tier Global Panel Builders
In the elite echelon of low-voltage electrical manufacturing, constructing a Main Distribution Board (MDB) capable of safely sustaining 6300 Amperes is the ultimate engineering crucible. At this massive scale—routing over 4.3 Megawatts of continuous power—switchgear manufacturers and panel builders are not merely looking for a circuit breaker; they are seeking a highly engineered, deeply integrated supply chain solution that mitigates assembly risks and guarantees regulatory compliance.
At CHNAILE, our philosophy is simple: your success in the switchboard market is our success. We do not compete with our B2B partners for end-user infrastructure contracts. Instead, we serve as your unyielding manufacturing backbone. The CHNAILE 3-Pole 6300A Drawout Air Circuit Breaker (ACB) is explicitly engineered for the workshop floor. It addresses the exact pain points assembly technicians and switchgear design engineers face daily: managing immense thermal outputs, accommodating staggering amounts of copper busbar weight, achieving complex secondary wiring logic, and ultimately passing the unforgiving IEC 61439 Type-Tested Assembly (TTA) verifications. By integrating our 6300A ACB into your proprietary electrical panels, you elevate your brand's capability to secure the most lucrative, heavy-industrial, and government-level infrastructure bids worldwide.
Conquering the 6300A Thermal Management and Busbar Assembly Challenge
For a panel builder, the most daunting aspect of a 6300A switchgear cabinet is thermal dynamics. The sheer volume of copper required to carry 6300 Amps safely creates immense heat and spatial bottlenecks. We engineered the physical architecture of this ultra-wide ACB specifically to streamline your factory assembly process and optimize heat dissipation.
Optimized Drawout Cradle for Massive Copper Terminations:

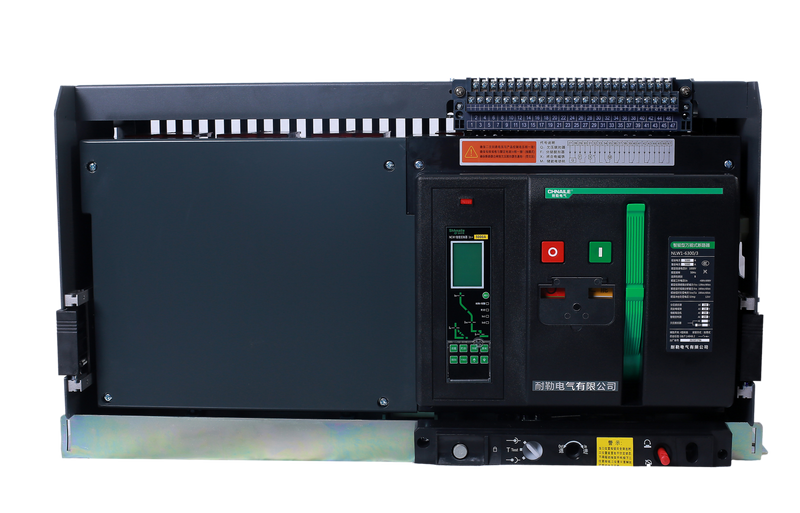

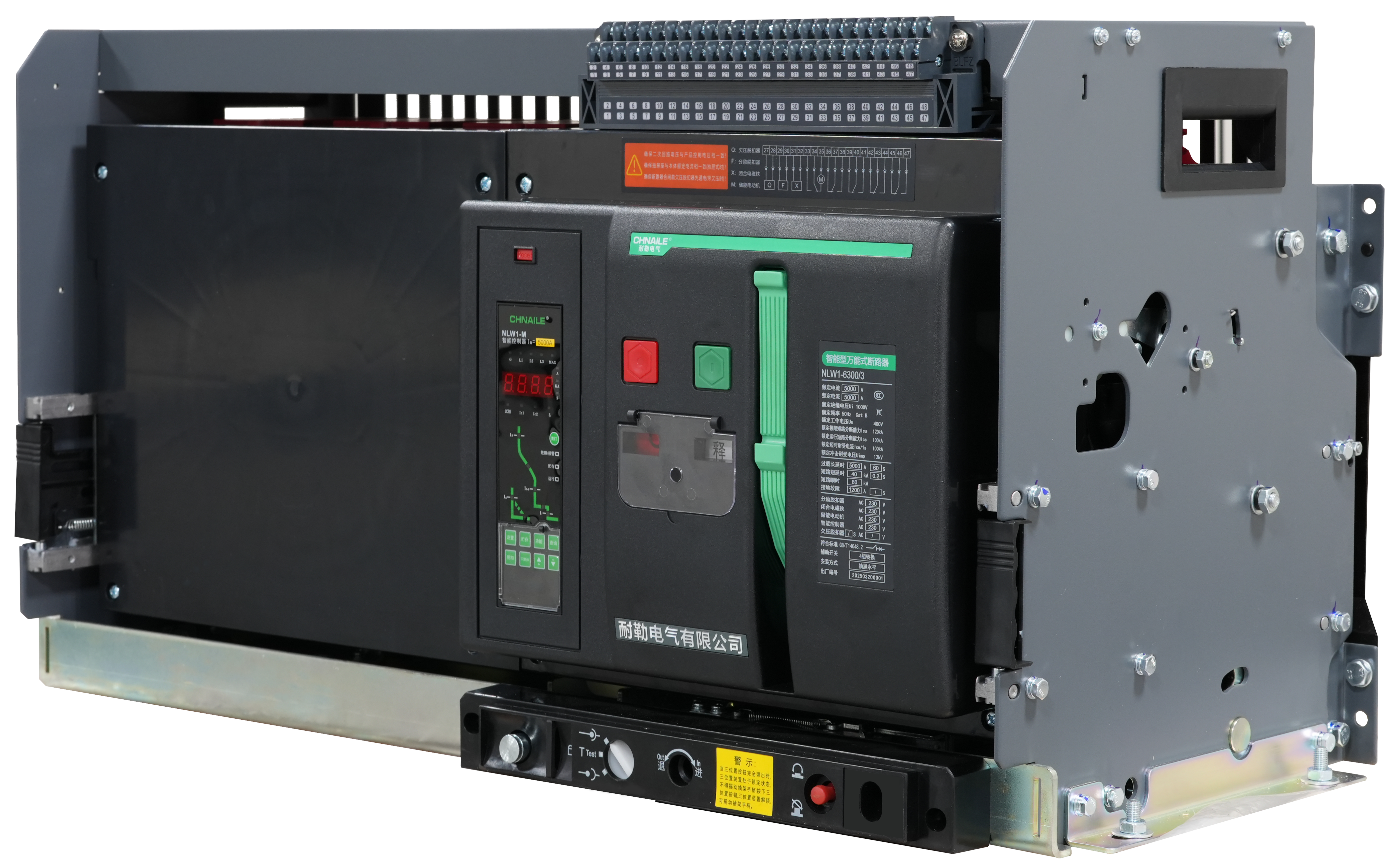

A 6300A circuit breaker is an exceptionally heavy piece of equipment. Installing a fixed-type breaker of this magnitude into a steel enclosure is a severe logistical hazard. This unit features an ultra-robust, widened withdrawable chassis (cradle). During the initial cabinet construction phase, your assembly workers only need to mount the empty cradle. The rear connection terminals are significantly expanded and heavily silver-plated, specifically spaced to accommodate the multiple parallel heavy-gauge copper busbars required for 6300A routing. This wider geometry ensures maximum clamping torque and vastly increases the surface area for heat radiation, crucially aiding your final panel in passing the mandatory temperature-rise limits required for Form 4b separation standards.
Rapid Hot-Swappable Mechanism (In/Test/Out):

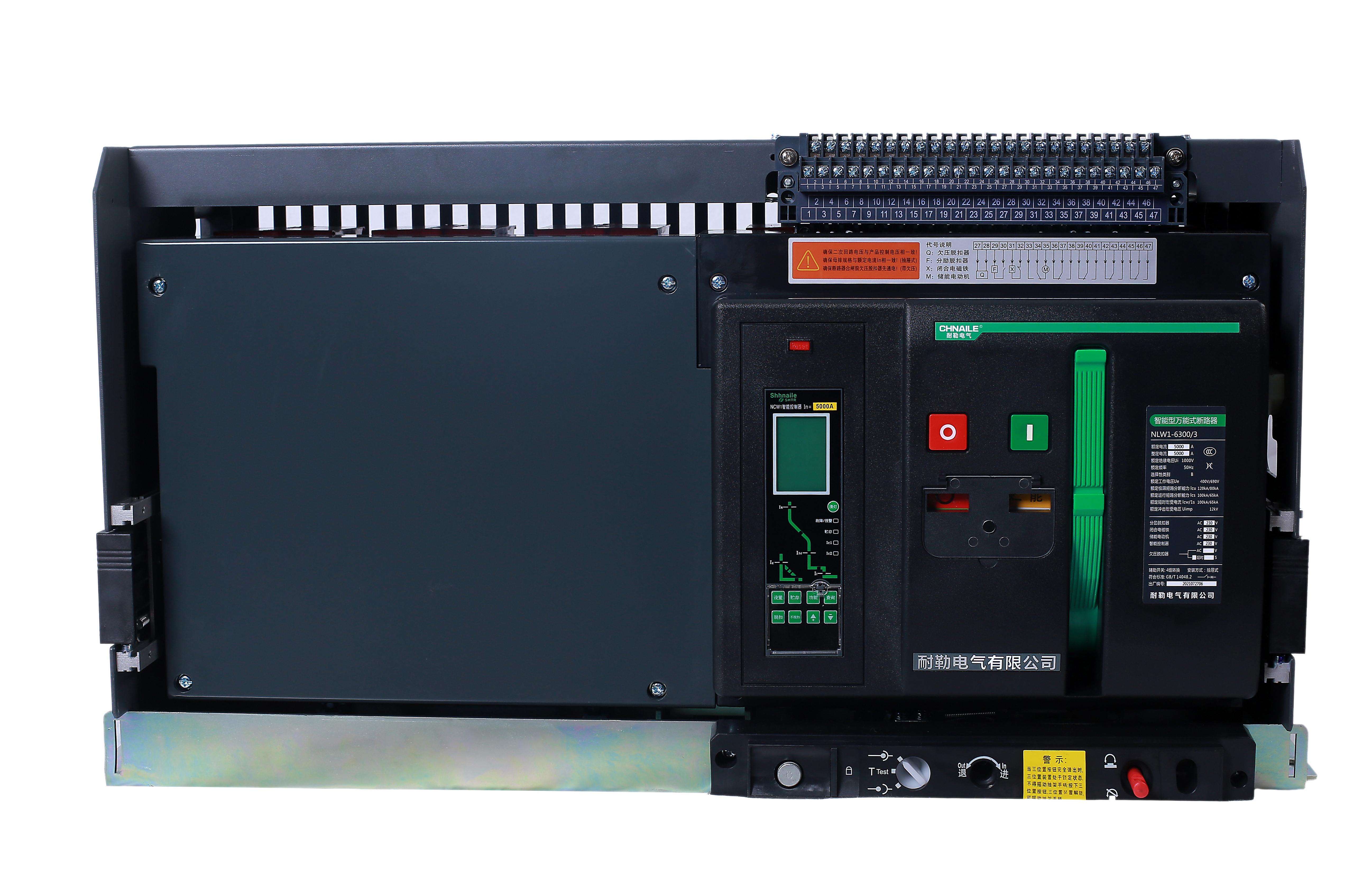

Once your switchboard is fully assembled and the heavy copper work is complete, the main breaker body is effortlessly racked into the cradle using the integrated mechanical drive system (visible via the front port). This modular drawout approach not only protects the delicate internal components from metal shavings and dust during cabinet fabrication but also provides your end-clients with a premium, zero-downtime hot-swappable maintenance solution.
Expansive 47-Pin Secondary Control Matrix:
Mega-watt distribution panels are inherently complex, requiring integration with facility SCADA systems, remote motorized charging actuators, and interlocking safety loops. Stretching across the entire top ridge of the breaker chassis is an expansive 47-pin secondary wiring terminal block. This centralized hub empowers your control panel wirers to cleanly, logically, and rapidly route auxiliary connections without fighting for hand-space deep inside the dense breaker cavity, drastically reducing wiring errors and accelerating your factory throughput.
Intelligent Megawatt Control and Custom Calibration
A modern 6300A Main Distribution Board is the brain of an entire industrial facility. The CHNAILE ACB empowers your custom switchgear with unparalleled digital oversight and highly programmable fault coordination.
Advanced Microprocessor-Based LSIG Protection:
Preventing a facility-wide blackout relies on strict selective coordination. The integrated intelligent controller, featuring a high-contrast digital interface and a dedicated 'Reset' and operational keypad, replaces rigid mechanical bimetals with surgical digital precision. Your engineering department can program highly specific LSIG (Long-time, Short-time, Instantaneous, and Ground-fault) protection curves. This ensures that the 6300A main incomer flawlessly coordinates with the downstream MCCBs in your panel design, isolating localized faults while maintaining the main utility feed.
Factory Pre-Setting Services for Accelerated Commissioning:
As your direct source manufacturer, we offer bespoke factory pre-setting services. We can digitally calibrate the intelligent trip units to match your exact project blueprints and load calculations before bulk shipping. This eliminates the need for your technicians to manually program these massive breakers on the assembly line, significantly reducing your factory turnaround time and minimizing on-site commissioning delays.
Complete OEM/ODM White-Labeling and Supply Chain Dominance
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to amplifying your market presence.
Private Labeling and Faceplate Branding:

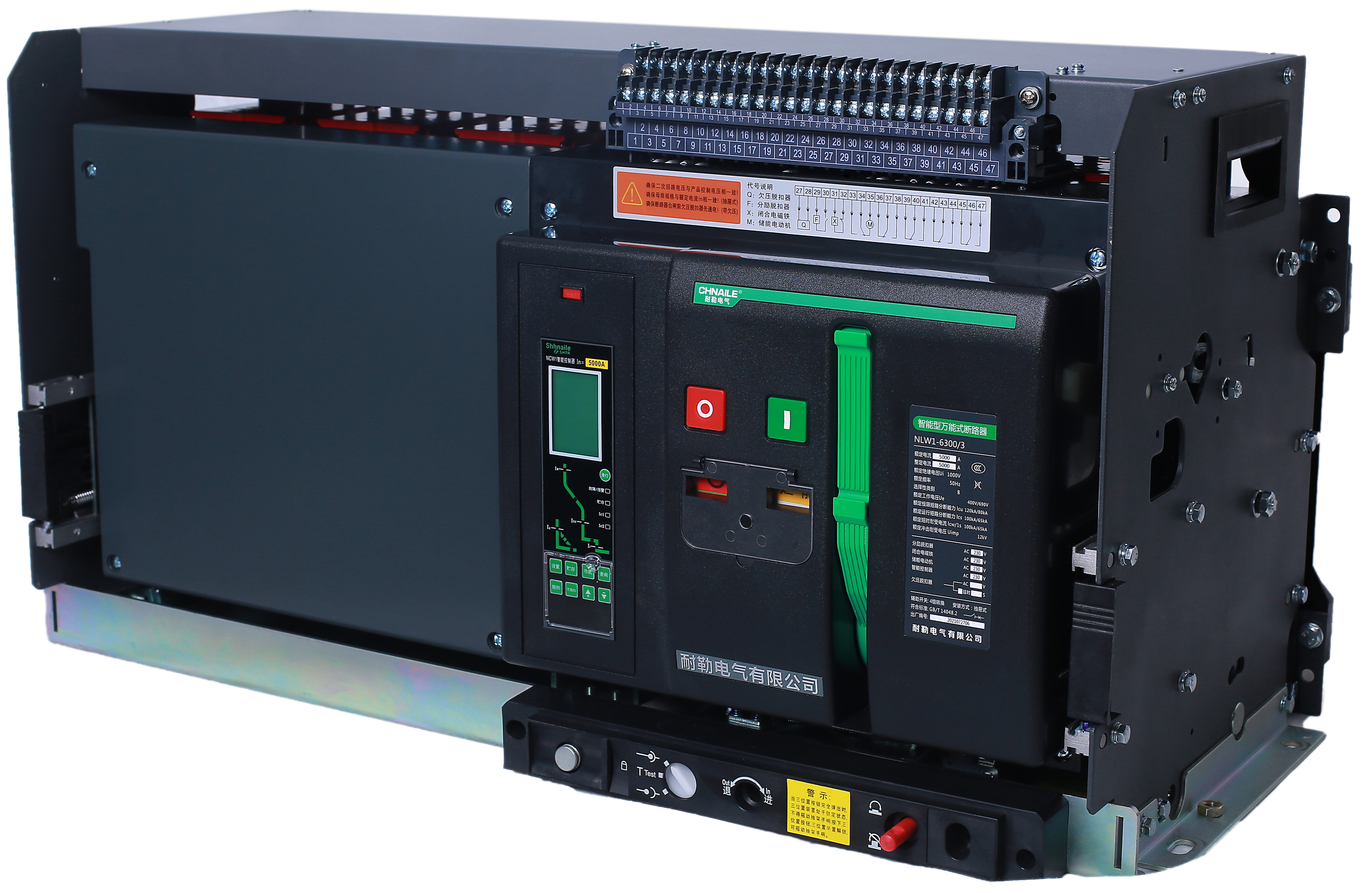

Elevate your corporate identity. We offer comprehensive OEM customization, including high-precision laser-engraving of your company logo directly onto the ACB faceplates. The digital interface language, instructional safety labeling, and even the color of the manual charging handle (such as the striking green handle shown) can be tailored to match your specific corporate design guidelines. Your clients will receive a world-class product carrying your trusted brand name.
Certified Quality to Fast-Track Your Panel Certifications:

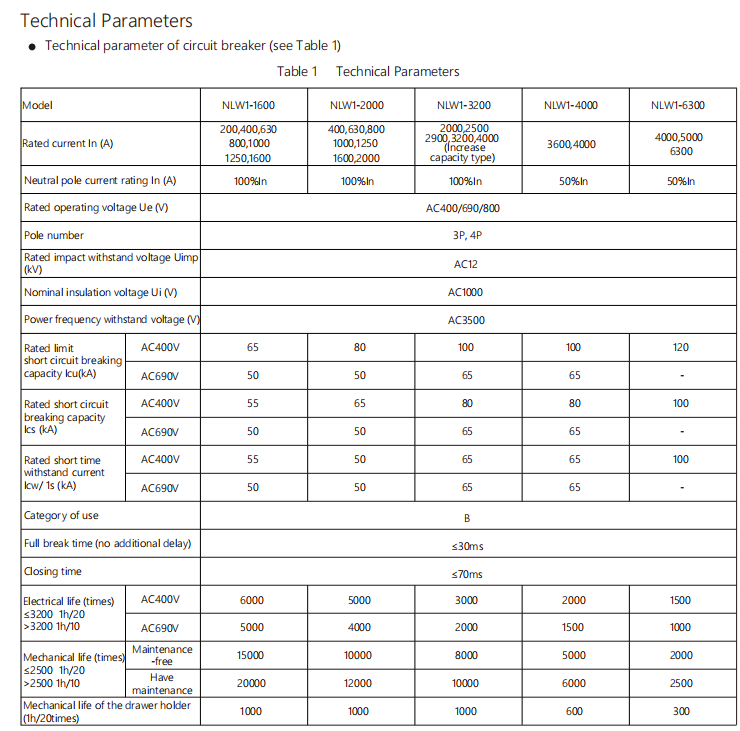

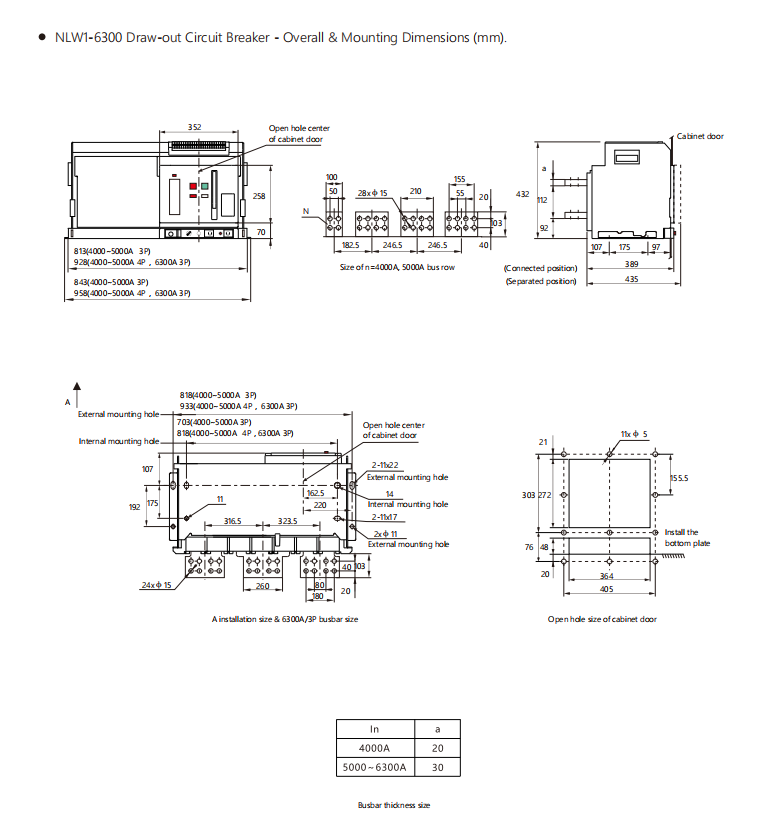

We understand that your finished switchgear assemblies must pass strict regional and international certifications (such as ASTA, KEMA, or CE). Our 6300A ACBs are rigorously tested in state-of-the-art high-current laboratories to exceed GB/T 14048.2 and IEC 60947-2 standards. We supply your engineering and compliance departments with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Stable Manufacturing Lead Times & Maximized BOM Profitability:
Relying on intermediary trading companies for 6300A components often leads to disastrous supply chain delays and inflated costs. By sourcing these heavy-duty drawout ACBs directly from our highly automated manufacturing lines in China, you secure highly aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on mega-scale infrastructure bids, and guarantees stable component lead times so your assembly plant never experiences a halt in production. Partner with CHNAILE and let our manufacturing muscle drive your switchboard business forward.
NLW1-6300A Draw-out Air Circuit Breaker — Instruction Manual
