A Strategic Manufacturing Alliance for Global Switchgear Panel Builders
In the highly competitive and rigorously regulated low-voltage electrical manufacturing sector, constructing a Main Distribution Board (MDB) is an exercise in precision engineering. Panel builders and switchgear assemblers are constantly seeking components that not only deliver flawless electrical protection but also enhance factory-floor assembly efficiency and optimize the overall Bill of Materials (BOM). At CHNAILE, we position ourselves not as competitors in the end-user contracting space, but as your steadfast manufacturing backbone.

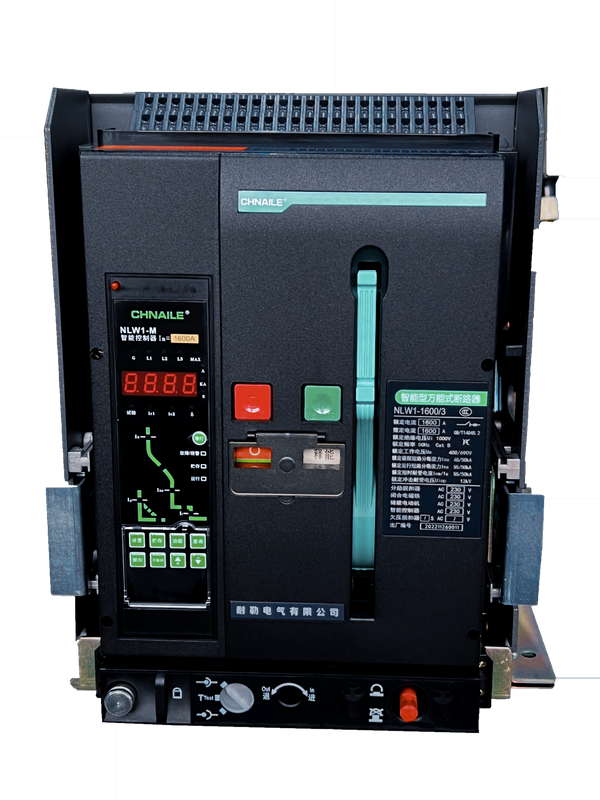

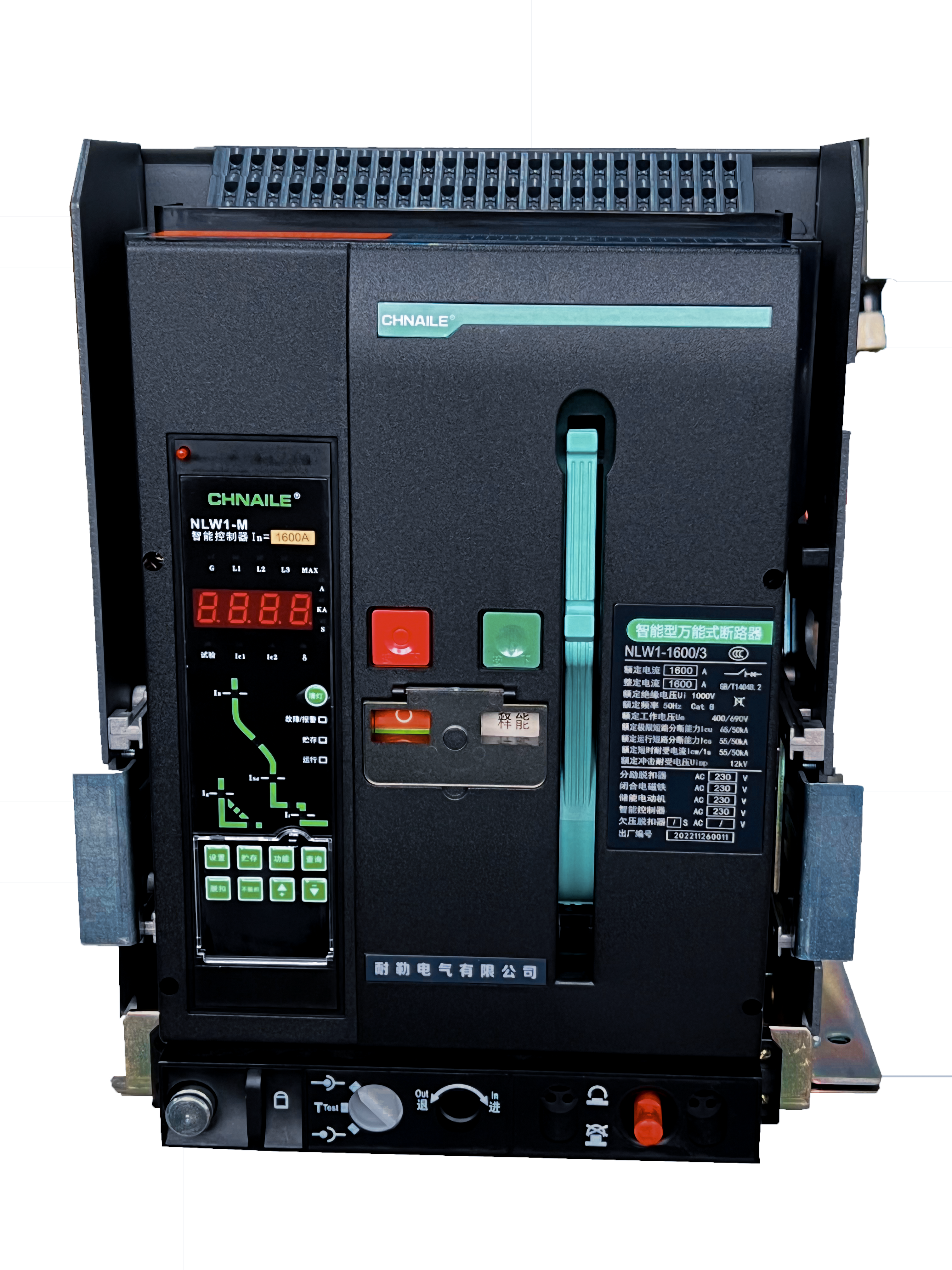

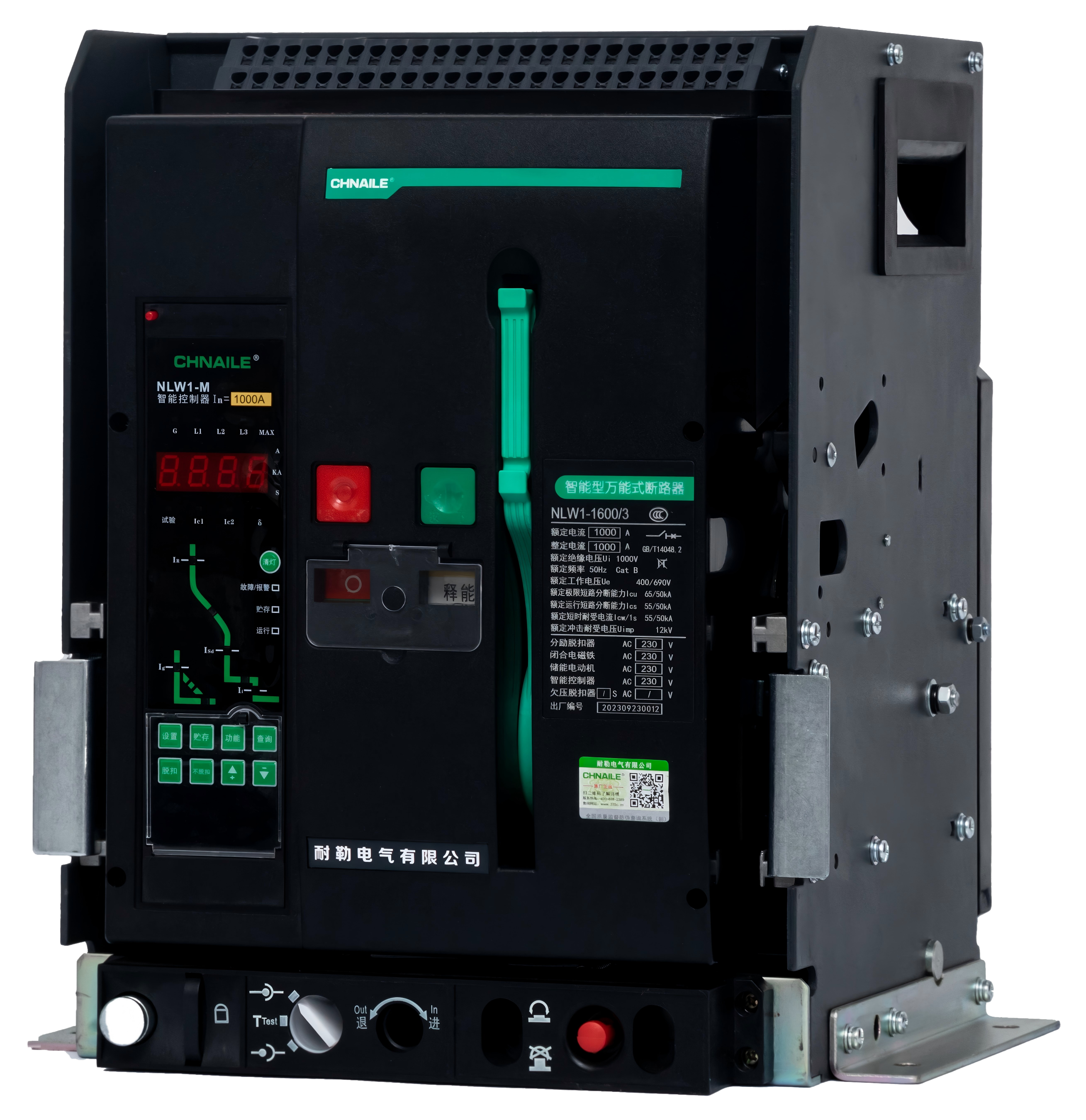

The CHNAILE 3-Pole 1600A Drawout Air Circuit Breaker (ACB) is meticulously crafted for the switchgear assembly line. Capable of safely routing massive continuous loads up to 1600 Amperes at AC 400V/690V, it forms the indestructible primary incomer of your custom-built electrical panels. With a formidable 65,000A (65kA) ultimate short-circuit breaking capacity and a Category B short-time withstand rating (Icw 55kA/1s), this ACB provides your proprietary switchboards with the extreme electro-dynamic resilience required to pass stringent international standards. By integrating our 1600A universal breakers into your designs, you elevate your manufacturing capabilities, enabling your firm to aggressively and confidently bid on major commercial, industrial, and government infrastructure projects.
Engineered to Optimize Switchboard Assembly and Copper Integration
For a professional panel building facility, assembly time is the most critical metric. Complicated component mounting and difficult copper busbar routing drain labor hours and erode profit margins. We have designed the mechanical architecture of this 1600A ACB specifically to streamline your panel fabrication process.
Standardized Drawout Chassis (Withdrawable Cradle):
Integrating a heavy-duty 1600A circuit breaker into a steel enclosure requires significant physical effort. This ACB features an industrial-grade withdrawable cradle. During the initial sheet-metal fabrication and busbar alignment phases, your assembly technicians only need to bolt the empty cradle into the cabinet. The heavy breaker body remains safely in its packaging until final testing. Once the copper work is complete, the breaker is effortlessly racked into the cradle using the integrated front-panel mechanical drive (clearly marked with 'Out/Test/In' positions). This modular assembly approach drastically reduces physical strain on your workers and prevents accidental damage to the breaker's sensitive electronics during cabinet construction.
Thermal-Dynamic Busbar Terminals:
Pushing 1600 Amps continuously generates substantial thermal energy. The rear connection terminals on the cradle are heavily silver-plated and precision-machined. They are specifically dimensioned to align seamlessly with the standard heavy-gauge copper busbars utilized in commercial switchboards. This specialized geometry ensures maximum clamping torque, virtually eliminating localized contact resistance and thermal bottlenecks. This design crucial aids your completed panels in passing the mandatory temperature-rise tests required for IEC 61439 Type-Tested Assemblies (TTA).
Accessible 47-Pin Secondary Control Matrix:
A modern, automated electrical panel requires extensive secondary wiring. Located prominently across the top of the breaker chassis is a massive, highly organized 47-pin secondary wiring terminal block. This centralized control hub empowers your panel wirers to cleanly, logically, and rapidly route connections for external PLCs, auxiliary safety relays, and remote monitoring systems. This layout eliminates the need to fight for hand-space deep inside the dense breaker cavity, radically reducing wiring errors and accelerating your factory throughput.
Advanced Digital Control: The NLW1-M Intelligent Trip Unit
A premium Main Distribution Board is defined by its intelligence and fault-coordination capabilities. The CHNAILE 1600A ACB empowers your custom switchgear with highly programmable, state-of-the-art digital oversight.
Microprocessor-Based LSIG Protection:
Preventing a facility-wide blackout relies on strict selective coordination. The integrated NLW1-M intelligent controller, featuring a high-contrast digital display, replaces rigid mechanical bimetals with surgical digital precision. Your engineering department can program highly specific LSIG (Long-time, Short-time, Instantaneous, and Ground-fault) protection curves. With an impressive Icw rating of 55kA for 1.0 second, this breaker achieves perfect Category B selectivity, ensuring that your massive main panel holds steady during a localized fault, allowing downstream miniature breakers to trip first.
Standardized AC 230V Motorized Automation:
To meet the demands of modern Building Management Systems (BMS) and automated generator changeover panels, this unit is shipped fully equipped. The closing electromagnet, shunt release, motor operating mechanism, and the intelligent controller are all standardized to AC 230V. This standardization simplifies your internal electrical schematics and allows for seamless remote-controlled synchronization straight out of the box, without requiring complex aftermarket retrofitting by your assembly team.
Complete OEM/ODM White-Labeling and Supply Chain Sovereignty
Your completed electrical panels carry your reputation. Partnering with CHNAILE ensures that the core components inside reflect the premium nature of your manufacturing brand. We are committed to amplifying your market presence and protecting your supply chain sovereignty.
Private Labeling and Custom Branding:
Elevate your corporate identity. We offer comprehensive OEM customization, including high-precision laser-engraving of your company logo directly onto the ACB faceplates. The digital interface, instructional safety labeling, and packaging can all be tailored to match your specific corporate design guidelines. Your clients will receive a world-class product carrying your trusted brand name.
Certified Quality for Your Assemblies:

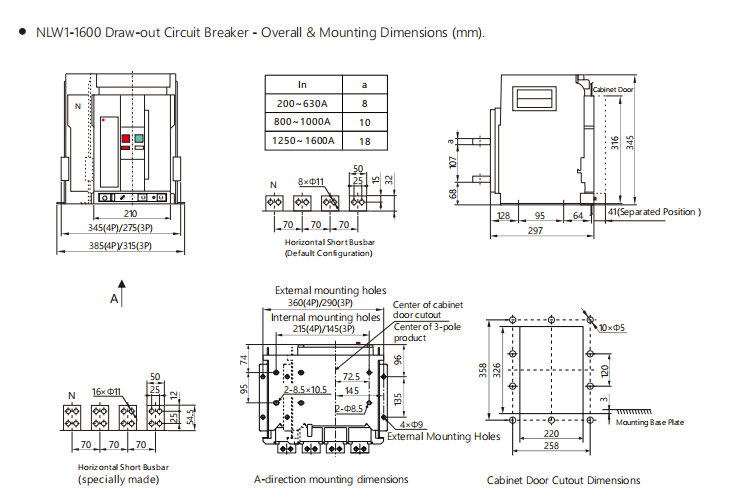

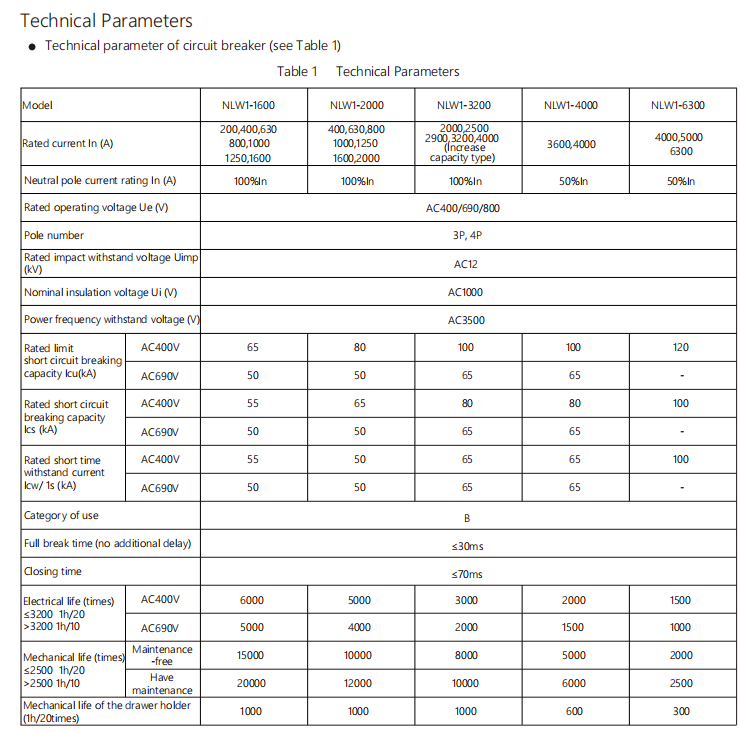

Winning major commercial bids requires strict regulatory compliance. Our 1600A ACBs are rigorously type-tested in state-of-the-art high-current laboratories to strictly comply with GB/T 14048.2 and IEC 60947-2 international standards. We supply your engineering and compliance departments with all necessary technical documentation, dimensional CAD drawings, and compliance certificates, significantly accelerating the certification process for your custom switchgear assemblies.
Maximizing Your Bill of Materials (BOM) Profitability:
Relying on intermediary trading companies for core components often leads to disastrous supply chain delays and inflated costs. By sourcing these heavy-duty drawout ACBs directly from our highly automated manufacturing lines, you secure highly aggressive wholesale pricing. This direct-to-factory pipeline optimizes your Bill of Materials (BOM), significantly increases your profit margins on large-scale infrastructure bids, and guarantees stable component lead times so your panel-building factory never experiences a halt in production.
NLW1-1600/3P Draw-out Type Air Circuit Breaker — Instruction Manual
