Strategic Procurement and Inventory Consolidation in Panel Fabrication

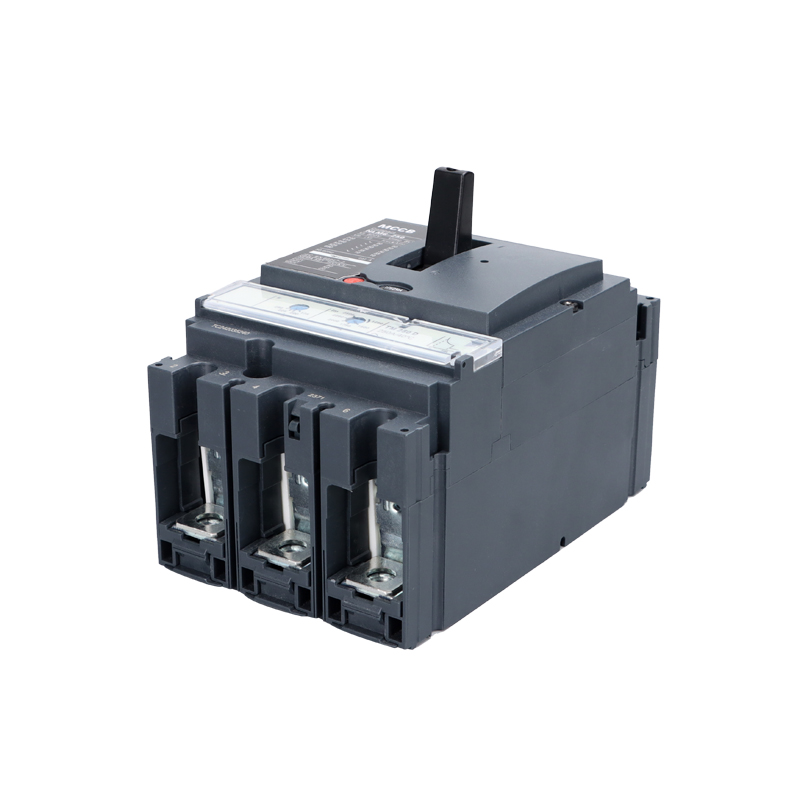

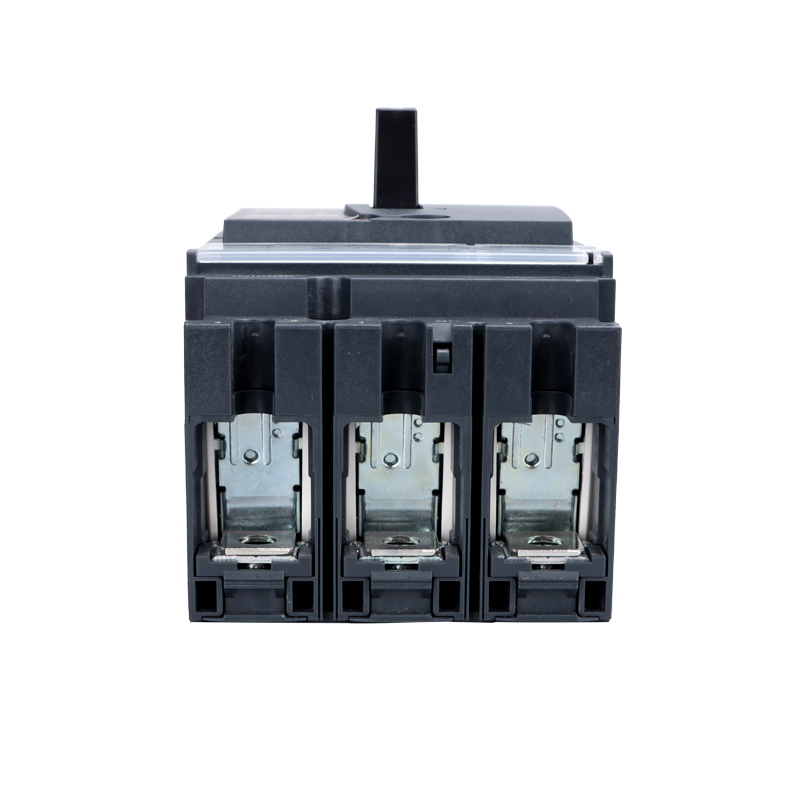

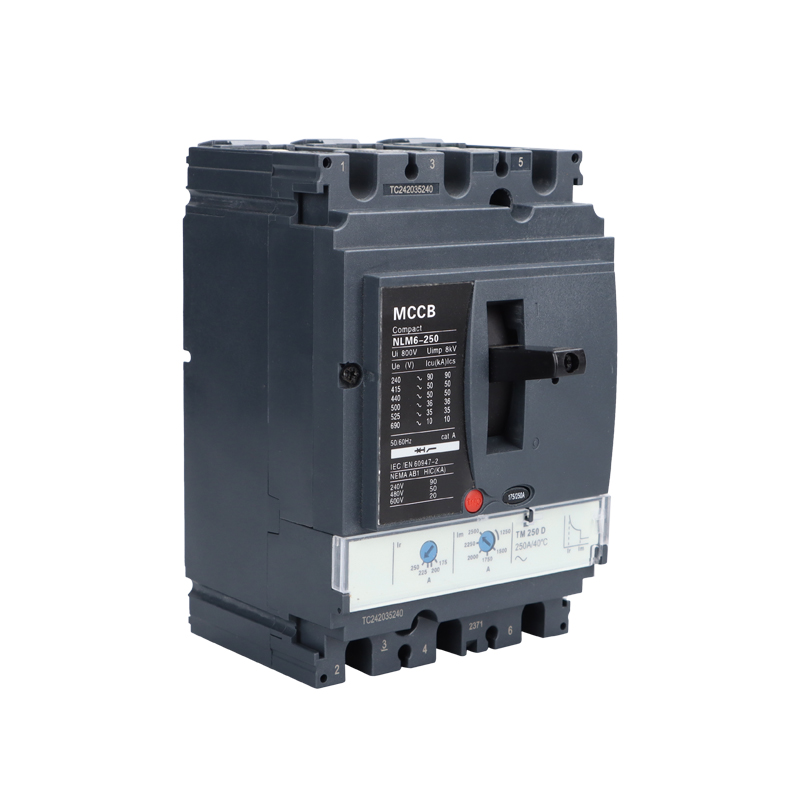

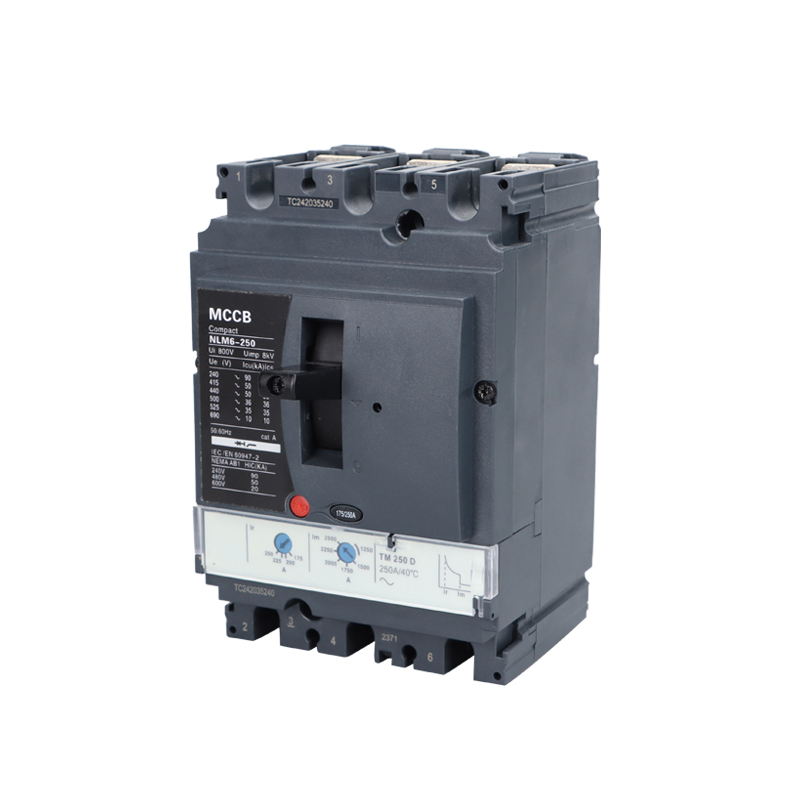

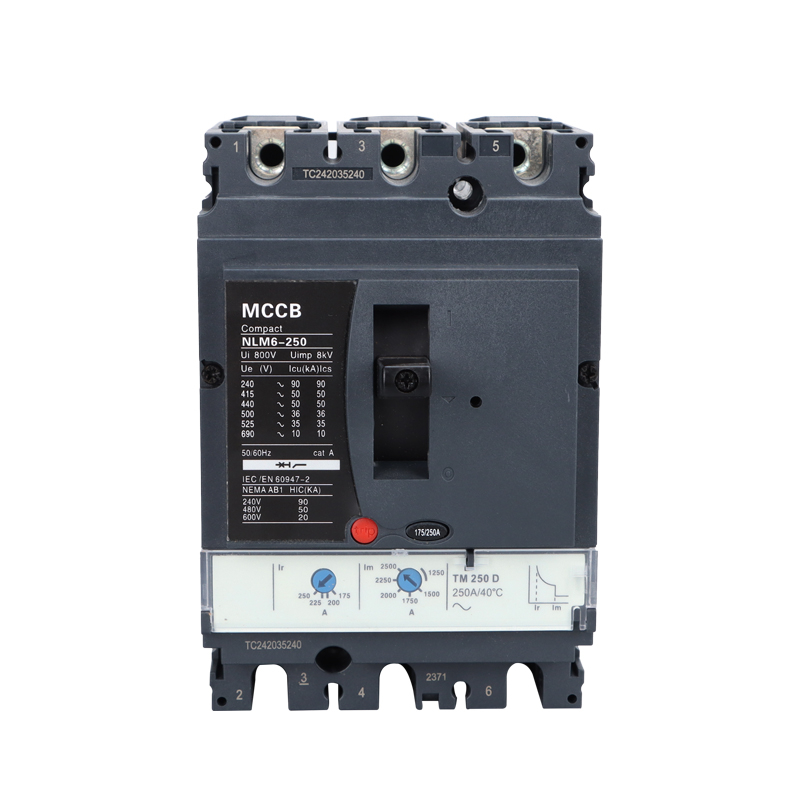

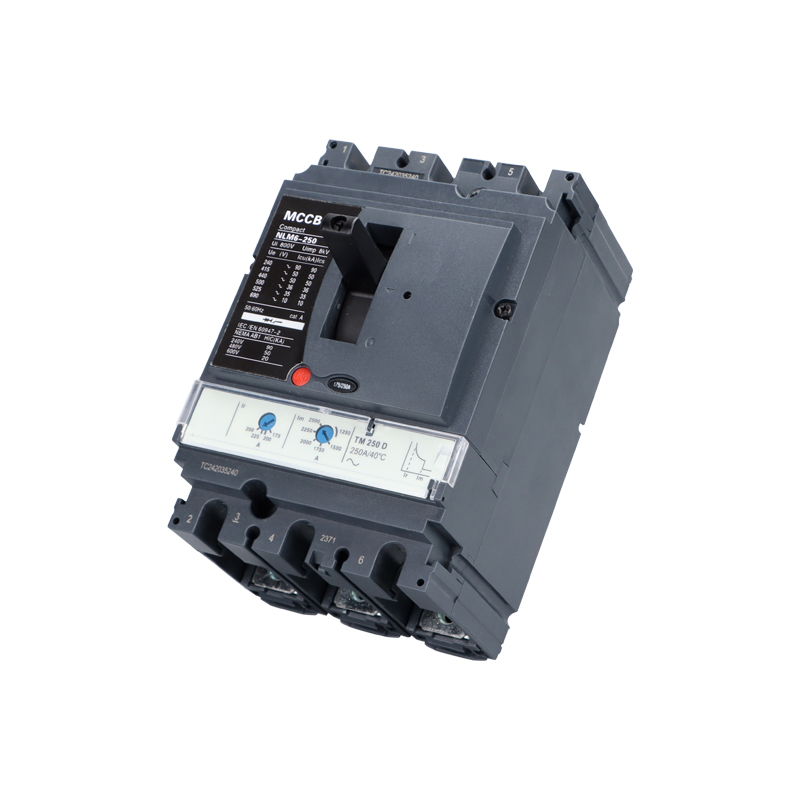

In the highly competitive arena of commercial electrical panel manufacturing, operational profitability is frequently eroded by inefficient inventory management. Switchgear assemblers tasked with fulfilling diverse contracts—ranging from municipal water pumping stations to commercial building HVAC centers—historically needed to stockpile a vast array of fixed-rating circuit breakers. Maintaining separate warehouse bins for 175A, 200A, 225A, and 250A components drastically inflates working capital requirements and complicates the Bill of Materials (BOM) for every project. The engineering architecture of the CHNAILE NLM6-250 Thermal-Magnetic Circuit Breaker specifically eradicates this logistical burden for global Original Equipment Manufacturers (OEMs). By observing the lower transparent fascia of the unit, procurement directors will immediately recognize the immense value of the 'TM 250 D' dual-rotary dial system. This physical interface allows factory floor technicians to manually calibrate the long-time thermal overload protection (Ir) across a sweeping range of 175 to 250 Amperes. Consequently, panel builders can procure this single, highly adaptable chassis in bulk, effectively consolidating four different SKU requirements into one universal component, thereby streamlining procurement pipelines and liberating tied-up factory capital.
Mastering High-Inertia Loads and Global Compliance Standards
Beyond the financial advantages of component consolidation, the technical deployment of this heavy-duty switchgear addresses the most pervasive cause of post-installation warranty claims: nuisance tripping induced by motor inrush currents. Heavy commercial machinery, such as centralized cooling chillers or industrial conveyor motors, demand a massive, instantaneous surge of electricity upon startup. The secondary dial located on the breaker's faceplate governs the magnetic short-circuit threshold (Im), granting technicians the ability to elevate the instantaneous trip point anywhere from 1250 to 2500 Amps. This crucial adjustment capability ensures that the breaker safely ignores the momentary, non-hazardous starting surges of heavy induction motors while remaining fiercely responsive to genuine, catastrophic short-circuit faults up to its 50kA ultimate breaking capacity.
Furthermore, the integration of this component into your proprietary distribution boards opens doors to lucrative international export markets. A critical examination of the specification plate reveals compliance not only with the ubiquitous IEC 60947-2 standards but also explicitly lists the NEMA AB1 designation. This dual-standard compliance indicates that the internal spatial geometries, track-resistant thermosetting polymer housing, and arc-quenching capabilities meet the exceptionally rigorous environmental and electrical demands prevalent in North American and Pan-American engineering specifications. For export-focused panel builders, integrating a NEMA-compliant main breaker means your fully assembled Motor Control Centers (MCC) and Main Distribution Boards (MDB) will encounter significantly less friction when undergoing regional safety certifications abroad.
Ensuring Electro-Mechanical Fidelity Through Smart Manufacturing
Ultimately, the architectural brilliance of a dual-adjustable circuit breaker is entirely dependent on the physical precision of its internal components. Relying on outdated, manual assembly techniques for critical safety devices introduces unacceptable levels of human error and batch-to-batch inconsistency. CHNAILE fundamentally guarantees the performance of every unit shipped by manufacturing them on entirely automated, robotic assembly lines. The delicate bimetallic strips and heavy-gauge copper magnetic coils responsible for the 175A-250A and 1250A-2500A tuning ranges are positioned, calibrated, and secured with sub-millimeter machine precision.
However, assembly is merely the first phase of our commitment to your supply chain security. Before any breaker is authorized for global dispatch to our B2B partners, it must pass through an array of proprietary smart inspection equipment. These computerized testing rigs simulate actual high-voltage short-circuit blasts and sustained thermal overloads, recording digital telemetry to verify that every single rotary dial adjustment corresponds to the exact physical tripping curve required by international law. This relentless, data-driven approach to quality assurance ensures that when your assembly technicians bolt a CHNAILE breaker onto a copper busbar, it performs flawlessly on the very first test. We actively encourage managing directors, chief switchboard engineers, and procurement specialists who demand unyielding component reliability and wish to discuss large-scale OEM white-labeling partnerships to connect directly with our international manufacturing liaisons via WhatsApp at +86 15985210820. Align your enclosure fabrication processes with a genuine manufacturing powerhouse to secure your dominance in the global electrical infrastructure market.
