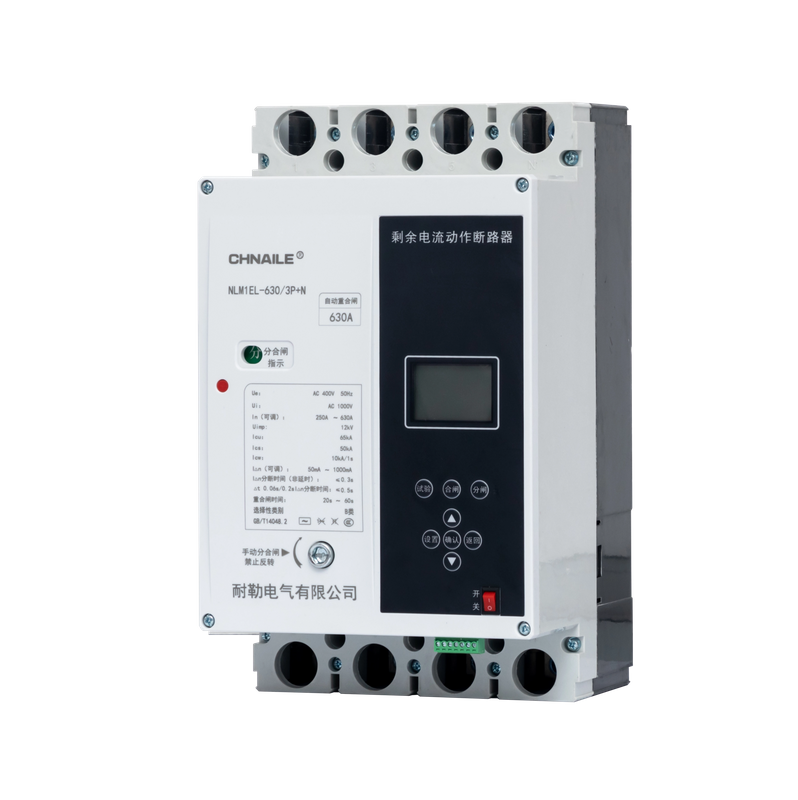

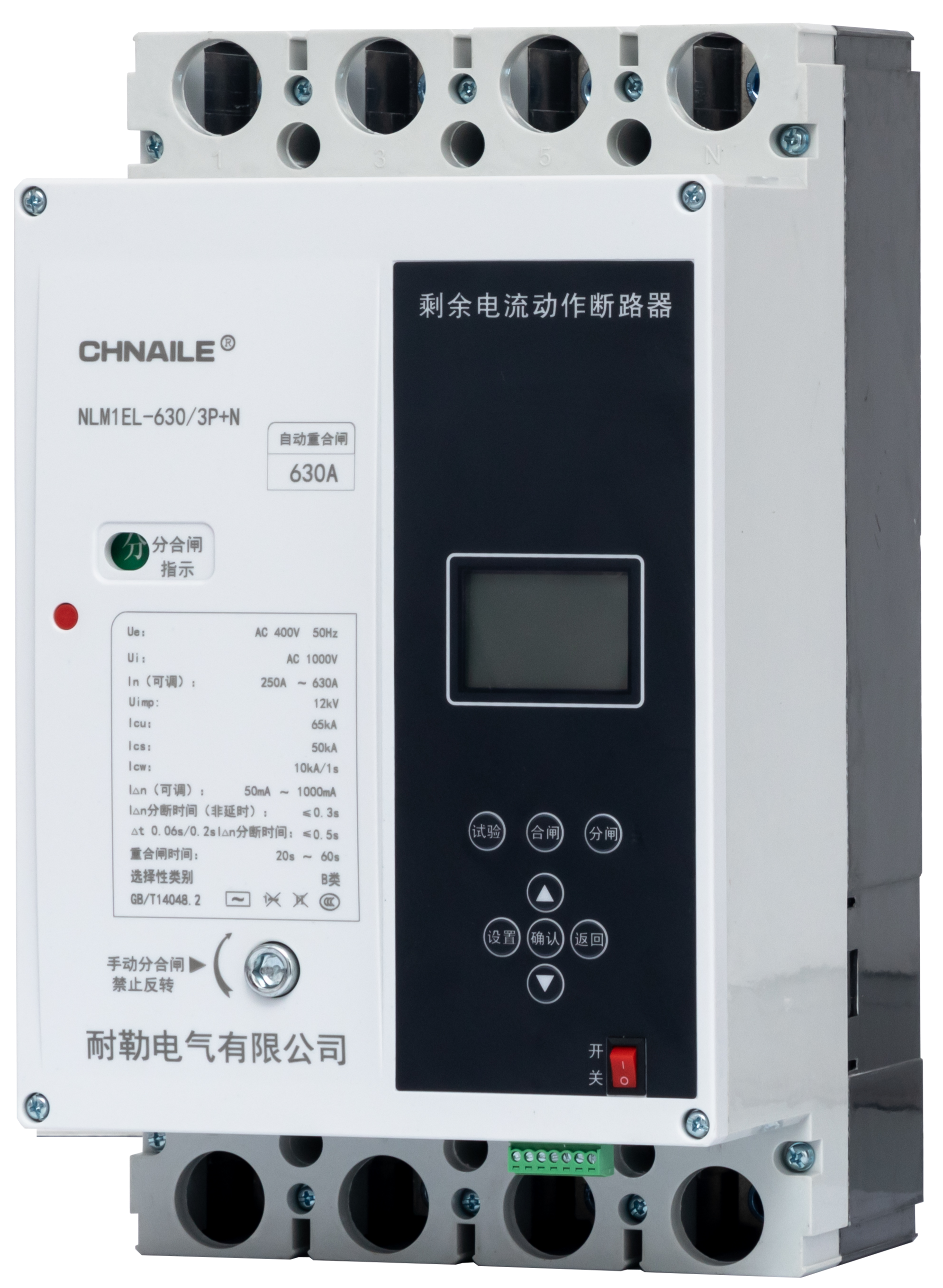

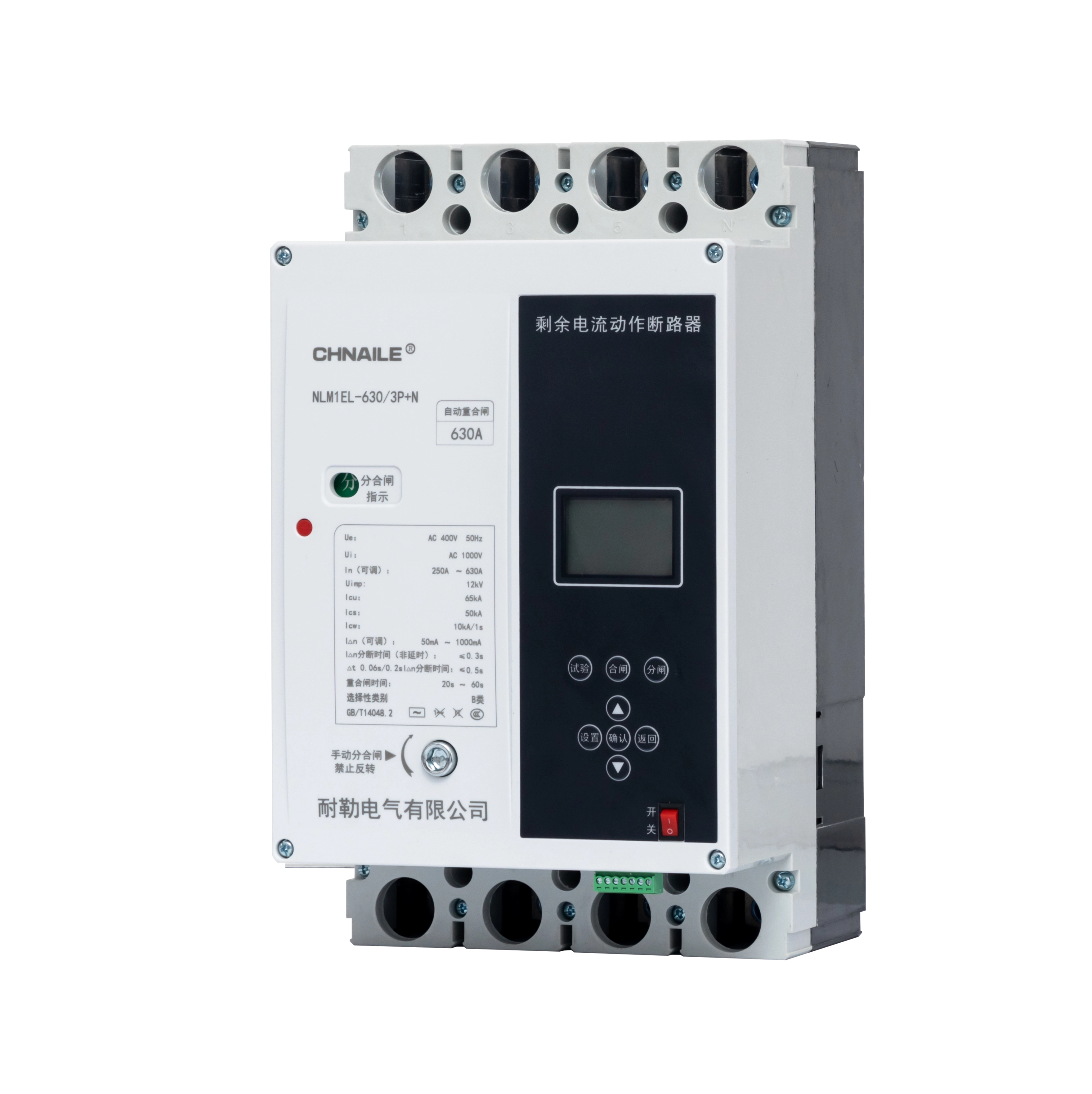

The CHNAILE NLM1EL-630 3P+N Smart Auto-Reclosing Earth Leakage MCCB completely eliminates this logistical nightmare by providing autonomous "self-healing" capabilities for isolated maritime electrical grids.
Offshore wind turbines and remote platforms operate in some of the harshest environments on Earth, constantly exposed to extreme weather, corrosive salt fog, and electrical disturbances from long subsea cables. These conditions frequently cause transient ground faults that trip main breakers, leaving multi-million-dollar assets paralyzed until maintenance crews can arrive. The CHNAILE Intelligent 630A Auto-Reclosing MCCB is specifically engineered to address these unique challenges, merging a robust 65kA physical chassis with advanced microprocessor technology and a heavy-duty motorized actuator to deliver reliable, automated power protection and recovery for global offshore energy projects.
Parameter | Specification |
|---|---|
Device Category | Smart Auto-Reclosing Earth Leakage MCCB (ARD RCBO) |
Poles Configuration | 3P+N (Absolute 4-Wire Isolation for complex control grids) |
Digital Rated Current (In) | Adjustable 250A to 630A (Via LCD Keypad) |
Digital Earth Leakage (I∆n) | Adjustable 50mA to 1000mA (Capacitive leakage immunity) |
Rated Operating Voltage (Ue) | AC 400V (50Hz) |
Ultimate Breaking Capacity (Icu) | 65kA (Extreme open-air plasma suppression) |
Short-Time Withstand (Icw) | 10kA for 1s (Category B Elite Selectivity) |
Auto-Reclosure Delay | Adjustable 20s to 60s |
Operator Interface | High-Contrast LCD Screen with Tactile Membrane Keypad |
Standard Compliance | GB/T 14048.2 (CCC Certified) |
Our motorized transient reclosure (ARD) technology intelligently differentiates between temporary anomalies (like atmospheric surges hitting a wind turbine blade) and hard, permanent short circuits. After a transient trip, the heavy-duty internal motor waits for a pre-set delay (20s-60s) and automatically re-engages the massive 630A contacts, instantly restoring critical offshore power without requiring a costly vessel dispatch.
The intuitive LCD interface allows marine engineers to perform granular capacitive leakage tuning. Long subsea cables generate immense natural capacitive leakage that often causes nuisance trips in standard breakers. With our system, you can elevate the leakage threshold up to 1000mA, ensuring the main breaker ignores natural background "noise" while retaining the ability to detect genuine, catastrophic electrical faults.
The 3P+N absolute galvanic isolation design ensures complete phase and neutral severance during severe faults. Unattended marine facilities mix heavy 3-phase pump motors with delicate single-phase telemetry electronics, and this architecture prevents deadly neutral-return voltages from destroying sensitive SCADA monitoring equipment.
Armed with aggressively oversized magnetic blow-out coils and expansive de-ion arc chutes, this 630A MCCB instantly fragments and extinguishes violent 65,000-Ampere short-circuit plasmas. This catastrophic arc vaporization capability protects the structural integrity of remote marine distribution boards and extends the lifespan of your entire electrical system.
With a robust 10kA/1s short-time withstand rating, our MCCB delivers Category B elite selective coordination. A localized short in a single offshore cooling pump shouldn't shut down the entire platform. This main incomer safely delays its trip, allowing the downstream sub-breaker to clear the danger while the rest of the rig remains fully operational.
The dedicated manual LOTO (Lock-Out/Tag-Out) override features a physical switch to mechanically disable the motorized auto-reclosure function, complemented by an isolation lock interface. This guarantees absolute safety for technicians when they board the platform for scheduled maintenance or emergency repairs.
Due to its autonomous power recovery, broad digital adjustability, and massive 630A continuous payload, this Smart ARD MCCB is exclusively mandated by maritime EPCs for:
Offshore Wind Farms: Acting as the self-healing main power hub inside the nacelles of megawatt-class wind turbines, overcoming transient faults without manual intervention
Subsea Cable Landing Stations: Providing autonomous electrical oversight and nuisance-trip immunity for the heavy-duty cooling and pumping systems maintaining intercontinental fiber-optic links
Oil & Gas Rigs: Ensuring continuous, auto-recovering power for massive extraction equipment where manual reset access requires dangerous helicopter deployments
Remote Island Microgrids: Serving as the intelligent, self-resetting main distribution breaker for isolated island communities reliant on localized diesel and solar hybrid generation
As a professional manufacturer of intelligent electrical switchgear, CHNAILE Electrical Co., Ltd. offers factory-direct offshore supply that gives your system integration firm a profound pricing edge, allowing you to offer clients massive savings on long-term maritime maintenance contracts.
Every single LCD unit undergoes exhaustive automated QA testing before leaving our smart factory, including comprehensive leakage simulations, heavy-load motorized endurance testing, and 65kA short-circuit blasts. This rigorous testing ensures absolute mechanical perfection and reliable performance in the most demanding marine environments.
We offer comprehensive customization solutions tailored specifically for multinational offshore energy operators:
Full white-labeling services with your brand identity
Custom software parameter pre-sets for specific project requirements
Bespoke communication module integrations for remote monitoring systems
Custom packaging and documentation for global distribution
It eliminates the need to dispatch expensive maritime vessels or helicopters to reset tripped breakers, which can cost tens of thousands of dollars per trip and result in significant production losses.
Category B selectivity means the breaker can withstand short-circuit currents for a specified time (10kA/1s), allowing downstream breakers to clear localized faults without shutting down the entire electrical system.
It provides complete galvanic isolation of both phases and neutral, preventing dangerous neutral-return voltages that can damage sensitive SCADA and telemetry equipment.
Every unit undergoes automated leakage simulation testing, heavy-load motorized endurance testing, and 65kA short-circuit blast testing to ensure reliable performance in harsh marine environments.
