Product Overview

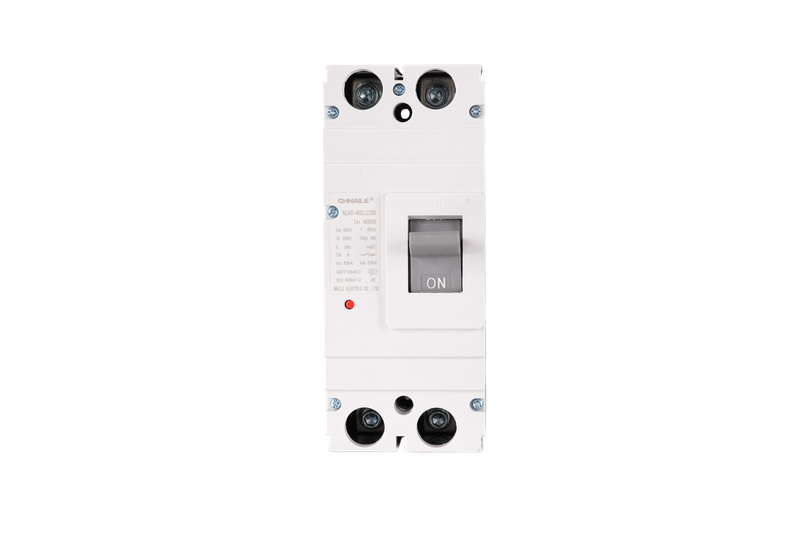

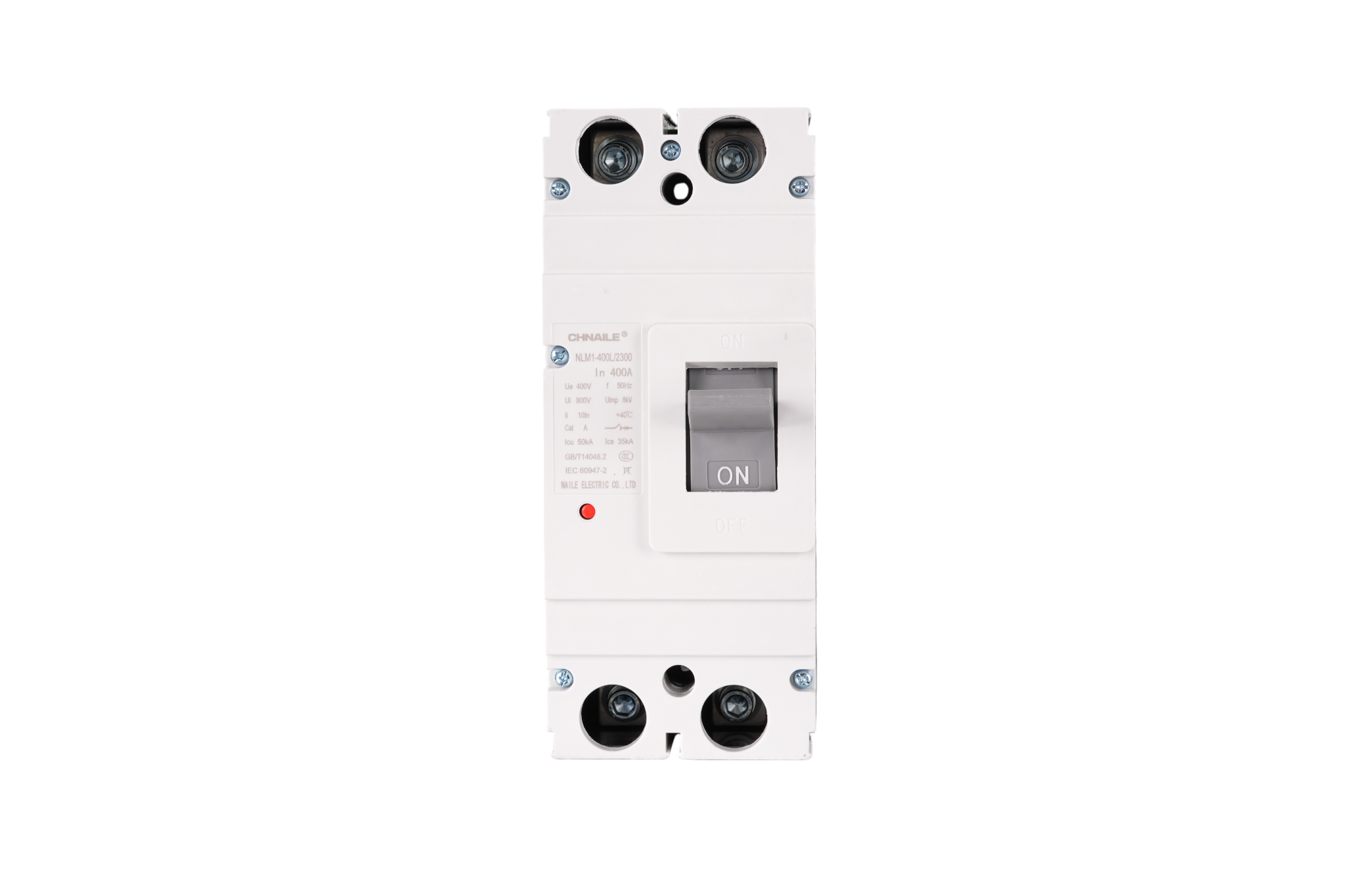

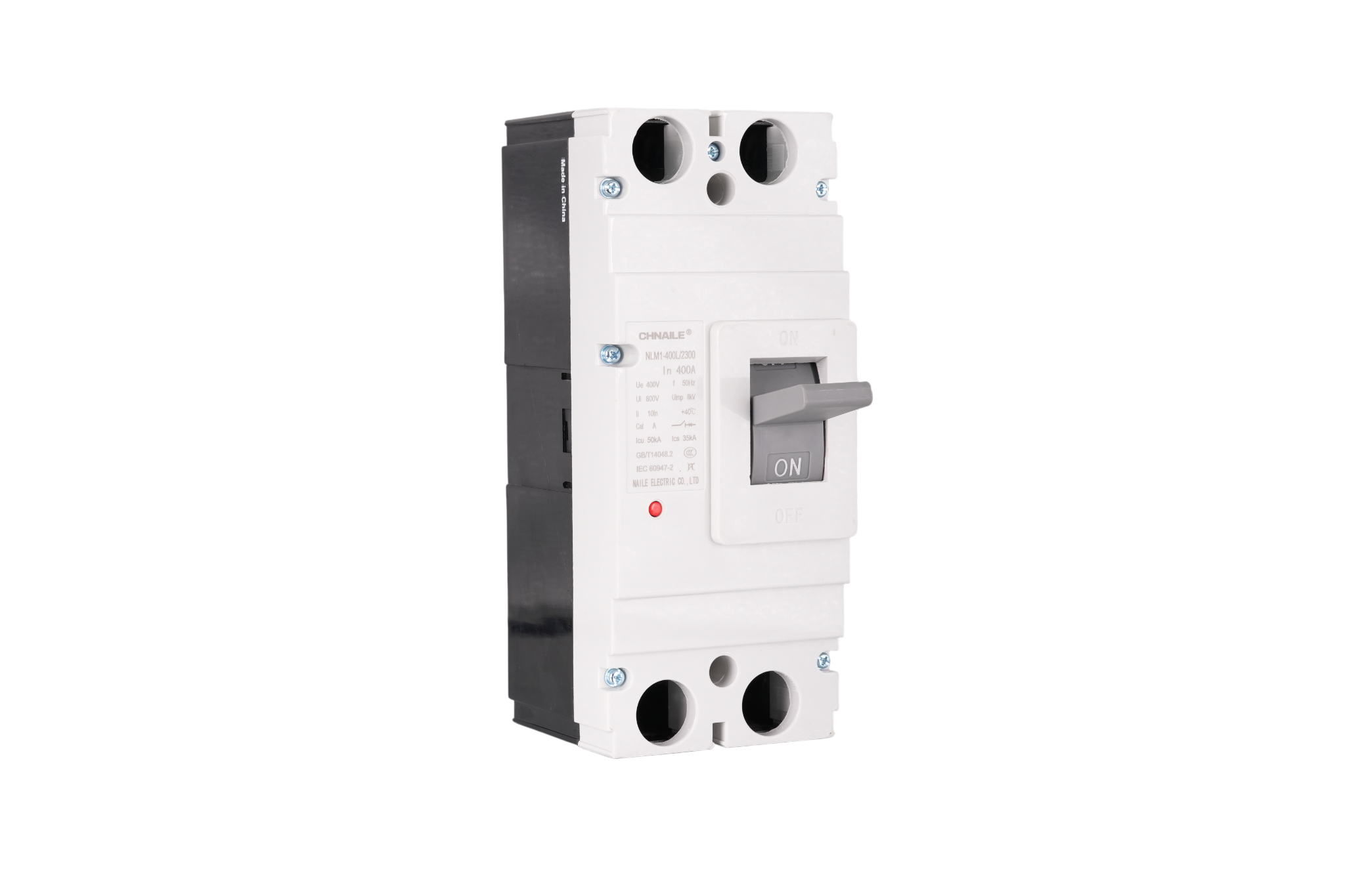

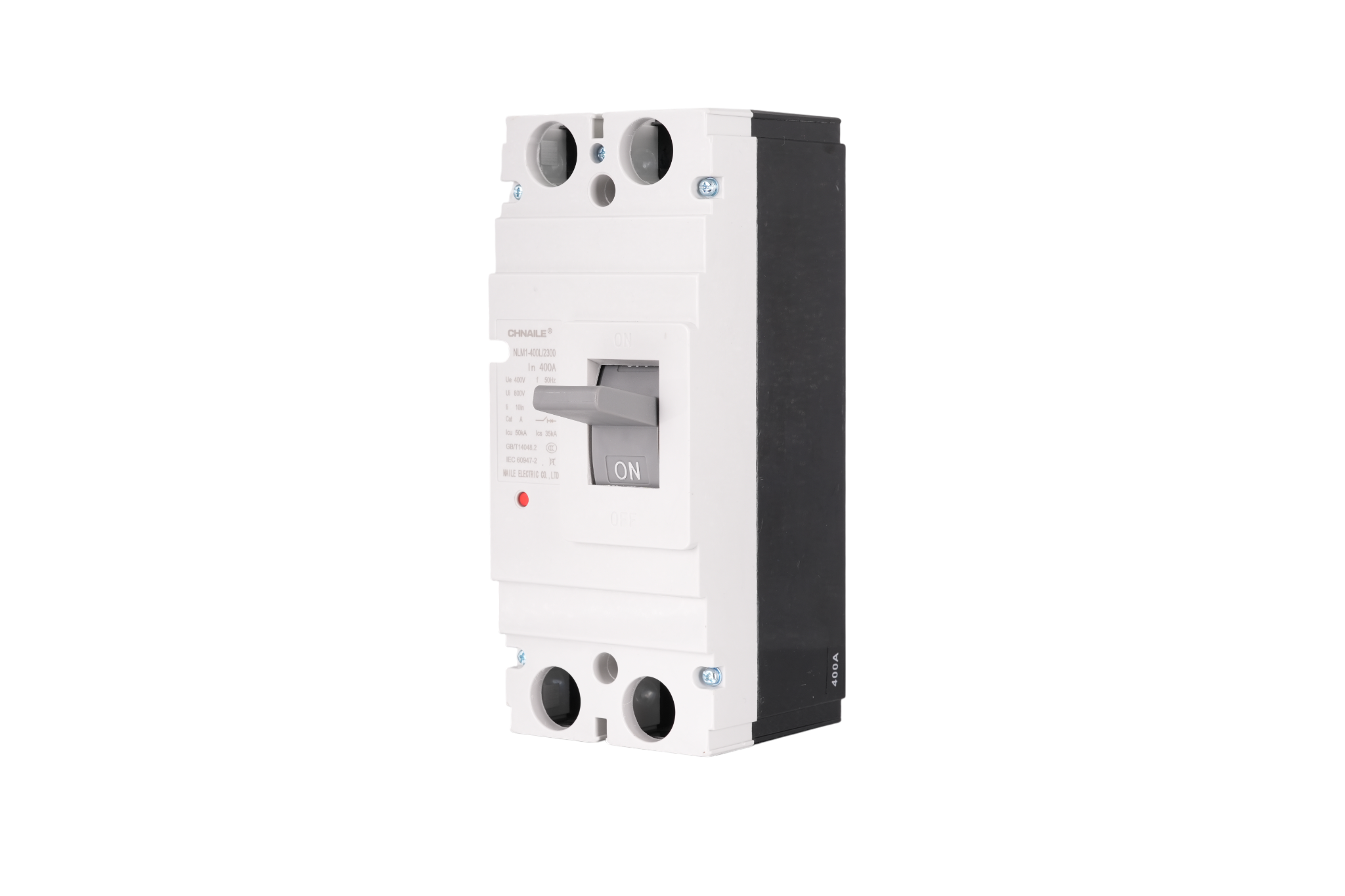

When routing monumental electrical loads into premium commercial spaces or life-saving clinical environments, the switchgear must offer both supreme fault mitigation and seamless visual integration. The CHNAILE Ultra-High Capacity 2-Pole Molded Case Circuit Breaker (MCCB) features a distinctive, specialized white thermosetting enclosure designed for modern, high-end main distribution boards. Operating securely on AC 400V networks, it flawlessly manages 400 Amps of continuous current. With its formidable 50,000A (50kA) fault-clearing capability and an 8kV lightning-withstand rating, this heavy-duty mechanism protects your multi-million-dollar infrastructure from the most catastrophic grid surges.
Technical Parameters
Device Category: | Heavy-Duty Commercial/Industrial Circuit Breaker (MCCB) |
|---|---|
Poles Configuration: | 2P (Simultaneous 2-Wire High-Capacity Disconnect) |
Rated Current (In): | 400A (Engineered for massive single/split-phase draws) |
Rated Operating Voltage (Ue): | AC 400V |
Rated Insulation Voltage (Ui): | 800V |
Rated Impulse Withstand Voltage (Uimp): | 8kV (Clinical-grade surge resilience) |
Ultimate Short-Circuit Breaking Capacity (Icu): | 50kA (Top-tier plasma suppression) |
Aesthetic Profile: | Clean White Thermosetting Armor |
Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |
1. Elite High-Draw Protection Mechanisms
50kA Plasma Suppression Technology: Equipment like superchargers can generate explosive short circuits. This MCCB is armed with elongated, high-density arc extinguishing chambers. During a fault, it aggressively stretches and suffocates 50kA plasma arcs in fractions of a millisecond, completely averting electrical fires.
400A MRI-Grade Thermal Tolerance: Medical scanners and fast chargers demand massive, sustained inrush currents. The oversized internal bi-metallic strips are calibrated to absorb these immense continuous thermal loads without yielding to premature nuisance tripping.
Transient Voltage Firewall (8kV): Equipped with 800V internal dielectric insulation and an 8kV Uimp rating, it guarantees that destructive grid transients and lightning strikes are blocked from reaching highly sensitive downstream electronics.
2. Specialized Structural & Aesthetic Engineering
Clinical-White Thermosetting Shell: Unlike traditional black industrial breakers, this MCCB is molded from a premium, V0-rated white polymer. It not only provides exceptional heat dissipation for 400A loads but also aligns with the visual hygiene standards required in medical facility switchboards and modern architectural panels.
Heavy-Gauge Hex-Bolt Anchorage: Routing 400 Amps safely demands flawless cable termination. The highly visible, heavy-duty hex-socket terminals allow engineers to apply maximum clamping torque to ultra-thick power cables, effectively eliminating micro-arcing and dangerous connection-point heating.
Intuitive Operator Interface: Features a prominent grey operational toggle alongside a distinct red 'Push to Trip' mechanical test button, ensuring facility managers can quickly verify linkage integrity before authorizing maintenance.
3. Target Application Scenarios
Due to the rare combination of a 400A 2-Pole architecture, 50kA breaking capacity, and a white aesthetic enclosure, this MCCB is the ultimate specification for:
Medical Imaging Infrastructure: Acting as the dedicated main power disconnect for hospital MRI machines, CT scanners, and high-draw radiology equipment.
EV Supercharging Hubs: Serving as the heavy-duty AC input protection for Level 3 DC fast-charging rectification cabinets.
High-End Commercial High-Rises: Providing reliable, clean-looking main incoming protection for luxury hotel sub-mains and commercial penthouse distribution boards.
Large-Scale Data Center Cooling: Managing the immense, continuous 2-wire loads required by massive precision air conditioning units in enterprise server farms.
4. Global B2B Partnership with CHNAILE Factory
Direct-to-EPC Cost Efficiency: Sourcing extreme-capacity switchgear directly from our manufacturing floor eliminates the hefty margins imposed by international trading houses, vastly improving your project's bottom line.
Zero-Compromise IEC 60947-2 Testing: At 400 Amps, reliability is a matter of life and death. Every single unit undergoes brutal automated thermal stress tests and 50kA short-circuit validations before receiving its final QC approval.
White-Labeling for Premium Panel Builders: Leveraging our expansive production capabilities, we offer tailored OEM solutions—including custom laser-engraved faceplates and packaging—allowing premium system integrators to scale their brand effortlessly.
