Product Overview
In luxury residences equipped with extensive smart-home hubs, security networks, and high-fidelity AV racks, a standard 1-second power transfer delay will cause every sensitive electronic device to reboot. The CHNAILE Seamless 20ms 2-Pole Automatic Transfer Switch eliminates this frustrating downtime. Designed as a next-generation "Slim Model," it fits perfectly into crowded residential consumer units. By aggressively toggling up to 80 Amperes of single-phase power in just 20 milliseconds, it provides a "Zero-Flicker" bridge between your primary utility grid and your localized solar battery inverter. Built with a rugged PC-Class architecture and environmentally sealed circuitry, it guarantees lifetime reliability for energy-independent homeowners.
Technical Parameters
| Device Category: | Dual Power Automatic Transfer Switch (Slim ATSE) |
| Switching Level: | PC Class (Pure mechanical isolation; highly immune to nuisance tripping) |
| Poles Configuration: | 2P (Simultaneous Live & Neutral Transfer) |
| Rated Current (In): | 80A (Massive capacity for full-house 18kW backup) |
| Rated Operating Voltage (Ue): | AC 220V/230V (50/60Hz) |
| Utilization Category: | AC-31B (Optimized for precision resistive and smart-home loads) |
| Transfer Action Time: | 20ms (Ultra-Fast "Zero-Flicker" Response) |
| Rated Impulse Withstand Voltage (Uimp): | 8kV (Grid surge & lightning defense) |
| Circuitry Protection: | Conformal-Coated PCBs (Moisture & dust resilient) |
| Visual Interface: | Laser-etched Grid (Tower) and Solar/Backup (House) Icons |
| Standard Compliance: | GB/T 14048.11 / IEC 60947-6-1 |
1. Elite Zero-Flicker Changeover Dynamics
20ms Seamless Transfer Speed: This is the pinnacle of ATS motor engineering. When a grid failure is detected, the hyper-accelerated internal actuator snaps the contacts to the backup solar/generator source in 0.02 seconds (20ms). This speed is so fast that the internal capacitors of desktop computers, smart TVs, and Wi-Fi routers simply absorb the dip, resulting in an uninterrupted, flicker-free user experience.
PC-Class Nuisance-Trip Immunity: Designed without sensitive thermal-magnetic trips, this pure PC-Class isolator acts as an unyielding mechanical bridge. It is explicitly rated to sustain heavy 80A currents, leaving short-circuit protection to dedicated upstream MCBs. This guarantees that your entire house won't accidentally lose power due to a false overload trip during the changeover process.
AC-31B Precision Load Mastery: Fine-tuned for AC-31B utilization, this switch effortlessly manages the power factor of modern residential loads—from sprawling LED lighting arrays to heavy inverter-driven heat pumps—ensuring zero contact erosion over its ≥6000 mechanical cycle lifespan.
2. Specialized Structural & Environmental Engineering
Conformal-Coated PCBs for Harsh Climates: Unlike standard indoor switchgear, the internal printed circuit boards of this ATS are treated with a specialized conformal coating. This ensures absolute flame resistance (UL94 V-0) and protects the delicate control logic from condensation, high humidity, and salty air—making it perfect for damp basement utility rooms or outdoor solar battery enclosures.

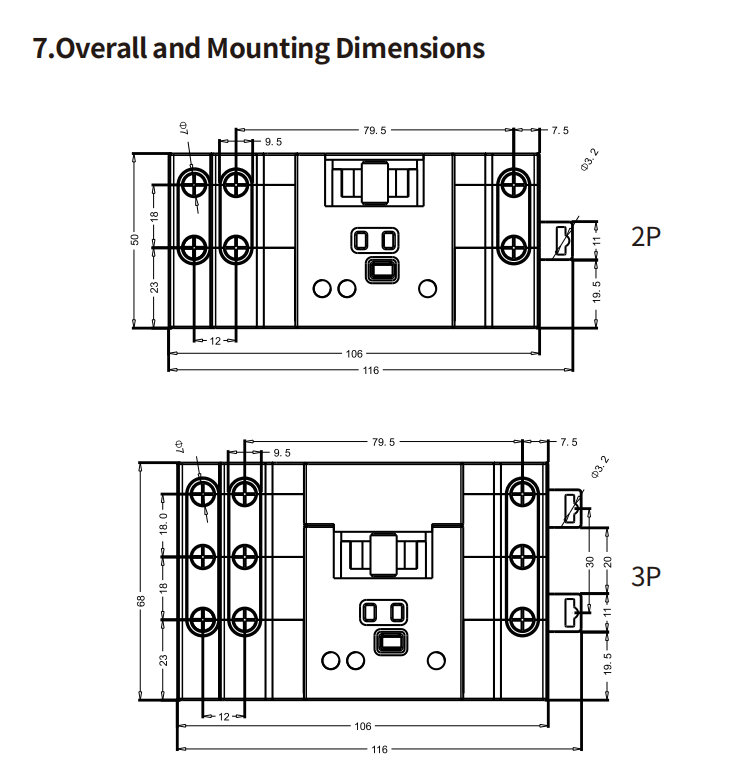

Space-Saving "Slim Model" Architecture: Upgrading a legacy home panel for solar integration usually requires installing a massive, unsightly sub-board. This ATS utilizes an ultra-compact "Slim" profile, allowing electrical contractors to seamlessly snap this 80A giant directly onto a standard 35mm DIN rail inside a crowded residential consumer unit.

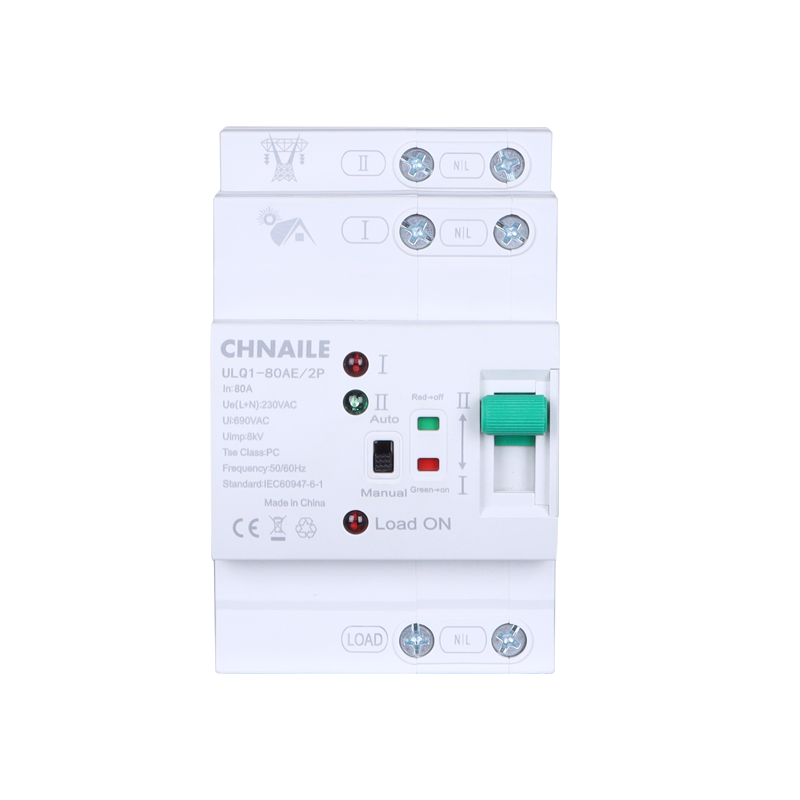

Intuitive Solar-Ready Iconography: The front fascia features permanently molded visual icons clearly designating Source II for the Municipal Grid (Transmission Tower icon) and Source I for Solar/Generators (House & Sun icon), practically eliminating wiring errors for off-grid DIY enthusiasts and professional installers alike.
3. Target Application Scenarios
Because of its ultra-fast 20ms transfer time, 80A high capacity, and moisture-proof circuitry, this ATS is exclusively sourced by specialized renewable EPCs for:
Luxury Smart Home Automation: Providing "zero-flicker" power continuity to ensure high-end home servers, security cameras, and centralized AV racks never reboot during a blackout.
Residential Solar-Hybrid Microgrids: Acting as the smart automated bridge that switches a villa's power from the failing municipal grid to the localized rooftop solar battery inverter seamlessly.
Off-Grid Cabins & Tiny Homes: Serving as the space-saving, highly durable main transfer switch in environments subjected to high humidity and temperature fluctuations.
Home Medical Equipment Backup: Guaranteeing that critical residential life-support machines and oxygen concentrators experience no perceptible power loss during grid transitions.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Smart Energy Supply: Sourcing ultra-fast, PC-Class transfer switches directly from our manufacturing floor eliminates international trader margins, providing your solar integration firm with a decisive financial advantage in high-end residential bids.
Exhaustive 20ms Oscilloscope Testing: We do not guess on speed. Every single ATS unit undergoes rigorous high-speed oscilloscope testing to guarantee the transfer mechanism physically breaks and makes the connection in exactly 20 milliseconds before it passes our strict QC control.
OEM Solutions for Inverter Brands: We actively partner with global solar inverter manufacturers, offering tailored OEM branding, customized faceplate iconography, and bespoke packaging for your complete residential solar-hybrid energy kits.
