NLL7-63
CHNAILE

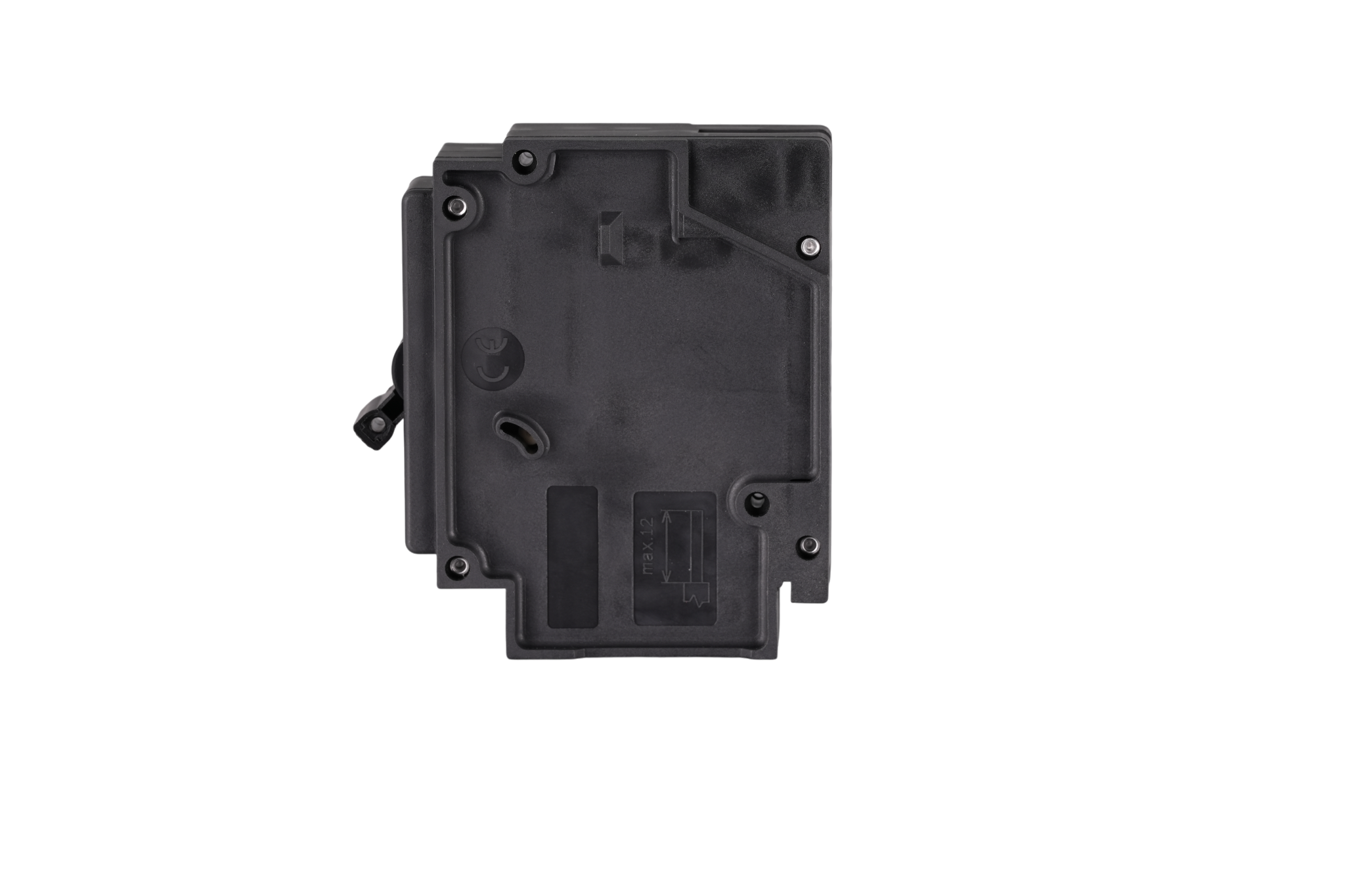

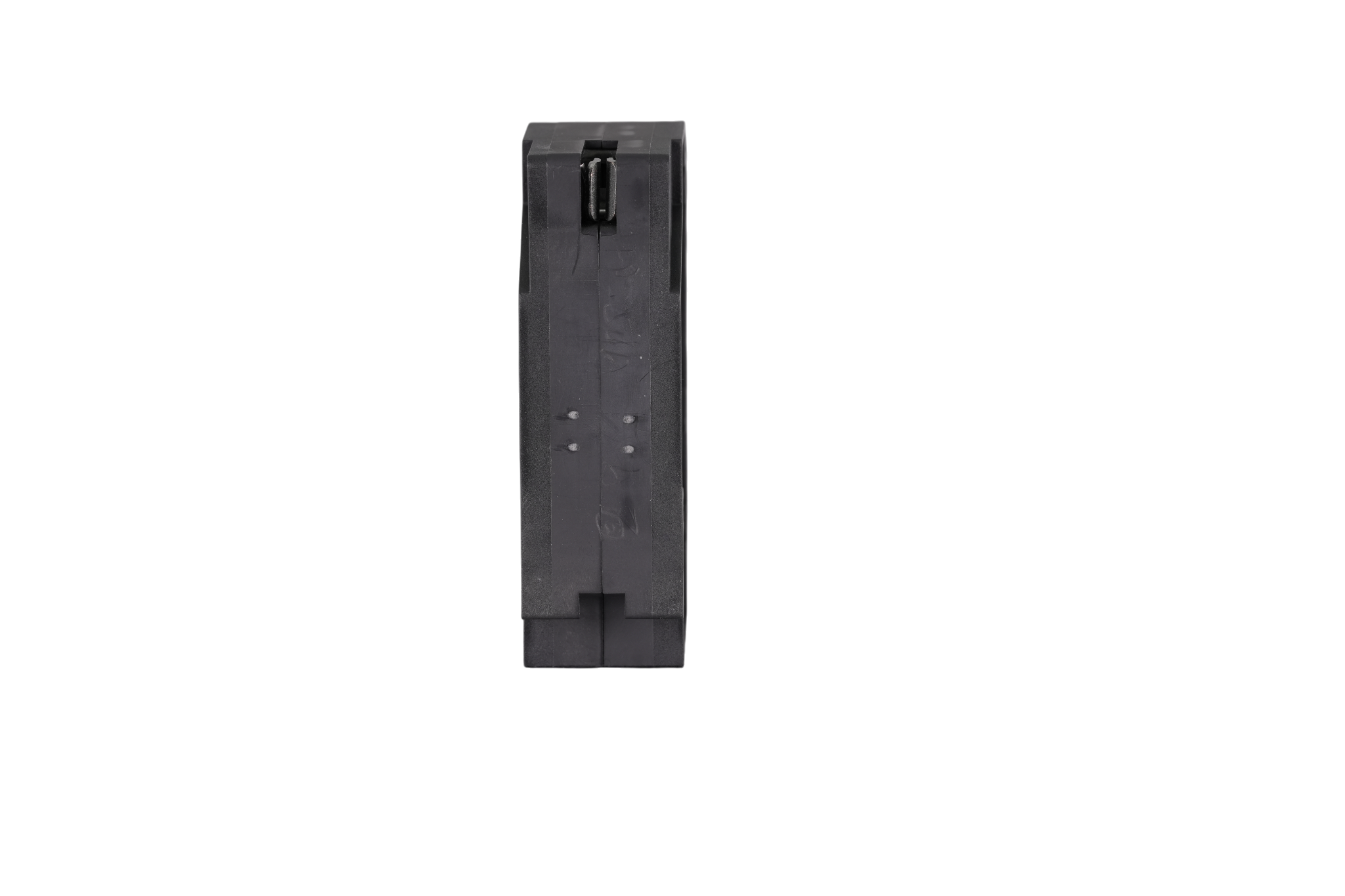

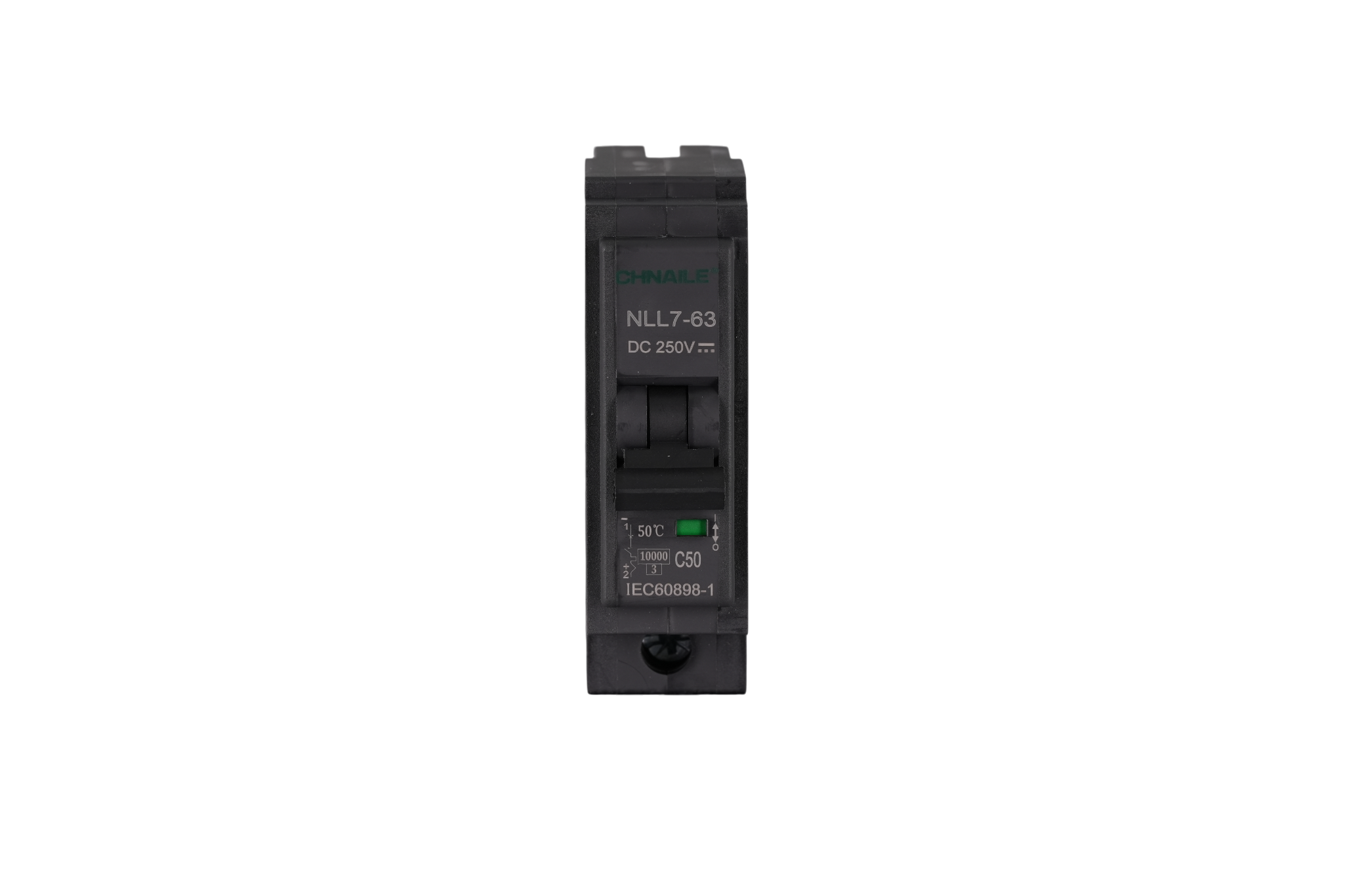

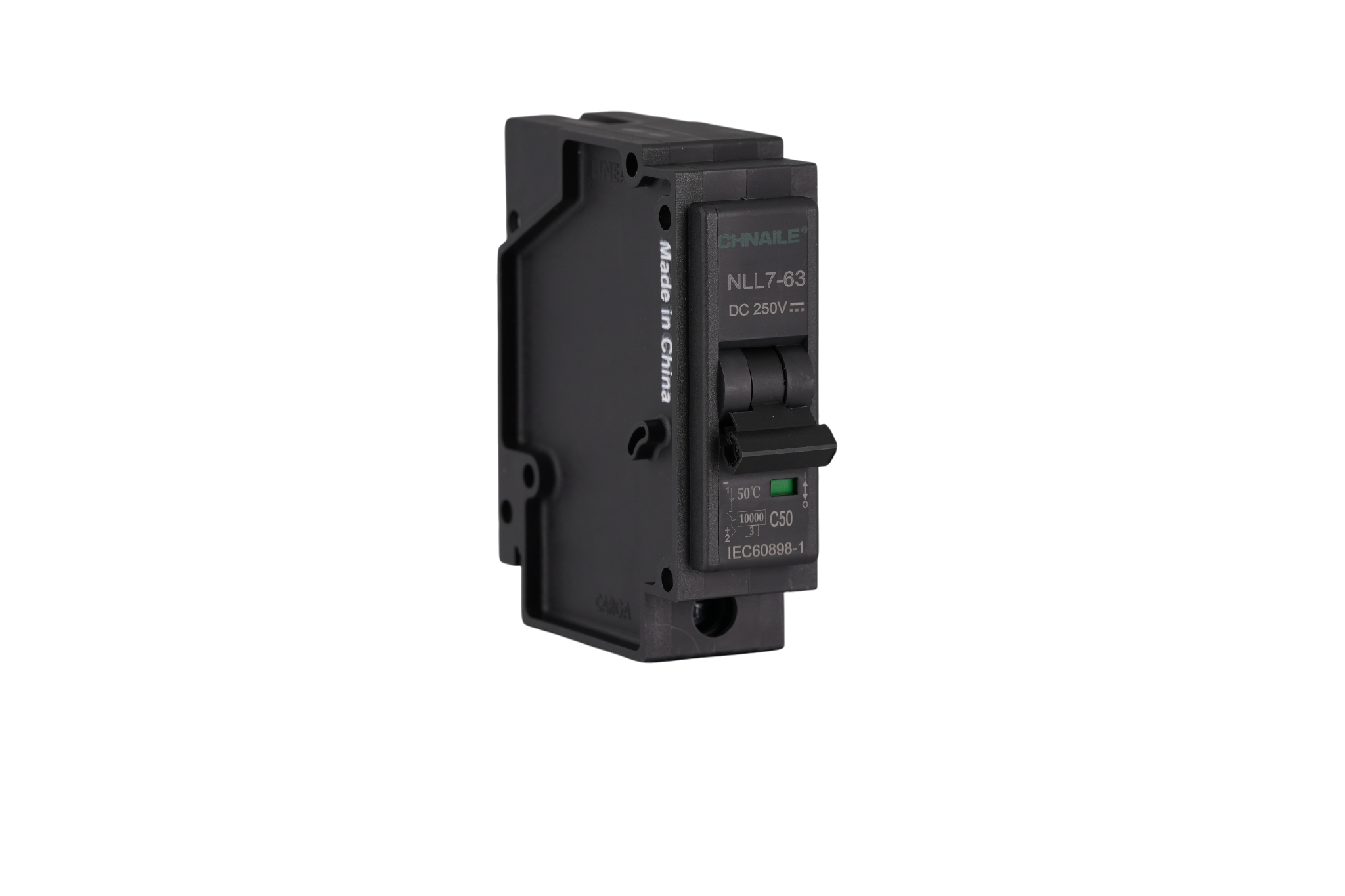

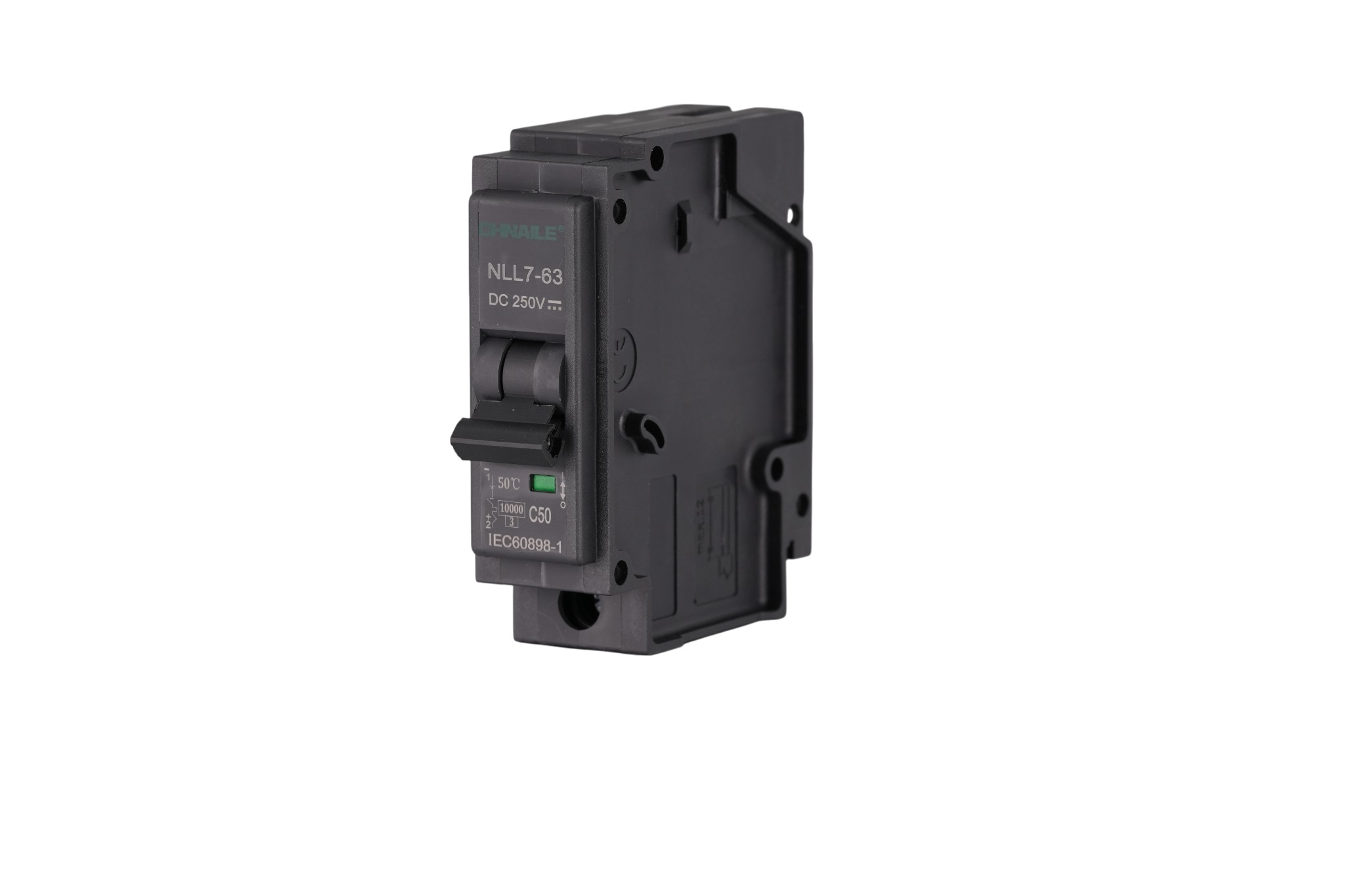

The CHNAILE NLL7-63 series Plug-in DC Miniature Circuit Breaker (MCB) is specially designed for direct current (DC) applications. With a rated voltage of DC 250V and a current rating of 63A (Curve C), it provides reliable overload and short-circuit protection for DC circuits. The unique "Plug-in" design ensures quick installation, easy maintenance, and minimal downtime.
Key Specifications
| Brand | CHNAILE |
| Model | NLL7-63 |
| Breaker Type | Plug-in Miniature Circuit Breaker |
| Current Type | DC |
| Rated Voltage (Ue) | DC 250V |
| Rated Current (In) | 63A |
| Trip Curve | Type C |
| Breaking Capacity (Icu) | 10000A (10kA) |
| Standard | IEC60898-1 |
Product Features
Plug-in Installation: Designed for fast plugging and unplugging, significantly reducing installation and replacement time compared to traditional DIN-rail wired breakers.
High Breaking Capacity: 10kA breaking capacity ensures superior safety and protection against severe short circuits.
Status Indicator: Features a clear visual indicator (Green/Red) to easily identify the ON/OFF status of the breaker.
Durable Construction: Made with flame-retardant materials for enhanced safety and long service life in demanding environments.
Applications
Ideal for various DC power systems, including:
Solar Photovoltaic (PV) Systems
Battery Storage and UPS Systems
Telecommunication Power Supplies
DC Distribution Networks
