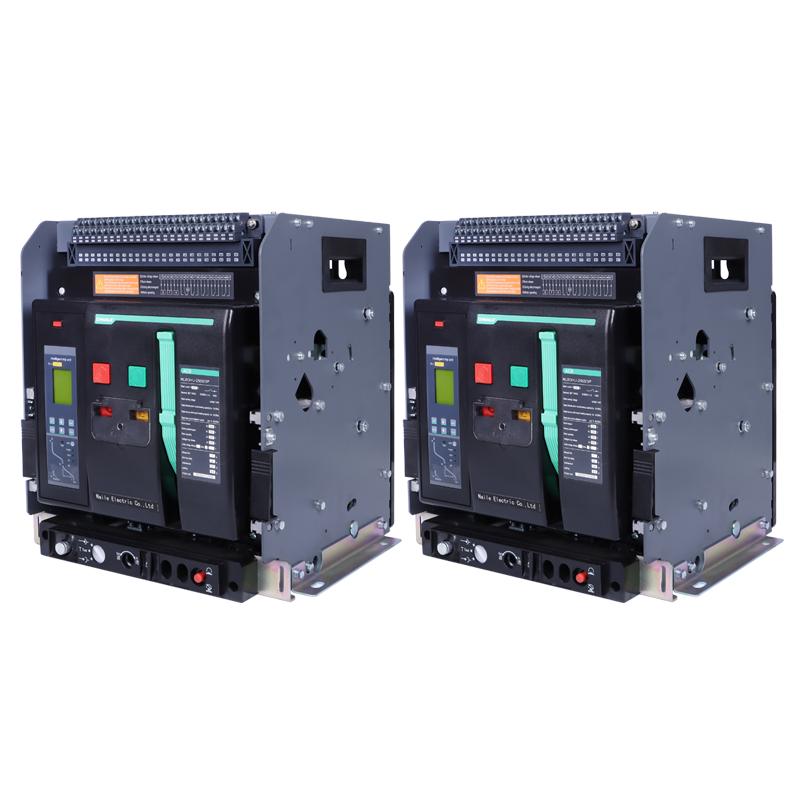

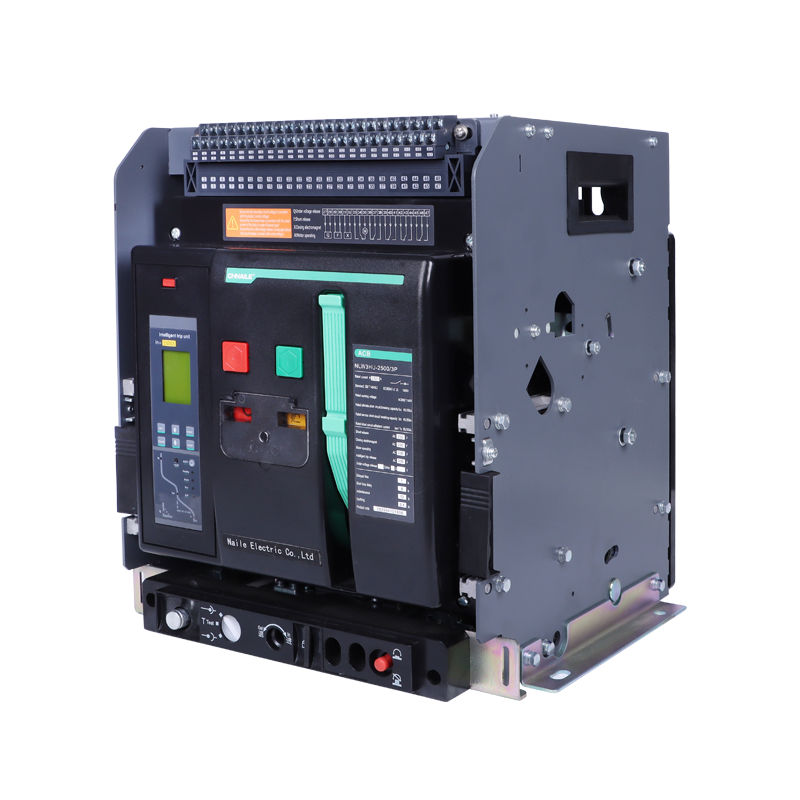

NLW3HU 2500A Drawout ACB
CHNAILE
Product Overview
Modern maritime ports and heavy municipal water treatment facilities present a unique electrical challenge: routing up to 5 Megawatts of power across extremely long piers or vast factory floors. Standard 400V systems fail due to massive thermal cable losses. The solution is AC 1140V distribution, and the CHNAILE Motorized 3-Pole Air Circuit Breaker (ACB) is the ultimate guardian for this ultra-high voltage architecture. Engineered to securely isolate 2500 Amperes of continuous current, this heavy-duty ACB incorporates an intelligent digital microprocessor to surgically manage catastrophic faults. Mounted on an industrial drawout chassis with built-in motorized actuators, it guarantees rapid, safe maintenance and remote SCADA synchronization for capital-intensive coastal and municipal infrastructure.
Technical Parameters
| Device Category: | Ultra-High Voltage Air Circuit Breaker (Universal ACB) |
| Poles Configuration: | 3P (Simultaneous 3-Phase Mega-Load Isolation) |
| Rated Current (In): | 2500A (Engineered for heavy pumping and maritime loads) |
| Rated Operating Voltage (Ue): | AC 800V / 1000V / 1140V (Extreme AC distribution limits) |
| Rated Insulation Voltage (Ui): | 1300V (Apex-tier dielectric firewall) |
| Rated Impulse Withstand Voltage (Uimp): | 12kV (Maximum atmospheric surge immunity) |
| Operation Mechanism: | AC 230V Motorized Drive & Manual Spring Charge |
| Control Core: | Intelligent Microprocessor Trip Unit (Full LSIG Matrix) |
| Installation Architecture: | Drawout / Withdrawable Type (Cradle mounted) |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |

1. Elite High-Voltage Maritime Defense
Surgical Pump & Motor Coordination (LSIG): Massive centrifugal pumps and port gantry cranes draw terrifying inrush currents. The advanced digital front panel empowers engineers to precisely program Long-delay, Short-delay, and Instantaneous thresholds. This guarantees that temporary start-up surges are tolerated, while genuine 1140V short circuits are extinguished instantly, preventing total port blackouts.
1140V Extreme Arc Vaporization: Interrupting a 2500A fault at 1140 Volts produces a violently expansive plasma explosion. This ACB utilizes colossal open-air de-ion arc chutes paired with aggressive magnetic blowouts to stretch, cool, and safely exhaust high-voltage plasmas away from the switchboard in milliseconds.
Automated SCADA Synchronization: Pre-equipped with AC 230V motorized actuators, closing electromagnets, and shunt releases. This allows the central harbor control room or water plant BMS to remotely execute massive grid-tie connections or emergency load-shedding with automated, robotic precision.

2. Heavy-Duty Drawout & Structural Engineering
3-Position Hot-Swap Chassis (In/Test/Out): In a bustling port where ships are waiting, downtime costs thousands per minute. Unbolting 2500A busbars is dangerously slow. The heavy-duty withdrawable base features a mechanical racking system. Using a dedicated hand crank, maintenance crews can smoothly retract the massive 100kg+ breaker into 'Test' or 'Disconnected' positions, achieving 100% visible, physical galvanic isolation for rapid module swapping.
1300V Dielectric Salt-Fog Armor: Coastal environments are plagued by high humidity and corrosive salt spray. Housed in a structurally reinforced, anti-tracking polymer block, the extraordinary Ui 1300V and Uimp 12kV ratings act as an impenetrable dielectric shield, preventing internal flashovers even during severe coastal lightning storms.
Massive Silver-Plated Busbar Interfaces: The rear drawout connections feature giant, high-purity copper blocks heavily plated with silver. This guarantees near-zero electrical resistance and monumental thermal dissipation while routing 2500 Amps of continuous power to demanding maritime equipment.

3. Target Application Scenarios
Because of its extremely rare AC 1140V rating, motorized automation, and 2500A footprint, this ACB is exclusively mandated by global EPCs for:
Port Terminal Shore Power (Cold Ironing): Serving as the ultra-reliable main AC disconnect feeding 1140V power from the municipal grid directly to docked cruise ships and container vessels, drastically reducing local emissions.
Mega Desalination Plants: Providing robust, vibration-resistant power distribution and extreme fault protection for the massive reverse-osmosis high-pressure pump arrays.
Shipyard Fabrication & Dry Docks: Acting as the critical main synchronization switch for heavy shipyard gantry cranes and mega-welding grids.
Deep Underground Pumping Stations: Managing the ultra-high voltage requirements of massive municipal deep-well water lift stations to minimize transmission line losses.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Procurement: Sourcing ultra-high-voltage motorized ACB switchgear directly from our manufacturing floor eliminates massive international trader margins, providing your engineering firm with a devastating financial advantage in government municipal bids.
Exhaustive 1140V FAT Verification: We do not gamble with extreme voltage. Every 2500A unit undergoes brutal thermal imaging, simulated ultra-high voltage short-circuit blasts, and rigorous mechanical racking tests to guarantee absolute IEC 60947-2 compliance before dispatch.
OEM Integration for MDB Builders: We actively partner with elite marine panel builders worldwide, providing comprehensive technical cradle installation support, customized intelligent controller programming, and bespoke branding for your premium 1140V switchboards.
