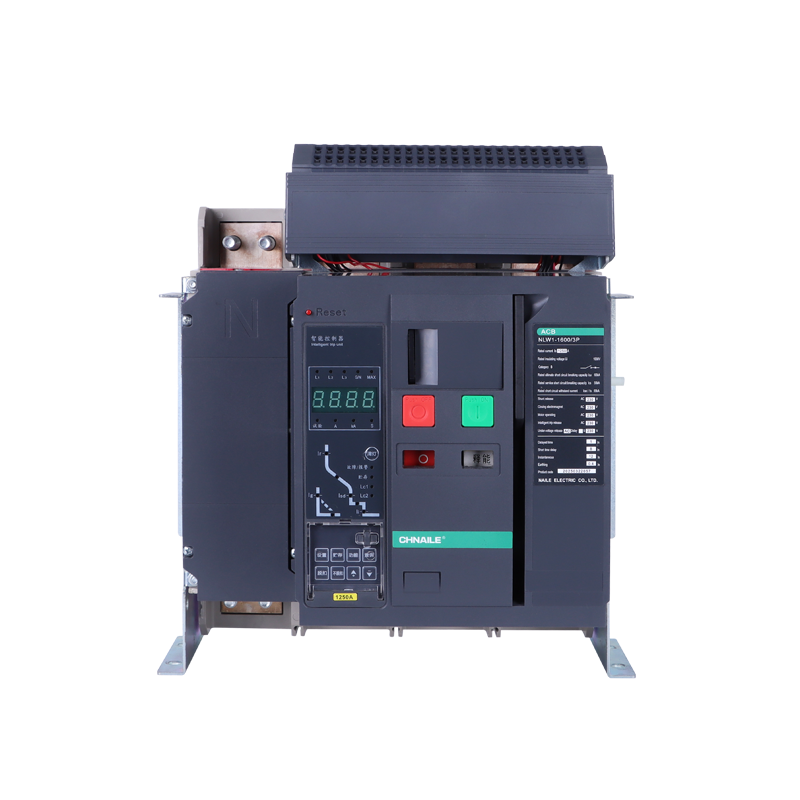

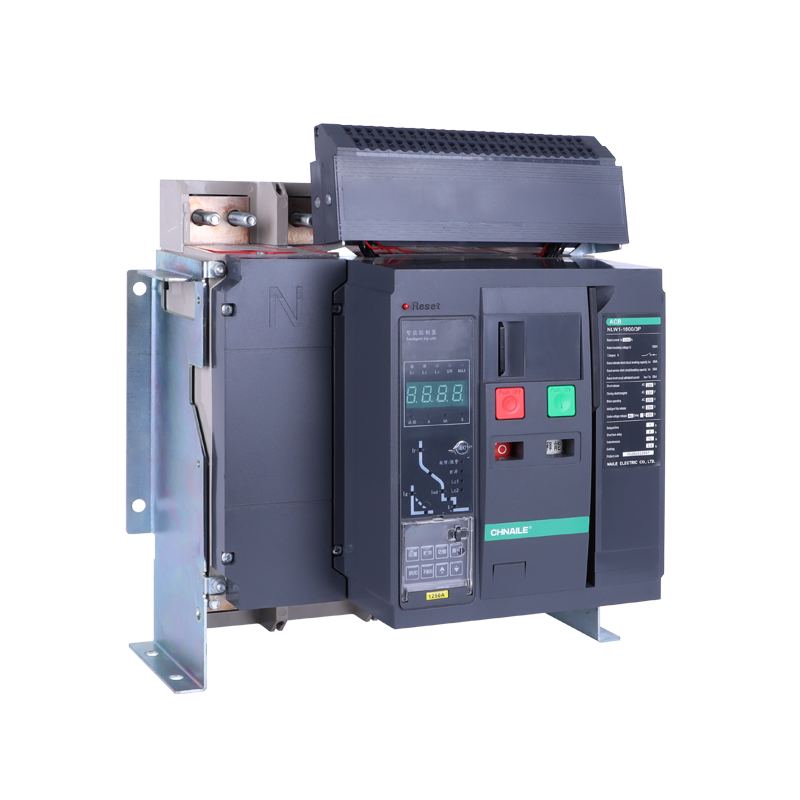

NLW1-1600H Compact ACB
CHNAILE
Product Overview
As global energy projects shift towards modular, off-site construction, Electrical Houses (E-Houses) and skid-mounted substations have become the industry standard. However, installing traditional, oversized Air Circuit Breakers into these confined enclosures creates severe thermal and spatial bottlenecks. The CHNAILE Plastic Frame Integrated Air Circuit Breaker resolves this engineering paradox. This hybrid marvel packs the uncompromising 1600-Ampere continuous capacity and intelligent microprocessor coordination of a heavy-duty ACB into a highly insulated, compact molded casing. Coupled with a brilliant modular accessory architecture for rapid maintenance, it empowers panel builders to design dramatically smaller, safer, and smarter megawatt-class distribution boards.

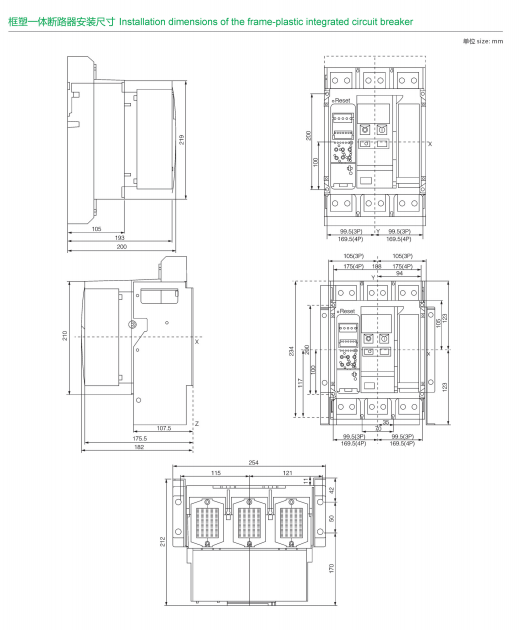

Technical Parameters
| Device Category: | Plastic Frame Integrated Circuit Breaker (Compact ACB) |
| Poles Configuration: | 3P (High-Density 3-Phase Isolation) |
| Frame Current (Inm): | 1600A (Maximized power-to-size ratio) |
| Structural Design: | Fully Insulated Thermosetting Plastic Frame |
| Internal Architecture: | Modular Plug-and-Play Components |
| Control Core: | Intelligent Microprocessor Trip Unit (Digital Display) |
| Protection Matrix: | Advanced LSIG (Long, Short, Instantaneous, Ground) |
| Integrated Accessories: | Closing Electromagnet, Shunt Release, Energy Storage Motor |
| Installation: | Fixed / Drawout Cradle Options |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |

1. Revolutionary Hybrid Architecture
The "Integrated Frame" Advantage: Traditional ACBs use open metallic frames requiring massive clearance distances to prevent arc flashovers. This device utilizes an advanced V0-rated thermosetting plastic shell that completely encapsulates the live components. This exceptional dielectric insulation drastically reduces the required safety clearances, allowing multiple 1600A units to be stacked tightly within modern, low-profile switchgear cabinets.
Modular Plug-and-Play Maintenance: Downtime in a power grid is unacceptable. The internal architecture features highly accessible, cartridge-style accessory modules. The Undervoltage Release, Shunt Release, Closing Electromagnet, and the Special Energy Storage Motor can be individually hot-swapped in minutes without dismantling the entire breaker mechanism, setting a new benchmark for field serviceability.

2. Intelligent Megawatt Control
Precision LSIG Coordination: Despite its compact footprint, the embedded digital controller sacrifices zero intelligence. Featuring a crisp digital interface, it allows facility engineers to sculpt precise tripping curves (Overload, Short-circuit short-delay, Instantaneous, and Earth-fault). This ensures perfect selective coordination with downstream miniature breakers, isolating faults locally without tripping the 1600A main feed.
Automated SCADA Synchronization: The pre-installed motorized operating mechanism and secondary terminal blocks allow for seamless integration into centralized Smart Grid dashboards, enabling remote generator tie-ins and automated load shedding across sprawling commercial complexes.

3. Target Application Scenarios
Because of its unparalleled power-to-size ratio and fully insulated frame, this Integrated ACB is heavily mandated by innovative EPCs for:
Containerized Substations (E-Houses): Serving as the ultimate space-saving main incoming switchgear for portable, containerized power stations used in remote mining and oil & gas fields.
Renewable Energy Skids: Providing compact, high-capacity isolation for pre-fabricated solar and wind power conversion skids where enclosure volume is strictly limited.
Marine & Offshore Switchboards: The fully insulated plastic frame acts as a superior barrier against salt-fog and humidity, making it ideal for cramped shipboard electrical rooms.
Urban High-Rise Retrofits: Allowing electrical contractors to upgrade aging building power feeds to 1600A without the catastrophic cost of expanding the existing concrete electrical vault rooms.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Modular Solutions: Sourcing compact, highly engineered switchgear directly from our R&D facility provides your panel-building firm with a significant competitive and spatial advantage over rivals using outdated, bulky ACBs.

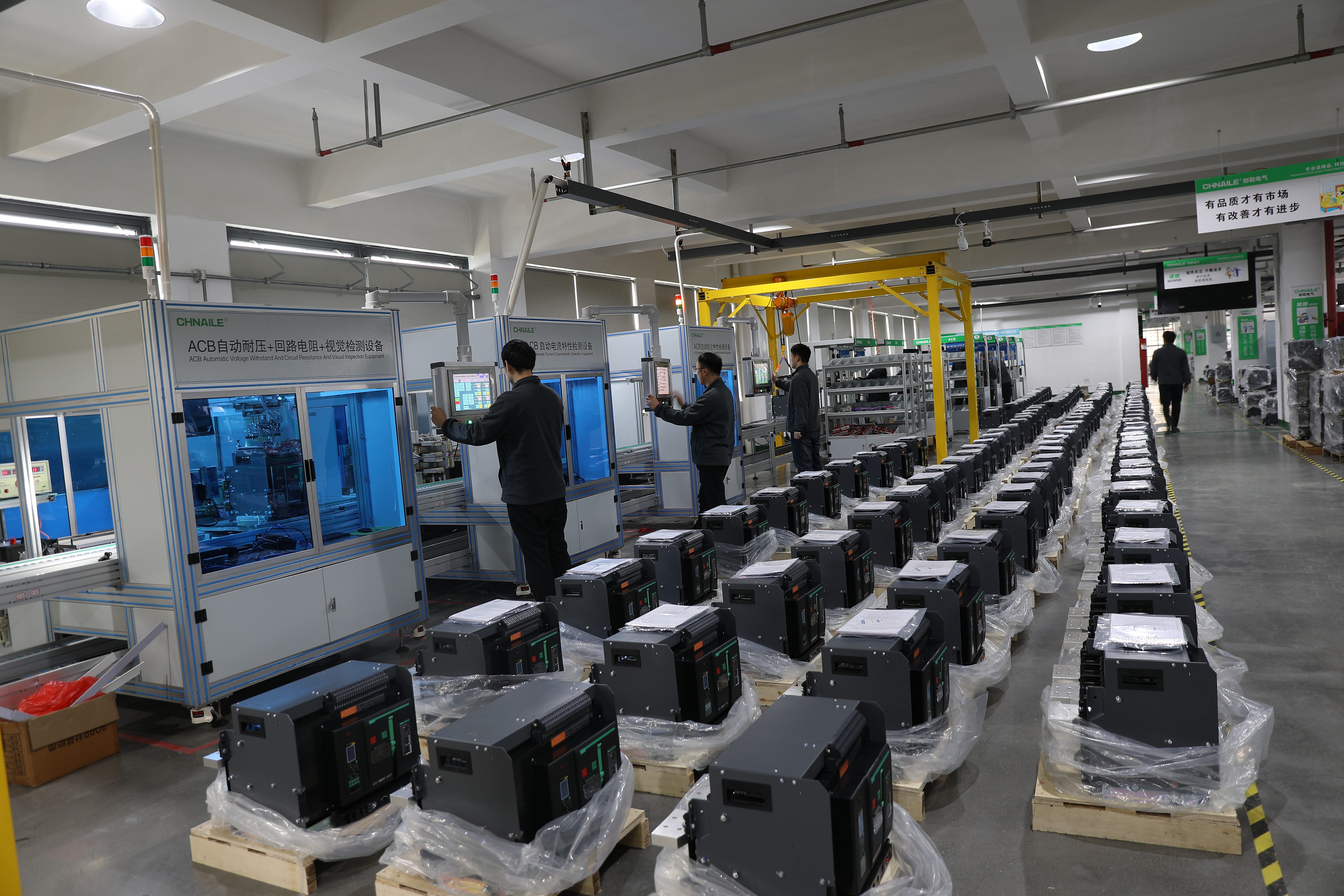

Rigorous Integrated Testing: We validate every innovation. Each Plastic Frame Integrated Breaker undergoes severe thermal dissipation testing inside confined simulation boxes, ensuring the 1600A load remains perfectly stable within its compact shell prior to export.
OEM Packaging for Skid Builders: We actively partner with global containerized substation manufacturers, offering tailored OEM branding, bespoke accessory configurations, and custom control voltages to integrate flawlessly into your turnkey E-House designs.
