Product Overview

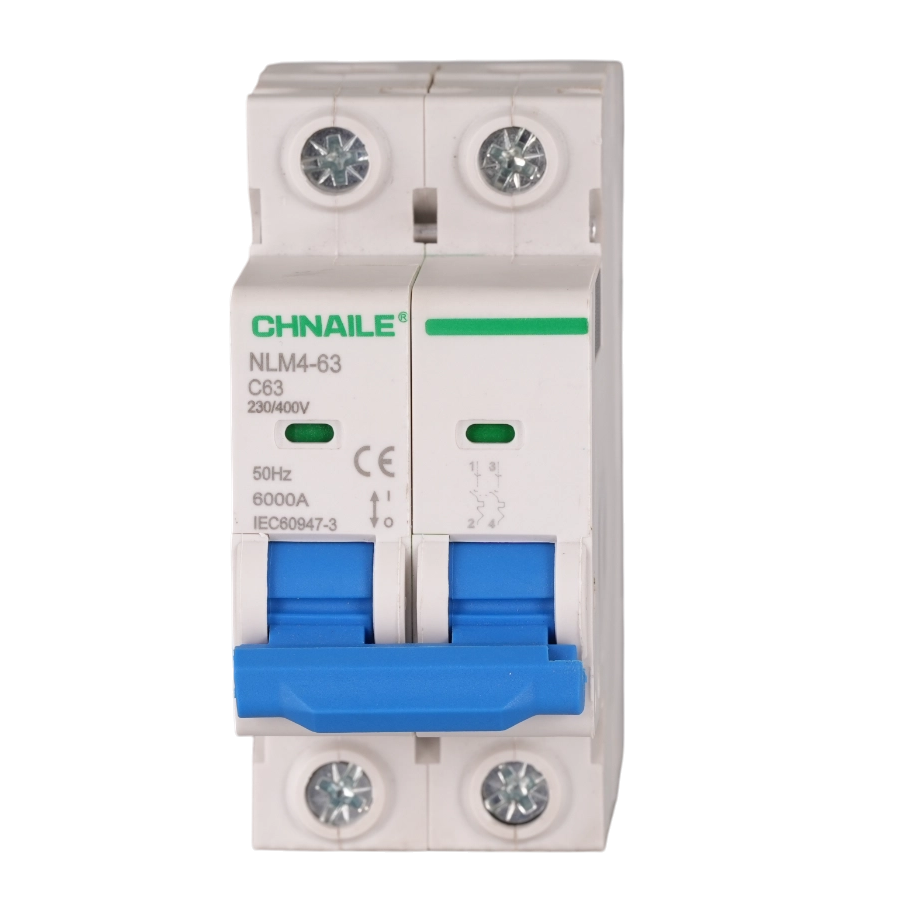

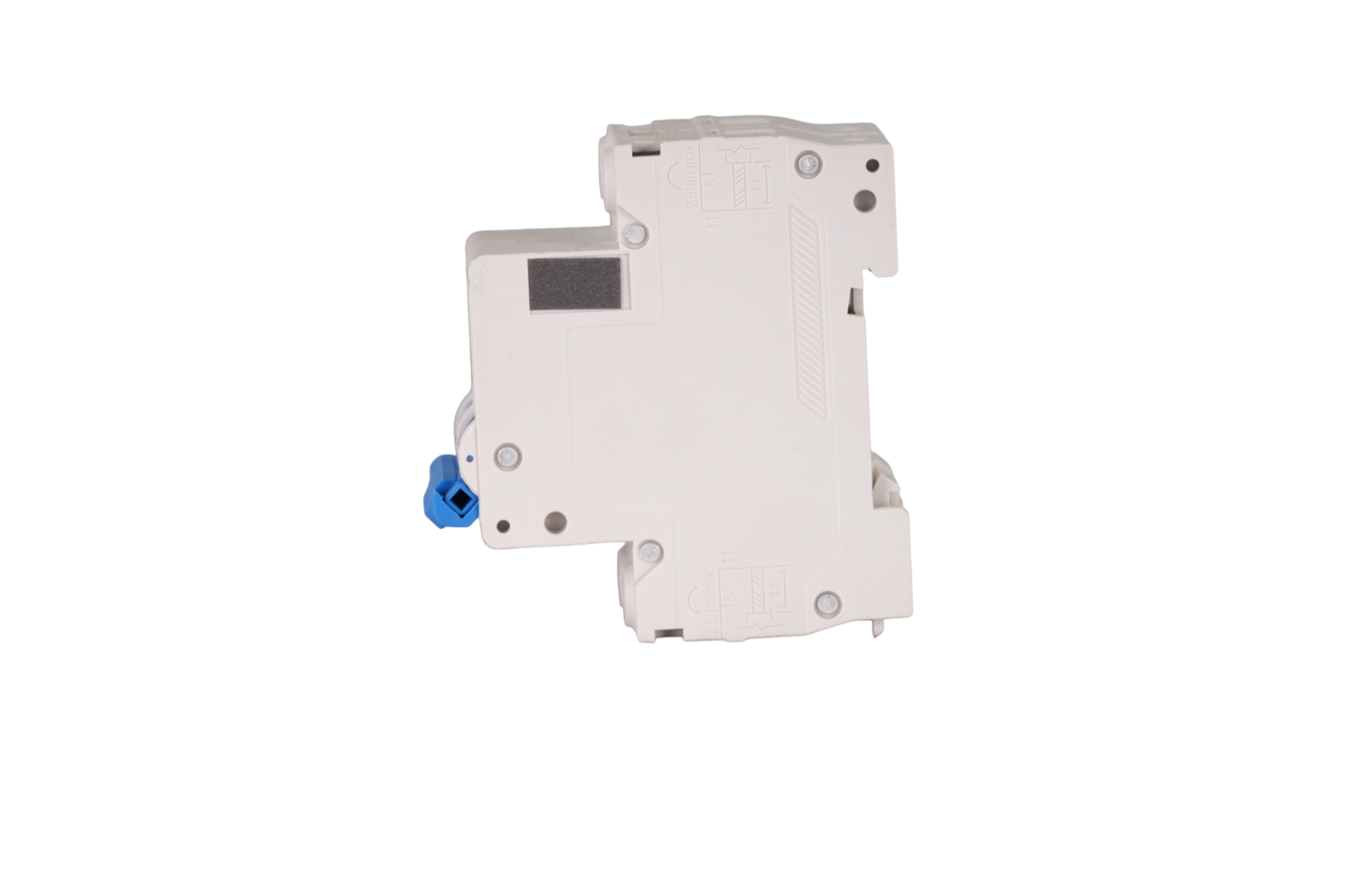

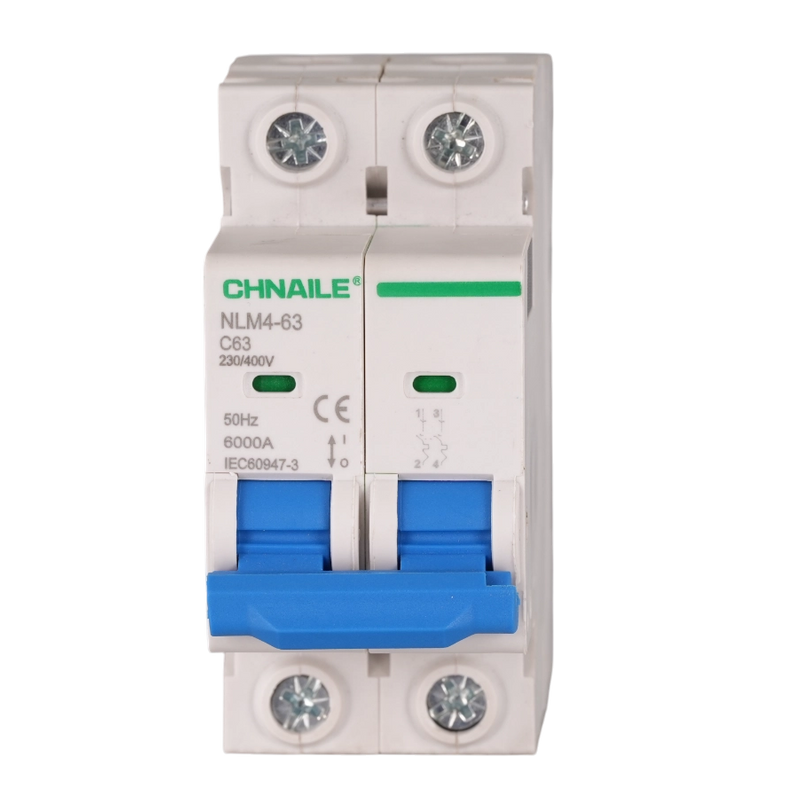

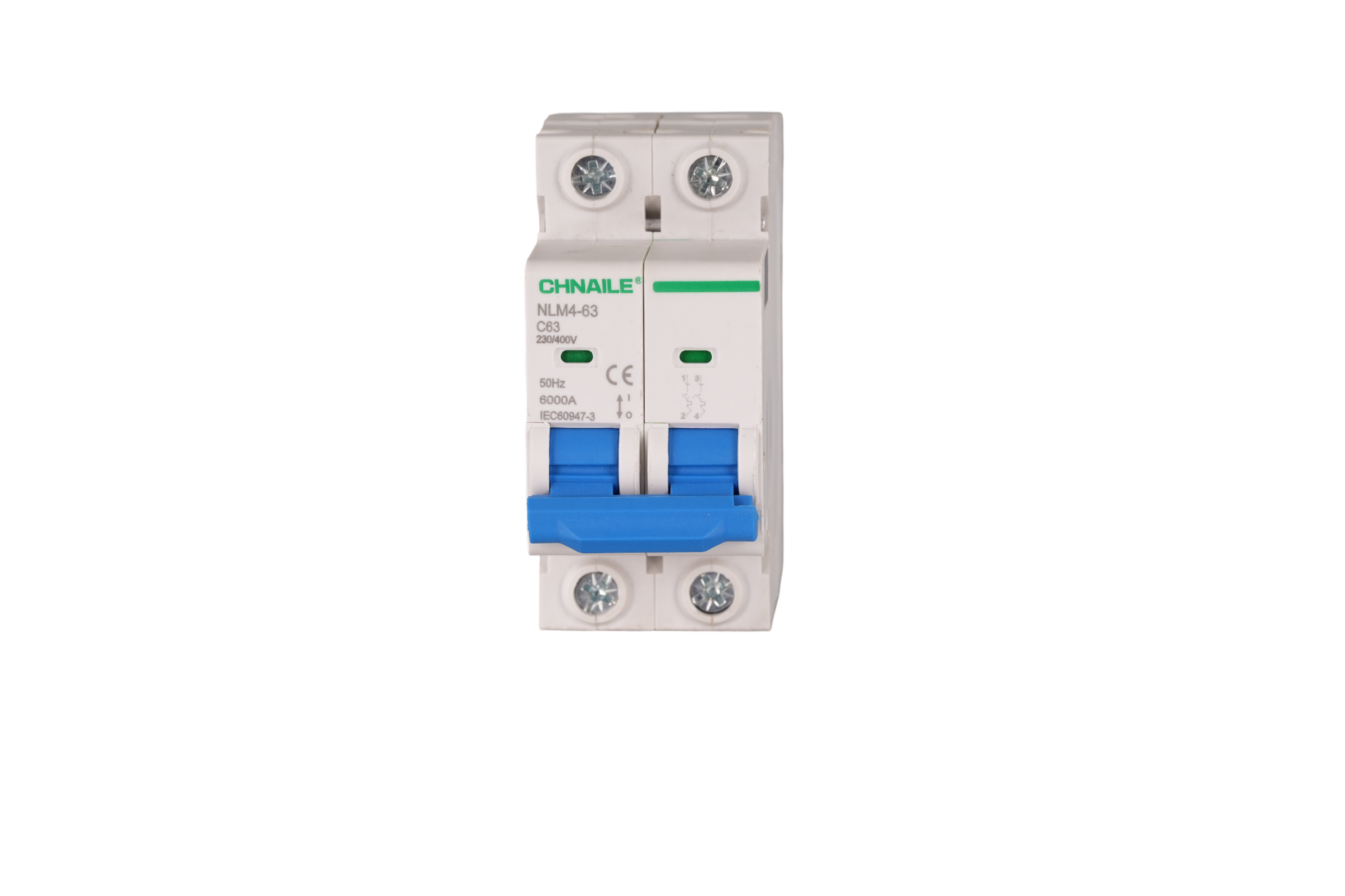

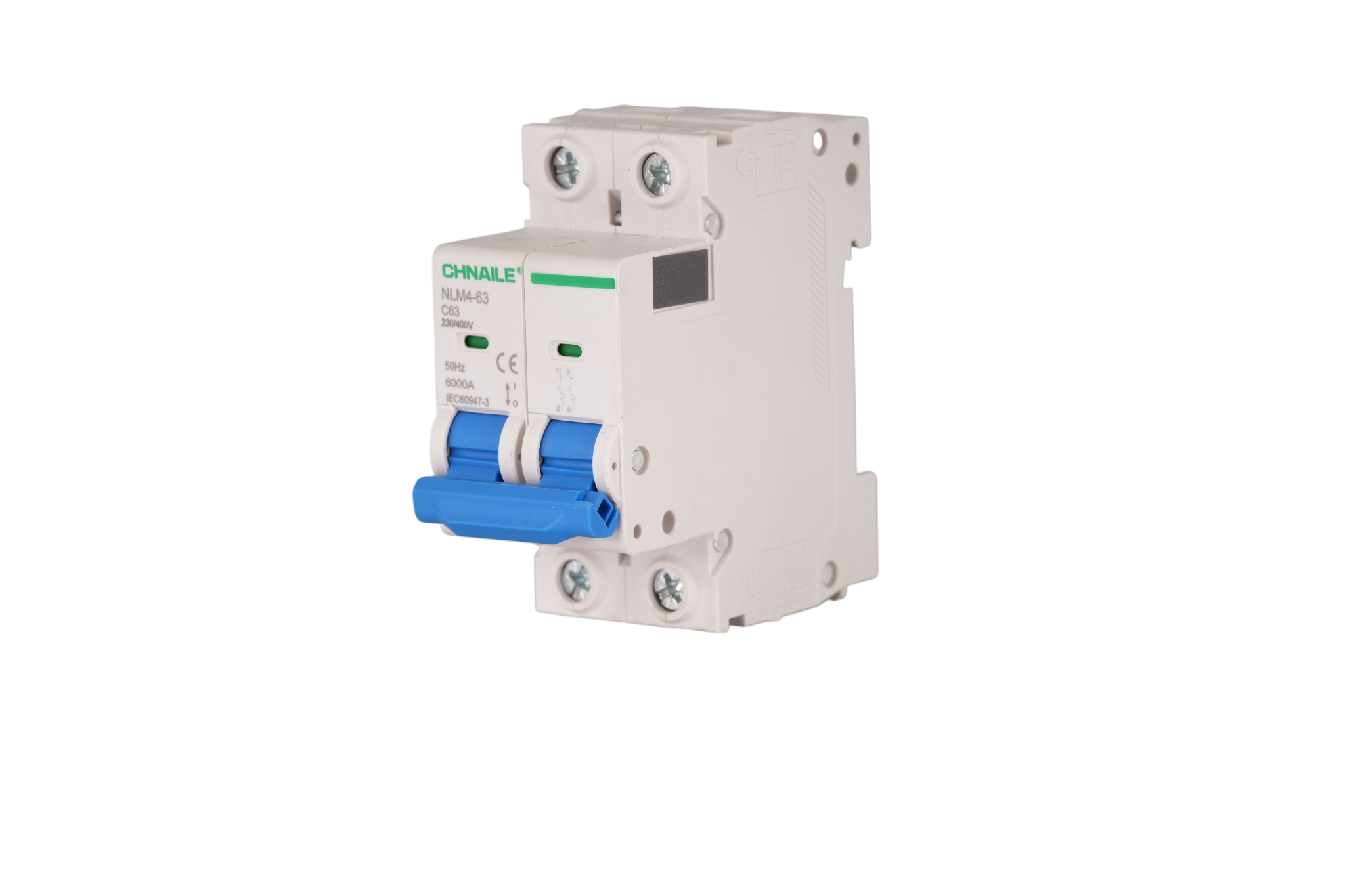

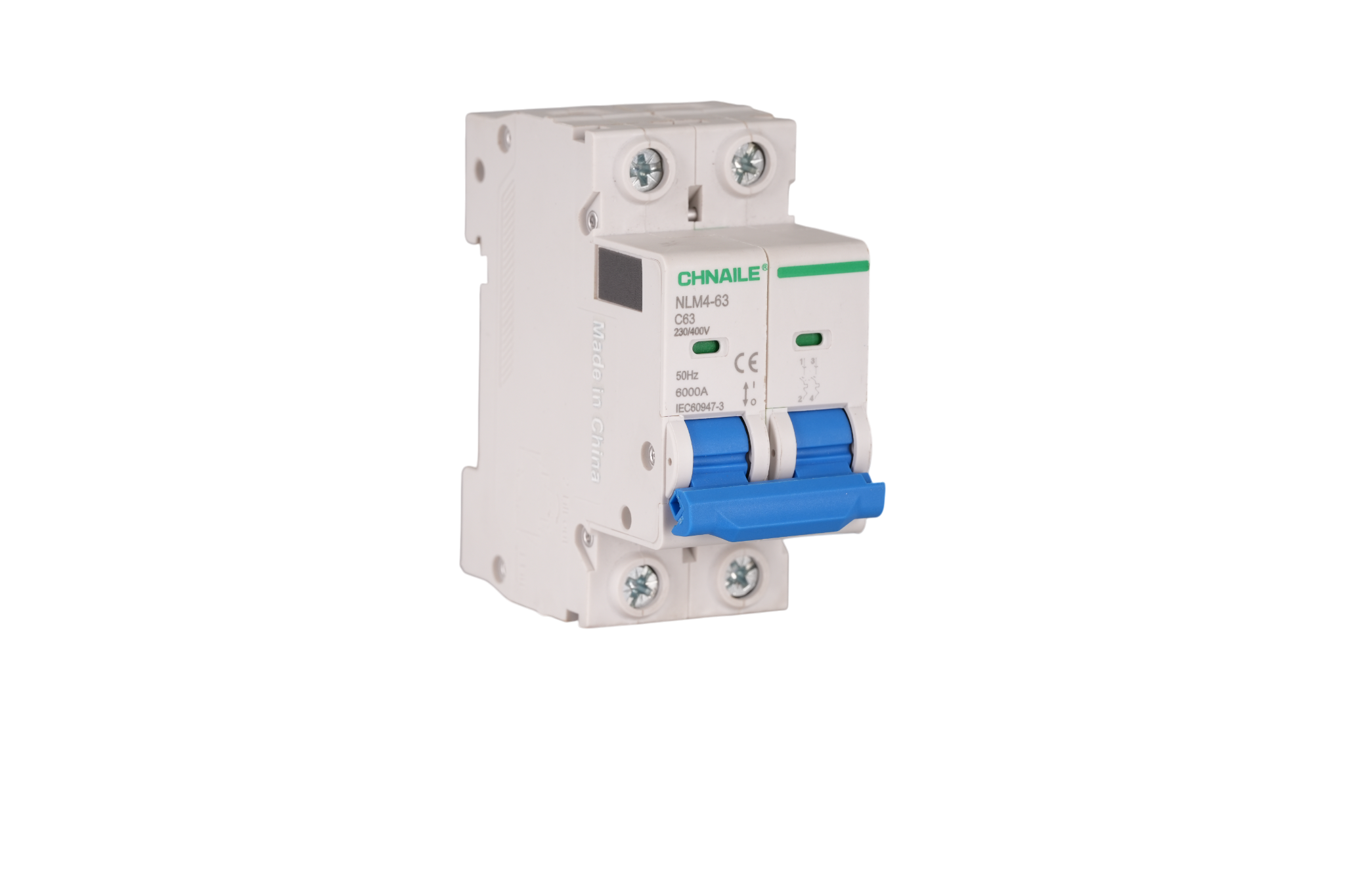

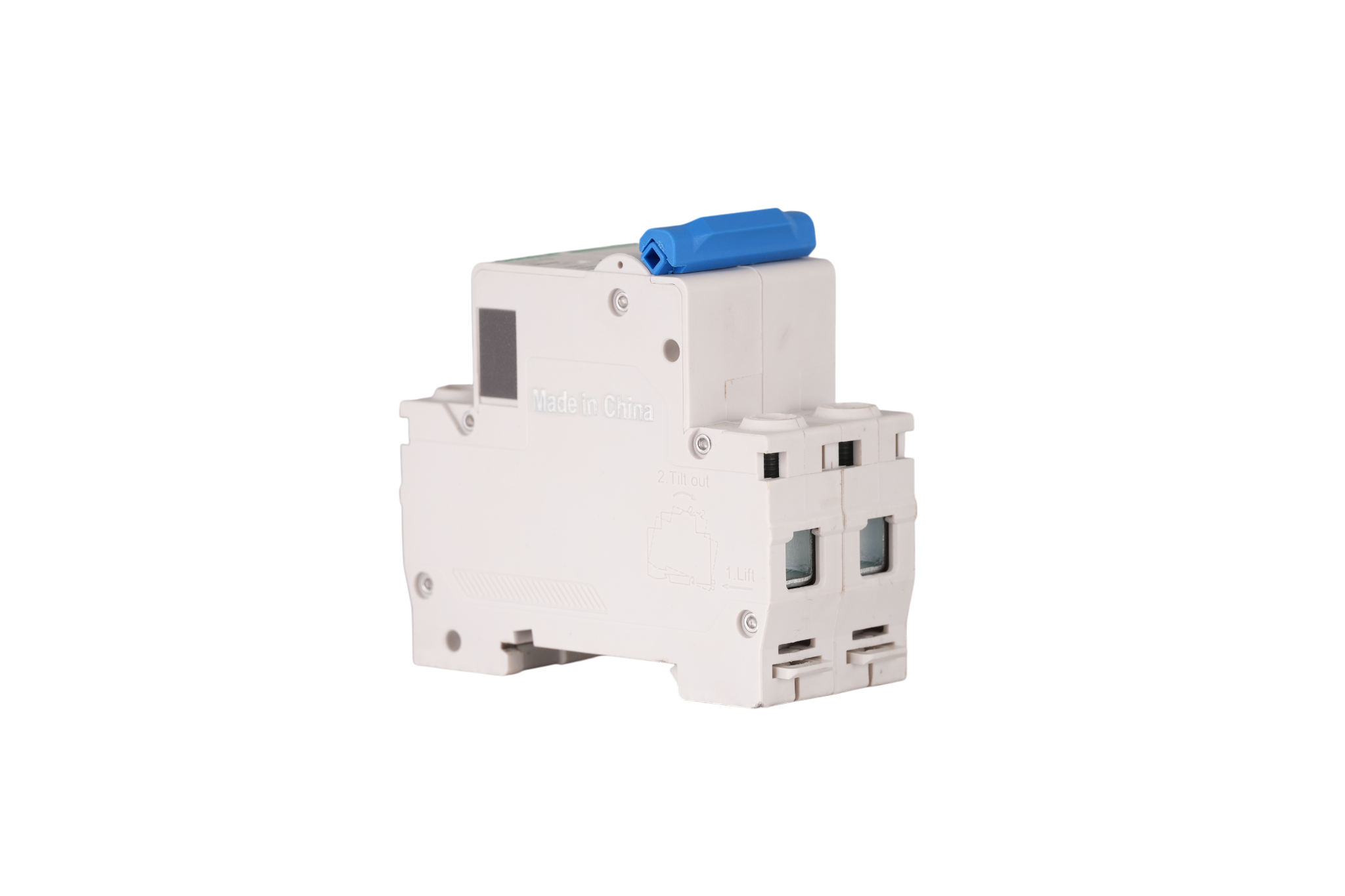

In complex power distribution networks like telecommunication shelters or large-scale off-grid solar setups, facility engineers must be able to instantly identify and isolate the main incoming power. The CHNAILE High-Capacity 2-Pole Miniature Circuit Breaker (MCB) solves this with its distinctive blue toggle design, specifically intended for "Color-Coded Critical Circuits." Beyond its aesthetic utility, this heavy-duty switchgear is a performance powerhouse. Calibrated to sustain a massive 63-Ampere continuous AC draw and equipped with a 6000A (6kA) fault interruption capacity, it guarantees total 2-wire electrical isolation. Fully compliant with international IEC safety standards, it is the premier choice for protecting mission-critical remote infrastructure.
Technical Parameters
Device Category: | AC Miniature Circuit Breaker (MCB) |
|---|---|
Poles Configuration: | 2P (Simultaneous Live & Neutral/2-Phase Disconnect) |
Rated Current (In): | 63A (Maximum heavy-duty MCB capacity) |
Rated Operating Voltage (Ue): | AC 230/400V |
Rated Frequency: | 50/60Hz |
Short-Circuit Breaking Capacity (Icu): | 6000A (6kA) |
Trip Curve Type: | Curve C (Optimized for telecom rectifiers and solar inverters) |
Visual Identifier: | Industrial Blue Toggle (For critical/backup power circuits) |

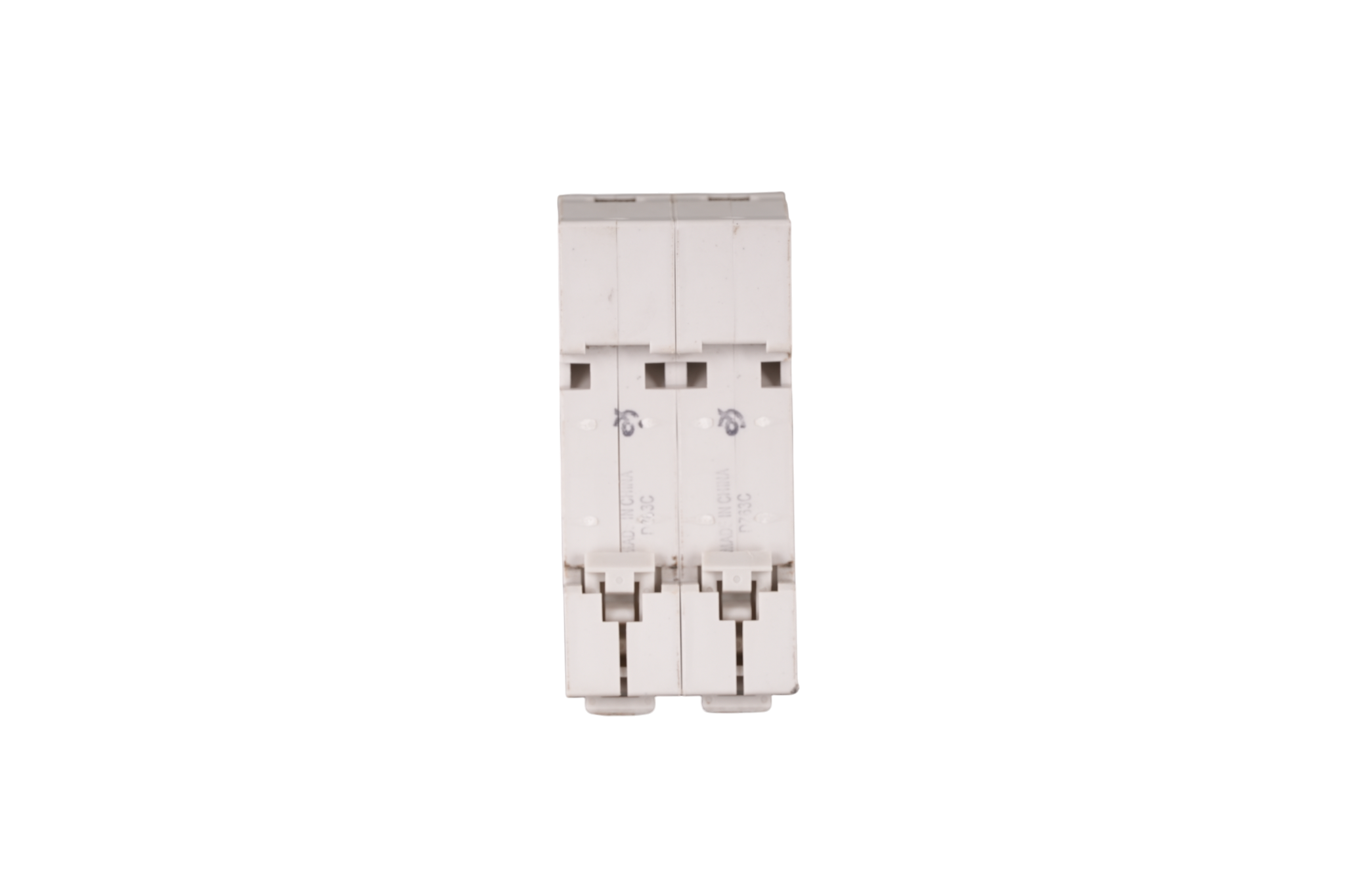

Installation: | 35mm Standard DIN-Rail Snap-on |
Standard Compliance: | IEC / EN International Standards |
1. Elite High-Demand Protection Mechanisms
Continuous 63A Inverter/Rectifier Support: Telecommunication equipment and solar inverters draw constant, heavy current 24/7. The massively upscaled bi-metallic elements inside this breaker are explicitly designed to withstand this relentless thermal load without yielding to premature degradation or nuisance tripping.
Simultaneous Bipolar Isolation: When conducting maintenance on off-grid systems, return currents can be deadly. This 2P mechanism guarantees that both the active phase and the neutral line are severed simultaneously, rendering the downstream panel completely dead and 100% safe to service.
Instantaneous Arc Vaporization: Incorporates advanced magnetic trip coils and high-density arc chutes that violently draw and extinguish massive 6kA short-circuit spikes in milliseconds, securing the enclosure from electrical fires.
2. Specialized Structural Engineering
Color-Coded Operational Efficiency: The highly visible blue toggle switch allows maintenance crews and facility managers to instantly distinguish the main incomer or emergency backup circuit from standard distribution breakers during a stressful grid-down scenario.
Oversized Cable Terminations: Routing 63 Amps requires exceptionally thick wiring. The heavy-duty screw terminals are widened and reinforced to accept thick-gauge industrial cables, ensuring maximum clamping torque, zero voltage drop, and cool operation.
V0-Rated Thermal Armor: Housed in a structurally rigid, fire-retardant thermosetting polymer block. It easily dissipates the significant heat generated by 63A continuous transmission inside sealed, non-ventilated outdoor telecom cabinets.
3. Target Application Scenarios
Because of its massive 63A rating and distinctive critical-circuit coloring, this 2-Pole MCB is heavily requested by global EPCs for:
Telecommunication Base Stations: Acting as the primary AC input disconnect for heavy-duty 5G telecom rectifiers and battery backup power shelves.
Off-Grid Solar AC Distribution: Serving as the mandatory main AC breaker between high-capacity hybrid solar inverters and the property's main load center.
Marine & RV Power Hubs: Providing vibration-resistant, heavy-duty isolation for the main shore-power connections on luxury yachts and large recreational vehicles.
Emergency Backup Generators: Utilizing the blue toggle to clearly mark the dedicated distribution lines fed by commercial diesel generator sets.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Supply: Bypass trading company markups. We provide aggressive, direct-from-factory wholesale pricing to significantly optimize the Bill of Materials (BOM) for your renewable and telecom projects.

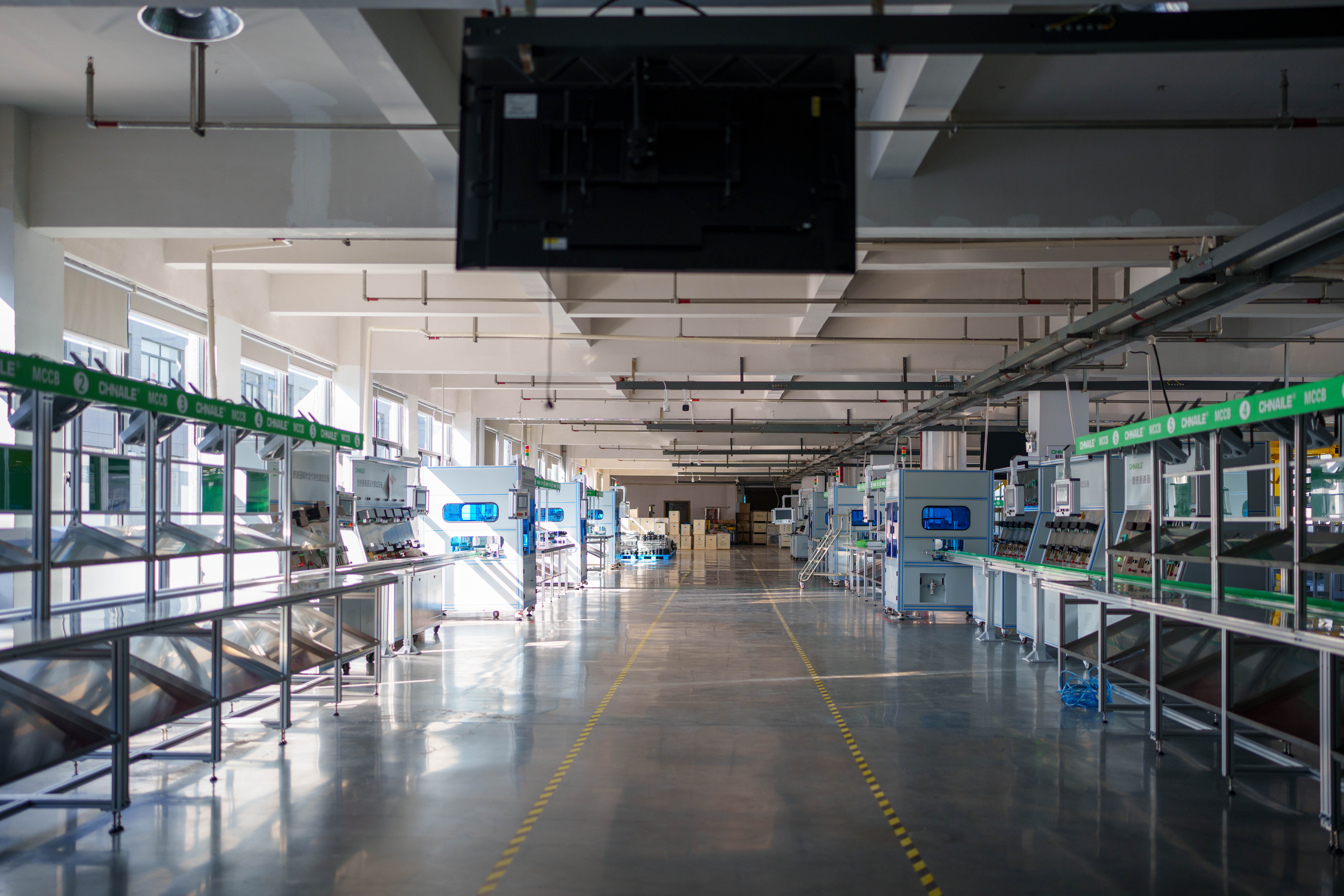

Rigorous 63A Thermal Calibration: We do not gamble with maximum-capacity breakers. Every 63A unit is subjected to exhaustive automated continuous-load heat testing and 6kA short-circuit simulations prior to export.
Custom OEM Solutions for Panel Builders: We offer comprehensive white-labeling services, including bespoke laser-engraved faceplates and specific toggle color-coding (Red, Blue, Black) to perfectly match your proprietary switchboard designs.
