Product Overview

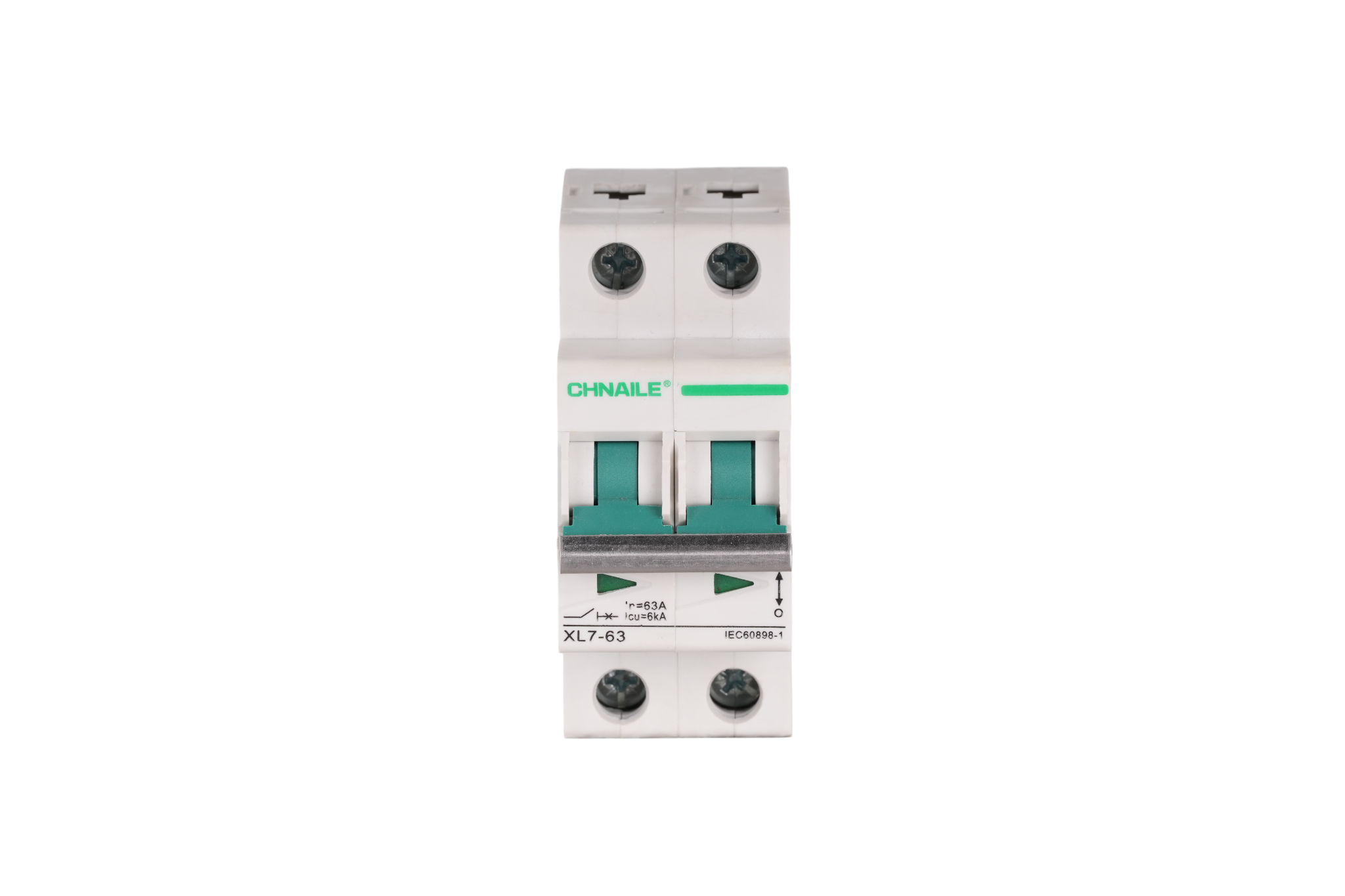

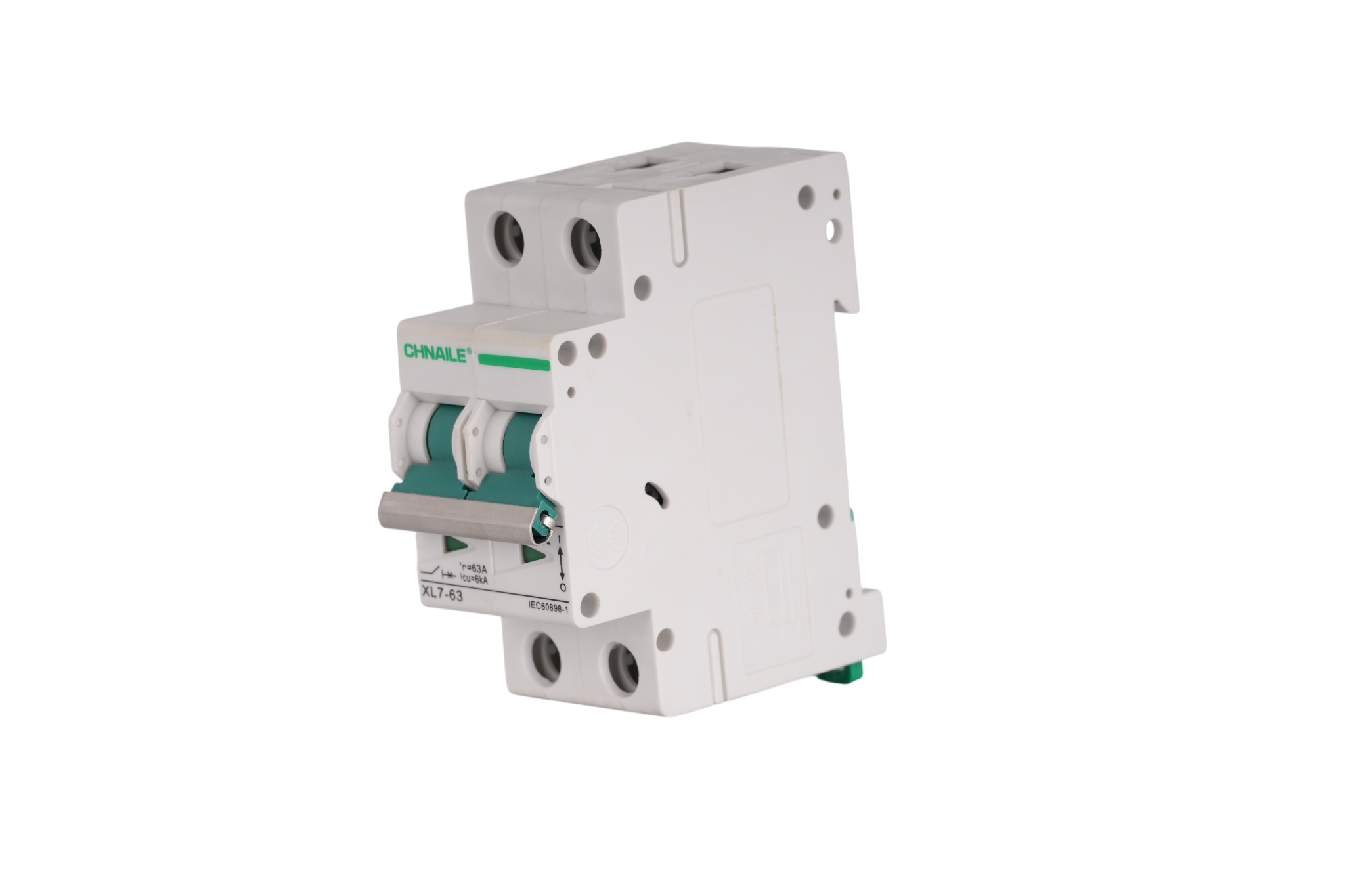

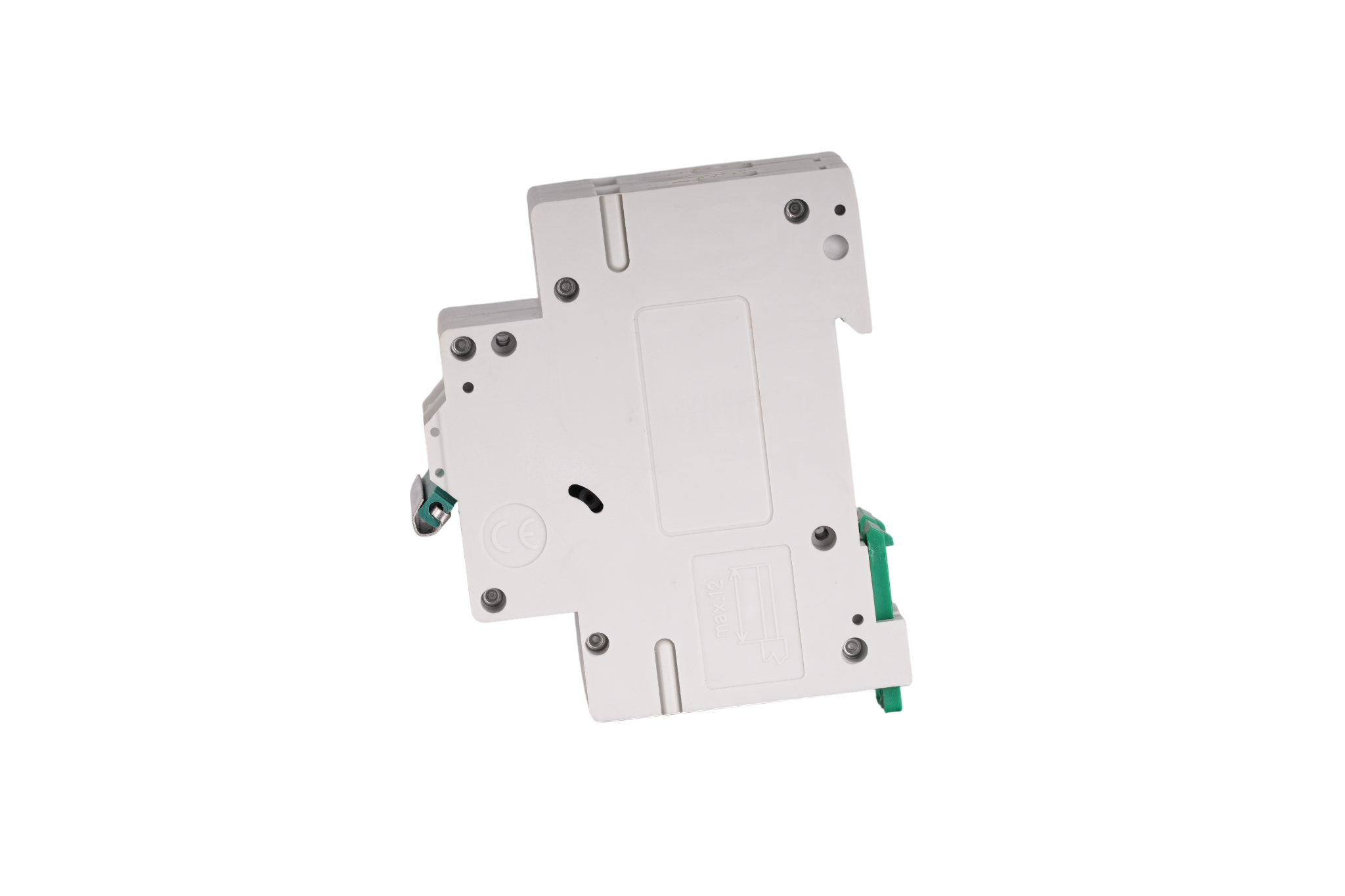

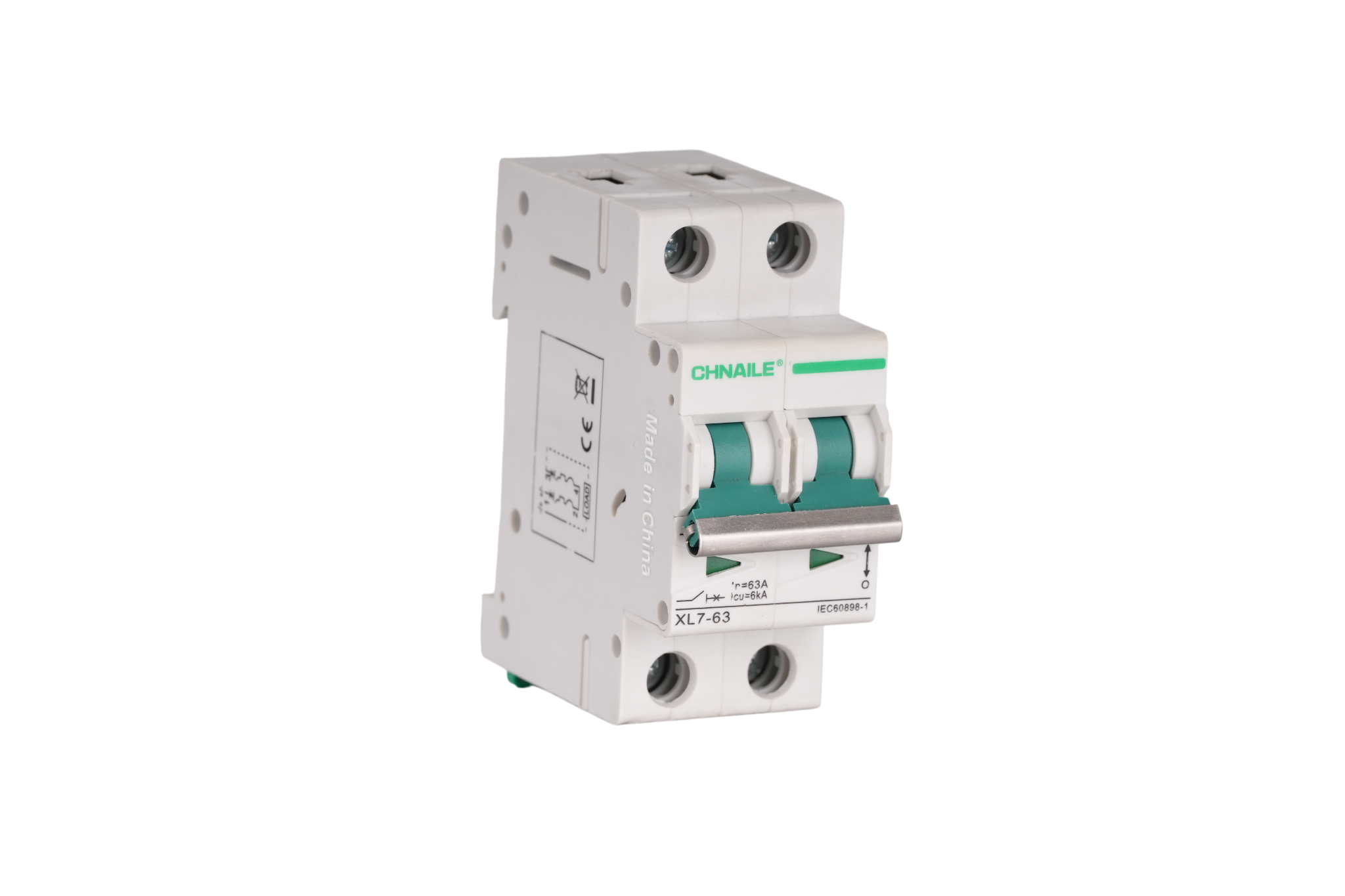

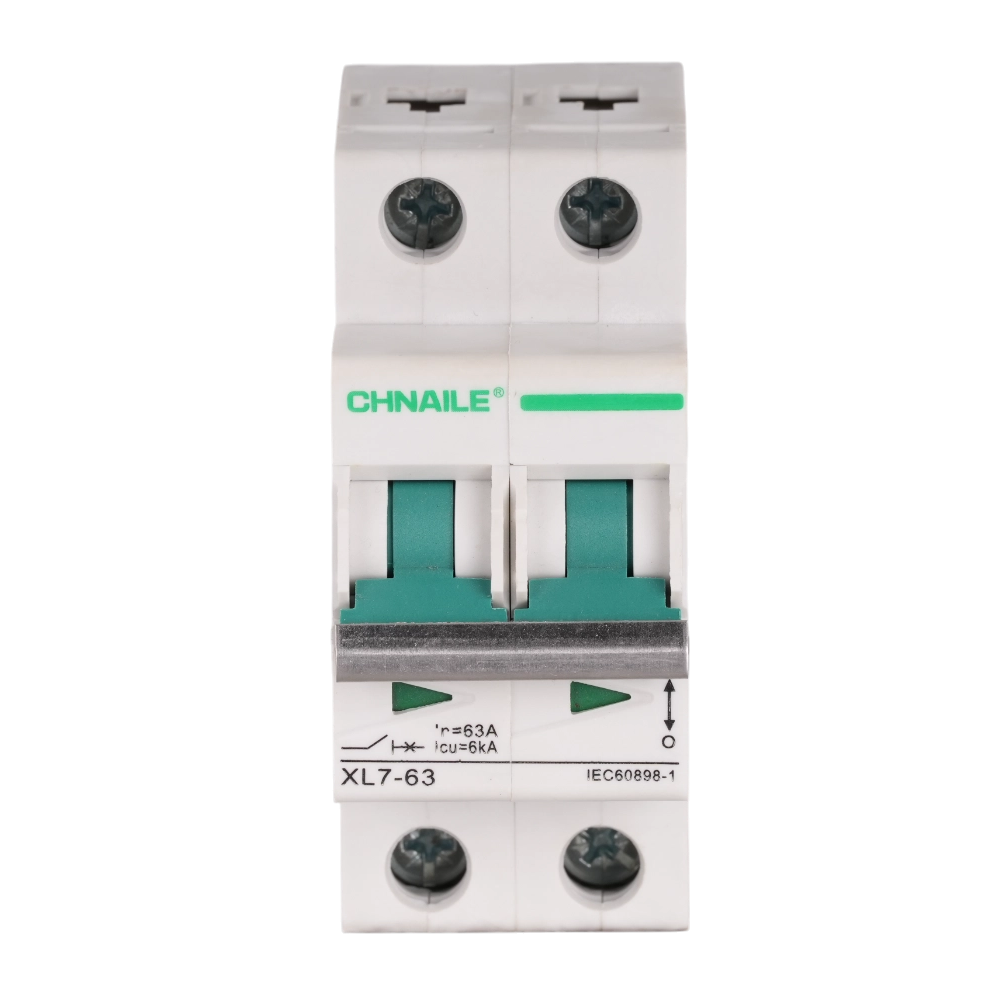

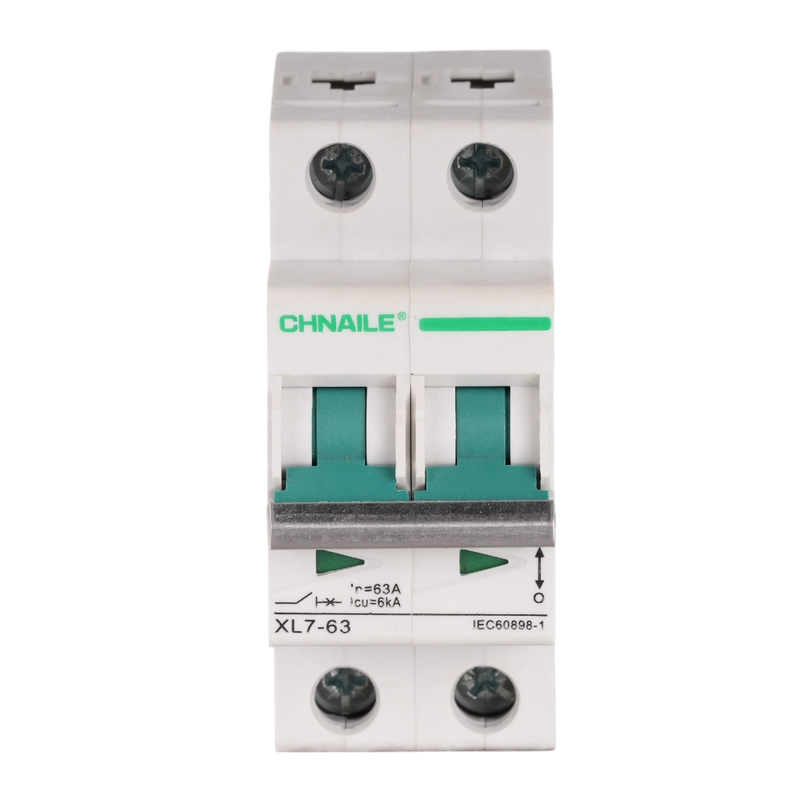

As residential properties evolve into high-consumption smart homes equipped with localized solar generation, standard single-pole breakers are no longer adequate for main power isolation. The CHNAILE High-Capacity 2-Pole AC Miniature Circuit Breaker (MCB) is designed to serve as the impenetrable electrical gateway for modern single-phase (L+N) networks. Calibrated to command massive 63-Ampere continuous loads, it effectively manages the intense AC output of residential string inverters. The integration of a vivid green operational toggle provides electricians with instant visual confirmation of circuit isolation. Capable of violently extinguishing 6000A fault plasmas, this IEC-certified switchgear guarantees zero-voltage safety during critical grid-tie maintenance.
Technical Parameters
Device Category: | AC Miniature Circuit Breaker (Main Isolator MCB) |
Poles Configuration: | 2P (Simultaneous Live & Neutral Disconnect) |
Rated Current (In): | 63A (Maximum capacity for heavy single-phase loads) |
Rated Operating Voltage (Ue): | AC 230/400V |
Rated Frequency: | 50/60Hz |
Short-Circuit Breaking Capacity (Icu): | 6000A (6kA) |
Visual Identifier: | Industrial Green Toggle (Denotes Safe Isolation / Green Energy) |
|---|---|

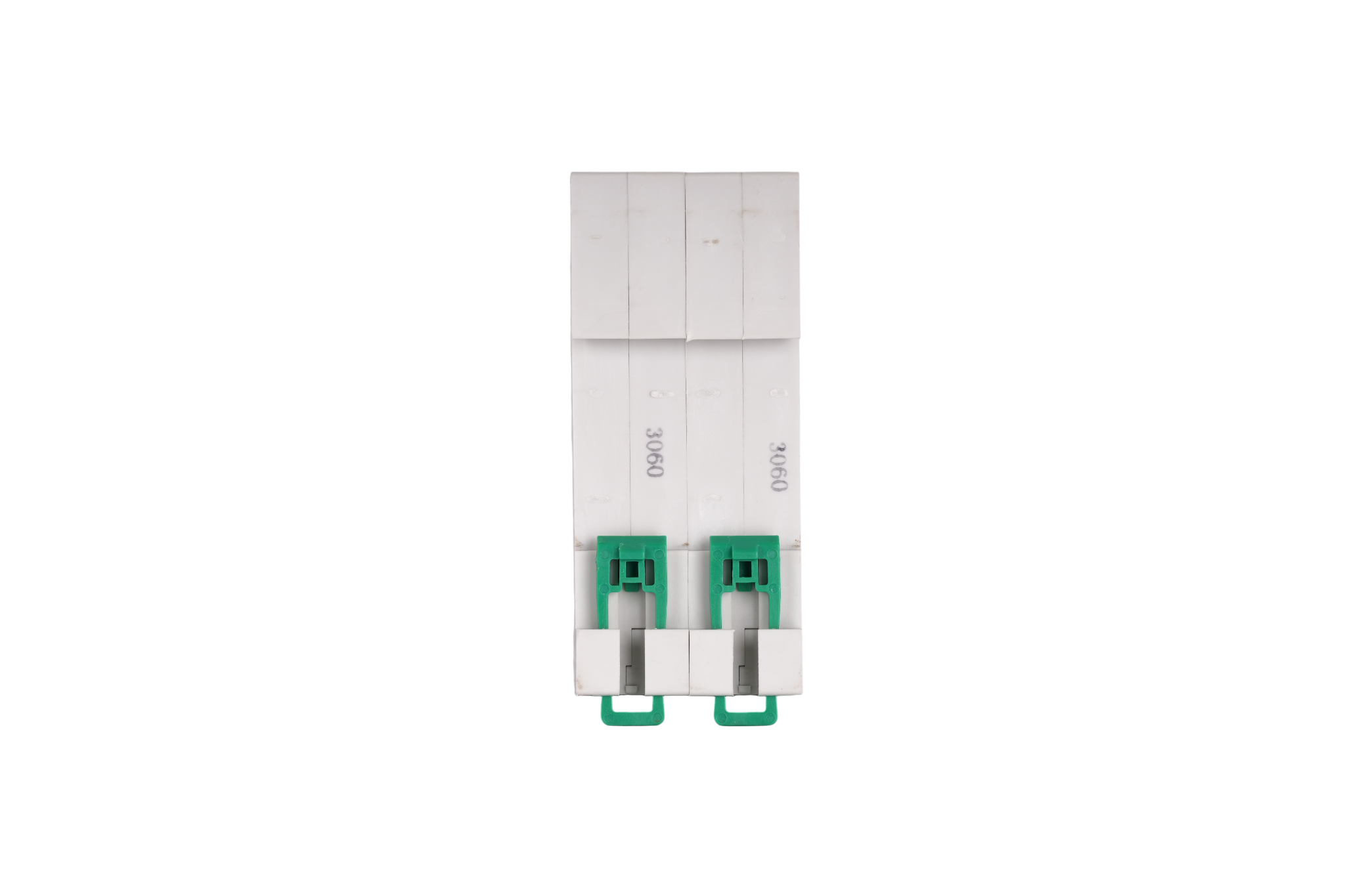

Installation: | 35mm Standard DIN-Rail Snap-on |
Standard Compliance: | IEC 60898-1 |
1. Elite Renewable & Smart Grid Protection
Absolute L+N Feedback Prevention: In grid-tied solar systems, failing to disconnect the neutral wire can result in lethal reverse currents feeding back into the utility grid during a blackout. This 2P mechanism guarantees that both the Active phase and the Neutral line are severed simultaneously, ensuring 100% galvanic isolation for utility workers.
Continuous 63A Solar Inverter Support: During peak daylight hours, solar inverters output relentless, maximum-capacity AC power. The massively upscaled bi-metallic thermal elements inside this breaker are specifically designed to withstand this continuous 63A thermal onslaught without premature degradation.
Instantaneous Arc Vaporization: Incorporates advanced magnetic trip coils and high-density arc chutes that aggressively draw, stretch, and extinguish massive 6kA AC short-circuit spikes in milliseconds, preventing catastrophic fires within tight solar combiner enclosures.
2. Specialized Structural & Visual Engineering
Color-Coded 'Safe Isolation' Toggle: The highly visible green switch is recognized globally by electricians as the standard indicator for main incoming isolators or renewable energy feeds. This enables maintenance crews to instantly locate the critical disconnect within a densely packed smart home consumer unit.
Oversized AC Output Terminals: Routing 14.5kW of single-phase power requires exceptionally thick 16mm² wiring. The heavy-duty screw terminals are widened and reinforced to accept thick-gauge cables, ensuring maximum clamping torque, zero voltage drop, and exceptionally cool operations.
V0-Rated Thermal Armor: Housed in a structurally rigid, fire-retardant thermosetting polymer block. It effortlessly dissipates the significant heat generated by 63A continuous transmission, maintaining dielectric integrity over decades of use.
3. Target Application Scenarios
Because of its massive 63A rating, 2-pole total isolation, and distinctive green coloring, this MCB is heavily requested by global EPCs for:
Residential Solar AC Combiners: Serving as the mandatory main AC disconnect switch between high-capacity single-phase string inverters and the utility grid.
Smart Home Main Incomers: Acting as the primary incoming isolation switch for luxury villas and modernized apartments with heavy electrical consumption (HVAC, EV chargers).
Telecom AC Input Isolation: Providing visually distinct, heavy-duty 2-wire isolation for the AC power feeds entering remote cell tower rectifier cabinets.
Temporary Outdoor Power Boards: Used in construction site 'spider boxes' where double-pole isolation is mandated for worker safety in wet conditions.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Renewable Supply: Bypass intermediary trading markups. We provide aggressive, direct-from-factory wholesale pricing to significantly optimize the Bill of Materials (BOM) for your solar installation and smart home projects.
Rigorous 63A Thermal Calibration: We do not gamble with maximum-capacity breakers. Every 63A unit is subjected to exhaustive automated continuous-load heat testing and 6kA short-circuit simulations prior to international export.
Custom OEM Solutions for Panel Builders: We offer comprehensive white-labeling services, including bespoke laser-engraved faceplates and specific toggle color-coding to perfectly match your proprietary distribution board designs.
