Product Overview

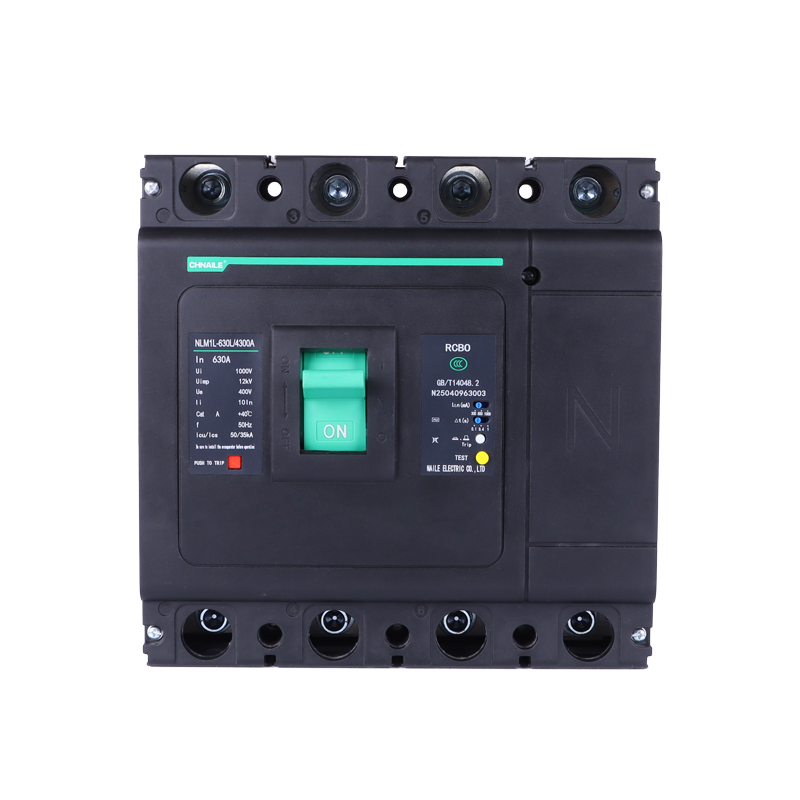

In highly combustible or heavy industrial environments, managing 630 Amperes of power goes beyond simple overload protection; it requires flawless integration with the facility's grounding architecture. Standard 4-pole breakers that sever the neutral line can cause lethal overvoltages and equipment destruction in TN-C integrated grounding networks. The CHNAILE Heavy-Duty 630A Adjustable Earth Leakage MCCB features a highly specialized 'Type A' internal structure. The Neutral (N) pole is permanently unbroken and bypassed from the tripping mechanism, while the internal intelligent toroid continuously monitors the vector sum of the active phases. This guarantees life-saving, customizable ground-fault detection while maintaining absolute neutral continuity for immense agricultural processing hubs and metallurgical plants.
Technical Parameters
| Device Category: | Adjustable Earth Leakage Molded Case Circuit Breaker (Industrial RCBO) |
| Poles Configuration: | 3P + Solid N (Type A Logic: N-pole is permanently connected, non-tripping) |
| Rated Current (In): | 630A (Engineered for colossal 450kW+ continuous payloads) |
| Rated Operating Voltage (Ue): | AC 400V (50Hz) |
| Rated Insulation Voltage (Ui): | 1000V (Exceptional dielectric strength) |
| Rated Impulse Withstand Voltage (Uimp): | 12kV (Utility-grade atmospheric surge defense) |
| Ultimate Breaking Capacity (Icu): | 50kA (L-Type robust plasma suppression) |
| Adjustable Leakage Current (IΔn): | 100mA / 300mA / 500mA (Blue Rotary Dial) |
| Adjustable Time Delay (Δt): | 0.1s / 0.4s / 1.0s (For cascading network safety) |
| Instantaneous Magnetic Trip (Ii): | 10In (Immune to massive motor startup inrush) |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |
1. Mastery of Specialized Grid Protection
Type-A Solid Neutral Compliance: In facilities utilizing TN-C grounding, breaking the neutral conductor removes the earth reference, instantly sending deadly phase voltages into single-phase equipment. This MCCB's N-pole is structurally bypassed from the tripping bar. Only L1, L2, and L3 are severed during a fault, ensuring strict compliance with complex international heavy-industry wiring codes.
Hierarchical Earth-Fault Selectivity: Dusty environments naturally cause high leakage currents. By adjusting the blue rotary dials, engineers can set the leakage threshold to 500mA and the delay to 1.0s. This "Earth Fault Discrimination" ensures that the 630A main breaker ignores harmless background leakage and allows smaller downstream sub-breakers to trip first, preventing a total facility shutdown.
50kA Catastrophic Arc Vaporization: When a genuine 3-phase short circuit occurs, the immense magnetic field violently forces the 50,000A plasma arc into massive metallic splitter grids, neutralizing the explosion in milliseconds to protect the main distribution board.
2. Heavy-Duty Industrial Architecture
10In Heavy Motor Inrush Tolerance: Driving massive grain bucket elevators or mining slurry pumps generates immense starting surges. The fixed electromagnetic trip unit is calibrated to 10 times the nominal current (6300 Amps). This allows these colossal induction motors to spool up aggressively without falsely triggering the main disconnect.
12kV Outdoor Lightning Shield: Main distribution boards for agricultural complexes are often fully exposed. The staggering Ui 1000V internal insulation and 12kV Uimp rating act as a heavy-duty dielectric firewall, ensuring that direct lightning strikes on surrounding silos cannot breach the breaker and destroy downstream VFDs.
Mechanical Safety Verification: Features a dedicated yellow 'TEST' button for mandatory site safety audits, alongside a red 'Push to Trip' linkage checker. These tools empower site safety officers to verify mechanical integrity routinely in dust-choked environments.
3. Target Application Scenarios
Because of its unique Type-A solid neutral design, customizable leakage coordination, and massive 630A capacity, this MCCB is strictly mandated by international EPCs for:
Mega-Scale Grain Elevators & Milling: Serving as the ultra-reliable main incomer for explosive-dust environments, driving heavy conveyor belts and grain dryers without violating TN-C grounding codes.
Heavy Mining Wash Plants: Providing highly regulated, nuisance-free earth fault protection for heavy-duty, wet-processing slurry pumps in vibrating subterranean environments.
Cement & Aggregate Processing: Acting as the primary power gateway for multi-kilowatt rotary kilns and rock crushers where robust physical protection is required over delicate electronics.
Heavy Commercial Pumping Stations: Ensuring multi-tiered leakage safety and continuous 3-phase power for massive municipal water treatment intake pumps.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Sourcing: Bypass intermediary trading networks. Sourcing specialized Type-A industrial switchgear directly from our manufacturing lines drastically lowers the BOM for your heavy agricultural and mining projects.
Exhaustive IEC Calibration: Leakage selectivity at 630 Amps requires absolute precision. Every unit undergoes rigorous computerized calibration to verify the exact 100/300/500mA and time-delay parameters, alongside 50kA short-circuit blasts prior to export.
OEM Customization for Panel Builders: We actively partner with global heavy-machinery switchboard manufacturers, offering bespoke laser-engraved faceplates, heavy-duty phase barriers, and scalable manufacturing to elevate your proprietary distribution enclosures.

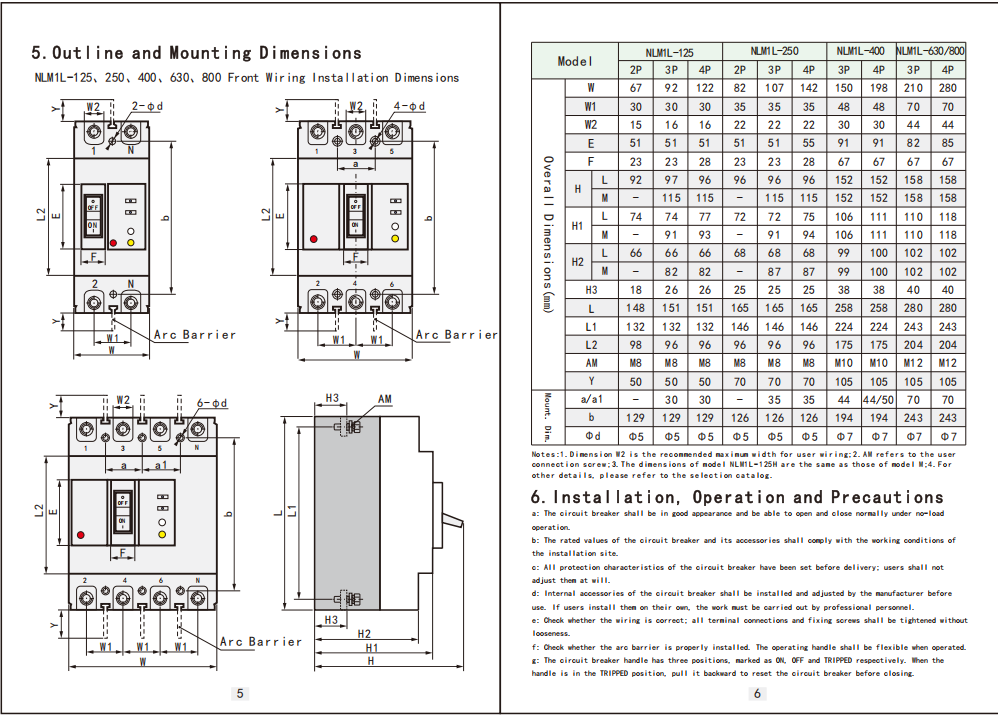

Residual Current Molded Case Circuit Breaker: Instruction Manual.pdf
