Product Overview

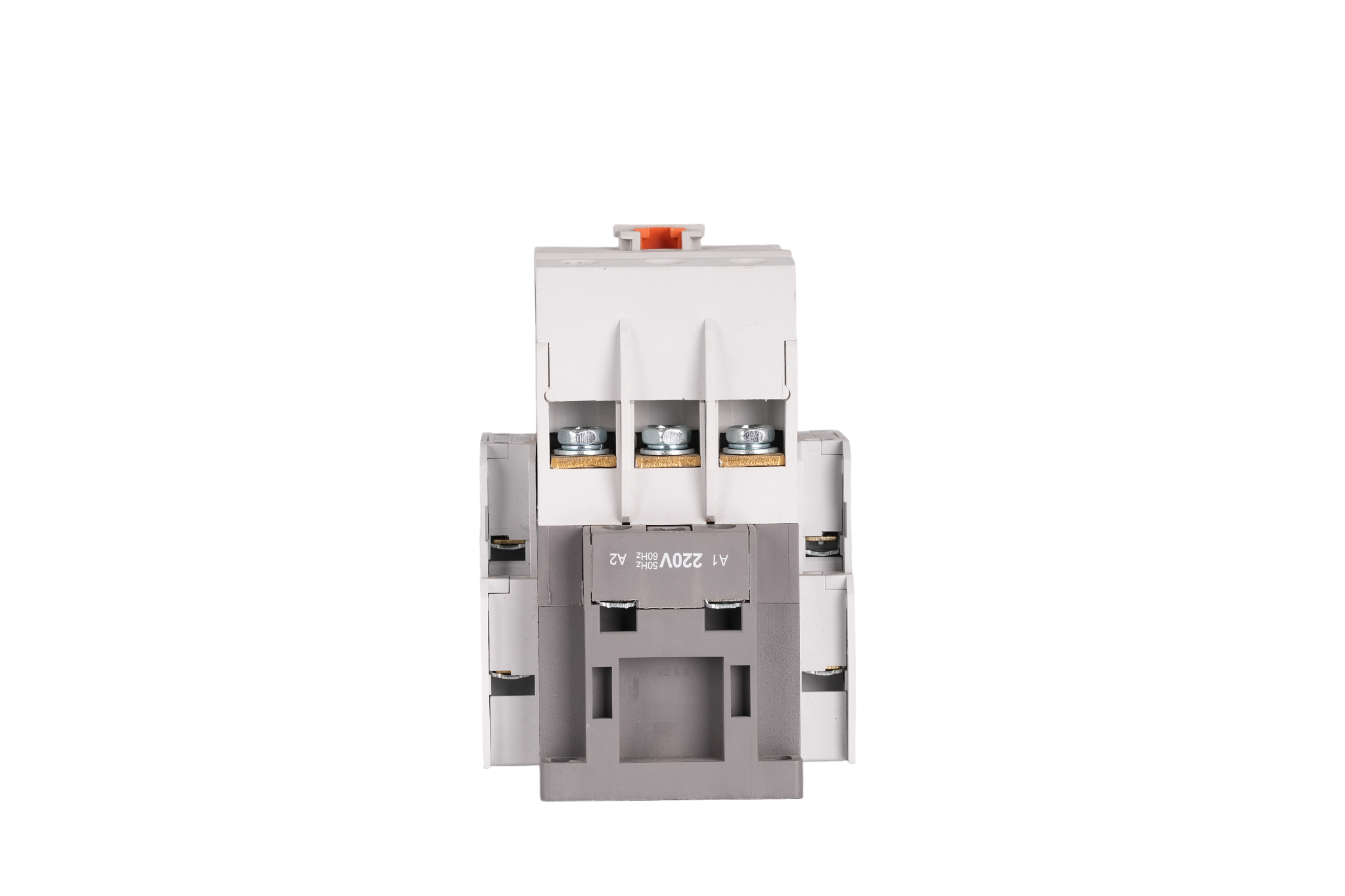

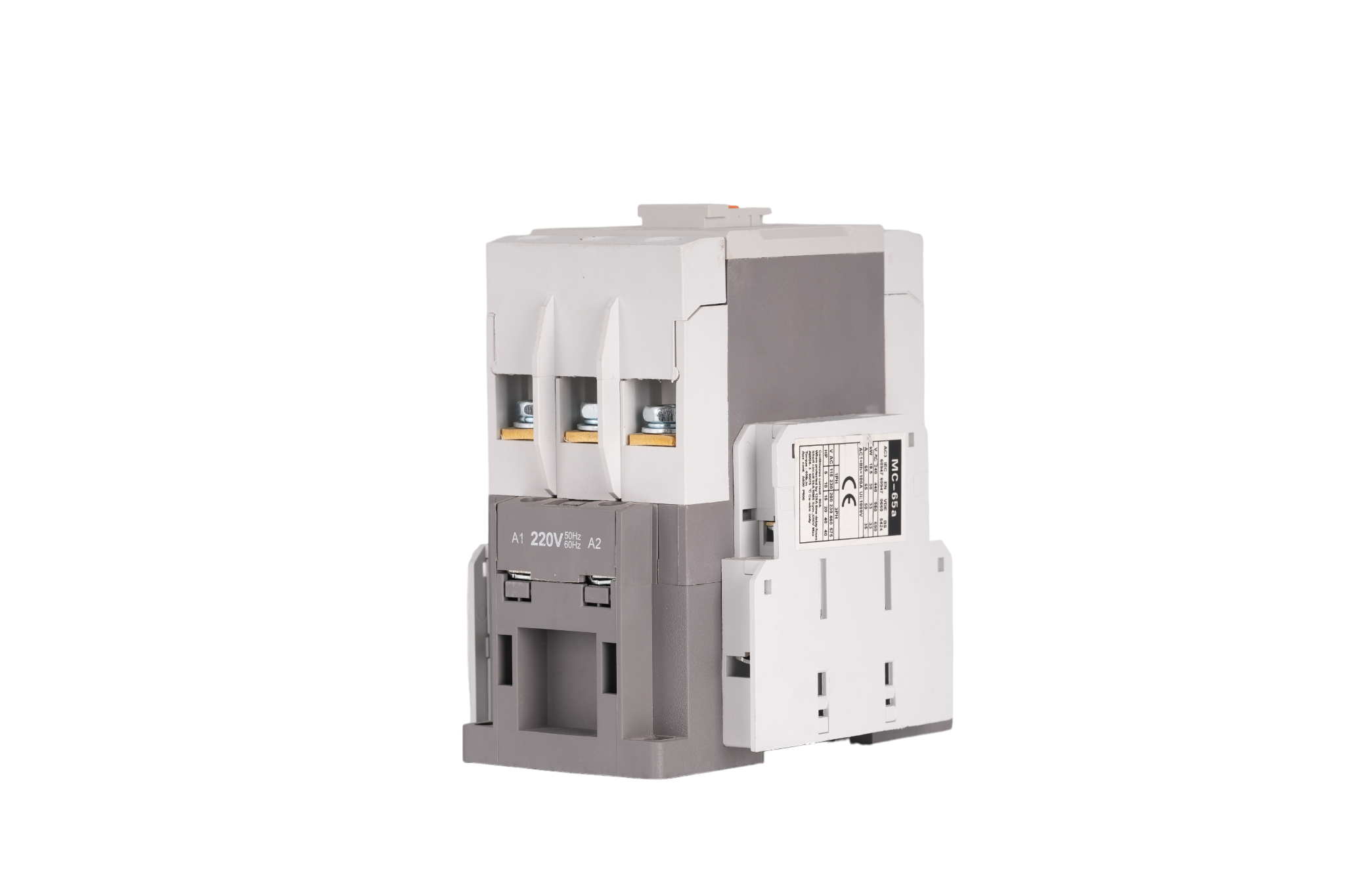

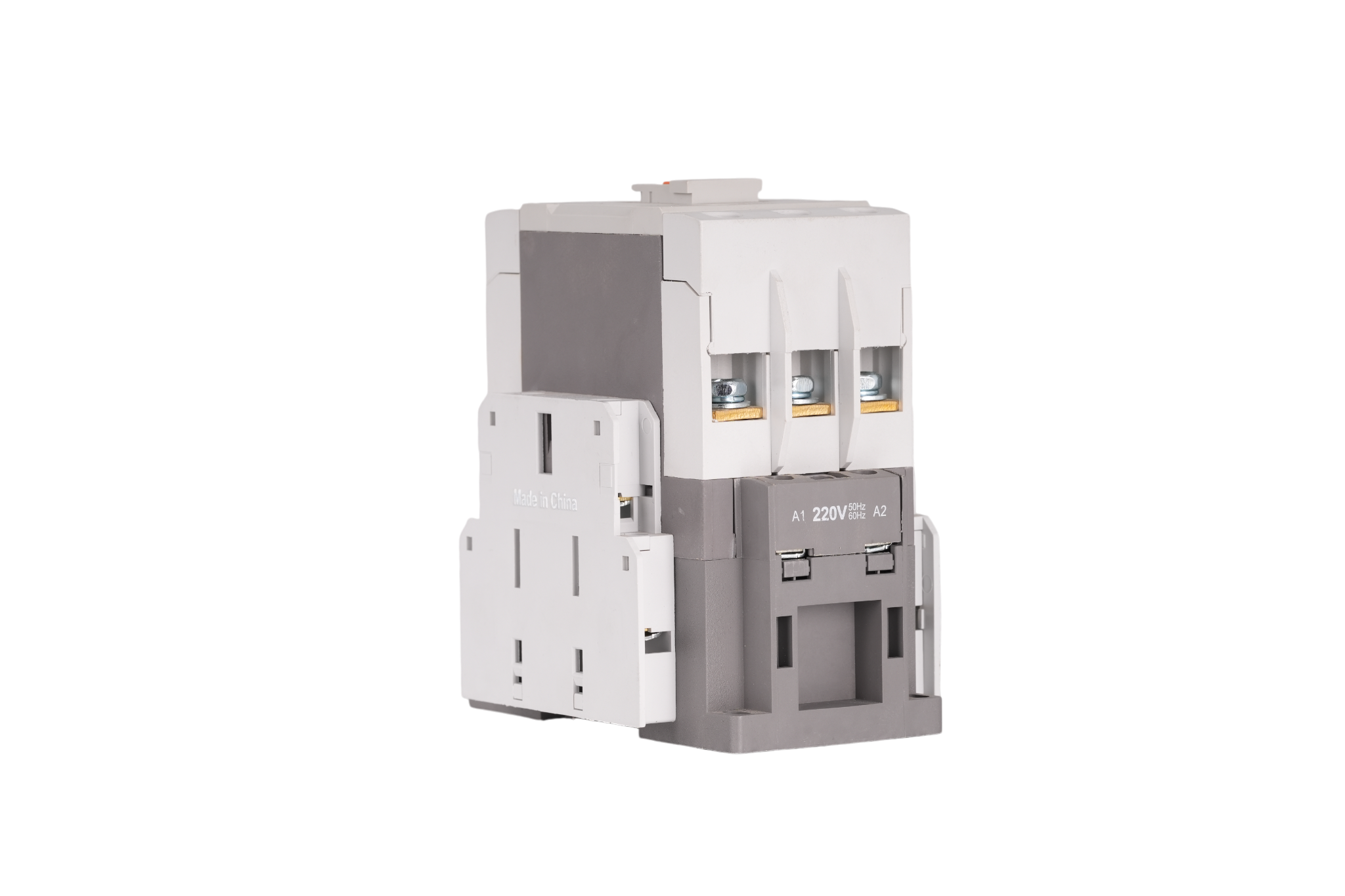

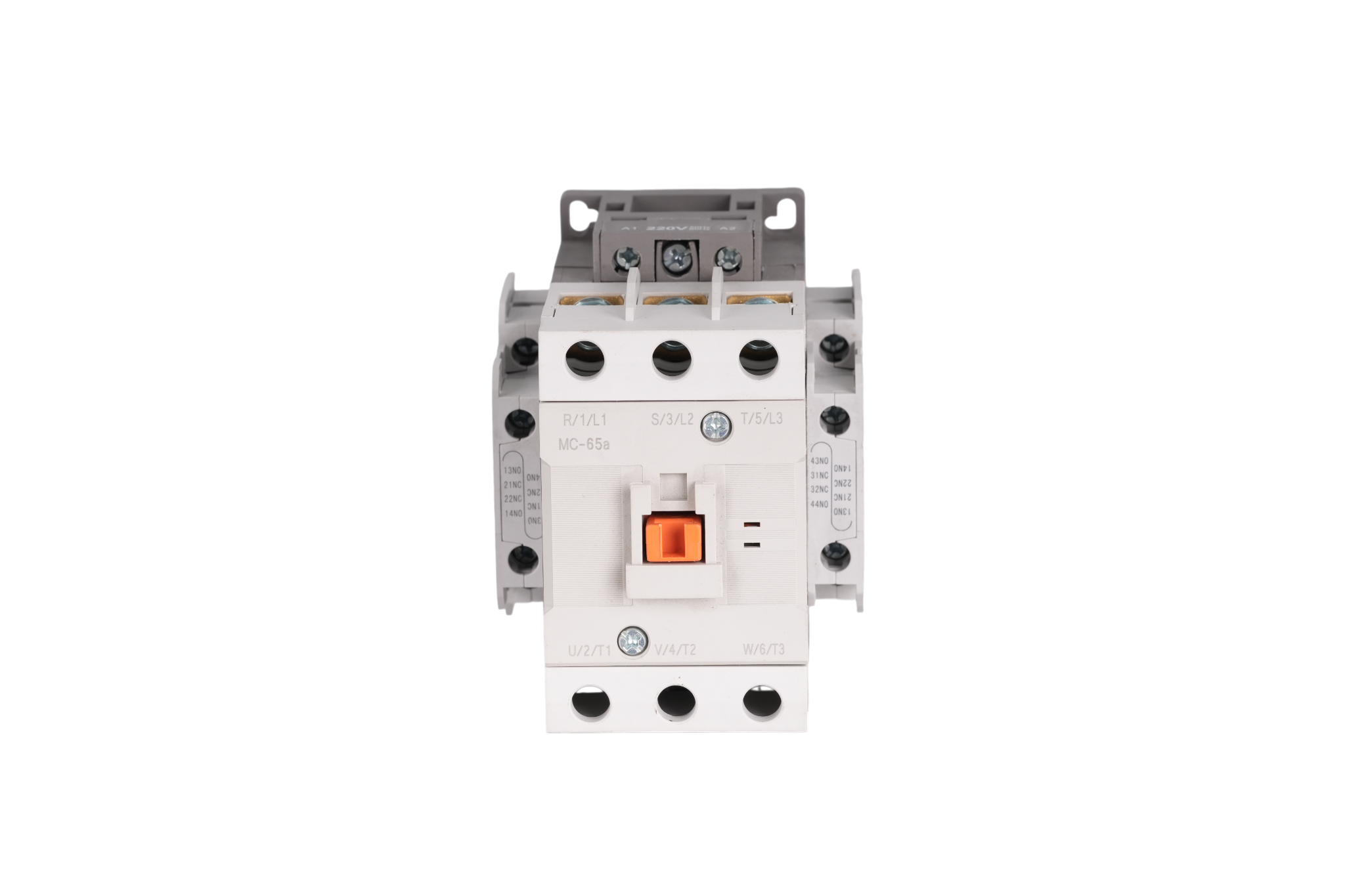

In heavy manufacturing, the motors driving hydraulic presses, industrial crushers, and municipal pumping stations demand extreme starting currents often exceeding 400 Amperes. Standard relays rapidly suffer from contact erosion and catastrophic welding under this brutal inrush. The CHNAILE Heavy-Duty 3-Pole 65A Magnetic AC Contactor is explicitly engineered to conquer these high-torque environments. Capable of sustaining massive 65-Ampere continuous AC-3 loads at 400V, it effortlessly controls heavy 3-phase motors up to 30kW. Complemented by its robust side-mounted auxiliary matrices (NO/NC) for sophisticated automated logic and safety interlocking, this IEC 60947-4-1 compliant behemoth ensures millions of uninterrupted cycles for global machinery OEMs.
Technical Parameters
Device Category: | Heavy-Duty AC Magnetic Contactor / High-Torque Motor Starter |
|---|---|
Main Poles Configuration: | 3P (Three Oversized Normally Open Main Contacts) |
Rated Operational Current (Ie): | 65A (AC-3 Category for heavy squirrel-cage motors) |
Max Motor Power Capacity: | ~30kW (40HP) at AC 400V/415V |
Contact Material: | Advanced Silver-Cadmium Oxide (AgCdO) for ultimate anti-welding |

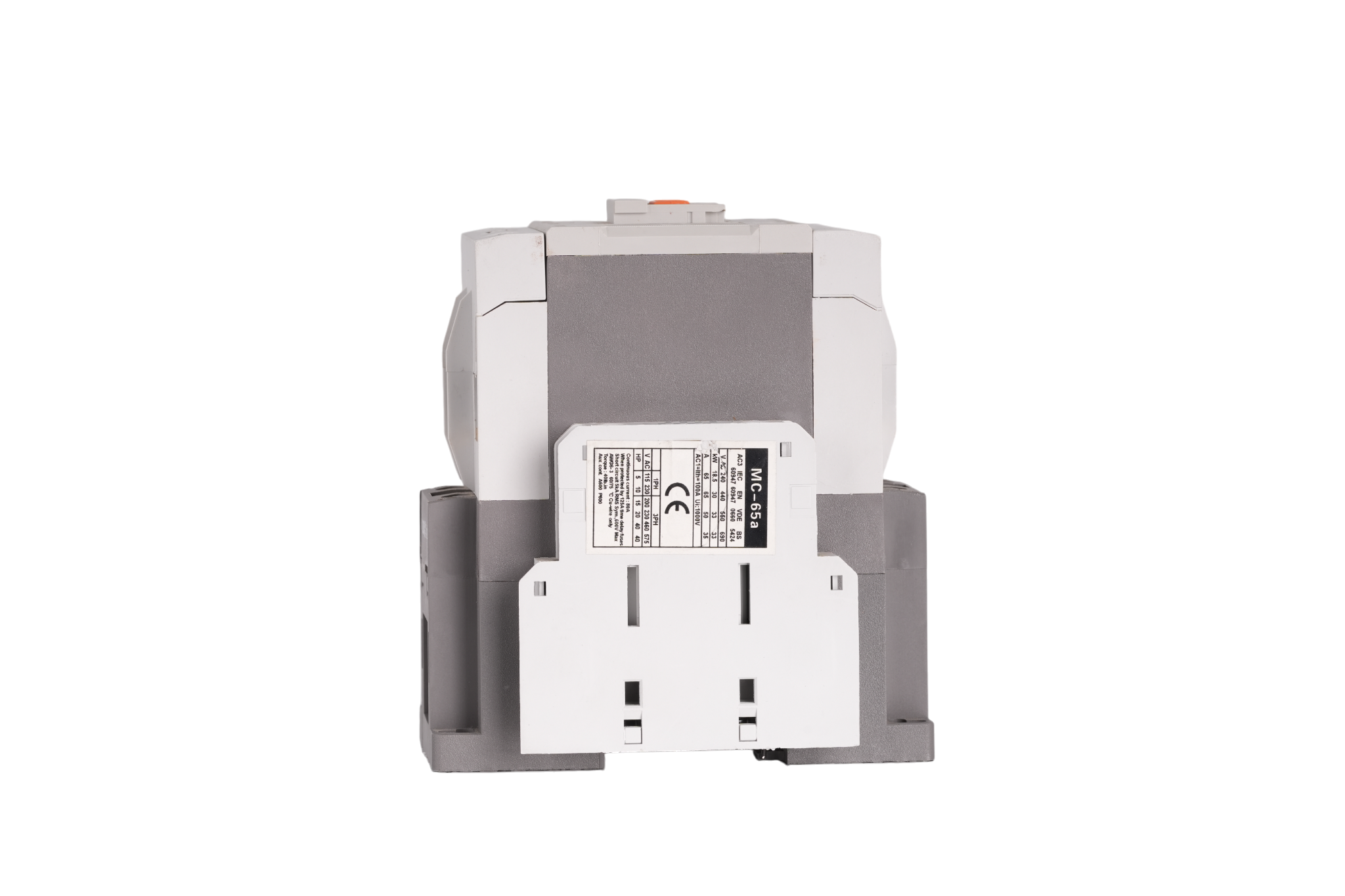

Auxiliary Architecture: | Dual Side-Mounted Expansion Blocks (13NO, 21NC, 31NC, etc.) |

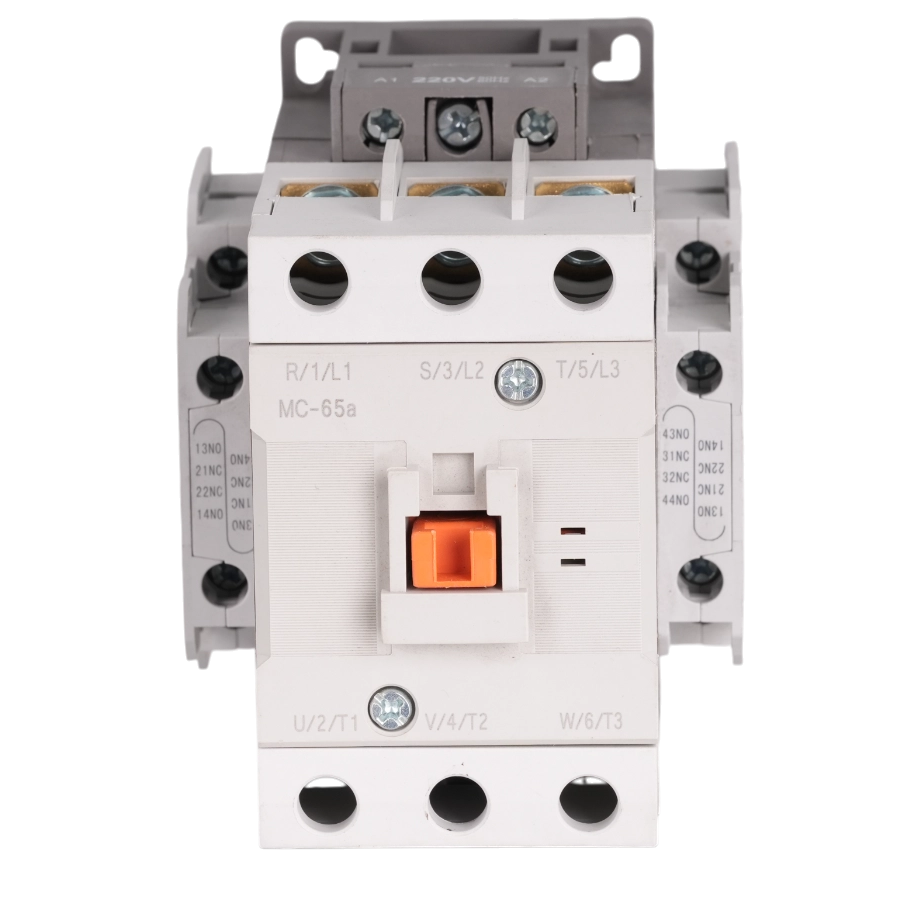

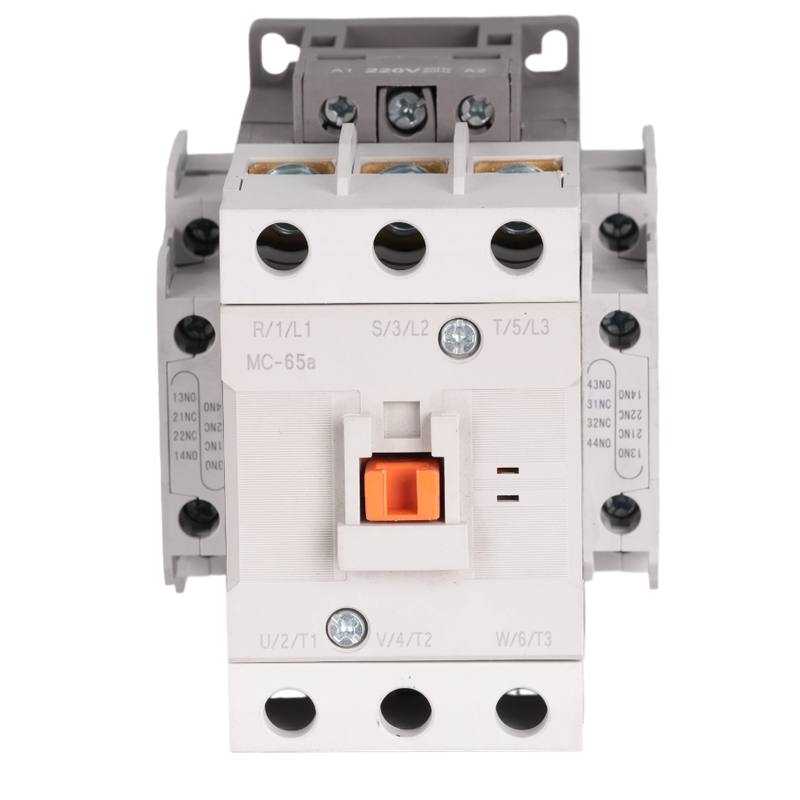

Visual Indicator: | Central Orange Kinetic Plunger (Instant mechanical status verification) |
Mechanical Life: | > 10 Million high-impact operations |
Installation: | Heavy-Duty Panel Screw Mount / 35mm DIN-Rail |
Standard Compliance: | IEC/EN 60947-4-1, CE Certified |
1. Elite High-Torque Motor Defense
30kW Inrush Arc Vaporization: The moment a 30kW motor is energized, it attempts to draw a massive inductive spike. The oversized, premium AgCdO contact pads are metallurgically formulated to effortlessly absorb this ferocious arc, while the deep internal splitter plates instantly stretch and cool the plasma, ensuring zero contact welding even during violent motor stalls or emergency reversals.
Profound Electromagnetic Actuation: Engaging 65A contacts requires immense physical pressure to maintain near-zero contact resistance. The oversized copper control coil generates a profound magnetic pull, slamming the thick copper bridges shut with extreme kinetic force, preventing "contact chatter" and the resulting lethal thermal runaway.
Complex Hydraulic Sequencing (NO/NC Logic): Heavy machinery rarely operates a single motor in isolation. The densely packed side auxiliary contacts are critical for PLC integration. They allow engineers to create intricate "Star-Delta" start sequences, or delay the activation of auxiliary cooling fans until the primary hydraulic pump contactor confirms a successful closed state.
2. Specialized Ruggedized Architecture
Kinetic Shock Dampening Chassis: The physical slam of a 65A contactor closing produces violent acoustic and mechanical shockwaves. The chassis is molded from a specialized, ultra-dense V0-rated thermosetting polymer that actively dampens this kinetic energy, preventing the sensitive lateral auxiliary switches from shattering over millions of cycles.
Massive Hex-Lug Terminations: Routing 65 Amps of 3-phase power demands exceptionally thick industrial cabling. The deeply recessed, high-torque hex-screw terminals are engineered to accept heavy-gauge wires, guaranteeing maximum clamping pressure to prevent dangerous wire creep and terminal meltdowns caused by persistent machine vibration.
3. Target Application Scenarios
Because of its massive 65A (30kW) load capacity and extensive auxiliary logic capabilities, this magnetic contactor is strictly specified by global machinery OEMs for:
Industrial Injection Molding: Serving as the ultra-reliable, interlocked main pump starter, integrating seamlessly into complex hydraulic pressure and heating zone safety loops.
Municipal High-Pressure Pumping: Acting as the primary high-torque starter for massive 30kW+ centrifugal water pumps and sewage lift stations in municipal grids.
Heavy Maritime Winches: Providing the fail-safe, high-amperage electrical muscle required to reliably control the UP/DOWN and holding brakes of heavy shipyard cranes and anchor windlasses.
Large-Scale Centralized HVAC: Supplying clean, rapid-switched power to massive multi-stage central air conditioning compressor units in commercial skyscrapers.
4. Global B2B Partnership with CHNAILE Factory
Direct Supply for Machinery OEMs: Bypass international component distributors. Sourcing high-capacity, logic-heavy motor starters directly from our manufacturing lines drastically lowers the BOM for your heavy machinery production.
Exhaustive IEC Contact Endurance Testing: At 65A, a welded contact is a catastrophic fire hazard. Every batch undergoes grueling, multi-day automated heavy-load switching cycles in our high-voltage labs to guarantee both the main and auxiliary contacts exceed IEC 60947-4-1 lifecycle mandates.
Bespoke Solutions for Heavy Industry: We actively support global pump and HVAC machinery builders, providing customized coil voltages (e.g., 24V, 110V, 220V, 380V), tailored auxiliary block configurations, and customized OEM faceplate printing to elevate your brand.
