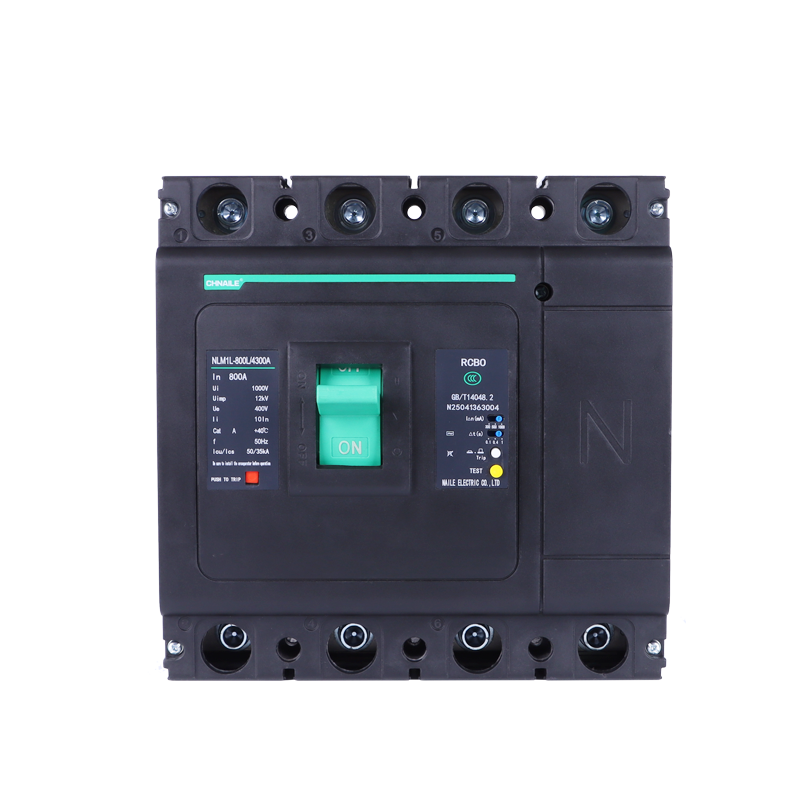

NLM1L-800L-4P
CHNAILE
Product Overview
In colossal engineering marvels like mega-scale wind farms and maritime dry docks, a localized ground fault must never cascade into a facility-wide 800-Ampere blackout. The CHNAILE Heavy-Duty 4-Pole Adjustable Earth Leakage MCCB is the master conductor of electrical continuity. By merging the brute force of an 800A thermal-magnetic breaker with a highly sophisticated, customizable earth-fault detection module (capable of reaching a 1000mA fire-protection threshold), it grants facility engineers perfect "Earth Fault Selectivity." Capable of instantly vaporizing 50,000A (50kA) short circuits while operating safely under an extreme 12kV atmospheric surge rating, this IEC-certified behemoth is the backbone of safe, uninterrupted mega-power distribution.

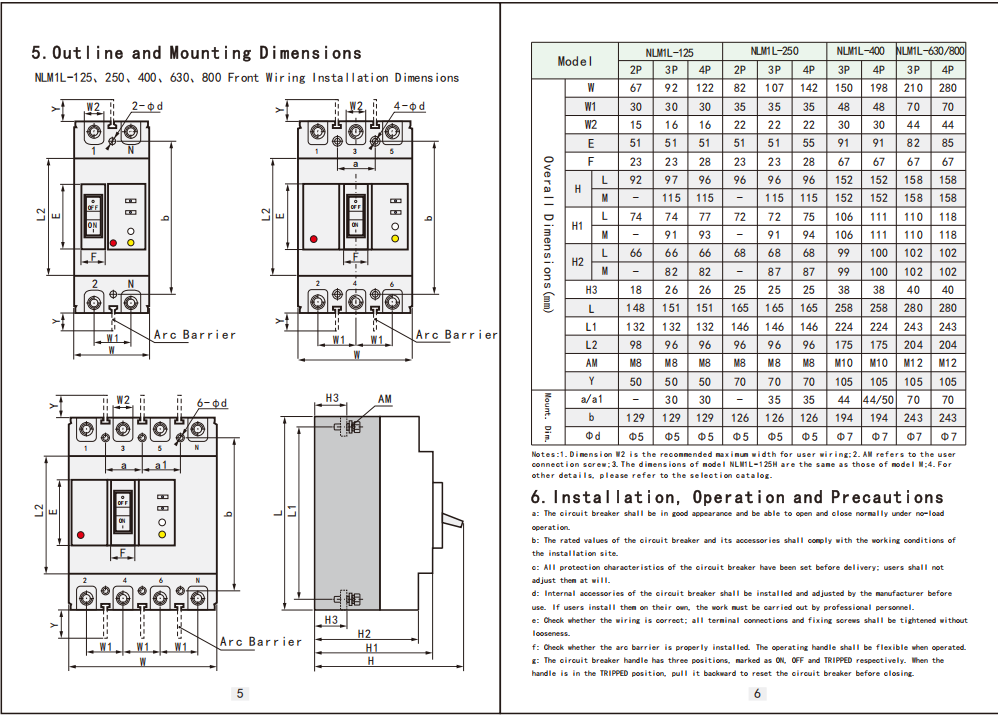

Technical Parameters
| Device Category: | Adjustable Earth Leakage Molded Case Circuit Breaker (Industrial RCBO) |
| Poles Configuration: | 3P + Solid N (Type A Logic: Neutral is permanently unbroken for TN-C stability) |
| Rated Current (In): | 800A (Engineered for massive 550kW+ continuous payloads) |
| Rated Operating Voltage (Ue): | AC 400V (50Hz) |
| Rated Insulation Voltage (Ui): | 1000V (Exceptional dielectric strength) |
| Rated Impulse Withstand Voltage (Uimp): | 12kV (Utility-grade atmospheric surge defense) |
| Ultimate Breaking Capacity (Icu): | 50kA (L-Type robust plasma suppression) |
| Adjustable Leakage Current (IΔn): | 300mA / 500mA / 1000mA (Rotary dial tuning) |
| Adjustable Time Delay (Δt): | 0.1s / 0.4s / 1.0s (For cascading network safety) |
| Instantaneous Magnetic Trip (Ii): | 10In (8000A - Immune to massive motor startup inrush) |
| Standard Compliance: | GB/T 14048.2 / IEC 60947-2 |

1. Mastery of Mega-Scale Fault Selectivity
1000mA Capacitive Leakage Tolerance: Large wind farms utilize kilometers of underground cabling, naturally generating high-level background capacitive leakage. By adjusting the blue rotary dial to the 1000mA (1A) threshold, this 800A main breaker intelligently ignores this inherent background "noise" while still providing mandatory protection against catastrophic electrical fires, keeping your renewable energy generation seamlessly online.
Cascading Safety Delays (Δt): Setting the time delay to 0.4s or 1.0s creates a hierarchical safety net. If a fault occurs on a downstream 125A branch, this main 800A breaker detects it but "waits." This crucial window allows the local sub-breaker to trip first, isolating the danger while maintaining uninterrupted power to the rest of the wind farm or shipyard.

2. Heavy-Duty Maritime & Renewable Architecture
Type A Solid Neutral Compliance: In heavy industrial facilities utilizing TN-C grounding, breaking the neutral conductor removes the earth reference, instantly sending deadly phase voltages into single-phase equipment. This MCCB's N-pole is structurally bypassed from the tripping bar. Only L1, L2, and L3 are severed during a fault, ensuring strict compliance with complex international heavy-industry wiring codes.
10In Heavy Pump Inrush Tolerance: Emptying a marine dry dock relies on colossal centrifugal water pumps. The pure physical electromagnetic trip unit is calibrated to 10 times the nominal current (8000 Amps). This allows massive industrial impellers to spool up aggressively without falsely triggering the main disconnect.
12kV Outdoor Lightning Shield: Main distribution boards for renewable energy are often fully exposed. The staggering Ui 1000V internal insulation and 12kV Uimp rating act as a heavy-duty dielectric firewall, ensuring that direct lightning strikes on nearby turbine towers cannot breach the breaker and destroy downstream megawatt inverters.
3. Target Application Scenarios
Because of its customizable 1000mA leakage coordination, Type A solid neutral design, and massive 800A capacity, this MCCB is strictly mandated by international EPCs for:
Marine Dry Docks & Shipyards: Serving as the ultra-reliable, moisture-proof main starter for massive 3-phase dewatering pumps and heavy gantry cranes.
Megawatt Wind Farm AC Combiners: Providing highly regulated, nuisance-free earth fault protection for the main AC output lines of centralized wind turbine arrays.
Heavy Mining & Slurry Processing: Acting as the primary power gateway for multi-kilowatt rock crushers and deep-shaft ventilation systems in highly vibrating subterranean environments.
Large-Scale Steel Foundries: Ensuring multi-tiered leakage safety and continuous 3-phase power for heavy metallurgical induction furnaces.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Infrastructure Sourcing: Bypass intermediary trading networks. Sourcing adjustable, high-capacity switchgear directly from our manufacturing lines drastically lowers the BOM for your large-scale renewable and maritime projects.
Exhaustive IEC Calibration: Leakage selectivity at 800 Amps requires absolute precision. Every unit undergoes rigorous computerized calibration to verify the exact 300/500/1000mA and time-delay parameters, alongside 50kA short-circuit blasts prior to export.
OEM Customization for Panel Builders: We actively partner with global heavy-machinery switchboard manufacturers, offering bespoke laser-engraved faceplates, heavy-duty phase barriers, and scalable manufacturing to elevate your proprietary distribution enclosures.
