Product Overview

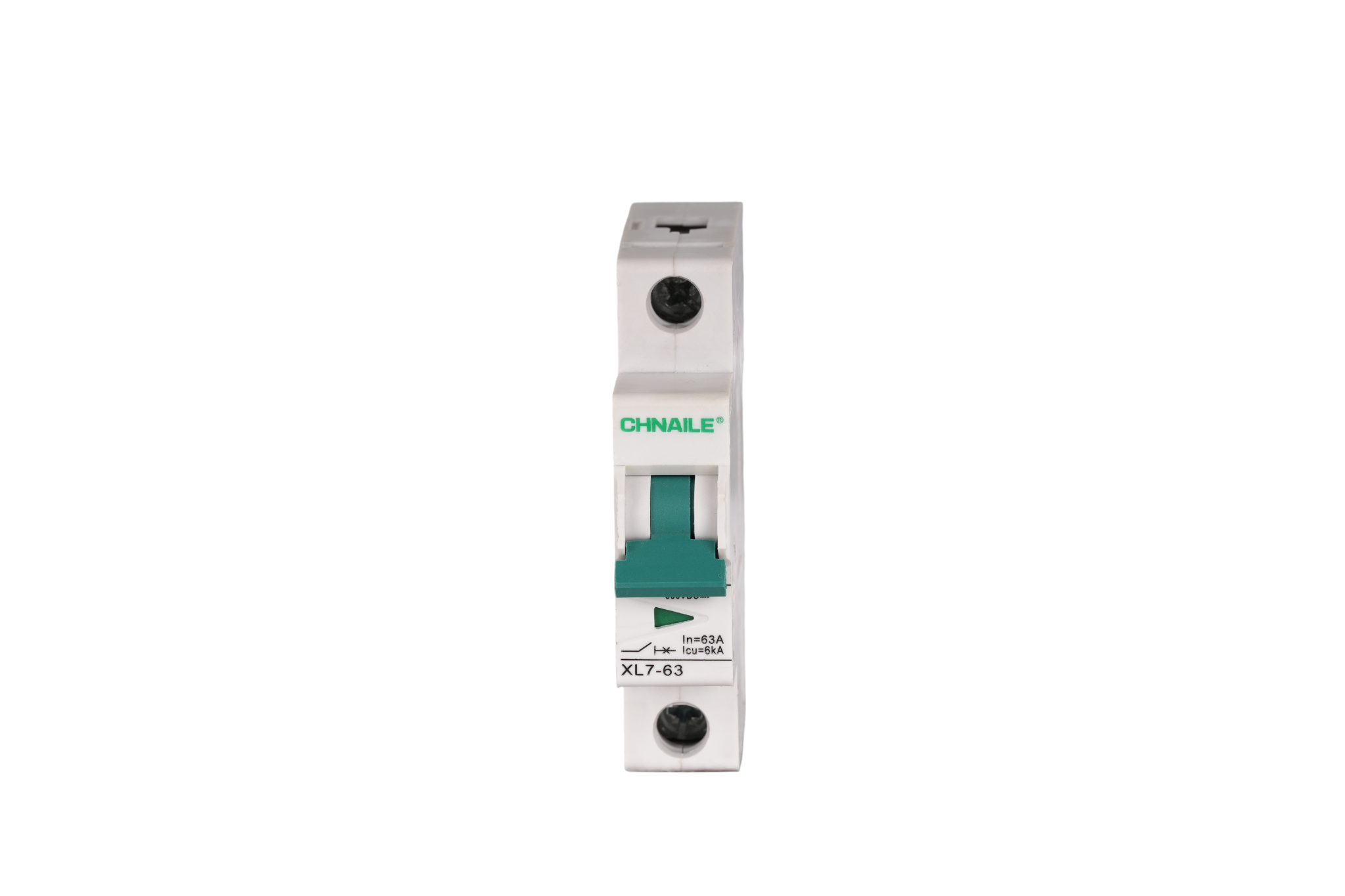

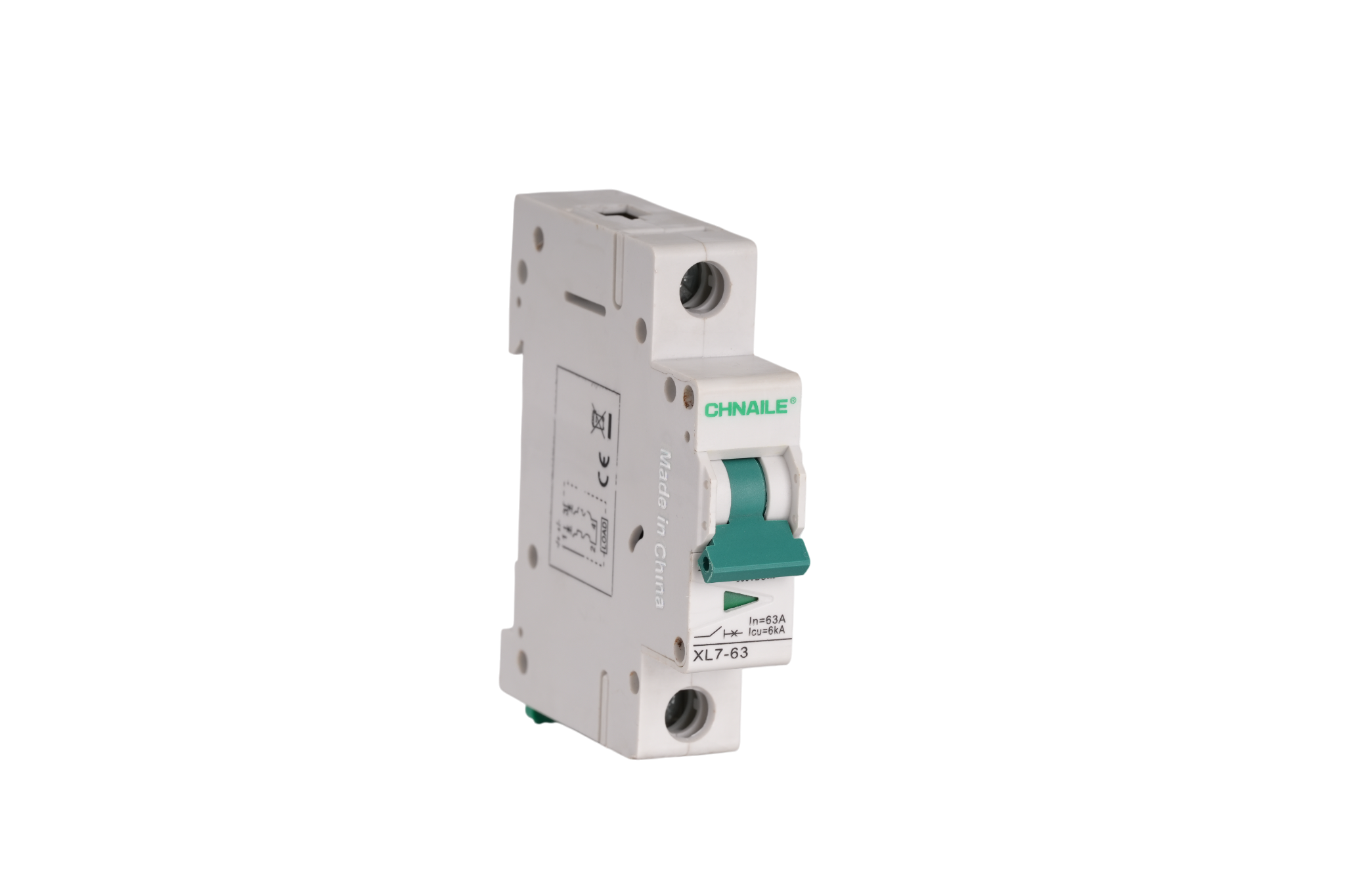

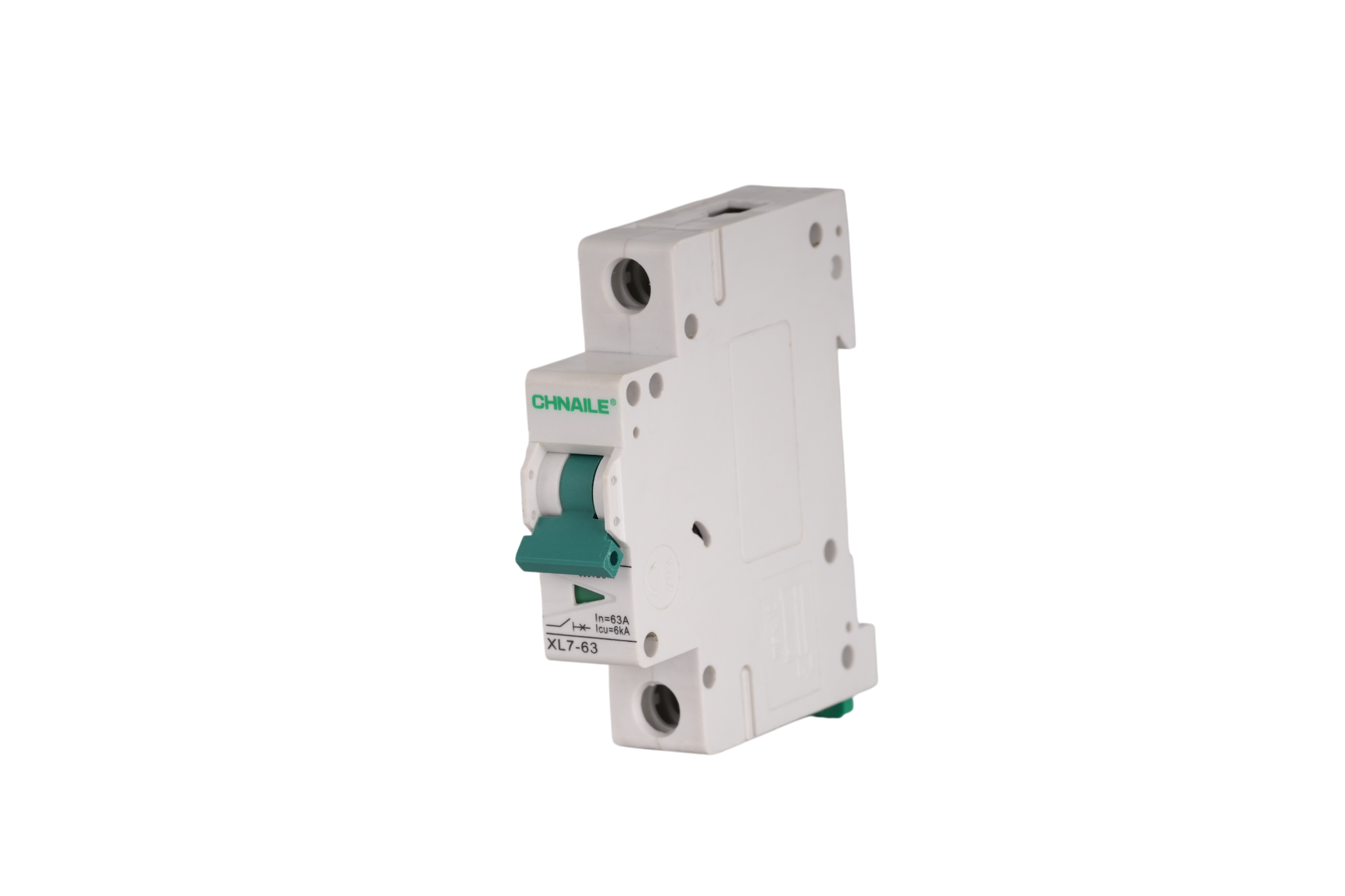

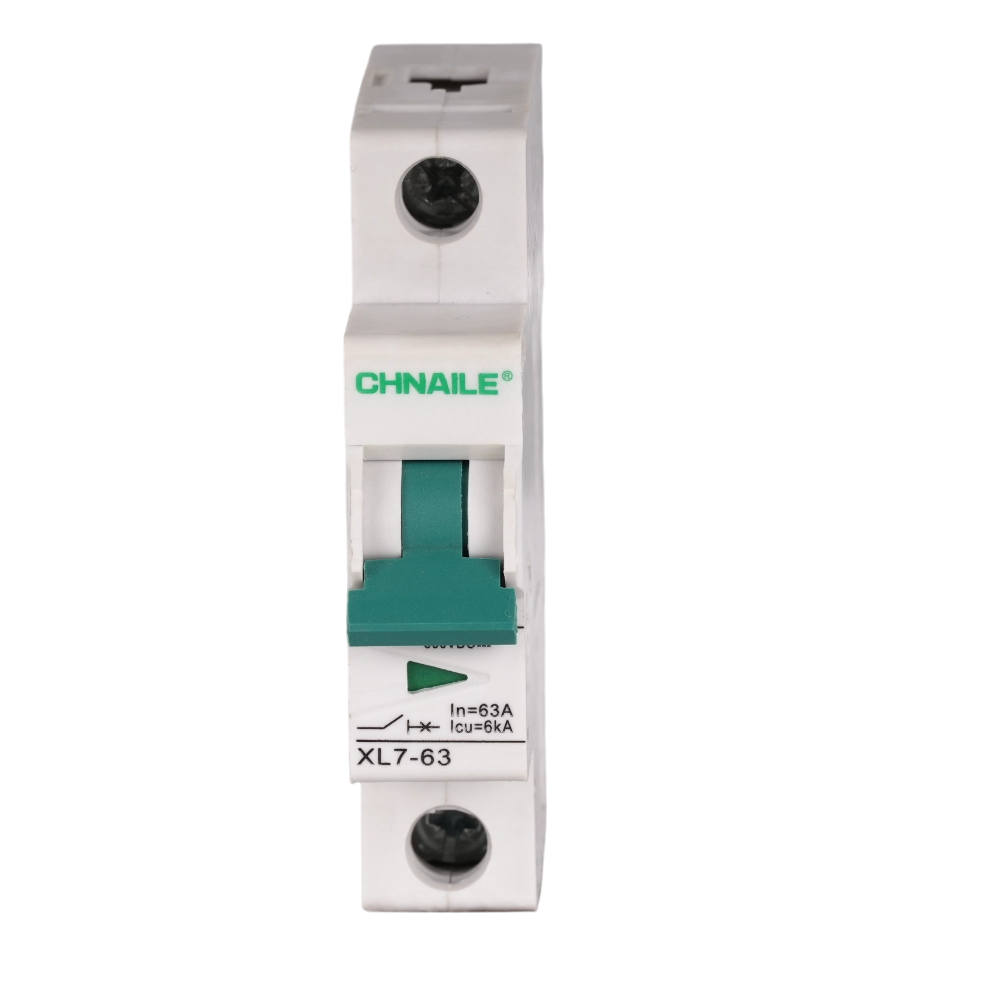

Direct current (DC) flows continuously in one direction, creating relentless, sustained electrical arcs during a short circuit that can quickly melt standard alternating current (AC) breakers. The CHNAILE Heavy-Duty 1-Pole DC Miniature Circuit Breaker (MCB) is a specialized isolation device built to conquer this specific hazard. Engineered to handle a formidable 63 Amperes of continuous DC power, this modular switchgear incorporates dedicated magnetic blow-out technology to safely interrupt 6kA DC fault currents. Highlighted by its distinctive green operational toggle for critical battery identification, it mounts effortlessly onto standard 35mm DIN rails, providing EPC contractors and mobile-power engineers with bulletproof protection for off-grid solar and telecom infrastructure.
Technical Parameters
Device Category: | Direct Current Miniature Circuit Breaker (DC MCB) |
|---|---|
Poles Configuration: | 1P (Single-Pole DC Isolation) |
Rated Current (In): | 63A (Maximum capacity for heavy battery banks) |
Current Type: | Direct Current (DC ⎓) |
Short-Circuit Breaking Capacity (Icu): | 6000A (6kA Specialized DC Suppression) |
Visual Identifier: | Industrial Green Toggle (Denotes Safe DC/Renewable Circuits) |
Installation Architecture: | 35mm Standard DIN-Rail Snap-on |
Standard Compliance: | IEC 60947-2 (Industrial DC Standards) |
1. Specialized Direct Current Defense
Aggressive DC Arc Extinction: Designed with elongated arc chutes and integrated permanent magnets. When a 63A battery bank experiences a dead short, the magnetic field aggressively stretches the stubborn DC plasma, forcing it into the metallic grids where it is instantly cooled and extinguished within milliseconds, preventing devastating cabinet fires.
Continuous Heavy Battery Loads: Solar charge controllers and telecom rectifiers pump relentless maximum-capacity DC power for hours. The massively upscaled internal copper pathways are explicitly designed to withstand this 63A continuous thermal onslaught without yielding to premature degradation or contact welding.
True DC Physical Isolation: When the green toggle is manually lowered to the 'OFF' position, it guarantees an absolute physical break in the DC circuit. This is a critical safety requirement allowing technicians to confidently service heavy lithium-ion battery banks without the risk of latent DC shock.
2. Off-Grid & Mobile Structural Engineering

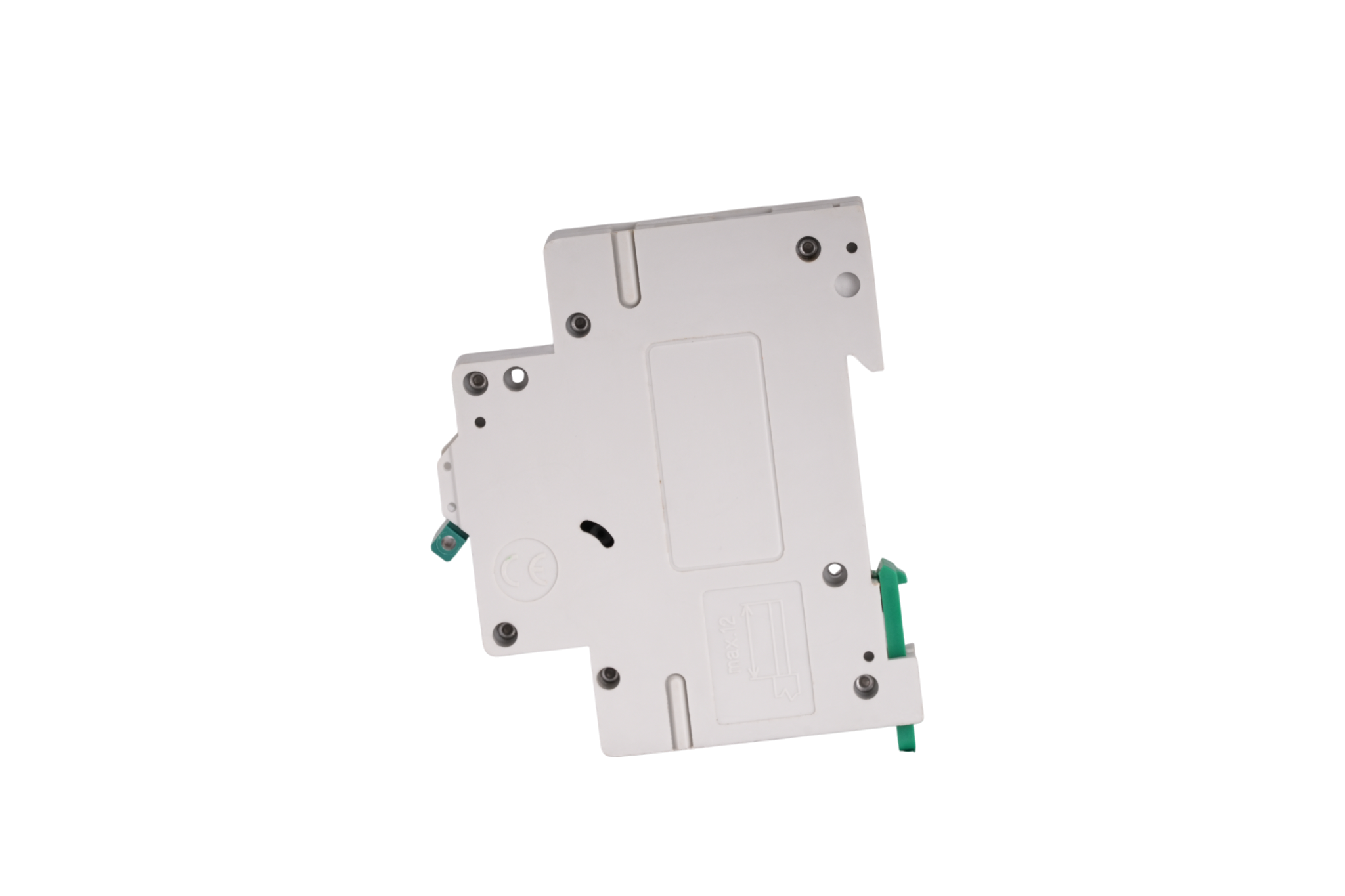

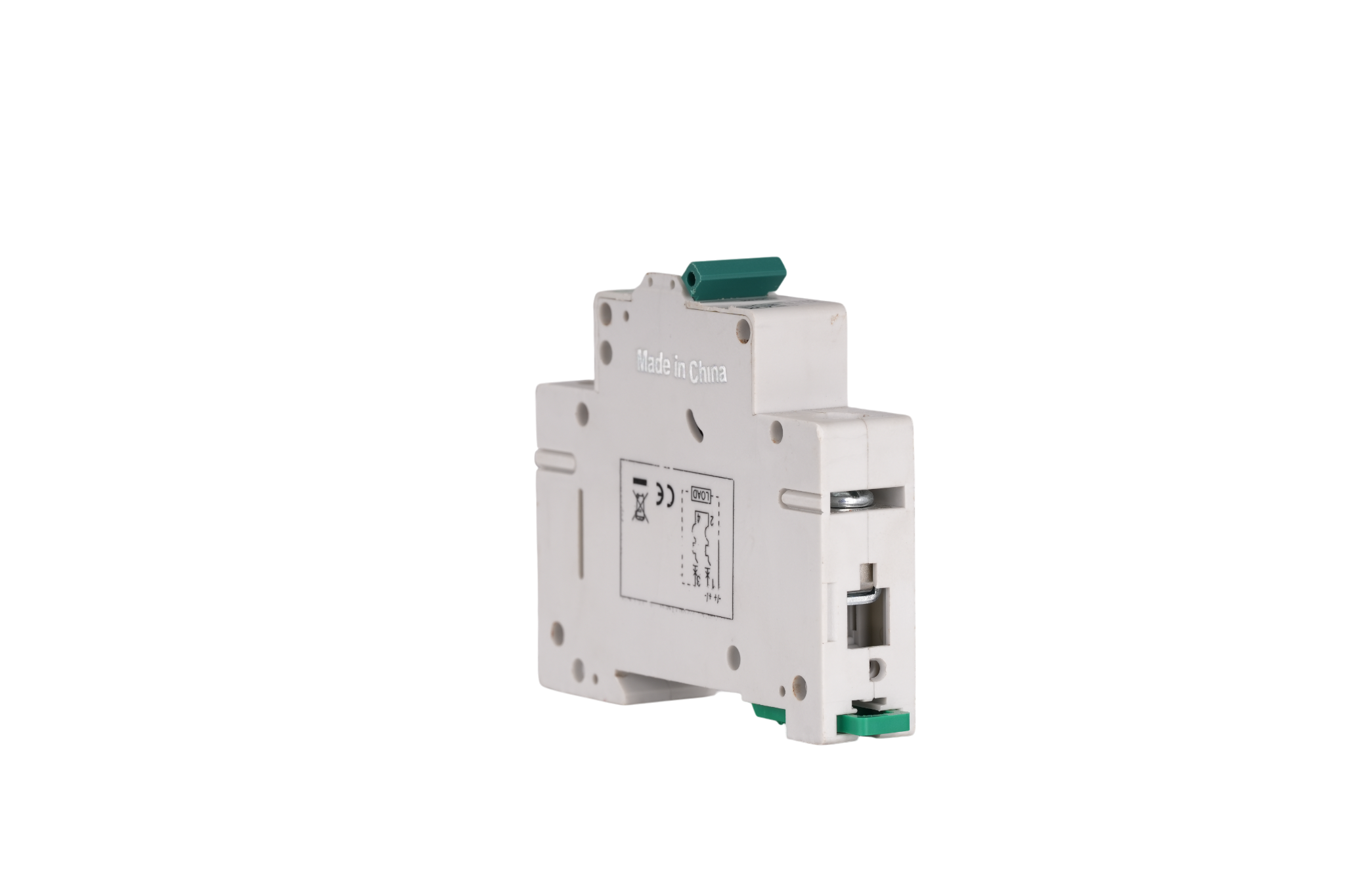

Vibration-Resilient DIN Anchorage: Mobile applications like campervans and maritime vessels endure constant kinetic shock. The breaker base is equipped with a high-tension bi-stable locking clip, ensuring the unit remains rigidly attached to the DIN rail despite severe engine or road vibrations.
Color-Coded Diagnostic Efficiency: In densely packed, dimly lit telecom battery cabinets or cramped RV utility compartments, human error is a major risk. The vivid green switch enables maintenance crews to instantly distinguish the critical DC battery disconnect from standard AC utility breakers.
V0-Rated Thermal Enclosure: Housed in a structurally rigid, fire-retardant thermosetting polymer block. It easily dissipates the significant heat generated by 63A continuous transmission inside sealed, non-ventilated off-grid battery boxes.
3. Target Application Scenarios
Because of its massive 63A DC rating and specialized arc suppression, this 1-Pole MCB is heavily requested by global installers for:
RV & Marine Solar Setups: Serving as the mandatory main DC isolation switch between rooftop solar arrays, MPPT charge controllers, and deep-cycle lithium-ion battery banks in campervans and yachts.
Telecommunication Battery Racks: Acting as the primary 48V DC output breaker for backup battery cabinets in remote 5G cell towers, ensuring uninterrupted network transmission.
Off-Grid Cabin Infrastructure: Providing dedicated, heavy-duty DC branch protection for independent homesteads running primarily on 12V/24V/48V solar-plus-storage ecosystems.
Industrial DC Control Circuits: Safeguarding localized direct current automation buses and heavy-duty DC contactor coils in manufacturing plants.
4. Global B2B Partnership with CHNAILE Factory
Direct Supply of Renewable Tech: Bypass intermediary trading markups. Sourcing specialized DC switchgear directly from our production facility guarantees aggressive wholesale pricing, optimizing the BOM for your solar and fleet modification businesses.
Rigorous DC Factory Acceptance Testing: DC testing leaves zero margin for error. Every 63A DC unit is subjected to exhaustive automated continuous-load heat testing and 6kA DC short-circuit simulations prior to international export.
OEM Customization for Fleet Builders: We offer comprehensive white-labeling services, including bespoke laser-engraved faceplates and customized packaging, allowing RV manufacturers and telecom integrators to perfectly match their proprietary designs.
