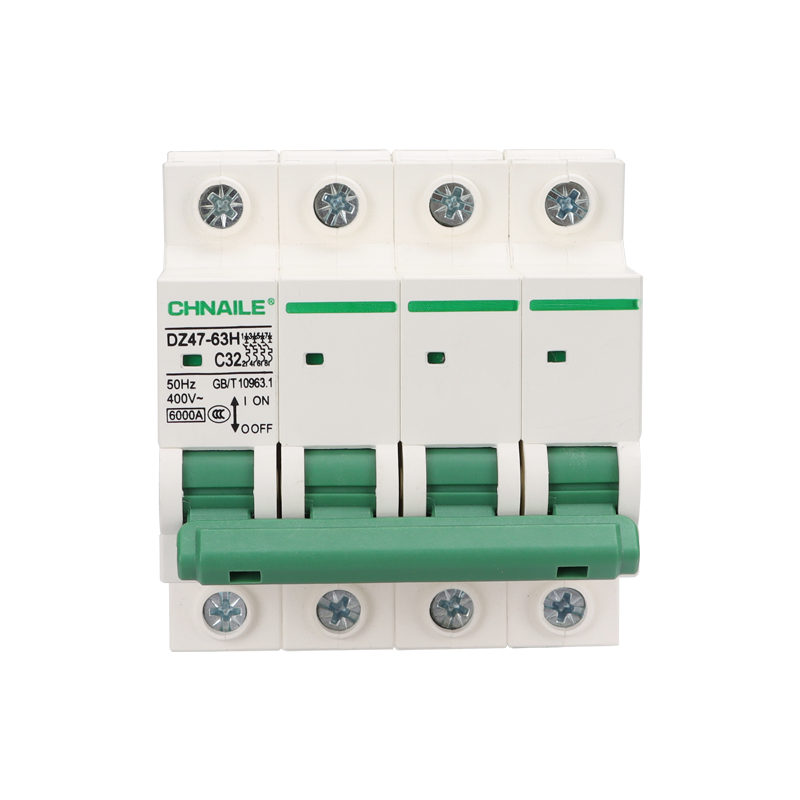

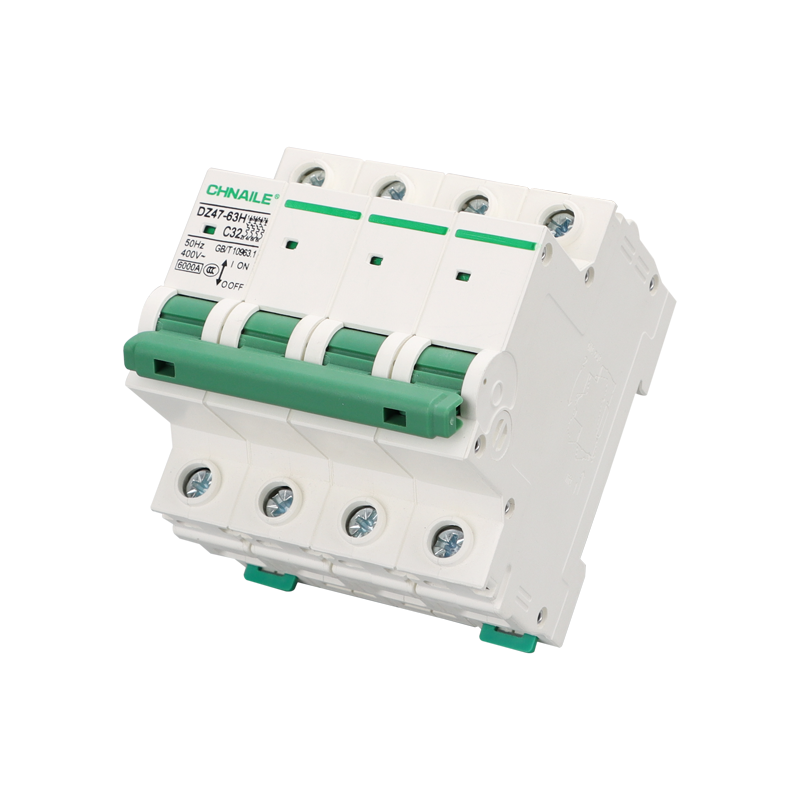

DZ47-63H-C32-4P
CHNAILE
Product Overview
In highly conductive, water-heavy environments, a compromised neutral wire can be just as lethal as a live phase. Standard 3-pole breakers leave maritime and wash-plant technicians vulnerable to neutral feedback during equipment servicing. The CHNAILE Damp-Heat Resistant 4-Pole Miniature Circuit Breaker (MCB) entirely eliminates this threat. Designed to simultaneously sever L1, L2, L3, and Neutral, it provides 100% galvanic isolation. Perfectly calibrated for 32-Ampere continuous loads (the international standard for 22kW heavy equipment), and fortified with advanced anti-corrosive internal plating to achieve a Class 2 Damp-Heat rating (55°C @ 95% RH), this 6kA breaker ensures uninterrupted, ultra-safe power distribution for the world's wettest and saltiest industrial applications.
Technical Parameters
| Device Category: | AC Miniature Circuit Breaker (Heavy-Duty Main Isolator) |
| Poles Configuration: | 4P (Simultaneous 3-Phase + Neutral Total Isolation) |
| Rated Current (In): | 32A (Optimized for standard 22kW 3-phase machinery) |
| Rated Operating Voltage (Ue): | AC 400V (50Hz) |
| Rated Insulation Voltage (Ui): | 690V (Exceptional dielectric strength in moist air) |
| Short-Circuit Breaking Capacity (Icu): | 6000A (6kA) |
| Trip Curve Type: | Curve C (Handles inductive motor start-ups) |
| Climatic Tolerance: | Class 2 Damp-Heat Resistant (Stable at 55°C, 95% Relative Humidity) |
| Mechanical Endurance: | 20,000 Operations (Extreme mechanical longevity) |
| Visual Identifier: | Industrial Green Toggles (Denoting Safe 4-Wire Isolation) |
| Standard Compliance: | GB/T 10963.1 / IEC 60898-1 |

1. Elite Environmental & 4-Wire Safety Mechanisms
Class 2 Damp-Heat Armor: Constant exposure to maritime salt-fog or car wash vapor causes standard breaker linkages to seize. The bimetallic thermal sensors and magnetic tripping coils within this CHNAILE breaker undergo specialized anti-corrosive passivation. This guarantees the mechanical linkages remain frictionless and fully responsive even when permanently subjected to 55°C temperatures and 95% ambient humidity.
Absolute 4-Pole Galvanic Isolation: In complex harbor grids, unbalanced loads can energize the neutral line. The internally synchronized 4-pole tripping bar ensures the neutral conductor is physically disconnected at the exact millisecond the active phases drop. This guarantees absolute zero-voltage safety for technicians unplugging massive refrigerated shipping containers.
Green 'Safe Isolation' Visual Coding: In massive coastal distribution boards, clarity prevents disasters. The distinctive quadruple green toggles serve as an international visual standard for "Safe Main Isolation," allowing engineers to instantly identify and confidently kill the primary 32A AC feed before performing wet-zone maintenance.

2. Heavy-Duty Structural Engineering
32A Continuous High-Humidity Transmission: 22kW water pumps and reefer cooling compressors draw relentless power. The massively upscaled internal copper pathways are explicitly designed to withstand this continuous 32A thermal stress across all four poles without yielding to premature degradation, even when heat dissipation is hindered by high-humidity air.
20,000-Cycle Indestructibility: Plugs in commercial wash bays and ports are energized and de-energized multiple times a day. The internal kinetic mechanisms are radically over-engineered to guarantee an astonishing 20,000 mechanical operations, drastically reducing OPEX (Operational Expenditure) for facilities located in highly corrosive environments.
Massive 25mm² Cable Anchorage: The deep-set, high-torque screw terminals are specifically widened to accept heavy-gauge 25mm² copper cables. This ensures a zero-gap, low-resistance connection that prevents thermal creep and terminal fires caused by continuous heavy vibrations from nearby diesel generators.
3. Target Application Scenarios
Because of its massive 32A 4-pole footprint, distinctive green coloring, and rare Class 2 damp-heat rating, this MCB is exclusively mandated by global EPCs for:
Port Reefer Container Terminals: Serving as the mandatory, climate-proof main AC disconnect switch for standard 32A refrigerated shipping container power receptacles exposed to corrosive salt-fog.
Automated Commercial Car Washes: Acting as the primary upstream 4P isolation breaker for heavy 22kW high-pressure water pumps and blower motors in perpetually wet environments.
Industrial Laundries & Textile Dyehouses: Providing unyielding, corrosion-resistant electrical distribution for massive 3-phase commercial washing machines operating in 90%+ humidity.
Maritime & Offshore Sub-Panels: Securing critical 3-phase equipment circuits on shipping vessels and oil rigs where absolute 4-wire isolation is a maritime safety code requirement.

4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Climate-Proof Switchgear: Bypass intermediary trading networks. Sourcing specialized damp-heat resistant 4P MCBs directly from our manufacturing floor dramatically optimizes the BOM for your international maritime and automated cleaning infrastructure projects.
Exhaustive Environmental Chamber Testing: We do not gamble with extreme climates. Every batch undergoes grueling weeks inside automated environmental chambers, cycling between extreme heat and 95% humidity, alongside 6kA short-circuit blasts prior to passing final IEC export certification.
Premium OEM Panel Builder Support: We actively partner with global marine and commercial facility system integrators, offering bespoke laser-engraved faceplates, specific toggle color-coding, and customized packaging tailored to your proprietary weather-proof distribution boards.
